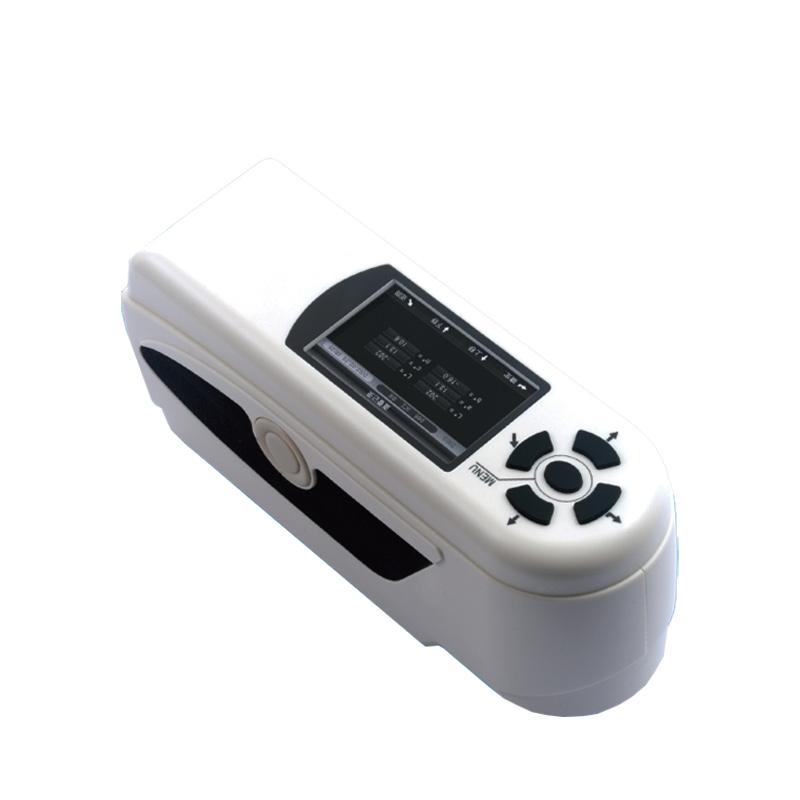

3NH NR200 NR series computer Colorimeter portable Colorimeter
Provide accurate and stable measurement performance (Delta E fluctuation is less than 0.08), unique lighting positioning function and powerful PC-side extension Software supports color difference analysis, chroma index calculation and color sample library management.
3NH
NR200
-
JZ-630 High Precision Colorimeter Suitable for Textile, coating powder industry color difference detection measurement diameter 14mm
$ 729.00 -
3NH NR20XE Colorimeter 20mm large diameter, suitable for plastic, Color plate, Coating, Spinning & weaving, food, etc
Login -
AMITTARI AC-115S Portable Colorimeter
$ 273.00 -
3NH CR4 color difference treasure (industrial basic version) accuracy 0.1
$ 334.00 -
IWAVE ColorCat Colorometer
$ 336.00
Introduction
NR200 cost-effective computerized Colorimeter is another masterpiece of the 3NH brand, inheriting the advantages of high stability and high precision of portable Colorimeter, and has a very high cost performance
Features
User-friendly design and ease of operation
One-click access to the test
Ergonomic structural design
Fool-proof interface
Stable measurement performance
The fluctuation of AE is less than 0.08 on average
The portable structure design is more conducive to keeping the body stable when applied.
Convenient and fast positioning
Light positioning function, fast and easy positioning function, a function developed for 3NH.
The PC software enables more functional expansion
The PC software has intellectual property rights, and the product is equipped with a corresponding genuine software serial number and password protection;
It can carry out color difference analysis, color difference accumulation analysis, color index, color sample library management, simulated object color, etc.
Advanced power management design
The first high-capacity lithium-ion battery was used in a Colorimeter; It can be used repeatedly and automatically, saving costs and can be measured more than 3000 times at a time, ensuring the stability of multiple measurements for a long time.
Applicable industries
Plastics, coatings, ink printing, automobiles, textiles, food, pharmaceuticals and other industries
3NH NR200 NR series computer ColoriMeterSpecifications
| LIST | VALUE |
|---|---|
| Lighting method | D/8° |
| Meet the standard | CIE No.15,GB/T 3978 |
| Sensor | silicon photodiode |
| Measurement caliber | Φ8mm |
| Color space | CIE LAB,LCh,XYZ |
| Observer Angle | CIE 10 ° Standard observer |
| Observational Light source | D65 |
| show | Chromatic value, color difference value/graph, pass/fail result, Color bias |
| Measurement time | 1.5s |
| Repeatability | Delta E * ab0.08 (average of 30 times) |
| stand-alone difference | Delta E * ab0.4 (BCRA series 12 color plate average) |
| size | 205X70X100mm |
| Weight | About 400g (including battery) |
| Battery | Rechargeable lithium-ion battery 3.7V@3200mAh |
| Light source | Lifespan 5 years greater than 1.60 million measurements |
| Display | TFT True Color 2.8inch @(16:9) |
| interface | USB |
| Store data | 100 master standards, 20,000 samples |
| Temperature range | 0~40'C(32~104°F) |
| Temperature range | -20~50°C(-4~122°F) |
| PC software | High-end host computer software |
| standard accessories | power adapter, manual, quality management software (download from the official website), data cable, wristband |
| Optional Accessories | Micro printer, powder test box |
3NH NR200 NR series computer ColoriMeter Packing list
machine x1, manual x1, certificate x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
