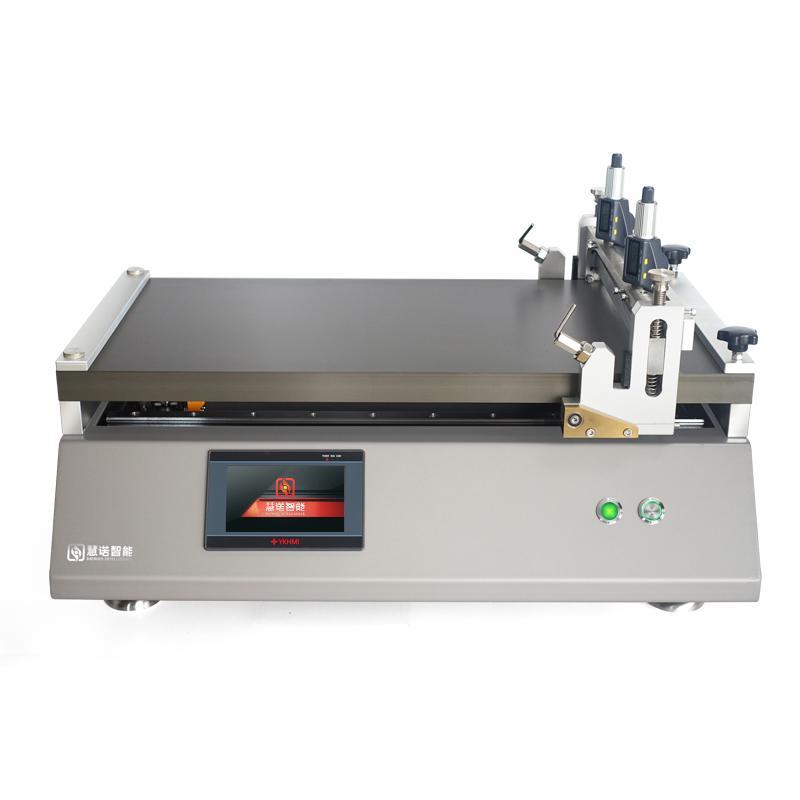

HuiNuo TM3000/07 Automatic Film Applicator

HuiNuo TM3000/07 bar doctor blade coater Coating size 400 * 500mm

Bar & drawdown blade integrated type, effective Coating size 400 * 500mm, snap-on bar groove design, bar installation is simple, digital display clamshell drawdown blade design, easy cleaning, tempered Glass baseplate, wear resistance, scratch resistance and heat resistance.

Brand

SKU: NB048879

HuiNuo

Model

TM3000/07

Price

$ 3674.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

HuiNuo shopSE

Information

Datasheet RFQ Contract Video Catalog Manual

What else did others buy

Genuinegoods

HuiNuo TM3000/07 Automatic Film ApplicatorOverview
Specifications
Comments
FAQs

TM3000/07

Automatic Film Applicator

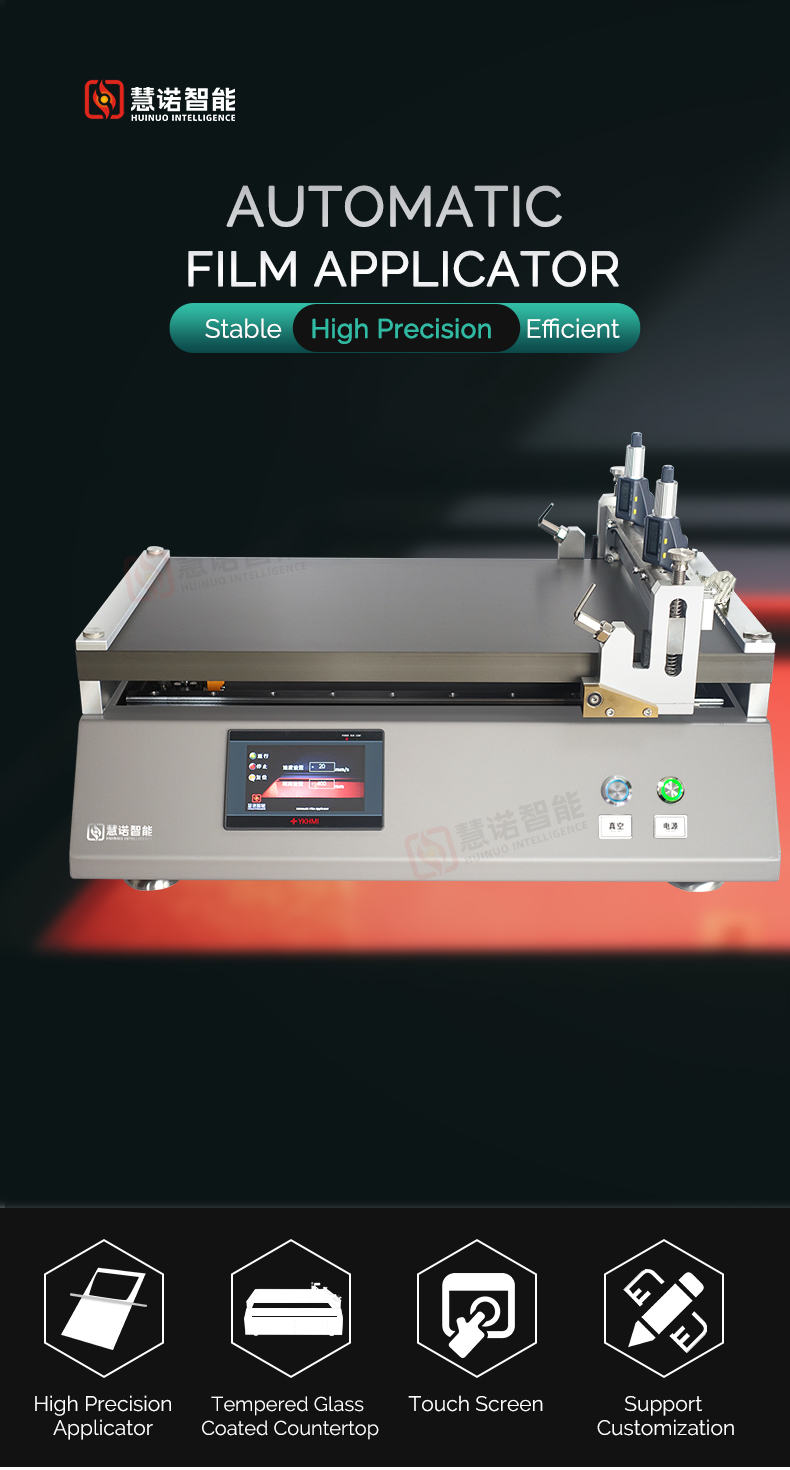

HuiNuo TM3000/07 bar doctor blade coater Coating size 400 * 500mm Figure 1

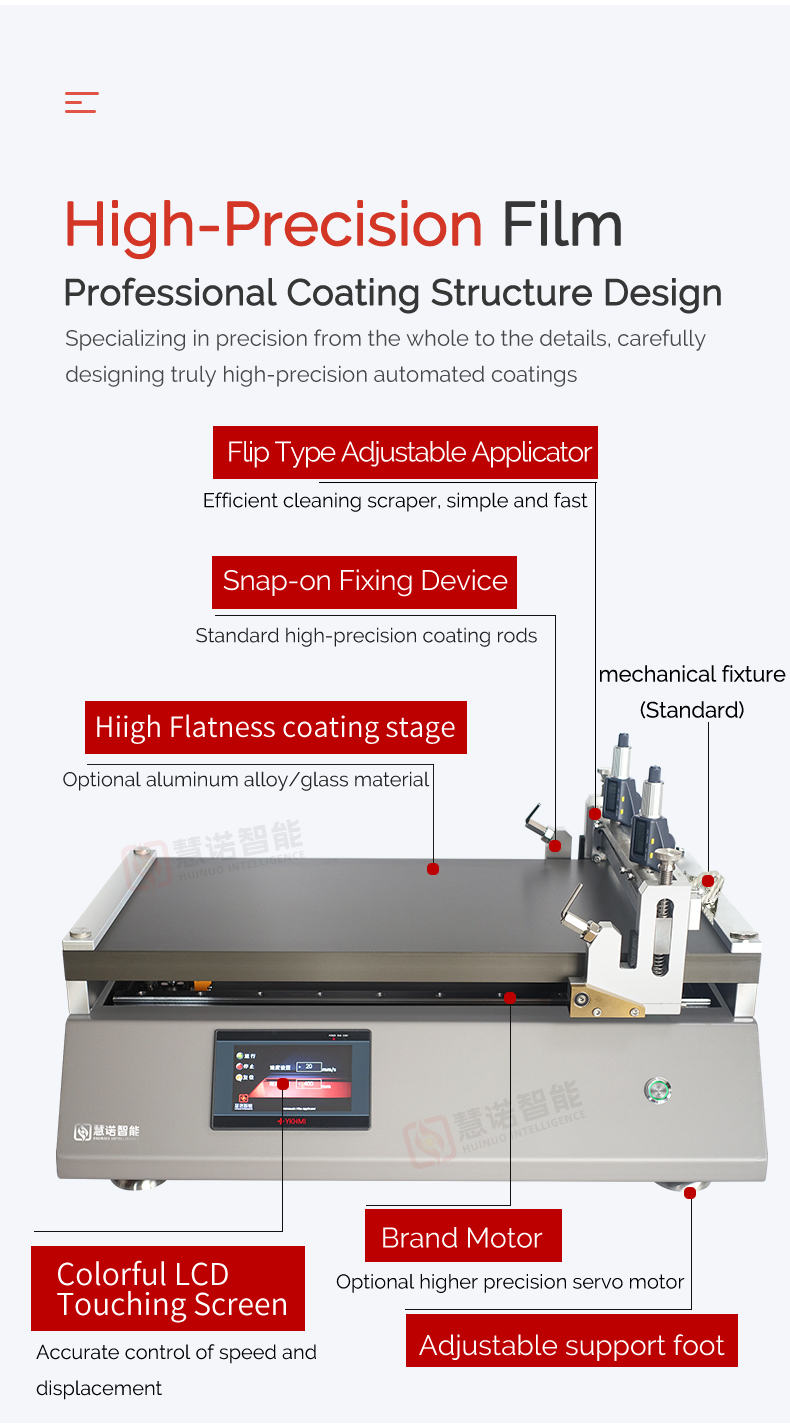

HuiNuo TM3000/07 bar doctor blade coater Coating size 400 * 500mm Figure 2

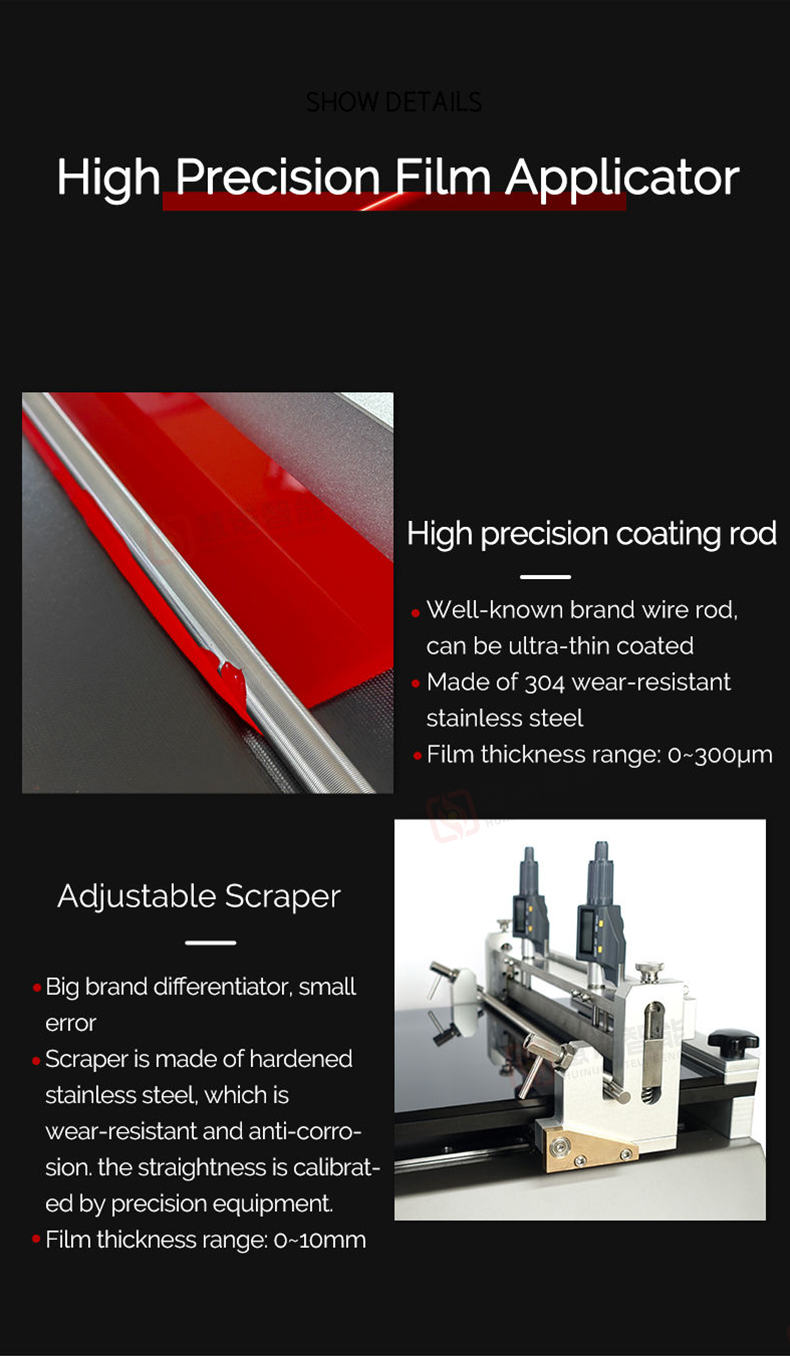

HuiNuo TM3000/07 bar doctor blade coater Coating size 400 * 500mm Figure 3

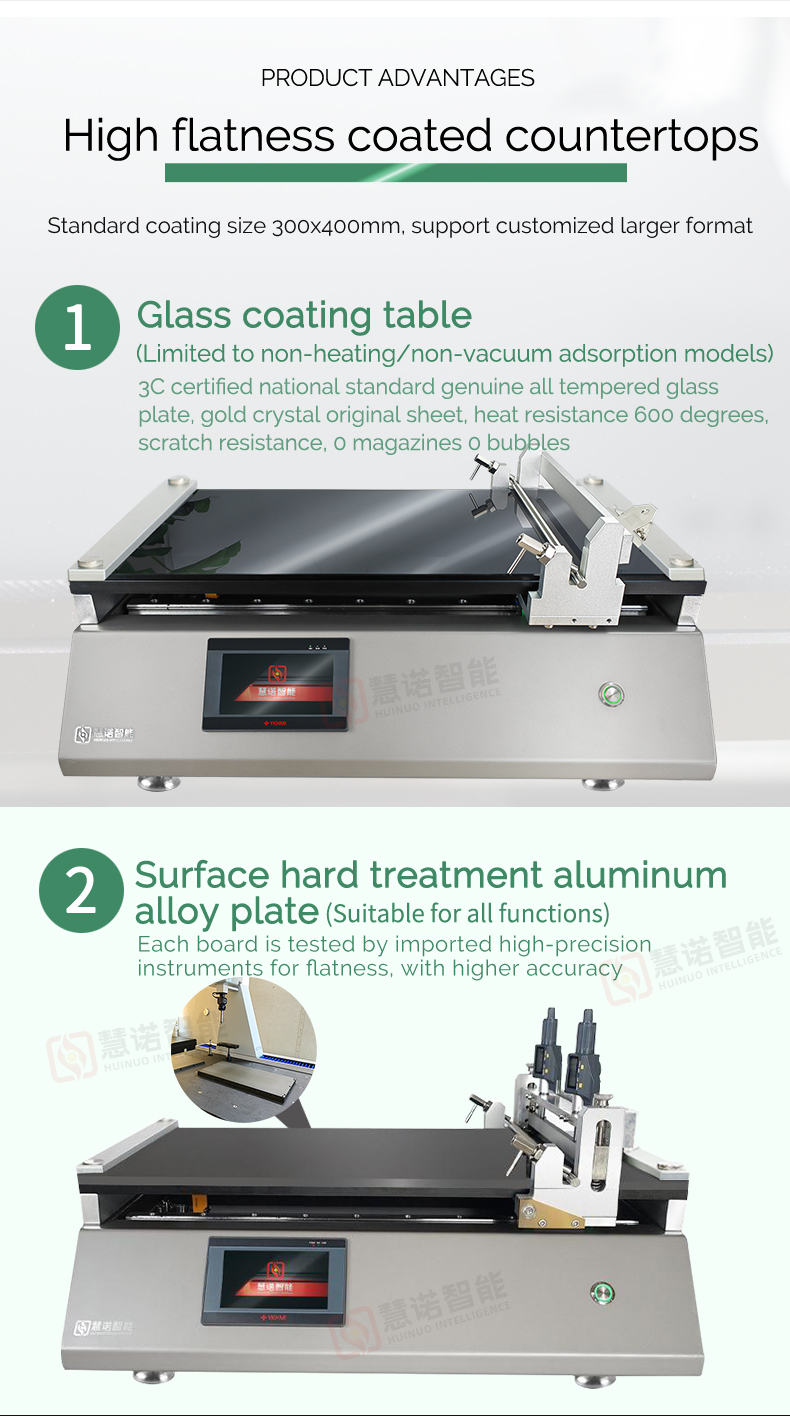

HuiNuo TM3000/07 bar doctor blade coater Coating size 400 * 500mm Figure 4

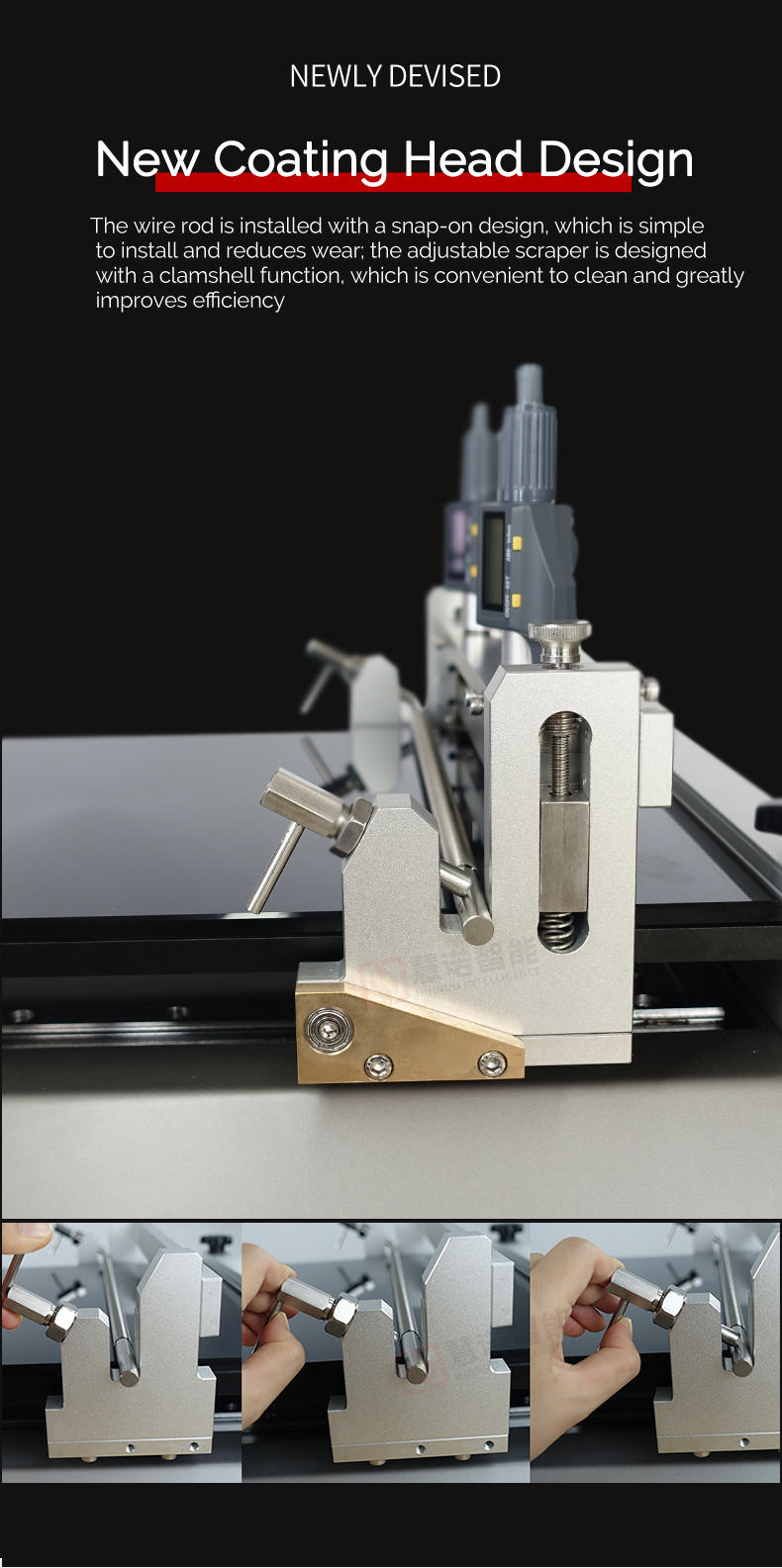

HuiNuo TM3000/07 bar doctor blade coater Coating size 400 * 500mm Figure 5

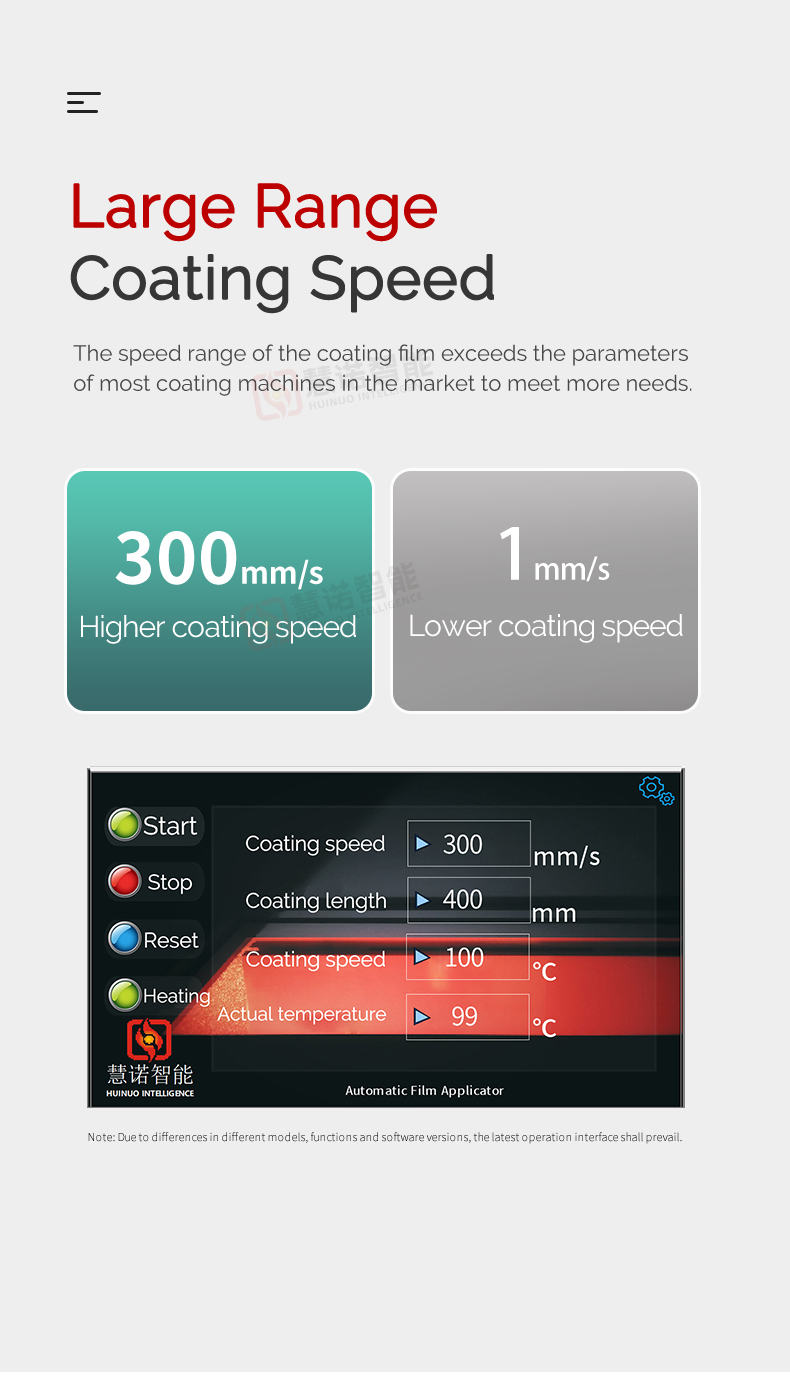

HuiNuo TM3000/07 bar doctor blade coater Coating size 400 * 500mm Figure 6

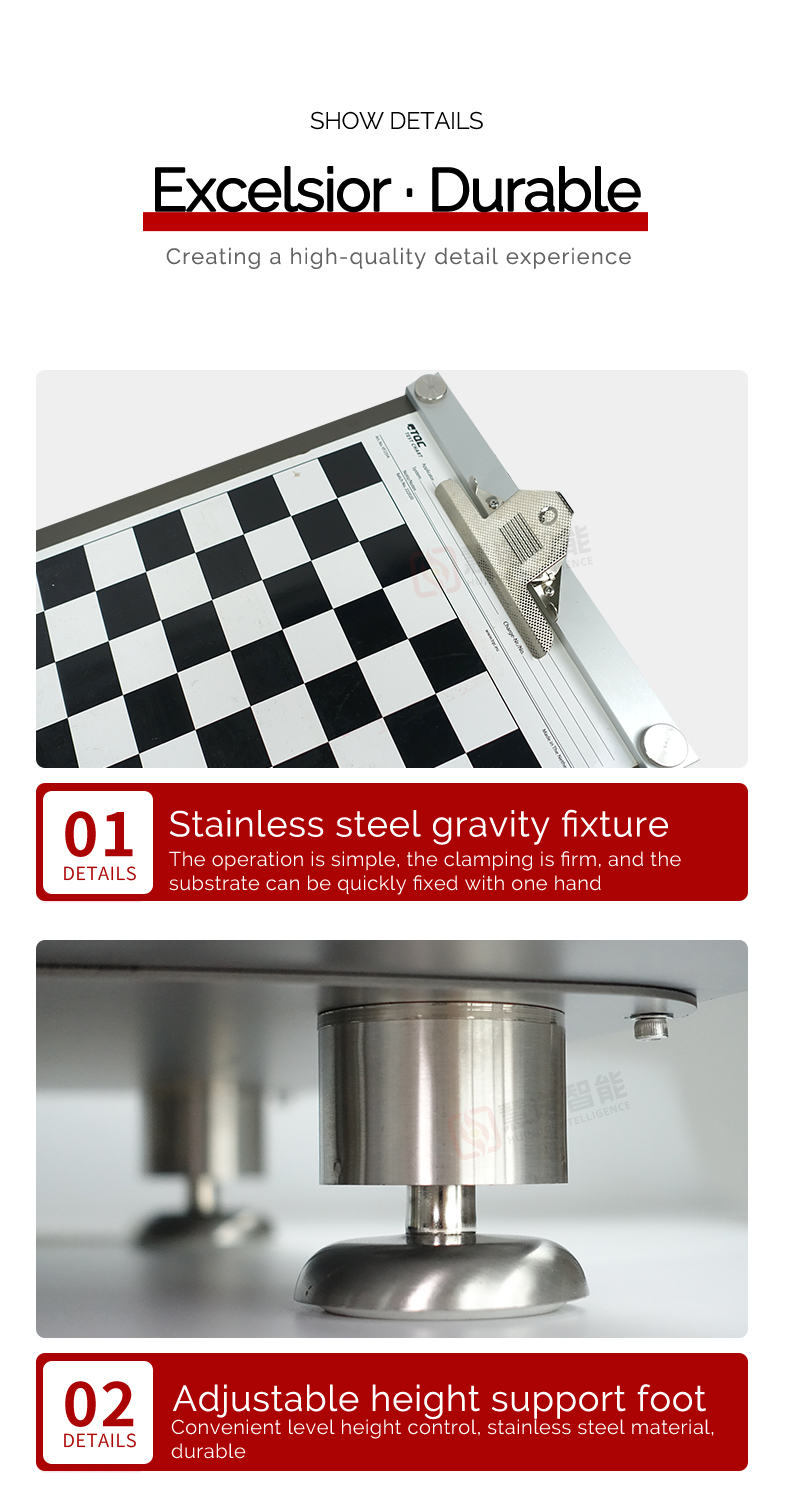

HuiNuo TM3000/07 bar doctor blade coater Coating size 400 * 500mm Figure 7

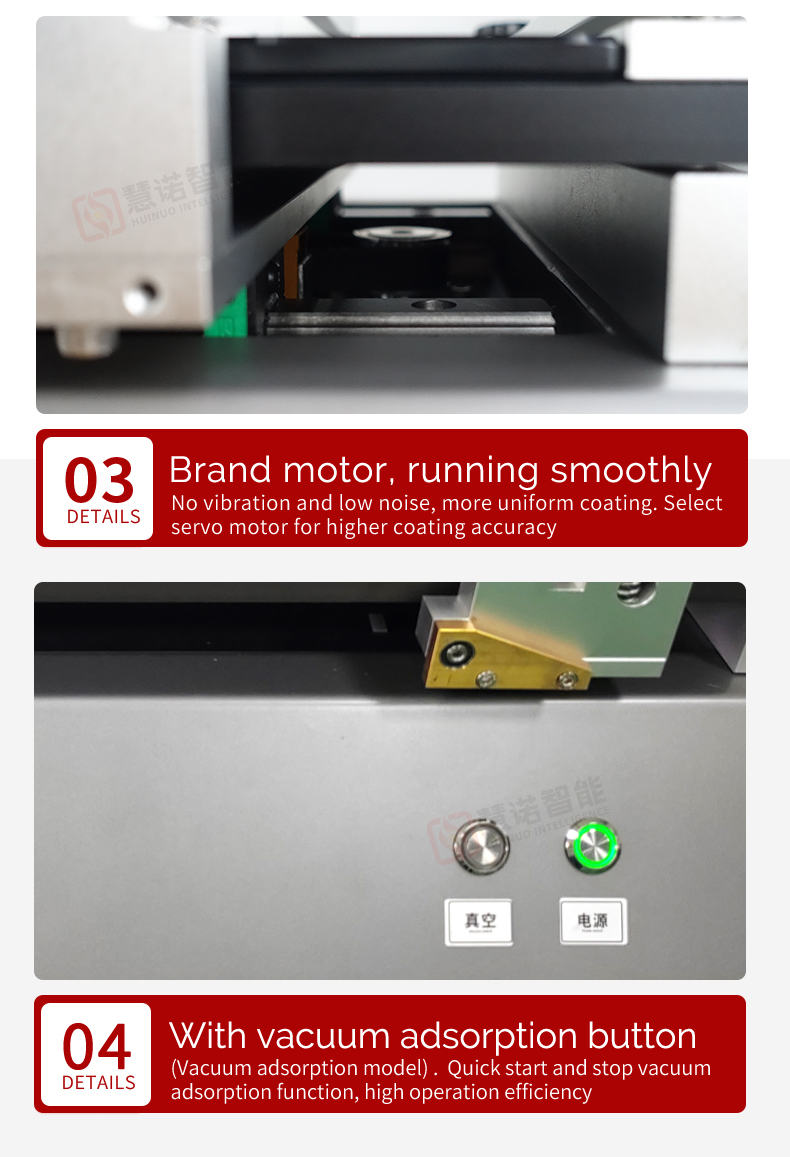

HuiNuo TM3000/07 bar doctor blade coater Coating size 400 * 500mm Figure 8

HuiNuo TM3000/07 bar doctor blade coater Coating size 400 * 500mm Figure 9

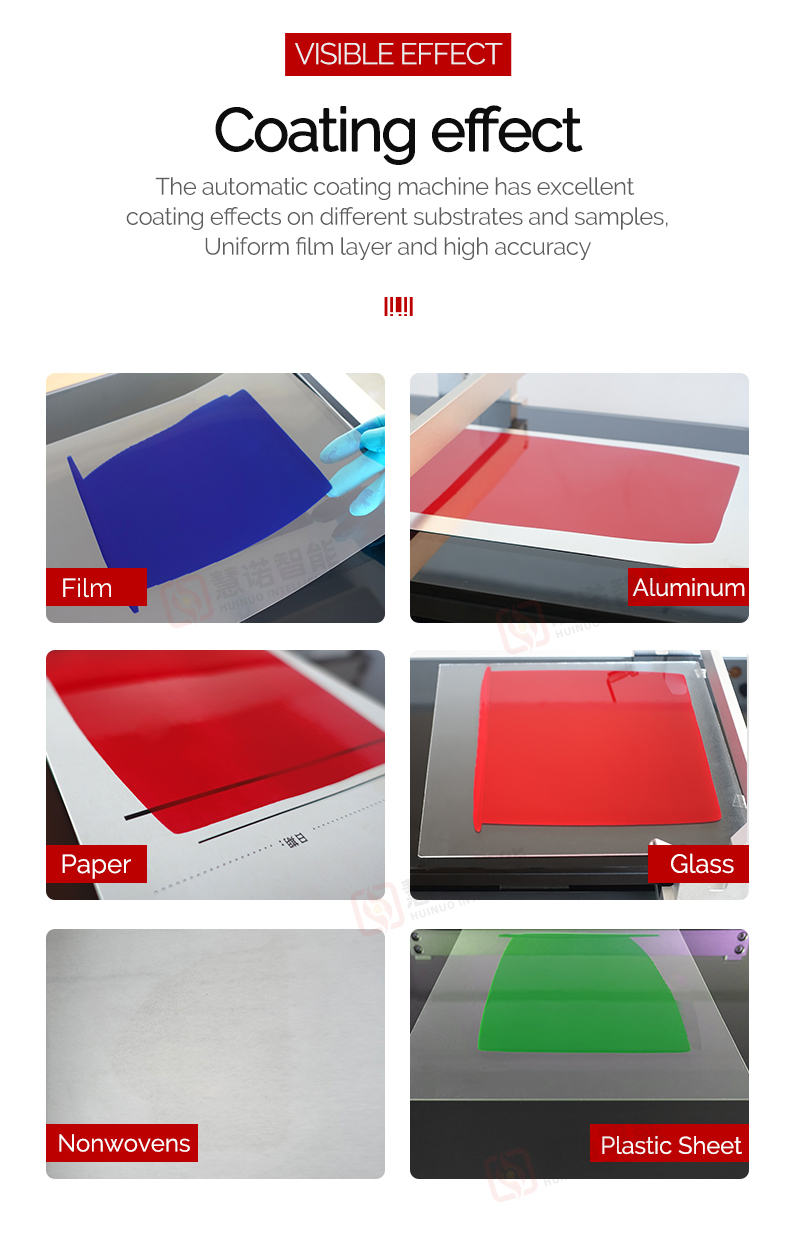

HuiNuo TM3000/07 bar doctor blade coater Coating size 400 * 500mm Figure 10

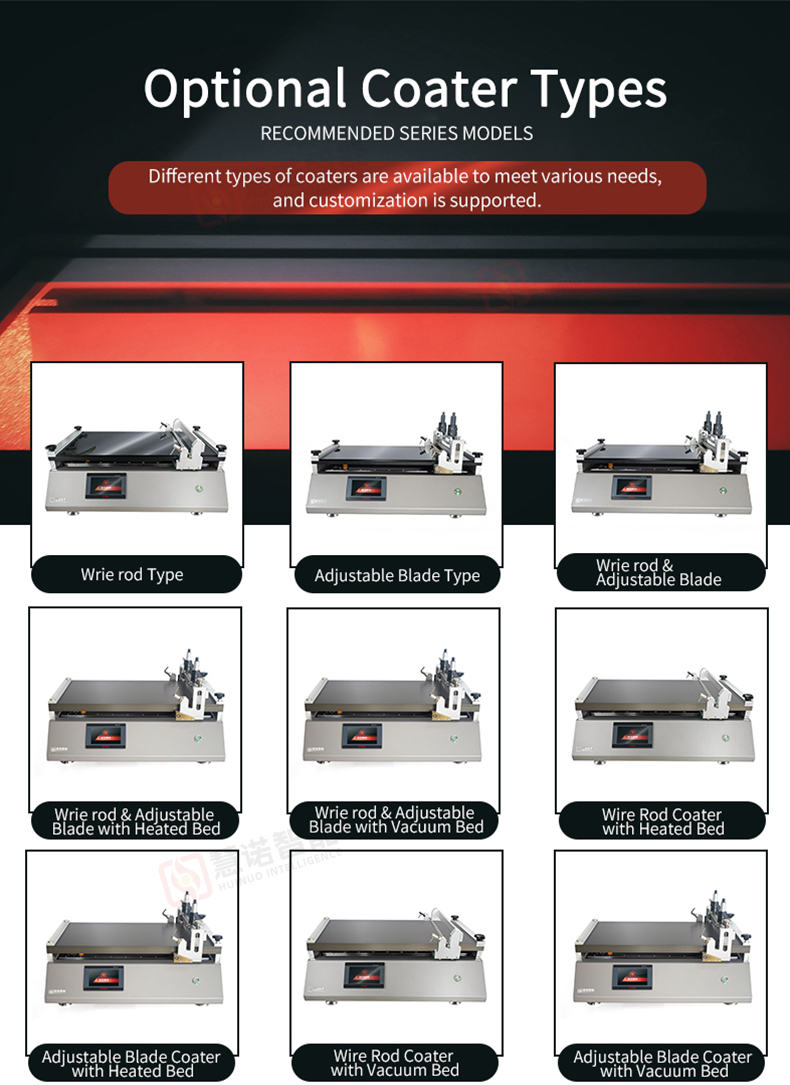

HuiNuo TM3000/07 bar doctor blade coater Coating size 400 * 500mm Figure 11

HuiNuo TM3000/07 bar doctor blade coater Coating size 400 * 500mm Figure 12

HuiNuo TM3000/07 bar doctor blade coater Coating size 400 * 500mm Figure 13

HuiNuo TM3000/07 Automatic Film ApplicatorSpecifications

LIST	VALUE
Coating method	Bar + drawdown blade
Coating speed	1~ 300Mm/s stepless speed regulation (can be customized)
Substrate clamping method	fixture
Coating table material	Glass plate
Coating table size	740*430mm
Effective coating Area	500 * 400Mm (can be customized)
Mayer Rod Thickness Range	Different bar numbers have different thicknesses, with high-precision imported bars
Bar Accuracy	±0.001mm
Drawdown blade thickness range	0.1~ 10Mm (clamshell design is easy to clean)
Drawdown blade material	Die steel
Drawdown blade application width	400mm
Drawdown blade Accuracy	±0.003mm
Power	400w
Operating language	Chinese (can be customized in English)
Display	Color LCD touch screen
Host Power Supply	100V~220V/50~60HZ
Dimension	Subject to the actual product
optional feature	Heating, vacuum adsorption

HuiNuo TM3000/07 Automatic Film Applicator Packing list

Host x1, casting knife x1, bar x1, manual x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the price listed on the website the final cost for overseas purchases?

[A]

No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q]

What is the specific process for purchasing the product?

[A]

First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q]

What should I do if the instrument I purchase needs repair?

[A]

After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
