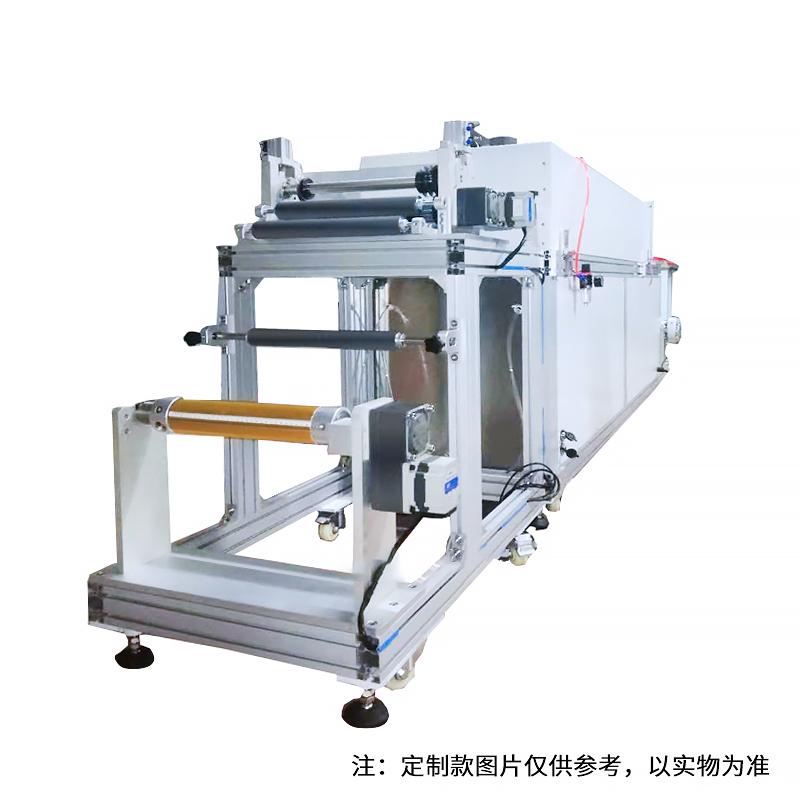

Oven coil slot-die Automatic Film Applicator Tape unwinding + scraping + drying + overlaying + winding function, Spreader width 850mm

Introduction

The oven coil slit coating machine is suitable for coating paper, film, aluminum foil, plastic, non-woven fabrics and other non-elastic materials. With the functions of unwinding, scraping, drying, laminating and winding, it is an automatic composite coating machine for oven coils, which adopts the slit coating method.

Product Structure

Oven coil slit coating machine is a multi-functional composite equipment, with the functions of unwinding, scraping, drying, laminating and winding. The following is an introduction to the main structure of the device:

Unwinding device:The unwinding device is located at the beginning of the machine and is used to place the reels of the substrate to be compounded. It usually includes components such as reel holders, tensioning devices, and rollers to ensure stable conveying and tensioning of the substrate.

Scraping system:The squeegee coating system is a key component in the coating process and is used to evenly coat the molten polyethylene plastic on the surface of the substrate using slit coating technology. The system consists of coating rollers, coating grooves, squeegee blades and rollers for precise coating control.

Drying system:The drying system is located after the squeegee coating system and is used to cure the polyethylene plastic coated on the surface of the substrate, improving the quality and stability of the laminated film. The drying system usually adopts electric heating or hot air circulation, and the temperature and drying time can be adjusted as needed.

Composite device:The laminating device is a key component that laminates the coating on the surface of the substrate with another layer of substrate. It usually consists of composite rubber rollers, compression rollers and heating devices to ensure the firmness and uniformity of the composite film. The heating temperature of the composite rubber roller can reach 200°C to ensure the good adhesion of the composite film.

Winding device:The winding device is located at the end of the machine and is used to collect the reels that have been compounded. It usually includes components such as a take-up device, a tensioning device, and a winding shaft, which can realize the stable collection and tensioning of the film reel, which is convenient for subsequent packaging and transportation.

Host x1, slot-die Spreader header x1, manual x1, Encasement list x1, certificate of conformity x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
