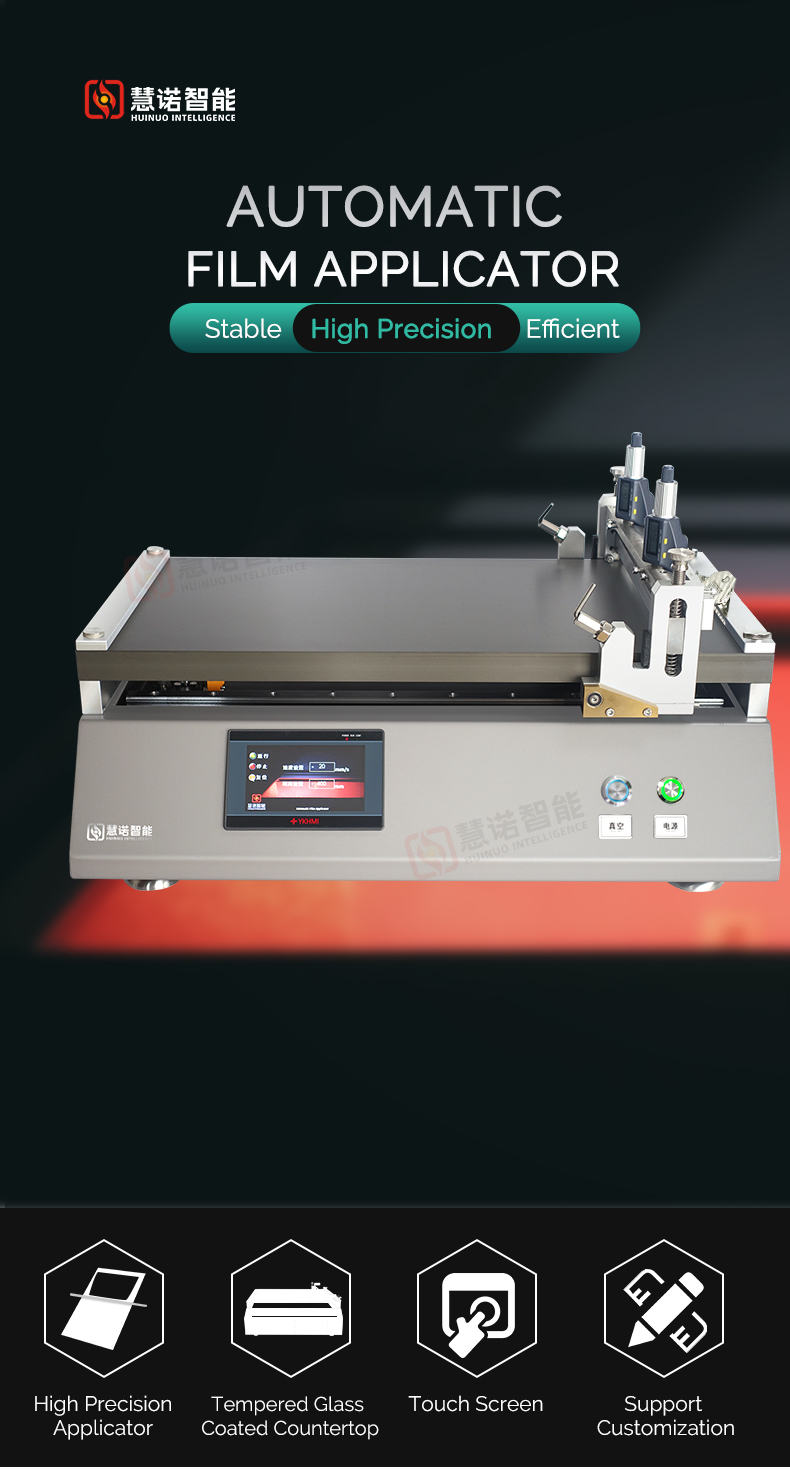

HuiNuo TM3300/10 Bar & drawdown blade heating vacuum adsorption coater customized 600 * 1000mm
Customized model, Spreader area 600 * 1000mm, bar + drawdown blade, mica sheet heating, Spreader table aluminum alloy hard surface preparation, lower than the market φ 0.8mm adsorption aperture is more suitable for ultra-thin film, RT +~ 180 ℃, Temperature uniformity +/- 1 ℃.
HuiNuo
TM3300/10
-
HuiNuo TM 2100/03 Double Drawdown Blade Heating Coater (with electrostatic precipitator system) laboratory coating machine, width 100 * 30cm
Login -
HuiNuo TM 2000/02 Dual Blade Automatic Film Applicator Laboratory Coater Effective area 40 * 30cm
$ 2869.00 -
China drawdown Bar & blade Vacuum chuck heating multifunctional coater TBJ-X3-DJ10 custom Glue Coater
$ 7222.00 -
China TBJ-X2-DJ3 Automatic Film Applicator bar + Heating + Vacuum chuck + Automatic feeding
$ 9709.00 -
Chinese TBJ-B4-DJ11 metering rod & drawdown blade Automatic Film Applicator with automatic feeding system
$ 7533.00

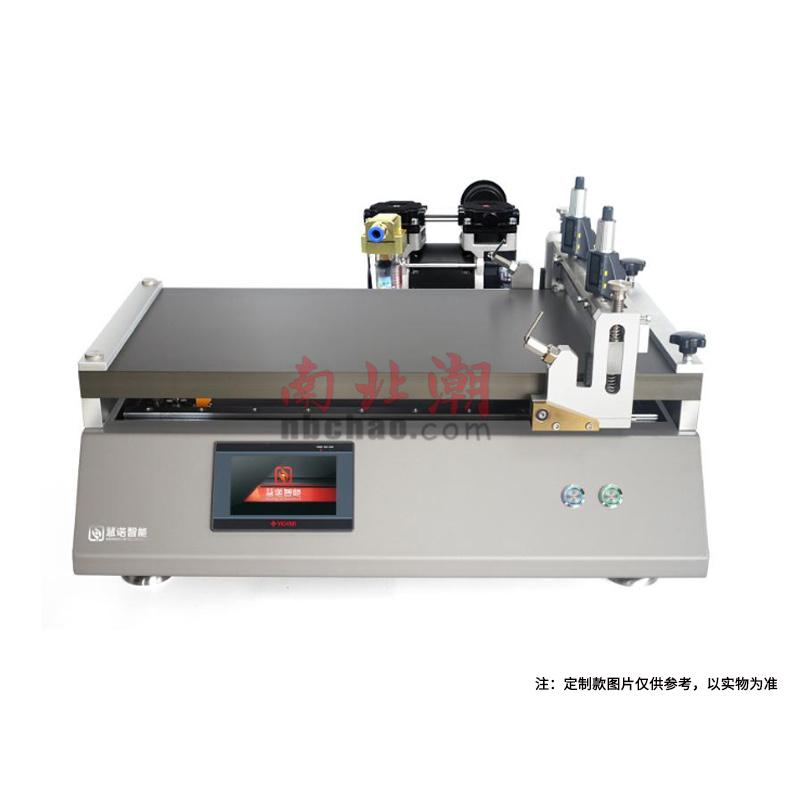

HuiNuo TM3300/10 Automatic Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| Coating method | Bar + drawdown blade |

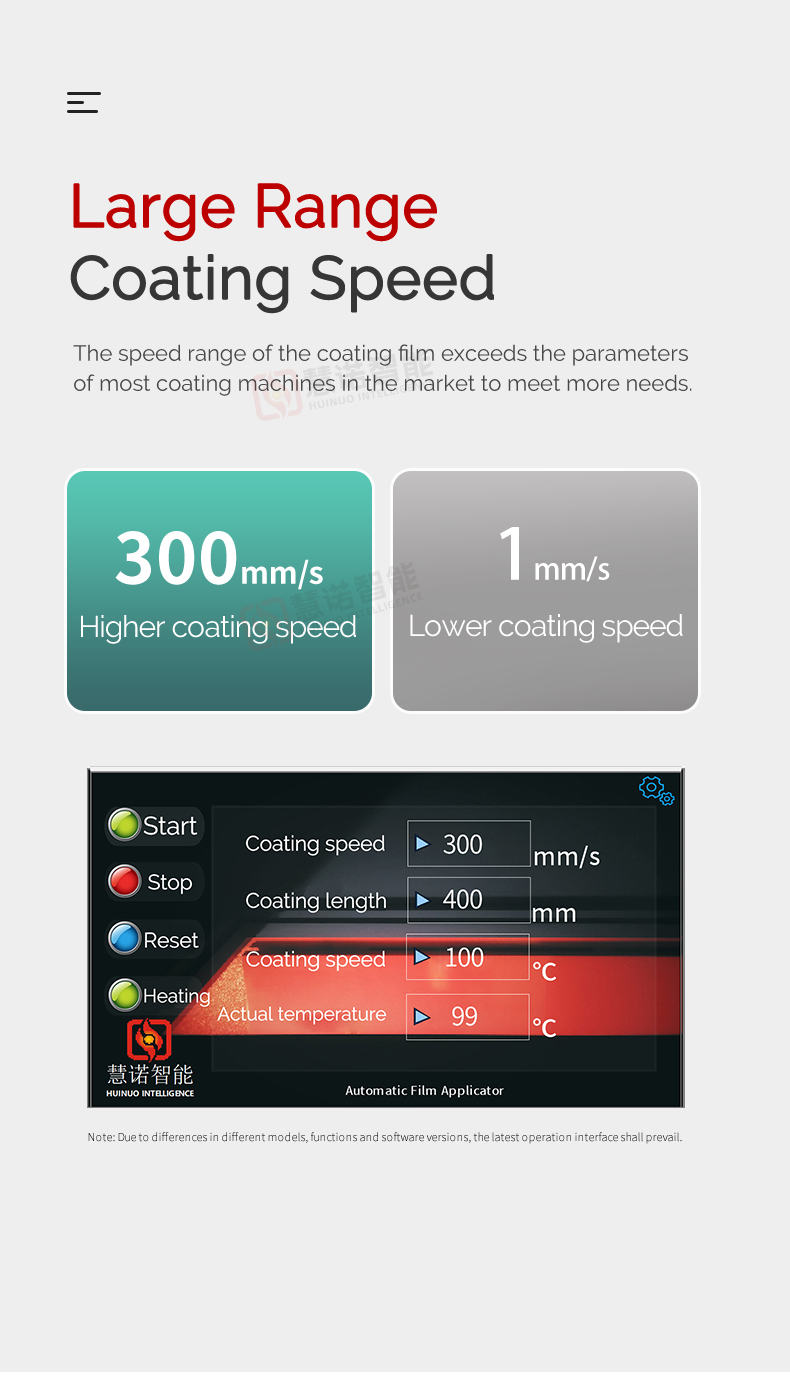

| Coating speed | 1~ 300Mm/s stepless speed regulation (can be customized) |

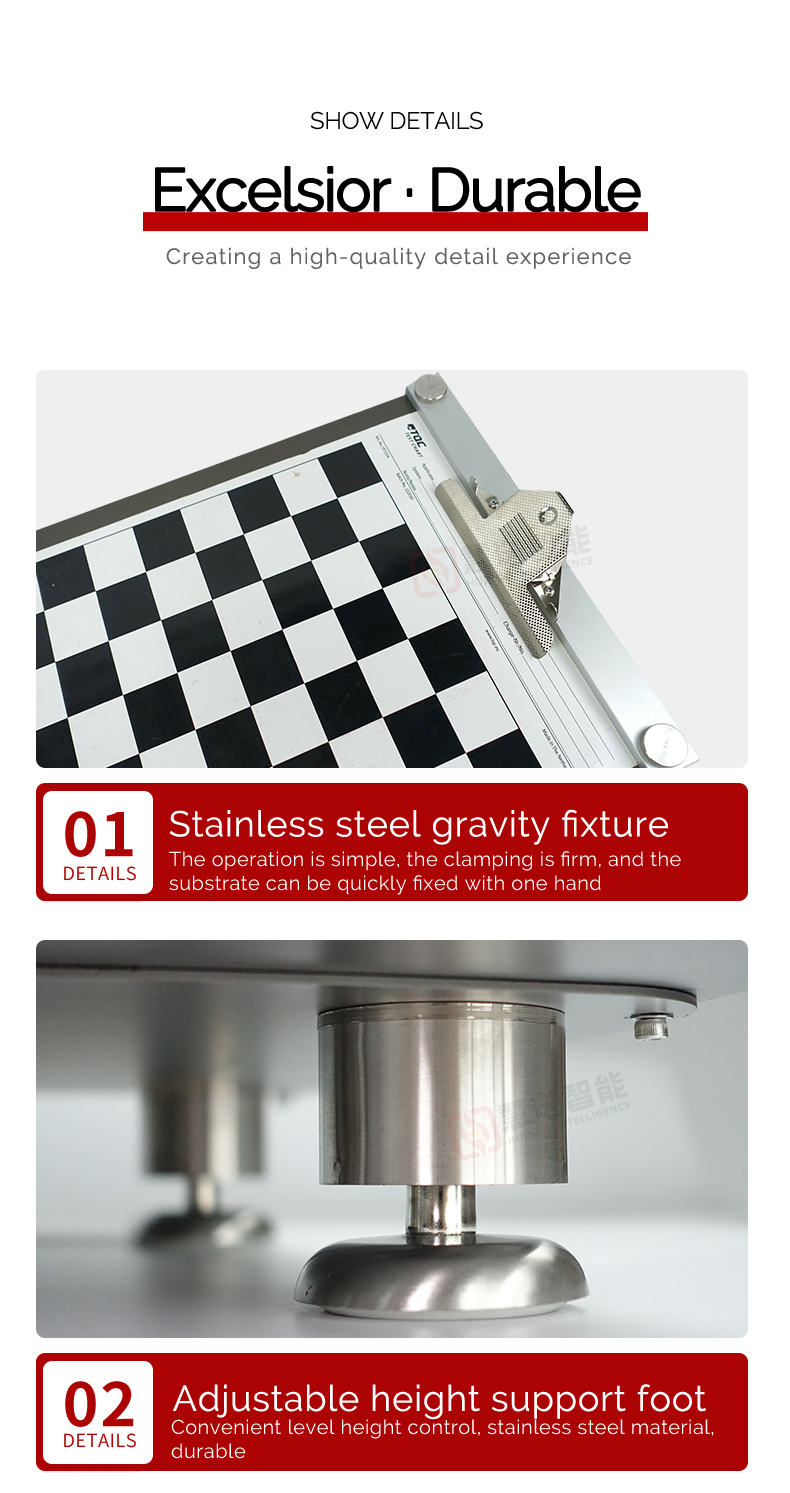

| Substrate clamping method | Vacuum adsorption + fixture |

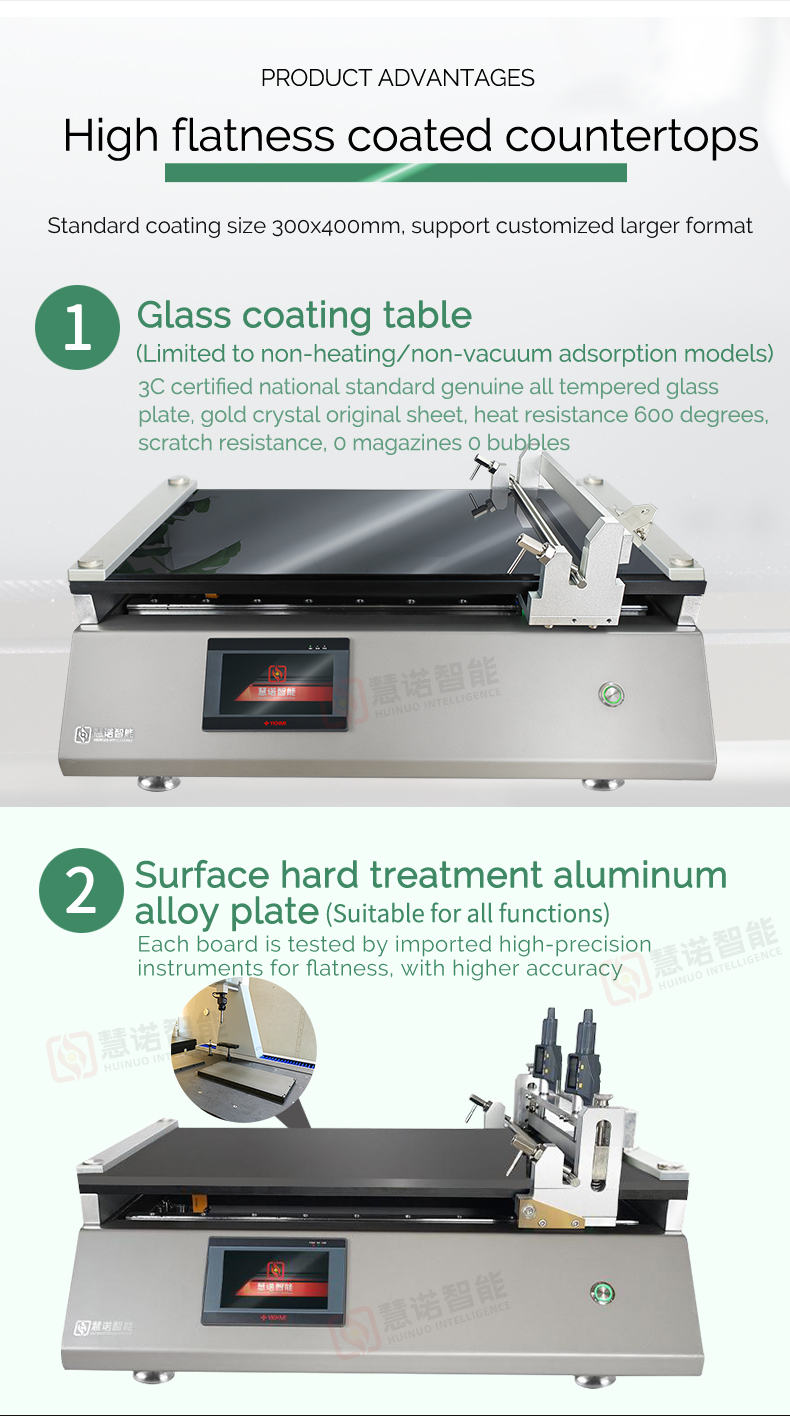

| Coating table material | Surface hard treatment aluminum alloy |
| Spreader Platform size | 1240*630mm |
| Effective coating Area | 1000 * 600Mm (can be customized) |
| Mayer Rod Thickness Range | Different bar numbers have different thicknesses, with high-precision imported bars |
| Mayer Rod Accuracy | ±0.003mm |

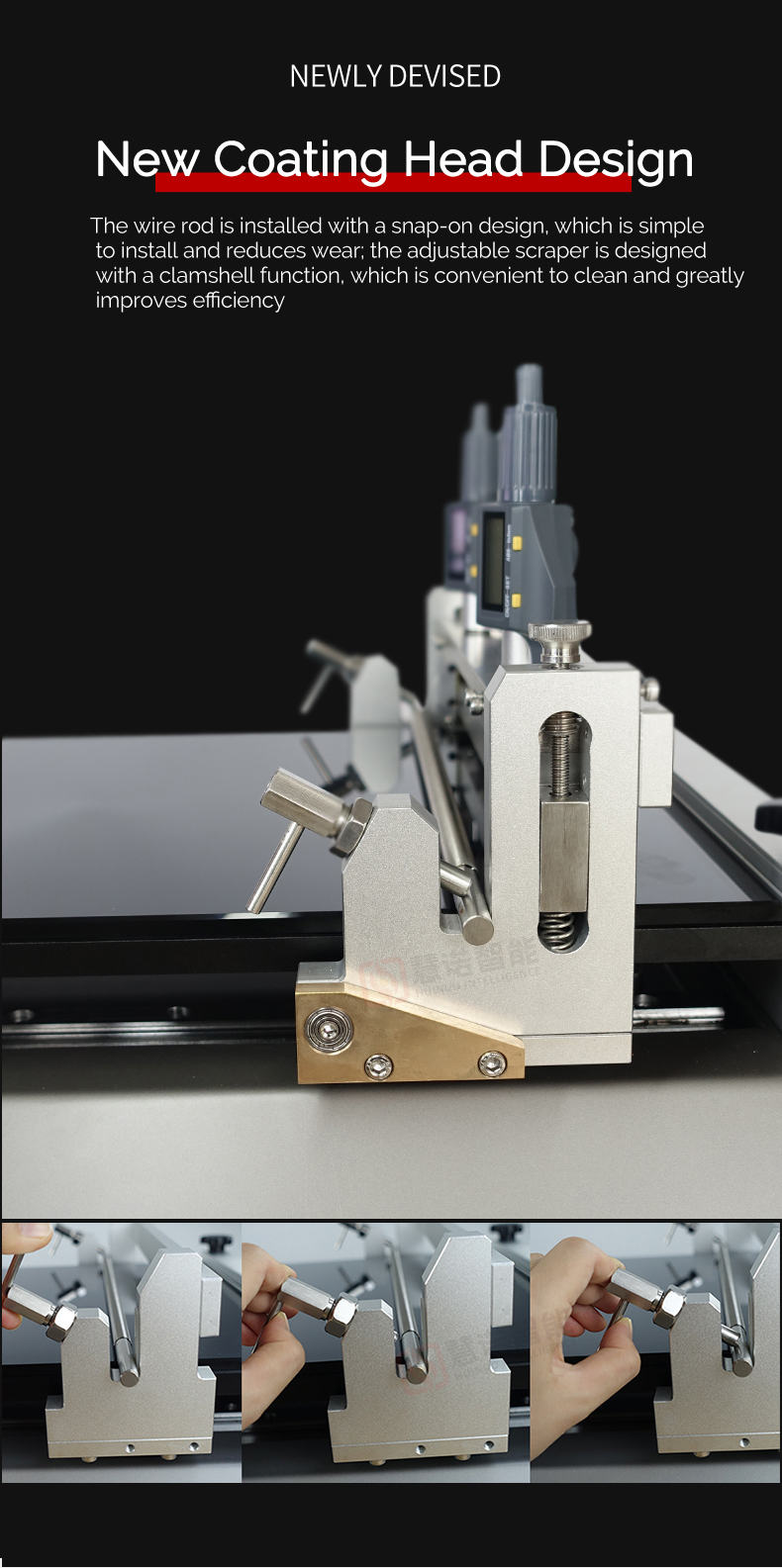

| Drawdown blade thickness range | 0.1~ 10Mm (clamshell design is easy to clean) |
| Drawdown blade material | Die steel |
| Drawdown blade application width | 600mm |
| Drawdown blade Accuracy | ±0.003mm |
| Vacuum Area | 1080 * 560Mm (can be customized) |
| vacuum aperture | Φ0.8mm |
| Vacuum hole spacing | 20*20mm |
| Pumping Speed | 5.4m3/h |
| Ultimate Vacuum | 50KPa |
| Vacuum Pump Power | 180W |
| Vacuum pump Weight | 7.1kg |
| Heating mode | Mica sheet heating (optional graphene heating, faster thermal conductivity) |
| Heating Temperature range | RT +~ 180 ℃ (higher temperature can be customized) |
| Temperature Uniformity | ±1℃ |
| Operating language | Chinese (can be customized in English) |
| Display | Color LCD touch screen |
| Host Power Supply | 100V~220V/50~60HZ |
| Power | 1800w |
| Dimension | 1260*740*430mm |
| Weight | Subject to the actual product |
HuiNuo TM3300/10 Automatic Film Applicator Packing list
Host X1, manual X1, casting knife x1, imported bar X1, certificate X1, Vacuumpump X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
