HuiNuo TM3300/12 Bar & drawdown blade heating vacuum adsorption coater customized 400 * 500mm
Customized model, Spreader area 400 * 500mm, bar + drawdown blade, mica sheet heating, Spreader table aluminum alloy hard surface preparation, lower than the market φ 0.8mm adsorption aperture is more suitable for ultra-thin film, RT +~ 180 ℃, Temperature uniformity +/- 1 ℃.
HuiNuo
TM3300/12
-
Netherlands TQC AB4430 heating perforated vacuum stage
$ 5917.00 -
HuiNuo TM3300/18D drawdown Bar & blade heating vacuum adsorption coater (floor type) Effective area 100cm * 30cm
Login -
Huinuo TM1300pro/02 wire rod heating vacuum adsorption coating machine, coating instrument, effective area 60 * 40cm
$ 5710.00 -
CHINA TBJ-X1-DJ8 Detachable drawdown blade Vacuum adsorption Film Applicator Effective area 500 * 600mm
$ 6336.00 -
HuiNuo TM3100Pro/05AFD Floor Type Automatic Film Applicator drawdown Bar & blade Spreader 200 * 100cm
Login

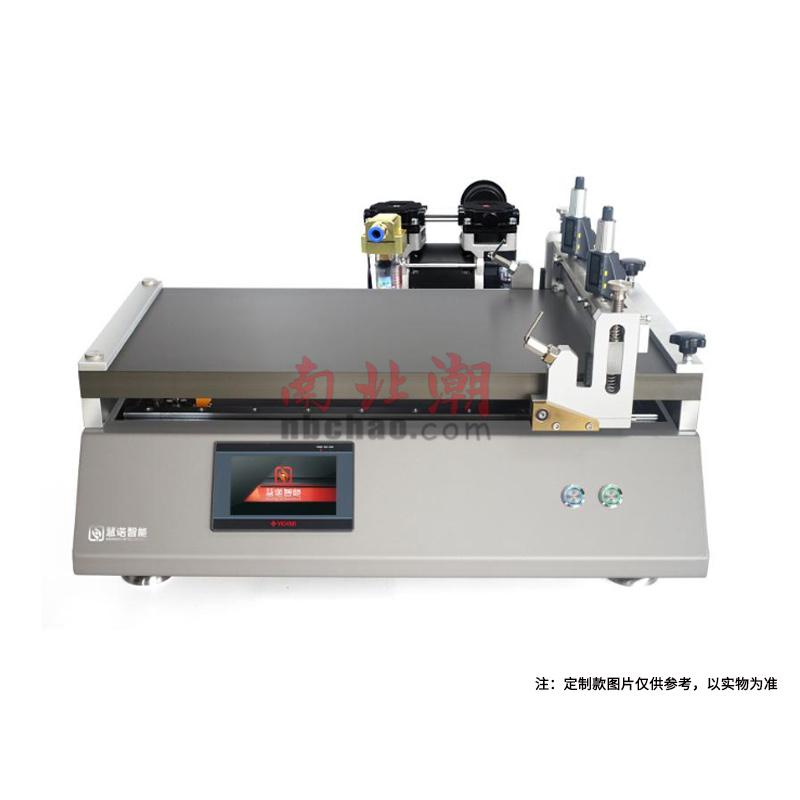

HuiNuo TM3300/12 Automatic Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| Coating Method | Bar + drawdown blade |

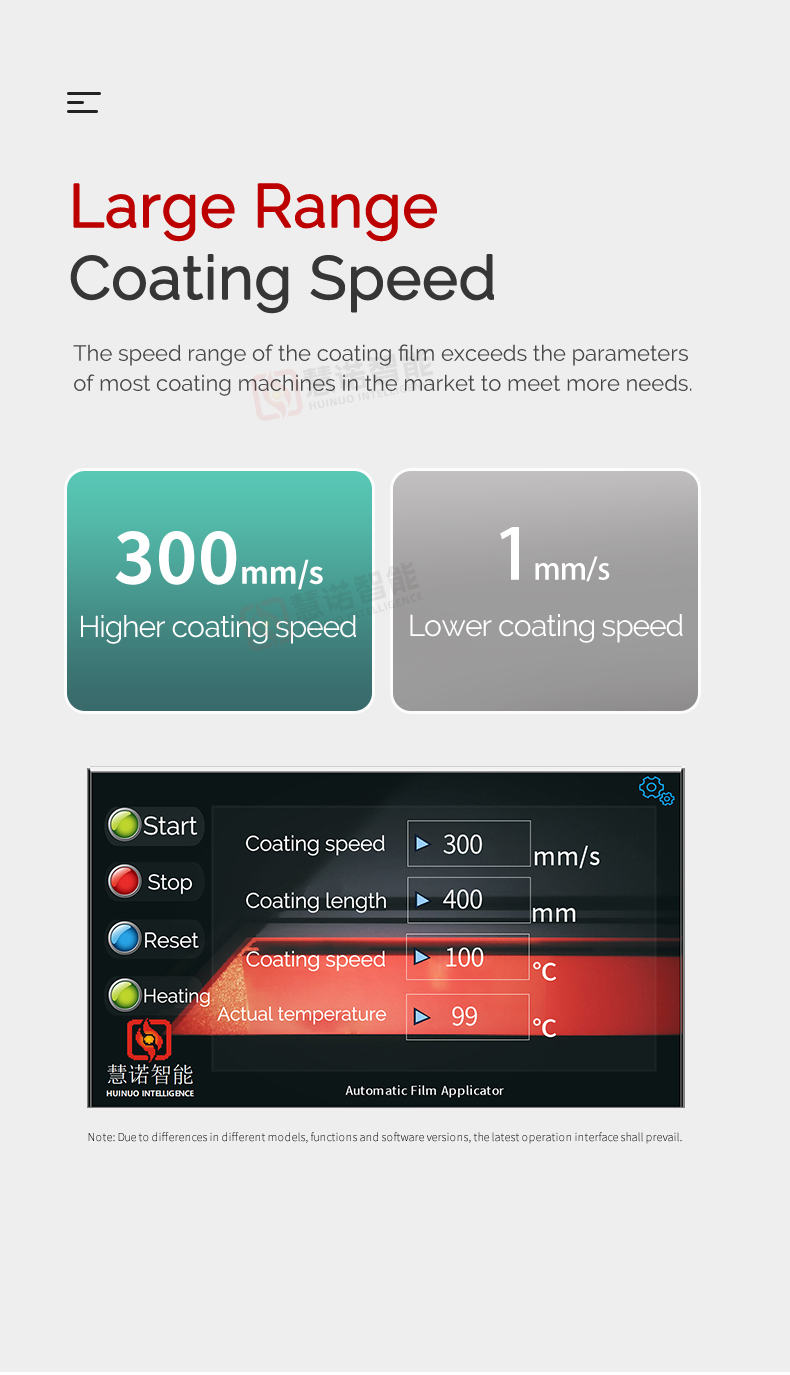

| Coating Speed | 1~ 300Mm/s stepless speed regulation (can be customized) |

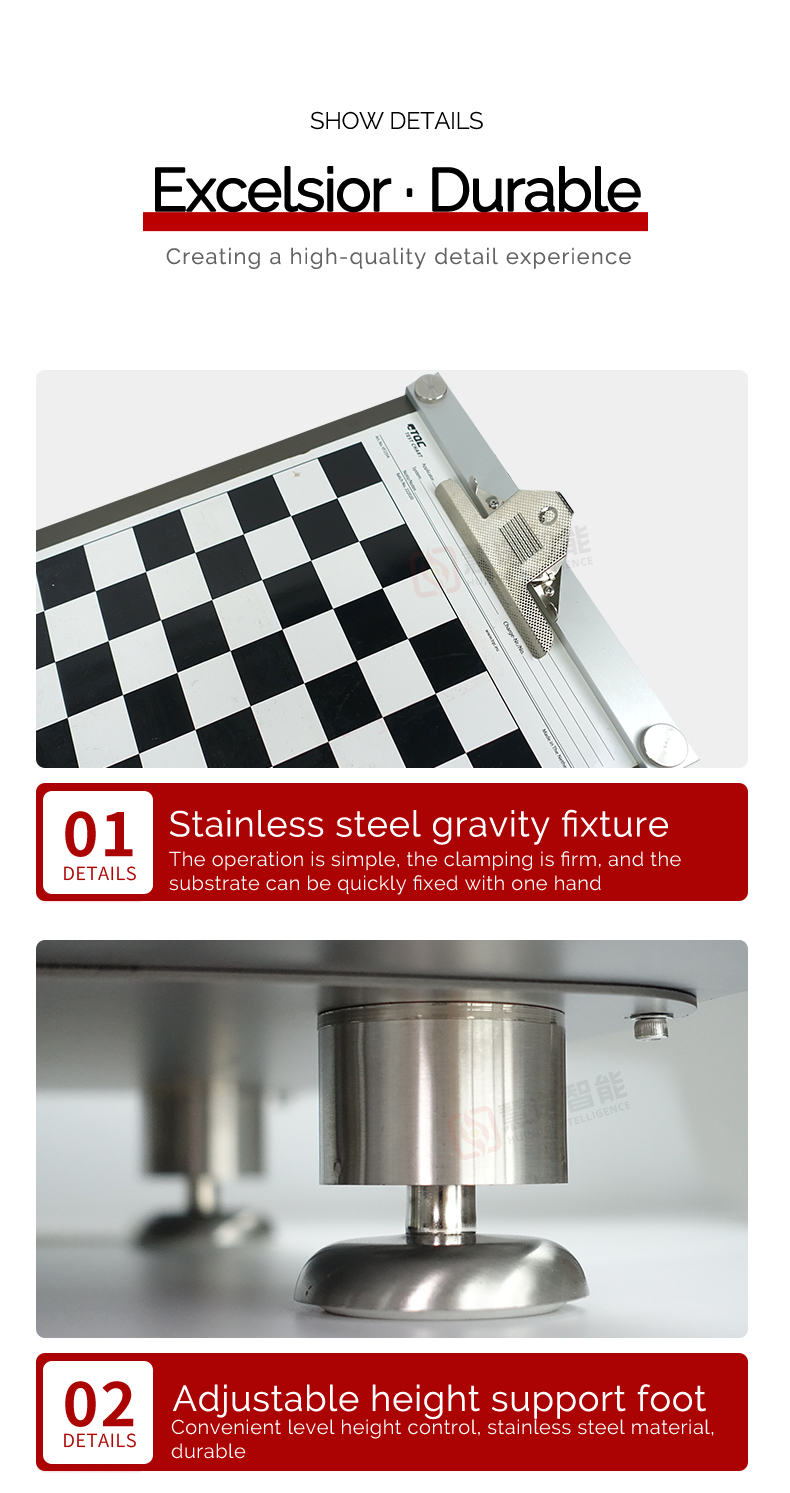

| Substrate clamping method | Vacuum chuck + fixture |

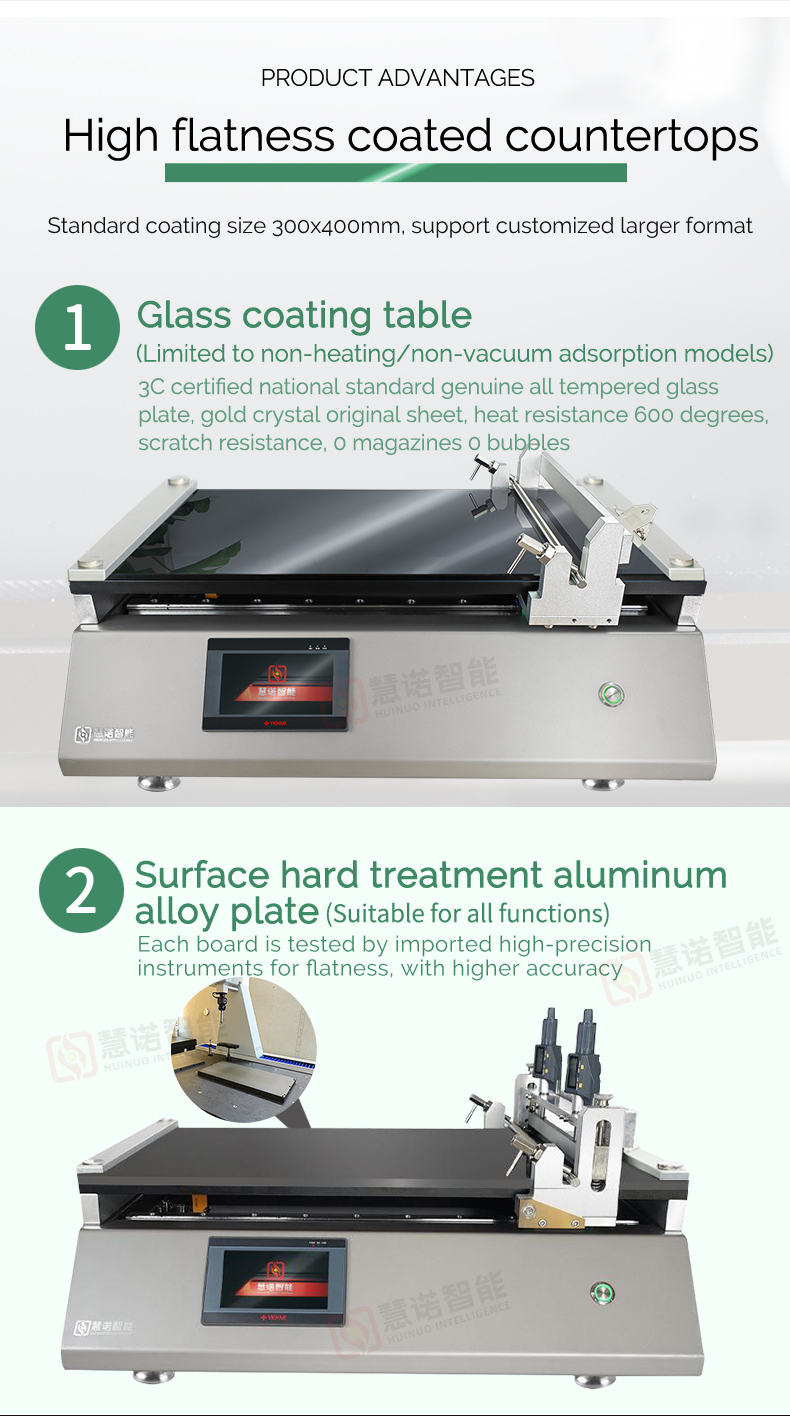

| Coating table material | Surface hard treatment aluminum alloy |
| Coating table size | 740*430mm |
| Effective coating Area | 500 * 400Mm (can be customized) |
| Meyer rod coating thickness Range | Different bar numbers Film thickness is different, with high Accuracy imported bar |
| Meyer rod coating Accuracy | ±0.003mm |

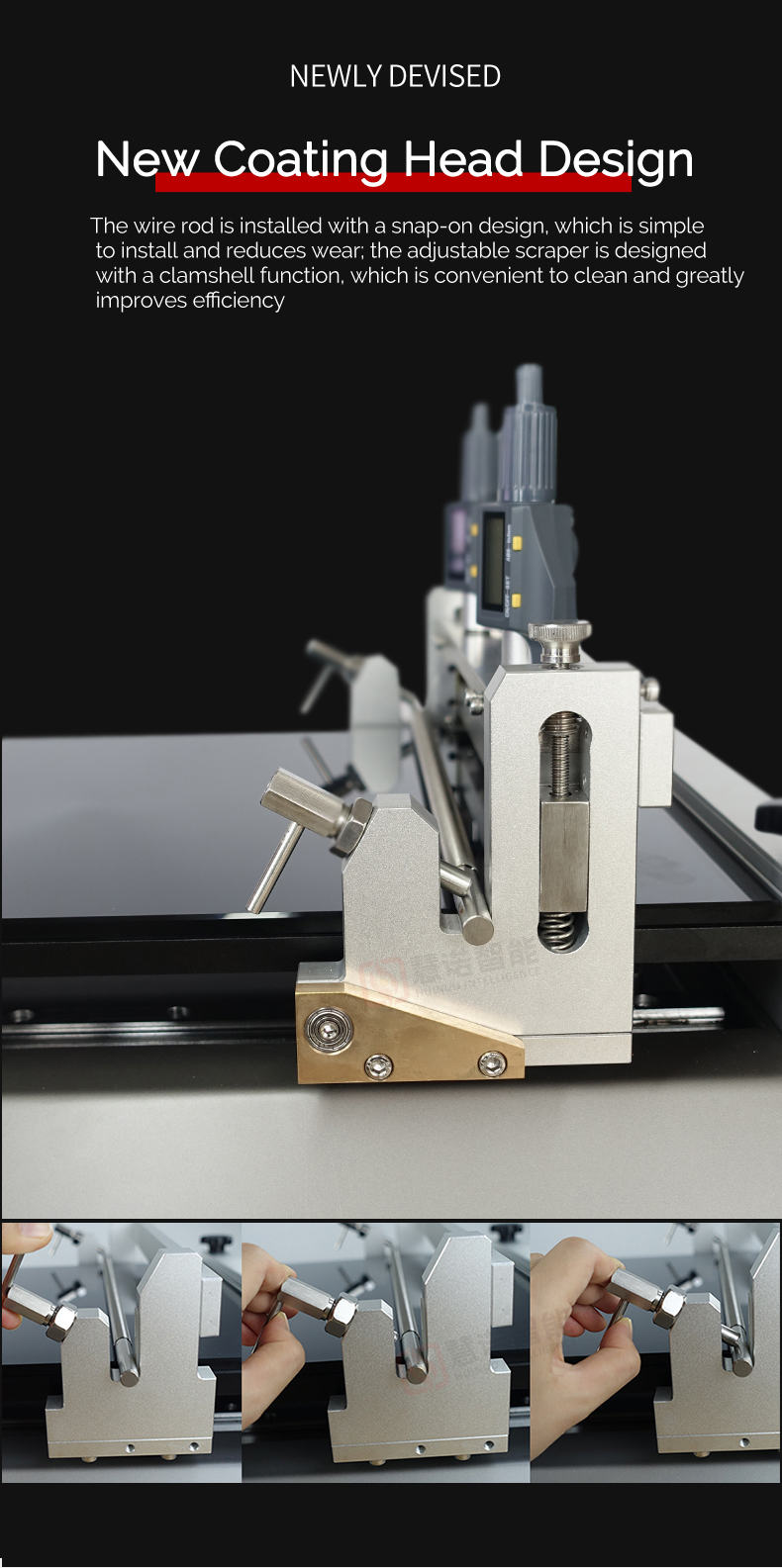

| Drawdown blade Spreader Film thickness range | 0.1~ 10Mm (clamshell design is easy to clean) |
| Drawdown blade material | Die steel |
| Drawdown blade Spreader width | 400mm |
| Drawdown blade Spreader Accuracy | ±0.003mm |
| Vacuumpump pumping rate | 5.4m3/h |
| Ultimate Vacuum | 50KPa |
| Vacuumpump power | 180W |
| Vacuumpump Weight | 7.1kg |
| Vacuum chuck size | 580 * 360Mm (can be customized) |
| Vacuum Aperture | Φ0.8mm |
| Vacuum hole pitch | 20*20mm |
| Heating method | Mica sheet heating (optional graphene heating, faster thermal conductivity) |
| Heating temperature range | RT +~ 180 ℃ (can be customized) |
| Temperature Uniformity | ±1℃ |
| operating language | Chinese (can be customized in English) |
| Display | Color LCD touch screen |
| Host Power Supply | 100V~220V/50~60HZ |
| power | 1800w |
| Dimensions | 760*540*430mm |
| Weight | Subject to the actual product |
HuiNuo TM3300/12 Automatic Film Applicator Packing list
Host X1, manual X1, casting knife x1, imported bar X1, certificate X1, Vacuumpump X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
