Rxg-05/300cs Pharmaceutical patch special coater Spreader drying composite slitting
Set Spreader, drying, compounding and slitting in one, the product size error is less than 2%, the patch position error is less than 3%, Film thickness range 0~3mm, dedicated to patch Spreader.
Factory
Rxg-05/300cs
-
Oven coil composite coating machine Rxfay-01/400 tape unwinding + slot-die/gravure printing + drying + coating + winding function
$ 38935.00 -
Factory direct sales Rgdjy-02/350dcpro immersion coil Automatic Film Applicator wet film thickness 0.005-3mm Continuous experimental Automatic Film Applicator
$ 28053.00 -
Coil drawdown blade Automatic Film Applicator Rxg-01/400 tape unwinding + scraping + drying + winding function
$ 14062.00 -
CHINA immersion coil drying air-cooled slitting machine Rdc-01/500cs dipping coating machine
$ 34271.00 -
Oven coil composite coater with unwinding + scraping + drying + overlaying + winding function
$ 34271.00
Features
1. The coating, drying, compounding and slitting links in the production are automatically handled by the equipment, which is simple and convenient to operate, and automatically feeds. (The size of the cut is customized in advance)
2. Most of the high-precision parts used in the equipment can ensure that the product size error is less than 2%, the chip position error is less than 3%, and the yield is as high as 99%;
3. The operation of the equipment is basically noiseless, which can improve the Operating Environment;
4. The power of the equipment comes from the high-performance speed regulating motor, and the efficiency can reach 70~100 pieces/min (product width 5OMM, effective coating width 300mm), the smaller the product size, the higher the efficiency;
5. The equipment reduces maintenance costs.

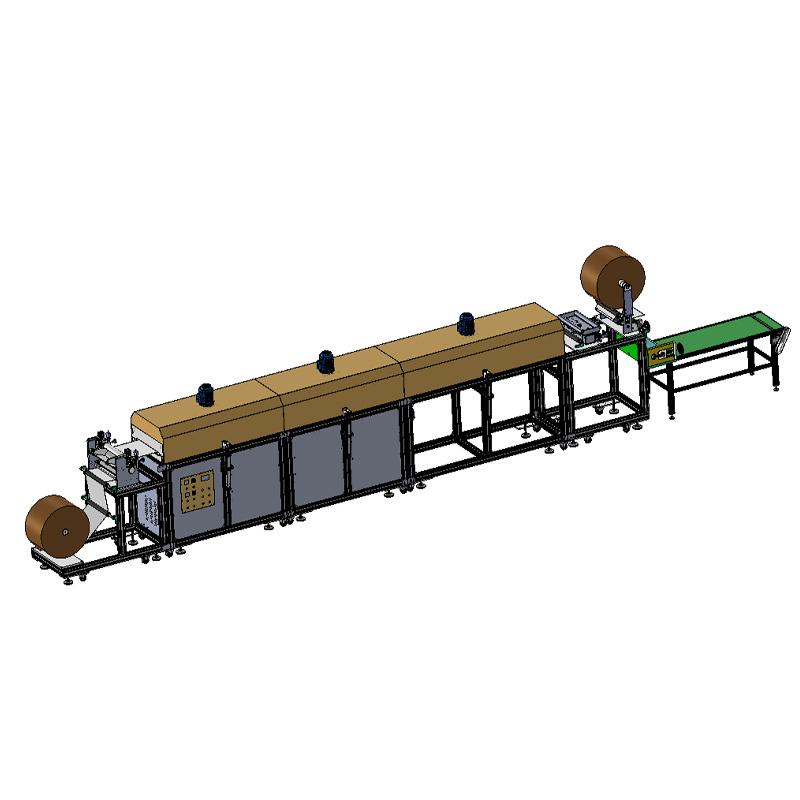

Factory Rxg-05/300cs Special coater for pharmaceutical patchesSpecifications
| LIST | VALUE |
|---|---|
| Coating method | drawdown blade |
| Film thickness range | 0-3mm |
| Accuracy | ±0.005mm |
| Device size | 8000*800*1750mm |
| Motor efficiency | 70~100 tablets/min |
| Effective Spreader Width | 300mm |
| Hob slitting | Slice, customize hob spacing according to customer needs |
| dimensional error | Less than 2% |
| patch position error | Less than 3% |
| yield | 99% |
| Coating size | Max.300mm |
Factory Rxg-05/300cs Special coater for pharmaceutical patches Packing list
Host x1, drawdown blade x1, slitting hob x1, manual x1, Encasement list x1, certificate of conformity x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
