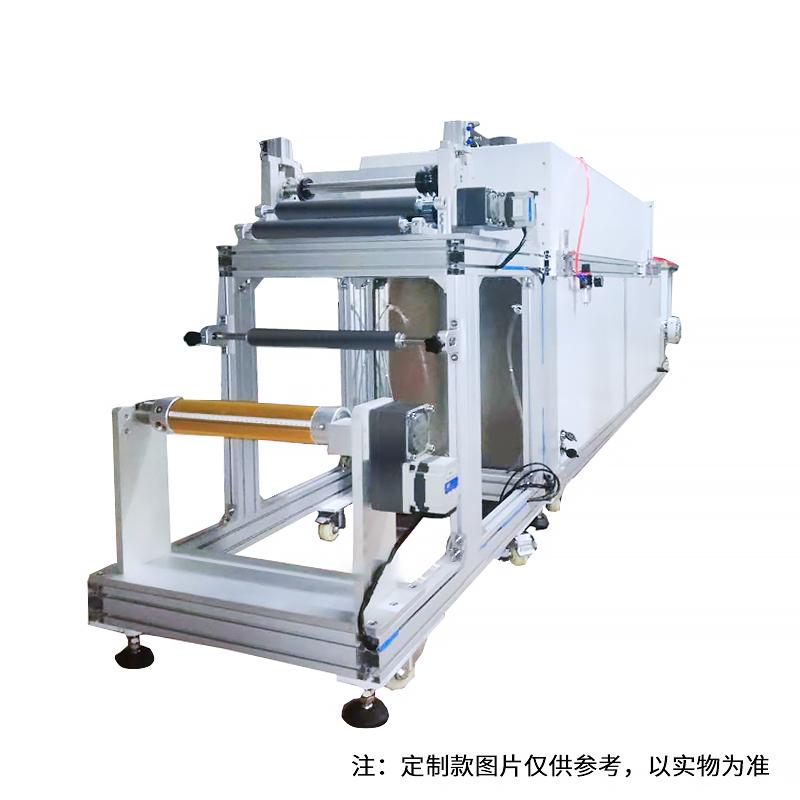

Automatic Film Applicator Rxg-05/1000 Film width 1000mm Unwinding + scraping + drying + deviation correction + film laminating + winding

Introduction

Rxg-05/1000 is a roll-to-roll coating machine with unwinding, scraping, drying, correction, lamination, and winding functions, with a coating width of 1000mm, a wet film thickness of 0.005-3mm, and a heating temperature of 200°C, which is used for PUA glue coating.

Product Structure

The machine is composed of a body, a gluing width adjustment device, a discharging rack, a gluing roller group, a thickness adjustment dial gauge, a transmission platform, a traction roller group, and a transmission mechanism.

1. Body: The body of the equipment is composed of aluminum alloy + high static spraying plate.

2. Gluing width adjustment device: The width adjustment device is composed of food-grade plastic and movable brace.

3. Discharging rack: The machine is equipped with two discharging racks, when the two materials are misaligned and deviated in the laminating process, the deviation correction device automatically adjusts the material rack to move left and right to achieve the effect of aligning the two materials.

4. Rubberized roller set: The rubberized roller group is made of double-drum precision machined parts, and the transmission is stable.

6. Thickness adjustment dial gauge: the adjustment of the coating thickness required when gluing. The thickness of the gluing can be adjusted by rotating the left and right handwheels on the gluing roller frame clockwise or counterclockwise, and the specific thickness is determined according to the dial gauge indication.

7. Transmission platform: The transmission platform is made of stainless steel, and its main function is to connect the substrate after gluing to the next process.

8. Traction roller group: the substrate is pulled by hand between the upper and lower rollers of the traction roller, the handwheel on the frame is tightened to make the traction roller, the rubber ring of the upper roller is in contact with the lower roller, and the traction roller group pulls the substrate over through power transmission to complete the coating work。

Host x1, Manual x1, Encasement List x1, Certificate of Conformity x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
