CHINA Rvadh-01/300 small coil oven coater 1 meter drying, effective application width 300mm
Film process unwinding → scraping → drying → compounding → winding, Coating method slightly concave + comma (double Spreader head can be switched), effective application width 300mm, Drying Temperature range -200 ℃, Discharge and receipt size are 300mm.
Factory
Rvadh-01/300
-
Oven coil composite coater with unwinding + scraping + drying + covering + winding function
$ 26187.00 -
HuiNuo JTM-300UV/0.6 Small continuous coater UV UV curing Full electric control 0.01mm Spreader thickness
$ 9398.00 -
Automatic Film Applicator for large coils unwinding + scraping + drying (8m oven) + heating film laminating + trimming + deviation correction + winding function
$ 28053.00 -
CHINA manual unwinding comma coater NBC-DJ1-300 customized model
Login -
UV UV curing coil coating machine Rxg-01/600uv automatic film laminating machine
$ 20280.00
Product Structure
The machine is composed of a body, a gluing width adjustment device, a discharging rack, a gluing roller group, a thickness adjustment dial gauge, a transmission platform, a traction roller group, and a transmission mechanism.
Structural composition
Body: The body of the equipment is composed of aluminum alloy + high electrostatic spraying plate.
Gluing width adjustment device: The width adjustment device is composed of food-grade plastic and a movable brace.
Unloading rack: The machine is equipped with two discharging racks, when the two materials are misaligned and deviated in the laminating process, the deviation correction device automatically adjusts the material rack to move left and right to achieve the effect of aligning the two materials.
Rubberized roller set: The rubberized roller set is made of double-drum precision machined parts, and the transmission is stable.
Thickness adjustment dial gauge: The adjustment of the coating thickness required when applying glue. The thickness of the gluing can be adjusted by rotating the left and right handwheels on the gluing roller frame clockwise or counterclockwise, and the specific thickness is determined according to the dial gauge indication.
Transmission platform: The transmission platform is made of stainless steel, and its main function is to connect the substrate after gluing to the next process.
Traction roller group: the substrate is pulled by hand between the upper and lower rollers of the traction roller, the handwheel on the frame is tightened to make the traction roller, the rubber ring of the upper roller is in contact with the lower roller, and the traction roller group pulls the substrate over through power transmission to complete the coating work.

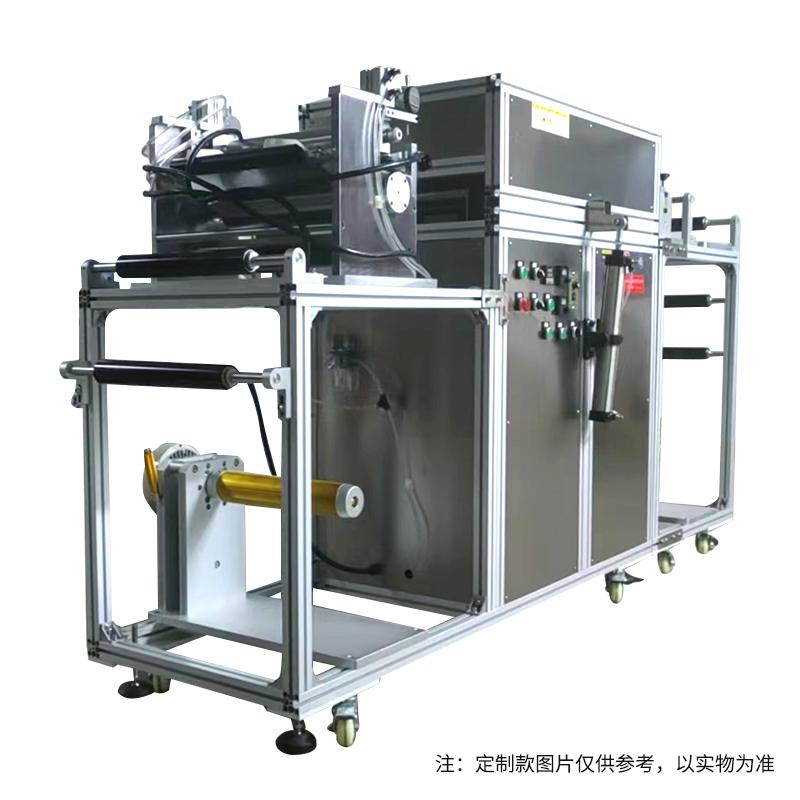

Factory Rvadh-01/300 Small oven coaterSpecifications
| LIST | VALUE |
|---|---|
| Film process | Unwinding → scraping → drying → compounding → winding |
| Coating method | Micro concave + comma (dual Spreader heads can be switched) |
| Coating size | Max.300mm |
| Coating speed | 0-20M/min adjustable |
| Host Power Supply | 380V/2.5KW |
| Dimension | About 1800 * width 800 * height 1600mm |
| compound speed | 1~10m/min |
| Composite Accuracy | 0.5mm |
| composite width | 100~300Mm adjustable |
| Thickness of glue | 0.005~3mm |
| maximum discharge | 300mm |
| Maximum charge | 300mm |
| Drying Temperature range | Room temperature~ 200 ℃ |
| Drying channel length | 1m |
| Drying Power | 1KW |
| Weight | 300kg |
Factory Rvadh-01/300 Small oven coater Packing list
machine x1, manual x1, certificate x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
