Introduction

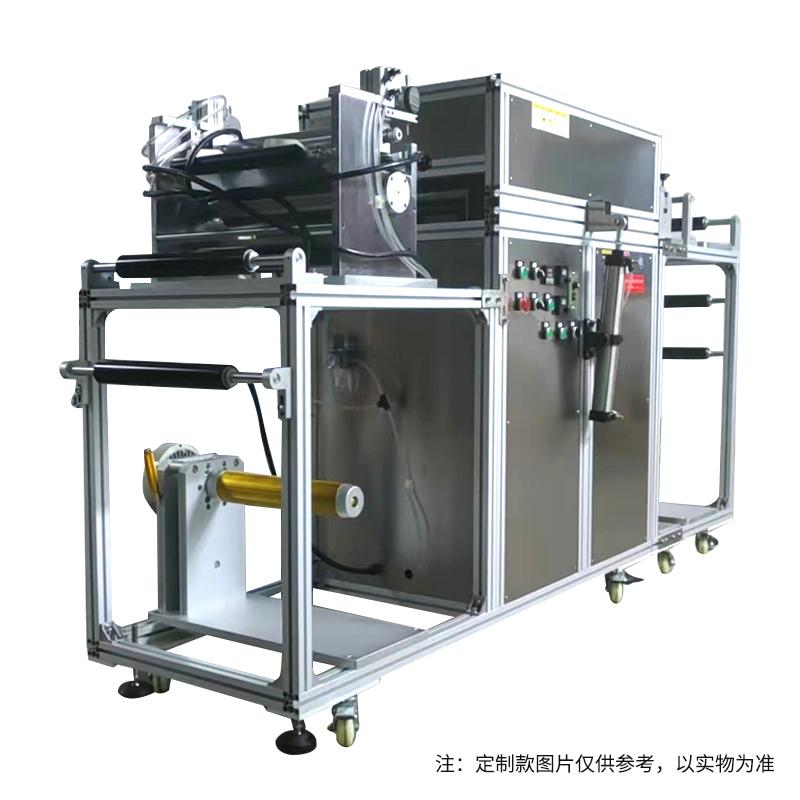

UV curing coil coating machine Rvadh-04/500uv is a coil laminating machine with UV curing, with automatic lamination function, using scraping method, with 1 meter oven, suitable for UV glue coating on release film.
Product structure diagram
Factory Rvadh-04/500uv UV UV curing Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| Film process | Unwinding → Scratching → Drying → UV curing → Unwinding |
| Coating method | Micro concave + comma (dual Spreader heads can be switched) |
| production speed | 0-5M/min |
| Coating size | Max.500mm |
| Coil diameter | 3 inches. |
| Power | 1.4KW |
| Power Supply | Three-phase 220V |
| unroll | With tension control |
| inflated shaft | 2 |
| Coating method | scraping |
| Drying channel length | 1m |
| UV curing area | 300*500mm |
| UV light main peak wave | 365nm |
| UV light curing wavelength | 350-450nm |
| switch | Aviation plug/separate switch |
Factory Rvadh-04/500uv UV UV curing Film Applicator Packing list
Host x1, Manual x1, Encasement List x1, Certificate of Conformity x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
