RDS #90 Mayer Rods WFT 205.7μm Length 400mm
Mayer Rods imported from the United States, formed process, suitable for levelling, sagging, color matching, color repair, hiding power, fingerprint resistance, etc. Film thickness is 205.7 μm, manual scraping, uniform film.
RDSProduct description

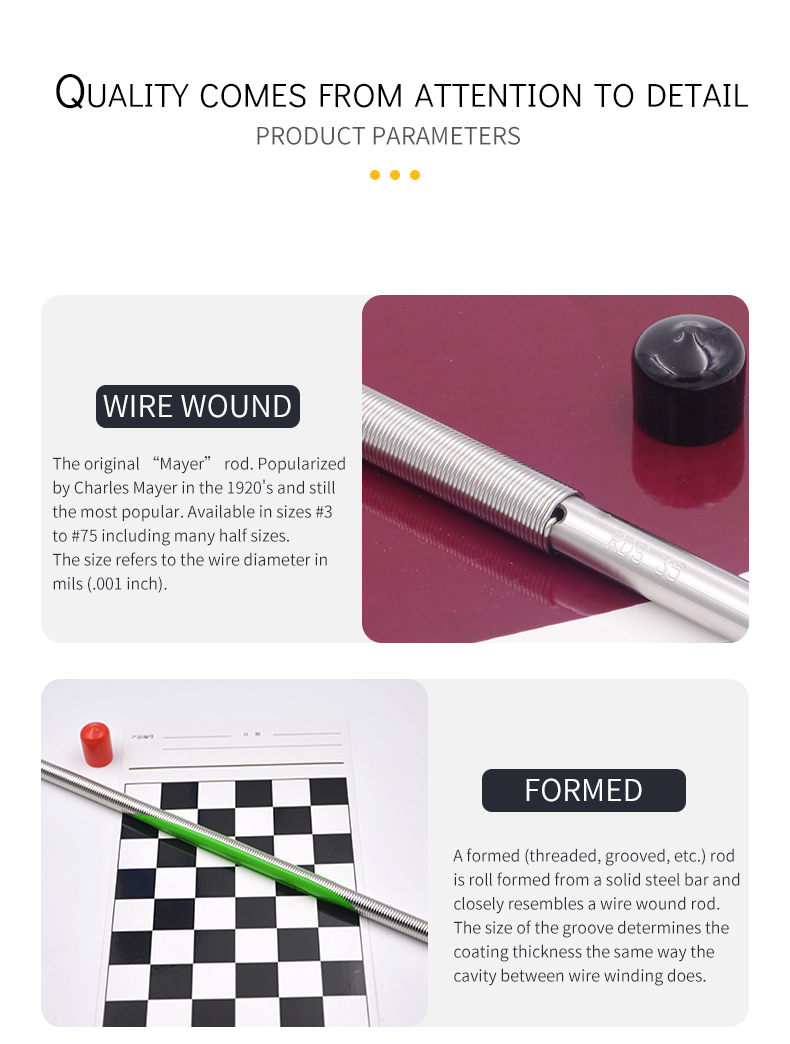

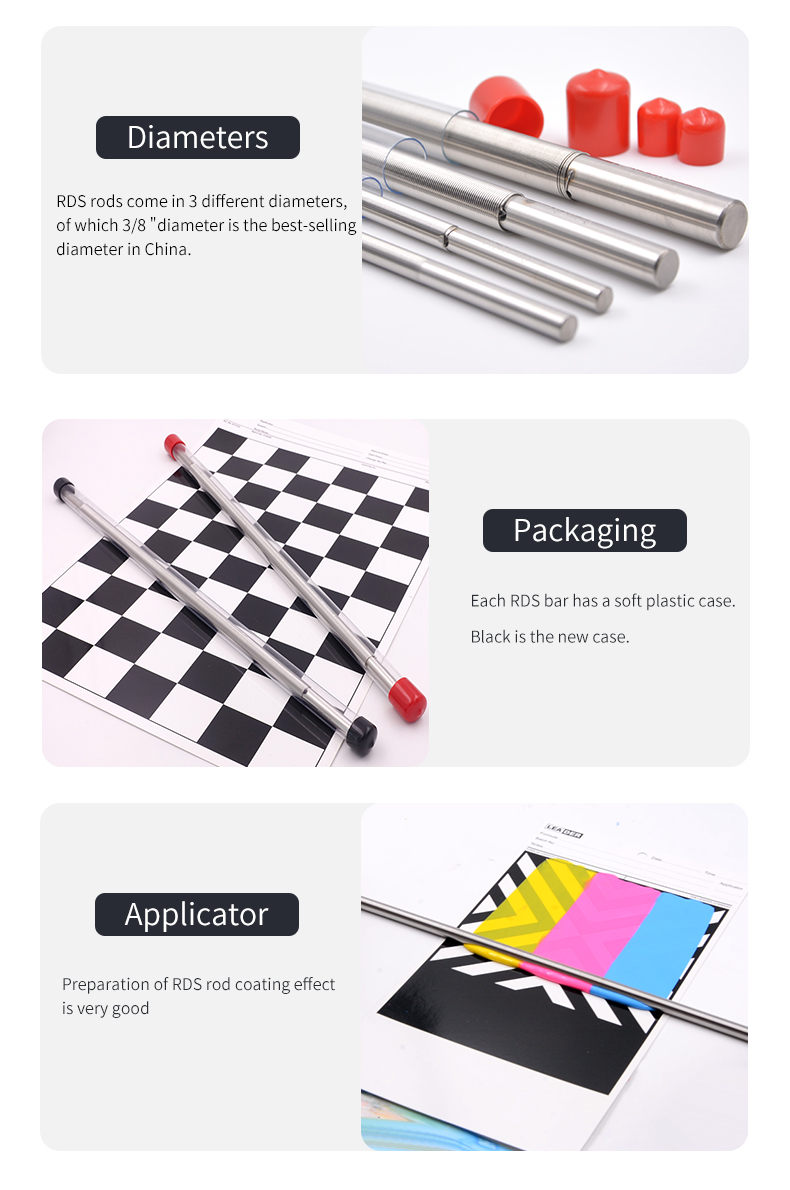

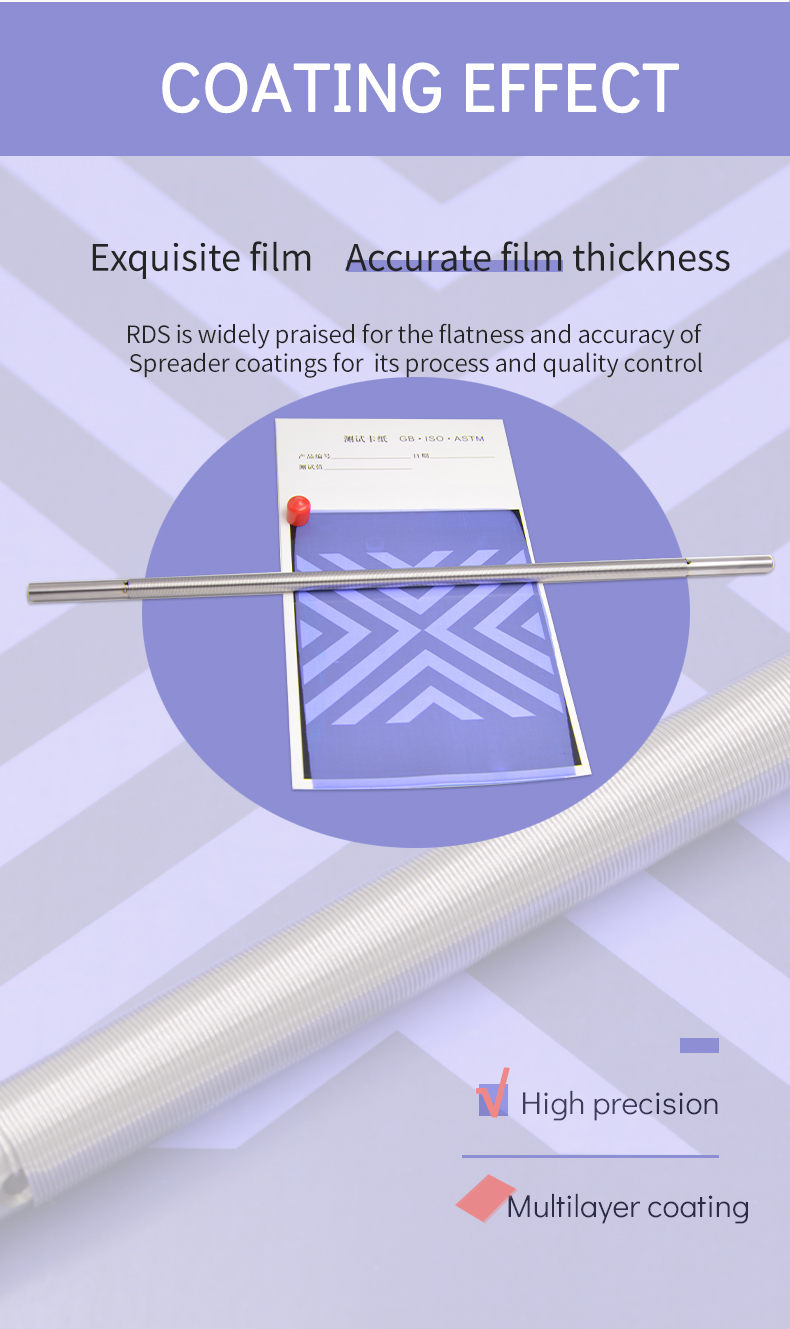

In the RDS wire rod coater, the wire-wound coating rod has three diameters of 1/2, 1/4, and 3/8, while the RDS forming wire rod coater currently only has a 1/4 inch diameter. This RDS#90 wire rod coater is a forming type coating rod. In addition to the different manufacturing process, the material, precision and Application of the formed coating rod and the wire-wound wire rod coater are the same, and the same type of RDS wire rod coater (including extruded The thickness of the wet film prepared by the pressure type and the wire type) is the same. RDS forming type wire bar applicator can also be widely used in leveling, sagging, color matching, color correction, hiding power, fingerprint resistance and other experimental testing, and is suitable for coatings, inks, latex, etc. of various viscosities.

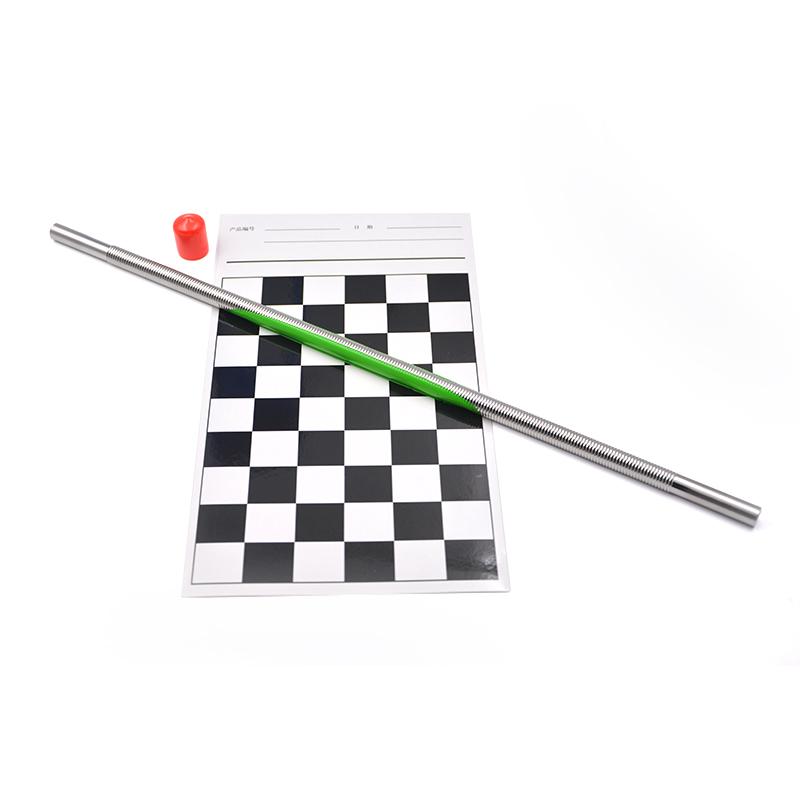

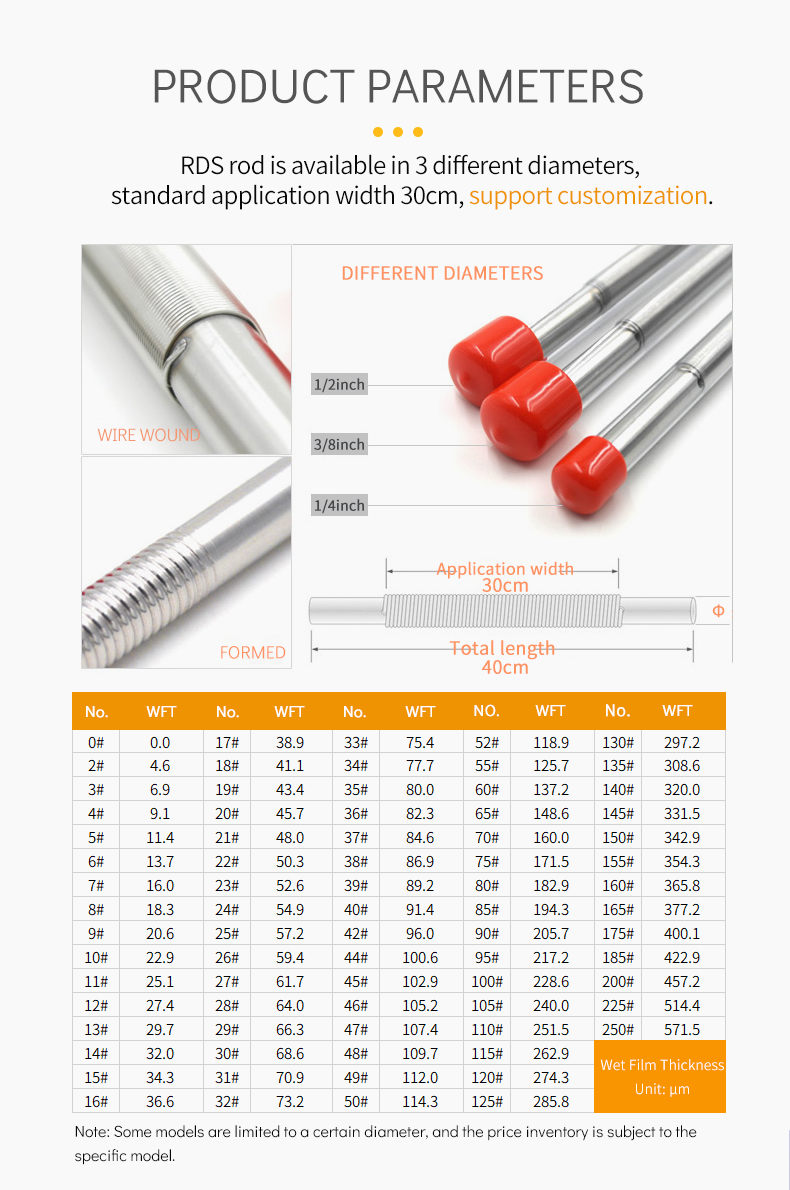

RDS 90# 1/4“ Applicator rod 1/4 "Specifications
| LIST | VALUE |
|---|---|
| Production process | formed |
| WFT | 205.7μm |
| diameter | 6.35mm |
| Total length | 400mm |
| application width | 300mm |
| Grip Width | 50+50mm |
| material | stainless steel |
RDS 90# 1/4“ Applicator rod 1/4 " Packing list
Stainless Steel Rod X1 Transparent Encasement Hose X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
