HuiNuo TM3200AF/09D Floor Type Multifunctional Film Applicator drawdown Bar & Blade Spreader Vacuum adsorption Automatic feeding 80 * 70cm
Coating method bar + drawdown blade, Spreader speed 1~ 300mm/s stepless speed regulation (can be customized), bar Spreader accuracy +/- 0.003mm, drawdown blade thickness range 0.1~ 10mm (flip design is easy to clean), vacuum aperture φ 0.8mm, vacuum hole distance 20 * 20mm
HuiNuo
TM3200AF/09D
-
HuiNuo TM1200/02 bar vacuum adsorption coater effective area 600 * 1300mm
Login -
HuiNuo TM3200/01 Bar & drawdown blade vacuum adsorption laboratory coater effective area 300 * 600mm
$ 5512.00 -
HuiNuo TM3200Pro/03D drawdown Bar & blade vacuum adsorption coater (floor type) Effective area 100cm * 30cm
Login -
China Battery Automatic Film Applicator Drawdown blade Lab Film Applicator TBJ-GD-JKXB
$ 1936.00 -
HuiNuo TM3100/01 Bar & drawdown blade heating coater Spreader, effective area 1000 * 1000mm
$ 9087.00
product description
The automatic film coating machine is a device used for coating films in the laboratory. It replaces manual coating and automatically applies film to improve the accuracy and efficiency of coating. The Principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate to form the required film by controlling the coating head and coating parameters.
This coating machine is a wire bar blade coating machine with two functions: wire bar coating and blade coating. The innovative wire bar installation method and flip-type scraper head greatly improve the coating efficiency, facilitate cleaning, and have speed control. And the coating length adjustment function is suitable for high-precision automatic coating in laboratories, and film production and proofing in university research institutes, new materials, lithium batteries, glue, resin and other laboratories.
Applications
The film coating machine is suitable for coating film sample preparation of coatings, inks, paints, slurries, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc. It can be applied on glass, cardboard, and cloth.
Features
1) The glass tabletop is a 3C certified national standard authentic fully tempered glass plate, original gold crystal, heat-resistant to 600℃, scratch-resistant and scratch-resistant
2) Big brand differential regulator, high film thickness control accuracy
3) Flip-type doctor blade coating head, easy to clean
4) Equipped with a high-precision Film Applicator, the original imported wire rod can apply the film uniformly and with high precision
5) Touch screen control panel, easy to operate
6) Coating length and coating speed can be adjusted freely

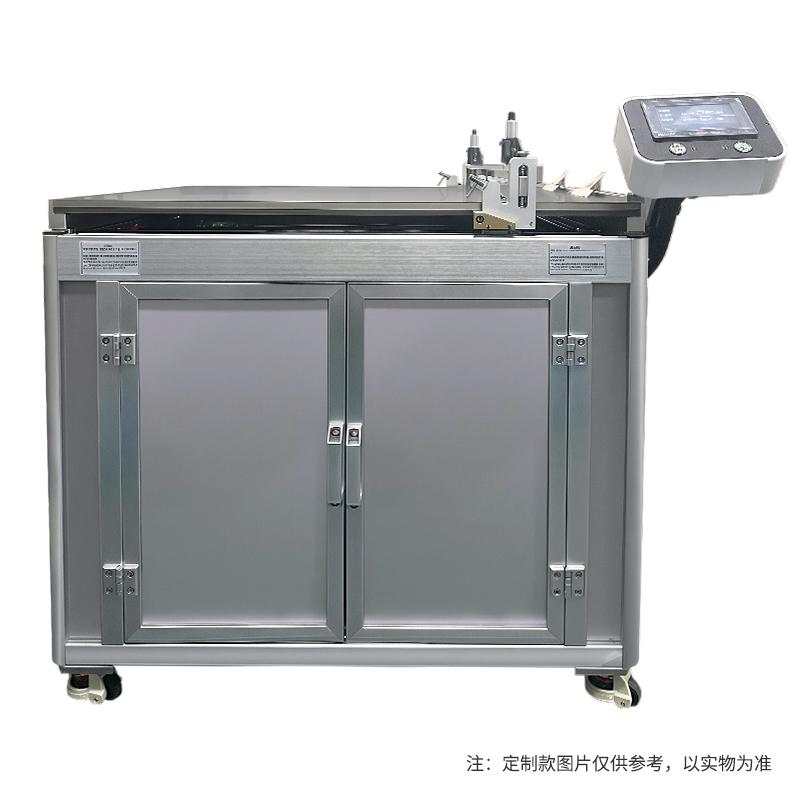

HuiNuo TM3200AF/09D Automatic Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| Coating Method | Bar + drawdown blade |
| Coating Speed | 1~ 300Mm/s stepless speed regulation (can be customized) |
| Substrate clamping method | Vacuum chuck + fixture |
| Coating table material | Surface hard treatment aluminum alloy |
| Effective coating Area | 700 * 800Mm (can be customized) |
| Spreader platform size | 940*830mm |
| Meyer rod coating thickness Range | Different bar numbers Film thickness is different, with high Accuracy imported bar |
| Meyer rod coating Accuracy | ±0.003mm |
| Drawdown blade Spreader Film thickness range | 0.1~ 10Mm (clamshell design is easy to clean) |
| Drawdown blade material | Die steel |
| Drawdown blade Spreader width | 800mm |
| Drawdown blade Spreader Accuracy | ±0.003mm |
| Vacuum chuck size | 780 * 760Mm (can be customized) |
| Vacuum Aperture | Φ0.8mm |
| Vacuum hole pitch | 20*20mm |
| Drive motor | Servo motor |
| Vacuumpump pumping rate | 5.4m3/h |
| Ultimate Vacuum | 50KPa |
| power | 600w |
| Vacuumpump power | 180W |
| Vacuumpump Weight | 7.1kg |
| operating language | Chinese (can be customized in English) |
| standard feature | Automatic inking system |
| Feeding principle | Air source pressure flows out |
| Feed Sport Mode | Reciprocating linear motion |
| Feeding back and forth traverse speed | 2~150mm/s |
| spit Volume | Adjustable (by adjusting the air pressure and the running speed of the discharge port) |
| Shaft transmission mode | Timer belt |
| Feeding system air source | 0.6Mpa, which can be connected to the trachea of < unk > 8 (self-equipped). |
| Feeding system power Voltage | 220V,50Hz |
| Tank pressure | Maximum withstand 8Mpa |
| Material of feeding barrel | 304 stainless steel with a wall thickness of 4mm |
| Feeding bucket configuration | Safety valve, pressure regulating valve, pressure gauge, discharge valve |
| Feeding drum Volume | 1L |
| Display | Color LCD touch screen |
| Host Power Supply | 220V/50HZ (can be customized 110V/60HZ) |
| Dimensions | 960*940*940mm |
HuiNuo TM3200AF/09D Automatic Film Applicator Packing list
Film Applicator x1, bar x1, drawdown blade x1, automatic feeding system x1, vacuum pump x1, manual x1, certificate x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
