Double Sided Coil Film Applicator Rgd-00/500TSDC Unwinding → Scratching → Dipping → Winding
Double roller painting film, Spreader process unwinding → scraping → soaking → winding, thickness range 0.001-2mm, film accuracy +/- 5%, Graduation 0.001mm, effective application width ≤ 500mm
Factory
Rgd-00/500TSDC
-
Factory direct sales Rgdjy-02/350dcpro immersion coil Automatic Film Applicator wet film thickness 0.005-3mm Continuous experimental Automatic Film Applicator
$ 28053.00 -
Taigang TG-RR300 laboratory roll-to-roll small coater small hot-melt adhesive coater
$ 5978.00 -
CHINA NBC-6026D hydrogel coater application width 480mm
Login -
CHINA immersion coil drying air-cooled slitting machine Rdc-01/500clcs dip coating machine
$ 28053.00 -
Taigang TG - 300-0.5 S laboratory roll-to-roll small coater desktop roll-to-roll coater
$ 11730.00

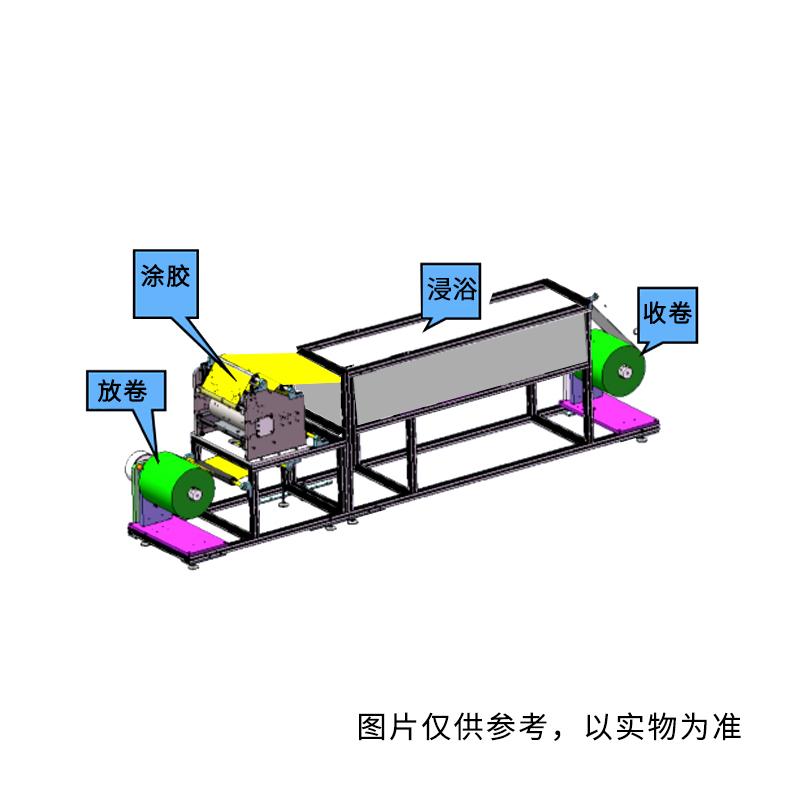

Structure of double-sided coil coating machine
The machine is composed of a body, a gluing width adjustment device, a discharging rack, a gluing roller group, a thickness adjustment dial gauge, a transmission platform, a traction roller group, and a transmission mechanism.
Introduction to the structure and composition functions
Body:The body of the equipment is all aluminum alloy + stainless steel plate.
Gluing width adjustment device:The width adjustment device consists of food-grade plastic and a movable brace.
Unwinding rack:The machine is equipped with two unloading racks, when the two materials do not deviate from the material pair in the laminating process, the deviation correction device automatically adjusts the material rack to move left and right to achieve the effect of aligning the two materials.
Transmission platform:The transmission platform is made of stainless steel, and its main function is to connect the substrate after gluing to the next process.
Traction roller set:The substrate is pulled by hand between the upper and lower rollers of the traction roller, the handwheel on the frame is tightened to make the traction roller, and the rubber ring of the upper roller is in contact with the lower roller, and the traction roller group is drawn over to the substrate by power transmission to make the coating work complete.
Factory Rgd-00/500TSDC Double Sided Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| Spreader process | Unroll → Scratch → Soak → Roll |
| Coating method | Double roller painting film |
| Thickness range | 0.001-2mm |
| Film Accuracy | ±5% |
| Graduation | 0.001mm |
| percentile | digital display |
| Coating speed | 0~20M/min adjustable |
| Effective application width | ≤500mm |
| Roll surface length | 450mm |
| Unwinding outer diameter | 500mm |
| winding outer diameter | 500mm |
| Outer diameter of winding air expansion shaft | 3 inches. |
| Winding outer diameter range | ≤400mm |
| Dimension | 2280 * 680 * 1600mm (subject to actual customization) |
| Host Power Supply | 380V/2KW |
Factory Rgd-00/500TSDC Double Sided Film Applicator Packing list
Film Applicator x1, film device x1, rewinding device x1, deviation correction device x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
