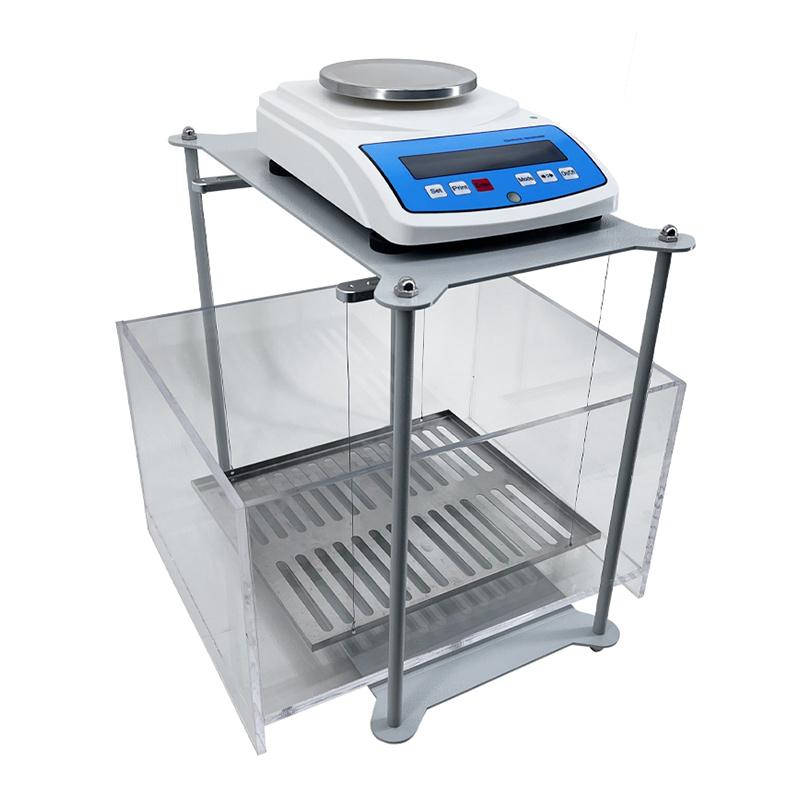

Density Measurement Instrument JHY-3000FX Solid Density Meter Lower hanging type 3000g 0.001g/cm3
Measurement range 3000g, weighing accuracy 0.01g, test type strip solid, indivisible solid, display value of overall density, volume, mixing ratio, specific gravity & volume change rate
Factory
JHY-3000FX
-
XIONGFA XF-600BH Viscous Liquid Density Meter 600g
$ 915.00 -
XIONGFA MDJ-600S Solid Density Meter weight range 0.005~ 600g
$ 458.00 -
Density Detection JHY-600W Solid Density Meter Imported Sensors 600g 0.001g/cm3
$ 425.00 -
HYLOLOGY HYL-102 Hall flow meter, determination of metal powder flowability
$ 506.00 -
HYLOLOGY HYL-101 Scott Loose Density Meter Powder Loose Density Test
$ 661.00
principle
According to ASTMD297-93, D792-00, D618, D891, GB/T1033, JISK6530, ISO2781 standards. It adopts the Archimedes' principle buoyancy method and is combined with special specific gravity accessories. It is suitable for the overall density test of long solids and indivisible solids in rubber and plastics, cast parts, aluminum foundries, precious metal hardware recycling and other industries.
Technical data
The compression ring or tensile strength of the product is relative to the density of the product as a whole.
In the case of split testing, the section will cause uncertainty in the density measurement.
Cracks or bubbles inside the material will directly affect the strength and density of the material.
function
The design of large aluminum alloy frame makes the specific gravity measuring table stable and easy to operate.
The space design of the internal large sink can reach 400*320*200 mm.
The size of the internal sink can be lengthened and customized according to customer requirements.
The maximum weighing capacity can reach 3000g, and the density analysis is 0.001 g/cm3
It can detect changes in material composition or defects in the product, such as cracks or bubbles.
Factory JHY-3000FX Solid Density MeterSpecifications
| LIST | VALUE |
|---|---|
| Measurement range | 3000g |
| Weighing Accuracy | 0.01g |
| Type of test | Elongated solid, indivisible solid |
| display value | Overall density, Volume, mixing ratio, specific gravity & Volume change rate |
| temperature compensation | The solution temperature can be set to 0~49 ° C |
| solution compensation | The solution can be set to 19.999. |
| Mixed specific gravity | Set the mixing ratio function of the two mixtures |
| set | Set reading time for density and specific gravity, Volume change rate of different mixtures |
Factory JHY-3000FX Solid Density Meter Packing list
Host X1, thermometer X1, clip X1, transformer X1, manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
