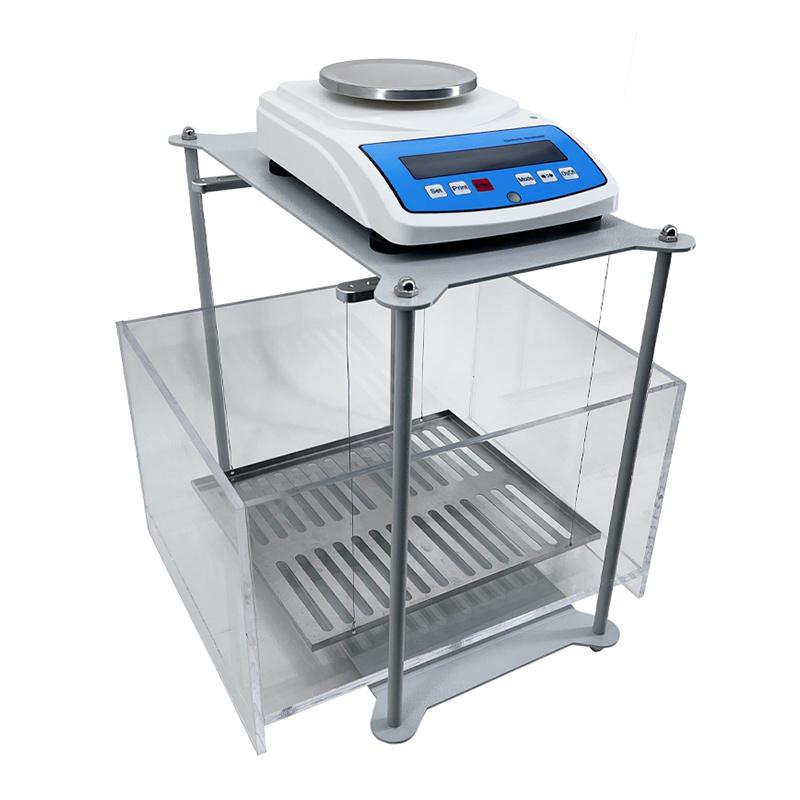

Density Tester JHY-8000F Solid Density Meter Large Range 8000g 0.001g/cm3
Sensors imported from Germany, Archimedes buoyancy method, weighing accuracy 0.1g, maximum weighing 8000g, density resolution 0.01g/cm3, measurement types solid, particle, block, float, foam.
Factory
JHY-8000F
-
FRARIV C200M Standard Vibrating Density Meter Compliant with Pharmacopoeia, Double Station
$ 1283.00 -
XINGYUN JA203M-S Solid Density Scale 210g/0.001g
$ 506.00 -
SDPTOP JA3003J Electronic Density Balance Maximum weight 300g
$ 655.00 -
XINGYUN XY-2CM-S Solid Density Scale 310g/0.01g
$ 319.00 -
XINGYUN JA203M-L Liquid Density Scale 210g/0.001g
$ 506.00
Introduction
The density value of the automatic solid large-range density meter can be measured if the density value is greater than one and less than oneThe sensor imported from Germany for electronic density meter adopts Archimedes principle, and each machine is compensated for humidity and accuracy, and the measurement is more accurate, and the measurement is packaged.
apply
Rubber, wire and cable, aluminum products, plastic PVC particles, powder metallurgy, mineral rocks, EVA foam materials, glass industry, metal products, fine ceramics, refractory materials, magnetic materials, alloy materials, mechanical parts, metal recycling, minerals and rocks, jewelry industry and other new materials research laboratory.
principle
According to ASTM D792, ASTM D297, GB/T1033, GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 2781, ISO 1183 standards. The Archimedes' principle buoyancy method is used to accurately and directly read the measured values.
Features
The density meter has high measurement accuracy, fast measurement speed, small sample volume, and simple operation
According to the different characteristics of the product, water, alcohol, silicone oil and other liquids can be replaced as the medium
Direct density reading, which reads the density value of the sample directly in just two steps
It can measure samples of any shape, including solids, blocks, particles, floats, thin films, water absorbents, specific gravity of foams, etc
Accurate and fast measurement of the density of non-absorbent and absorbent products
The standard RS232 data output function makes it easy to connect to a PC and printer
Liquid or powder accessories are available as an option to measure the density of liquids or powders
Factory JHY-8000F Solid Density MeterSpecifications
| LIST | VALUE |
|---|---|
| Weighing Accuracy | 0.1g |
| maximum Weight | 8000g |
| density resolution | 0.01g/cm3 |
| Measurement type | Solids, particles, blocks, floats, foams |
| Measurement time | About 10 seconds |
| setting function | Temperature compensation setting, solution compensation setting |
| Measurement function | Weight density Volume |
| optional | printer |
| Packaging Dimensions | 45 * 24 * 46Mm (length, width and height) |
| Weight | 6.5kg |
Factory JHY-8000F Solid Density Meter Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
