Rxg-01/300csh hydrogel coater effective application width 300mm
Production speed 0-5m/min, effective application width 300mm, Spreader process unwinding → Spreader → fitting → drying → slitting, equipment power servo Control system
Factory
Rxg-01/300csh
-
HuiNuo JTM - 0.5/300 UV small continuous coater with heating UV curing Maximum Spreader width 300mm
$ 9709.00 -
HuiNuo JTM-300 Small continuous coater Roll-to-roll Film Applicator No air source required
$ 5512.00 -
HuiNuo JTM - 0.6/300 UV small continuous coater with heating UV curing high-precision modularization
$ 10175.00 -
HuiNuo JTM-300UV/0.6 Small continuous coater UV UV curing Full electric control 0.01mm Spreader thickness
$ 9398.00 -
Automatic Film Applicator for large coils unwinding + scraping + drying (8m oven) + heating film laminating + trimming + deviation correction + winding function
$ 28053.00
Introduction
A hydrogel coater is a type of equipment used to prepare hydrogel films or coatings. Hydrogel is a kind of polymer material with good water absorption and water retention, and is often used in medical, cosmetic, sanitary products and other fields. The hydrogel coater is mainly used to evenly coat the surface of the substrate to prepare hydrogel products with specific properties, this coater has a slitting function and supports UV curing.
Product structure diagram

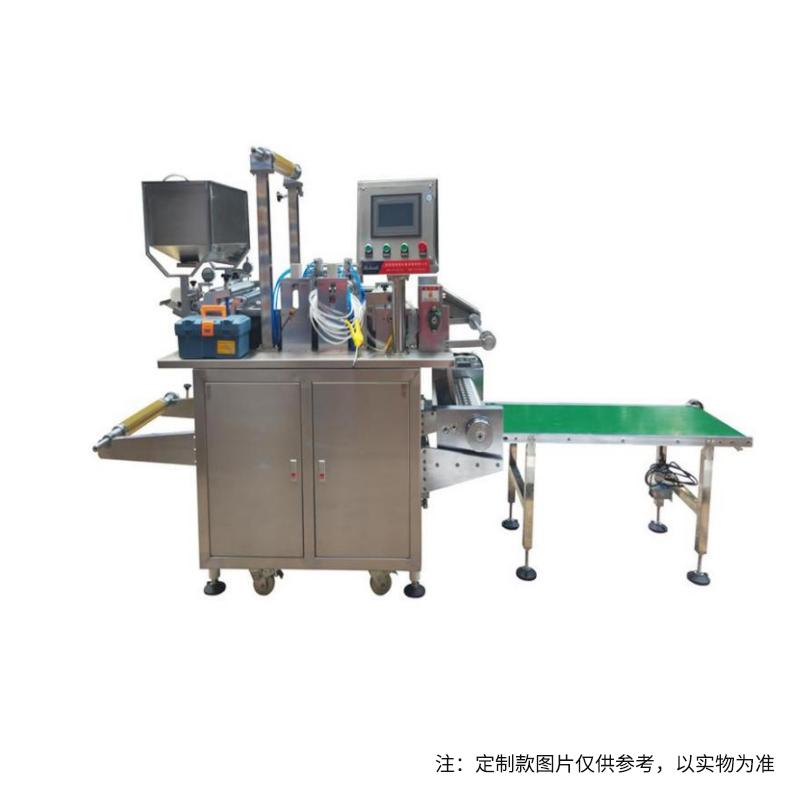

Factory Rxg-01/300csh Hydrogel coater Specifications
| LIST | VALUE |
|---|---|
| production speed | 0-5M/min |
| Effective application width | 300mm |
| Spreader process | Unroll → Spreader → Fit → Drying → Slitting |
| Coil diameter | 500-700mm |
| Slitting method | transverse slitting |
| Vertical cutter installation | 3 |
| unroll | With tension control |
| Control system | Touch screen (Kunlun Tongtai) |
| Equipment power | Control system |
| inflated shaft | 2 |
| Power | 1.4KW |
| Weight | 1200kg |
| Dimension | 2650 * 1100 * 1700mm (L * B * H), floor area: 2.3 m2 (including conveyor belt) |
| Toolbox | 1 (with: Thickness gauge, screw driver, tracheal interface 1) |
| Power Supply | Three-phase 220V |
Factory Rxg-01/300csh Hydrogel coater Packing list
machine x1, manual x1, certificate x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
