JINGKELIAN QNB No.3 ISO Flow Cup outflow time 30s ≤ t ≤ 100s diameter 3.0mm

Viscosity range 7~ 40cSt, outflow time 30~100s, flow hole diameter 3mm, cup body material stainless steel, filter material stainless steel, Applicable standard ISO 2432-1993, GB/T6753.4-86.

Brand

SKU: NB000491

JingKeLian

Model

QNB No. 3

Price

$ 138.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

JingKeLian shopSE

Information

Datasheet RFQ Contract Manual

What else did others buy

Genuinegoods

JingKeLian QNB No. 3 ISO Flow CupOverview
Specifications
Comments
FAQs

QNB No. 3

ISO Flow Cup

Viscosity range 7~ 40cSt, outflow time 30~100s, flow hole diameter 3mm, cup body material stainless steel, filter material stainless steel, Applicable standard ISO 2432-1993, GB/T6753.4-86.

Introduction of ISO outFlow Cup

JinKeLian QNB ISO outFlow Cup has three types of outflow Viscosity Cups, QNB No. 3, No. 4 and No. 6. This ISO outFlow Cup is developed by integrating the relevant provisions of the national standard and the international standard. It adopts stainless steel material. QNB No. 3/No. 4/No. 6 ISO outFlow Cup is used to test the outflow time of Newtonian or near-Newtonian liquids, and the applicable test outflow time range is 30s~100s.

application standard

1. International standard ISO2432-1993 "Determination of outflow time with outFlow Cup for paints and varnishes" (fourth edition)

2. National standard GB/T6753.4-86 "Determination of coating flow time - ISO Flow Cup method"

Specifications

model	Outlet diameter (mm)	Viscosity range (mm²/s)
QNB No. 3	3.0± 0.01mm	7-40 mm²/s
QNB No. 4	4.0± 0.01mm	35-135 mm²/s
QNB No. 6	6.0± 0.01mm	134-685 mm²/s
Other parameters
Executive standard	GB/T6753.4-86, 1ISO243-1993
outflow time	30s≤t≤100s

Introduction

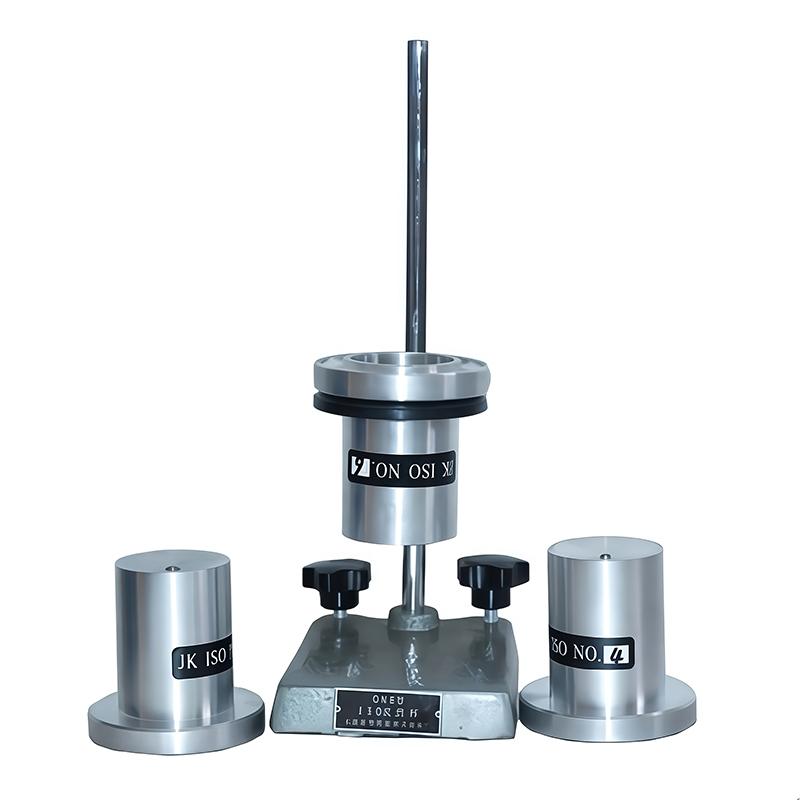

Real shot of JinKeLian QNB ISO outFlow Cup

JingKeLian QNB No. 3 ISO Flow CupSpecifications

LIST	VALUE
Viscosity range	7~40cSt
outflow time	30~100s
Flow hole diameter	3mm
Cup body material	stainless steel
Filter material	stainless steel
Applicable standard	ISO 2432-1993、GB/T6753.4-86
Certificate	without

JingKeLian QNB No. 3 ISO Flow Cup Packing list

Flow cup x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Does the JINGKELIAN ISO flow cup meet the JJG743 standard?

[A]

The ISO flow cup of QNB No. 3 can be referred to.

[Q]

Is the QNB3 flow cup equipped with a bracket?

[A]

Hello, there is no bracket. If you need a bracket, you need to buy it separately.

[Q]

Can you measure the viscosity of the batter?

[A]

Hello! The viscosity range of the batter is too high, and the aperture of the viscosity cup is too small. The batter will not flow and does not meet the calculation time of the viscosity cup, so the aperture of the viscosity cup does not support the measurement of the viscosity of the batter. However, you can choose to use Viscometer to measure the viscosity of the batter, but the price of Viscometer will be higher.
