Introduction

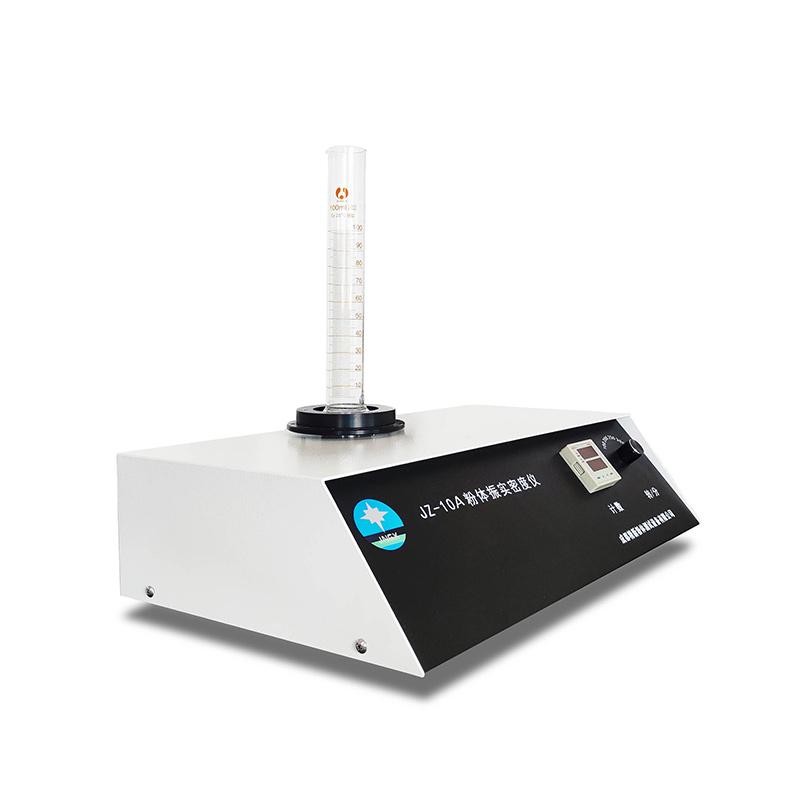

JZ-10A is a single-station powder tap density meter, which is composed of high-reliability electromechanical components, counting system, intelligent software and auxiliary spare parts, etc., and supports electronic report generation and data storage. It is easy to operate, durable, beautiful in appearance, and suitable for the detection of tapping density of various powders, powders and granular materials.
Application
It is suitable for the detection of tap density of metal powder, non-metal powder, medicine, food, chemical industry, new materials, new energy, and scientific research institutions
Features
The measuring cylinder can be removed from the fixed bracket to facilitate cleaning, replacement and storage of the measuring cylinder.
During work, the graduated cylinder vibrates up and down and rotates horizontally at the same time to keep the surface of the powder in the graduated cylinder flat, which effectively improves the measurement accuracy
The intelligent software calculates the tapping density and loosening density to 2 decimal places.
The software interface can be selected in Chinese or English, supports the generation of electronic reports, and supports Word, PDF, Excel three formats.
It has independent intellectual property rights and meets the national standards and USP standards of the United States Pharmacopoeia.
High-performance electromechanical components, firm and reasonable structure, easy operation and long service life.
Calculation software
The software is installed on the computer, and the value of the test record is input into the software, which can directly calculate the tap density and loose density of the powder, and can be exported to Word, PDF, Excel three file formats, and the data report can be viewed online, and the paper report can also be printed online. It is very convenient for the statistics and comparison of test data.
Operating Environment
Environmental requirements: Relative Humidity is less than 85%, no condensation.
Other requirements: the environment is clean and free of smoke and dust, and there is no mechanical vibration source or electromagnetic interference source around.
This product supports the following standards
GB/T 5162—2021 Metal powders -- Determination of tap density
GB/T 31057.2-2018 Physical properties of granular materials – Part 2: Measurement of tap density
Chinese Pharmacopoeia-2020.0993 Determination of bulk density and tap density
JingXin JZ-10A Powder Tapped Density MeterSpecifications
| LIST | VALUE |
|---|---|
| test project | Tapped Density |
| test station | 1 |
| number of vibrations | 1-9999 times adjustable |
| vibration amplitude | 3mm±0.2 mm |
| Vibration Frequency | 100, 200, 250, 300 times/min |
| Vibration mode | Swirling/spinning and vibrating up and down |
| Repeatability Error | ≤1% |
| result output | Software Automatically Calculates Tapped Density |
| result save | Word, PDF, Excel three formats |
| instrument size | Length 455 Width 280 Height 125 (mm) |
| instrument Weight | About 15kg |
| Input power | AC 220v Power 110w |
JingXin JZ-10A Powder Tapped Density Meter Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
