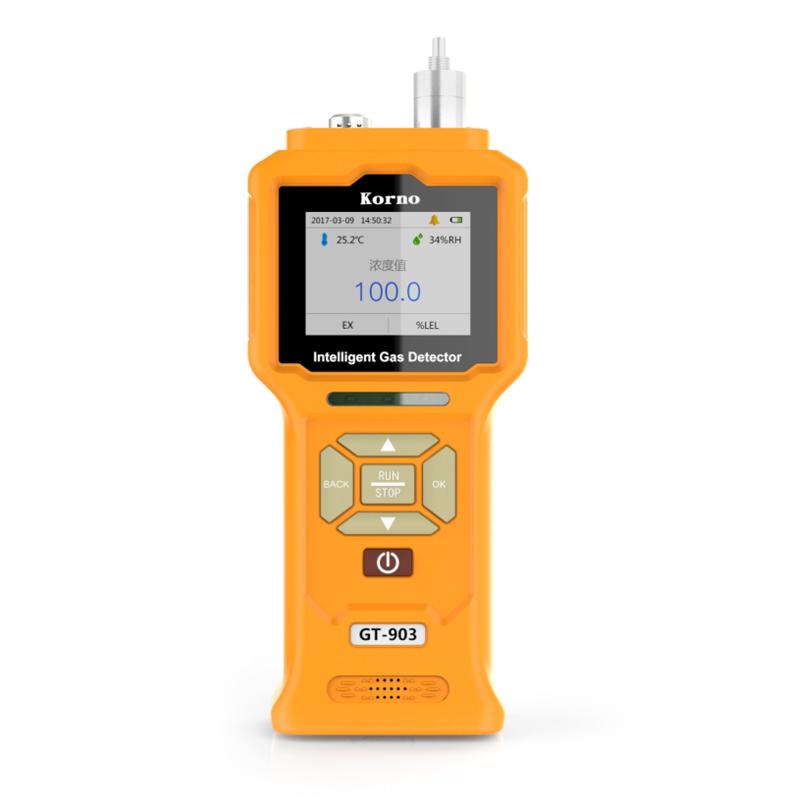

KORNO GT-903-HCL-YH Hydrogen chloride Detector, measuring range 0-500ppm
Detection gas HCL, range 0-500ppm, resolution 1PPM, Response time T90 ≤ 20s, Linearity ≤ +/- 1%, detection accuracy ≤ +/- 3%, Repeatability ≤ +/- 1%, extended gas supports 1-4 Sensors.
KORNO
GT-903-HCL-YH
-
HONEYEAGLE HNAG1000-NO2 Fixed Nitrogen Dioxide Detector 0-250PPM
$ 509.00 -
GUOYUGRA GY/VGD-200-PF5-G (0-10ppm) phosphorus pentafluoride Detector
$ 879.00 -
GUOYUGRA GY/VGD-200-C3H6-G Infrared Propylene Detector 0-2% Vol
$ 941.00 -
Baoshi'an BH-60-H2 Fixed Hydrogen Detector 0~1000ppm
$ 241.00 -
GUOYUGRA GY/VGD-200-C8H8-G (0-10ppm) styrene Detector
$ 494.00
Introduction

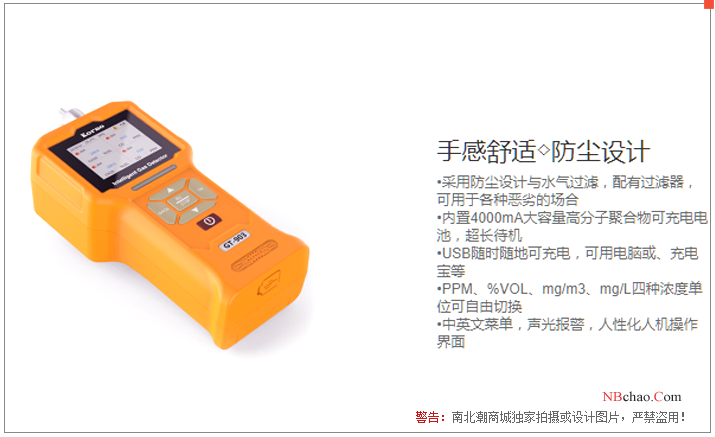

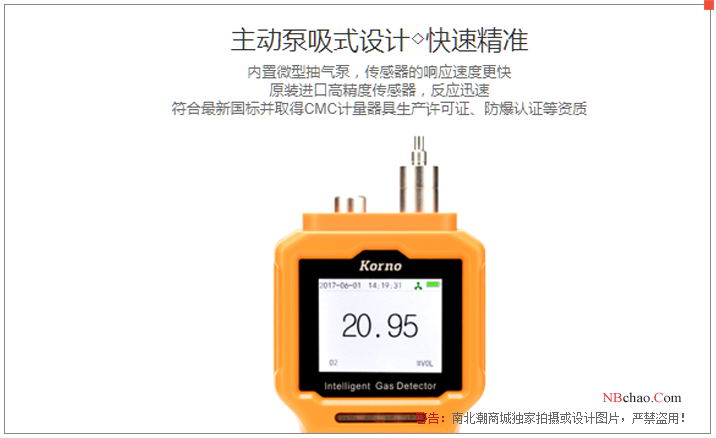

GT-903 pump-suction hydrogen chloride Gas Detector is suitable for gas concentration detection in various industrial environments and special environments, using imported electrochemical gas sensor and microcontroller technology, fast response, high measurement accuracy, good stability and repeatability, the performance of the whole machine is at the professional level in CHINA, the parameters can be set by the user, the operation is simple, the instrument is dustproof design, equipped with dust filter, and can be used in various harsh occasions.
Features
KORNO GT-903-HCL-YH Hydrogen chloride DetectorSpecifications
| LIST | VALUE |
|---|---|
| Detect gas | Hydrogen chloride HCL |
| Range | 0~500ppm |
| resolution | 1PPM |
| Response time | T90≤20s |
| Linearity | ≤±1% |
| detection Accuracy | ≤±3% |
| Zero drift | ≤ +/- 1% (F. S/year) |
| recovery time | ≤20s |
| Repeatability | ≤±1% |
| expansion gas | Supports 1-4 Sensors |
| Explosion-proof sign | CNEx16.0538 |
| Protection level | IP65 |
| production license | Guangdong 00001052 (CMC metrology authentication) |
| Humidity | Optional accessories, temperature detection range: -40~120 ℃, Humidity detection range: 0~100% RH |
| Sampling method | pump suction |
| detection mode | Real-time detection, Timer detection can be set |
| Data storage | Real-time storage and timed storage can be set; 120,000 groups of data can be stored |
| Operating temperature | -30~60℃ |
| Environmental humidity | 0~95% RH non-condensing |
| Operating Pressure | -30~100Kpa |

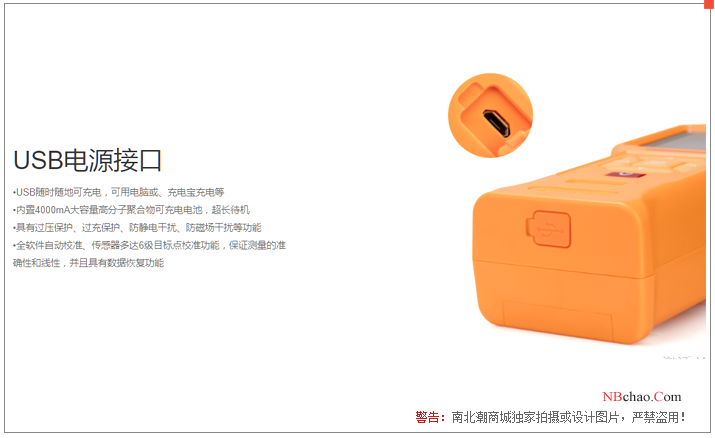

| Power Supply | 4000mA rechargeable polymer battery |
| Dimension | 212*85*70mm |
| Net Weight | 0.45Kg |
| execution standard | GB3836.1-2010、GB3836.4-2010 |
| optional range | 0~10、20、100、200ppm |
KORNO GT-903-HCL-YH Hydrogen chloride Detector Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
