Rgd-300TS Double-sided Coil Film Applicator Guide Roller Width 300mm oven length 1m
Coating thickness dry weight 5um, material width range 210mm, travel speed 0-5m/min, guide roller width 300mm, oven length 1m, stroke +/- 150mm, accuracy +/- 0.5mm.
Factory
Rgd-300TS
-
Coil coater Rjy-00/800 Spreader 800mm double roll extrusion
$ 28053.00 -
Automatic Film Applicator RDH-12/650cl film width 650mm unwinding + comma scraping + infrared drying + comma scraping + infrared Drying Oven + air-cooled + winding
$ 49817.00 -
Miniature Coil Coating Tester, Heating Coil Applicator TBJ-JTH-DJ1 Automatic Winding and Unwinding
$ 10175.00 -
Oven coil composite coater with unwinding + scraping + drying + covering + winding function
$ 26187.00 -
CHINA TBJ-JCRL-DJ2 Water-cooled Air-cooled Miniature Coil Applicator
$ 12507.00
Introduction to the device
The speed of the high-precision double-sided dipping coating machine is 0-5m/min, the width of the guide roller is 300mm, and the length of the oven is 1m, including feeding, dip coating, thickness control scraper, oven, rewinding and unwinding, electrical control, protective cover and other units, which are mainly used for primer coating of various slurries in the low viscosity range.

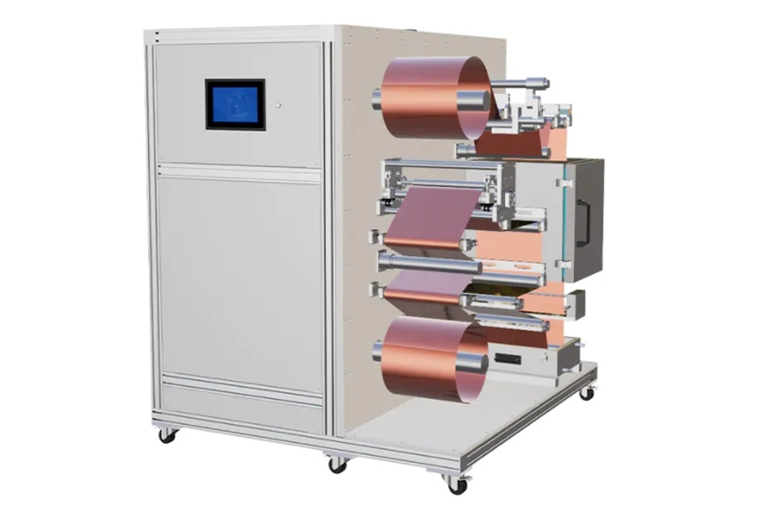

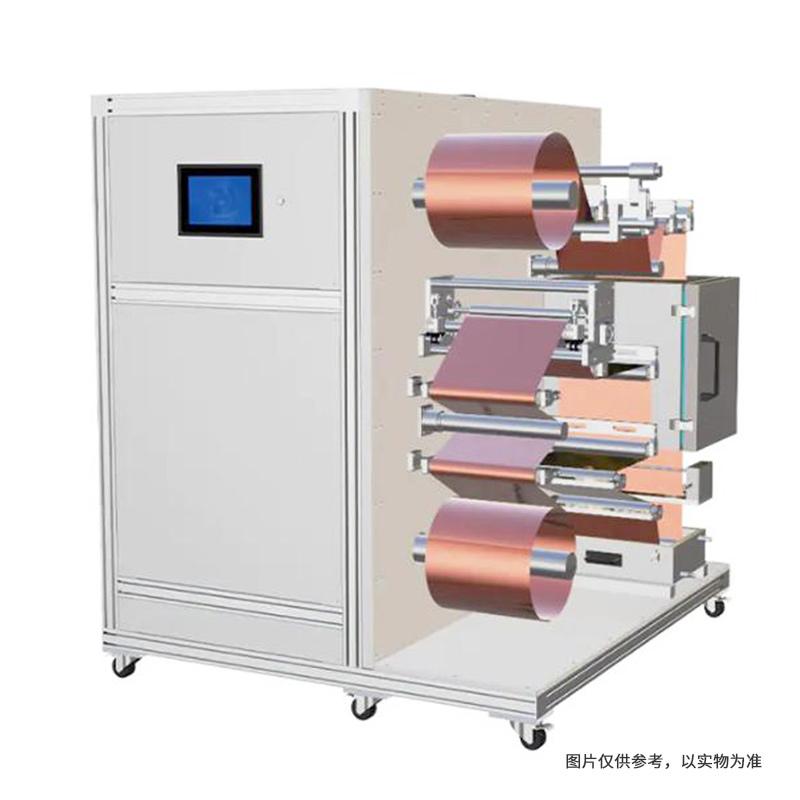

Equipment structure intent: (pictures are for reference only)
Factory Rgd-300TS Double Sided Film Applicator Specifications
| LIST | VALUE |
|---|---|
| foil | Copper foil, aluminum foil and PET film, etc. (material thickness 6-30um) |
| slurry | Water-based paints, battery slurries, electrolysis fluids, etc. (viscosity range < 3000cps) |
| Mechanical speed | Max 5m/min (production speed depends on slurry and coating requirements) |
| Coating thickness | Dry Weight 5um |
| wide range of materials | 210mm |
| pull width | 100-210mm |
| Substrate Weight | Max.50Kg |
| Tension control range | 1-50N |
| guide roller | Hard anodic oxidation treatment on roller surface |
| Spreader Dry-Film Error | Better than +/- average surface density of 20%, no large area leakage of foil phenomenon (related to slurry state) |
| Device size | About 1500mm long × 1200mm wide × 1700mm high |
| unwinding method | Roll up or down, maximum roll diameter 250mm |
| tension control | Tension can be set, PLC program control, forming a closed-loop tension control; |
| unwind drive | Servo motor 500W, precision planetary gear reducer 1 set, servo Controller 1 set |
| Deviation correction device | Motor correction push, stroke +/- 150mm, Accuracy +/- 0.5mm, ultrasonic testing (UT) edge sensor |
| roll over | φ 50mm × 300mm, aluminum roller surface anode treatment, mirror polishing treatment |
| operation button | Touch screen button switch control and emergency stop, start, stop, deviation correction manual/automatic buttons |
| Control mode | Equipment reference speed |
| Oven length | A total of 2 ovens; oven length 1000mm/section, a total of 1000mm |
| Oven Temperature range | Inside the box 40 ℃~ 200 ℃ (Environmental temperature 20 ℃) |
| Oven temperature Accuracy | Temperature control Accuracy +/- 2 ℃ |
| Electric heating | 8Kw/section, total 8kw |
| heater | Electric heating tube + stainless steel heat exchange fins |
| Box material | The inner and outer sides are stainless steel, and the insulation layer is rock wool board/silicic acid board. |
Factory Rgd-300TS Double Sided Film Applicator Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
