Introduction
Electromagnetic vibration test series are widely used in national defense, aerospace, communications, electronics, automobiles, household appliances and other industries. This type of equipment is used to find early faults, simulate actual Operating Conditions assessment and structural strength test, and the product has a wide range of applications, wide application area, remarkable test effect and reliability.
Features and Benefits:
Humanized operation and control, using professional measurement and control software control, so that the equipment works more stable and reliable
The whole machine is made of composite industrial materials, precision machining, and ultra-quiet
The worktop is made of magnesium-aluminum alloy material, which can completely isolate the magnetic field interference and effectively prevent the magnetization of the measured object
Sweep, fixed frequency and multi-band operation modes to adapt to the test requirements of different industries
High-precision frequency output, four-point synchronous excitation, uniform table vibration
Strong anti-magnetic and anti-interference ability
It has a safe and reliable protection function
The table body is cooled by a high-efficiency and low-noise fan to ensure long-term continuous operation
Using the principle of closed-loop control (negative feedback control), the sensor automatically controls the shaker after acquisition to ensure the output and test accuracy
It has constant vibration amplitude vibration and constant acceleration vibration
The system is equipped with high-precision vibration sensors to collect acceleration, amplitude, and frequency values in real time

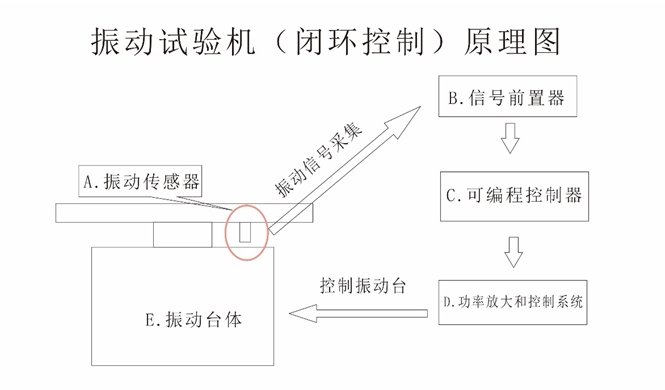

Schematic

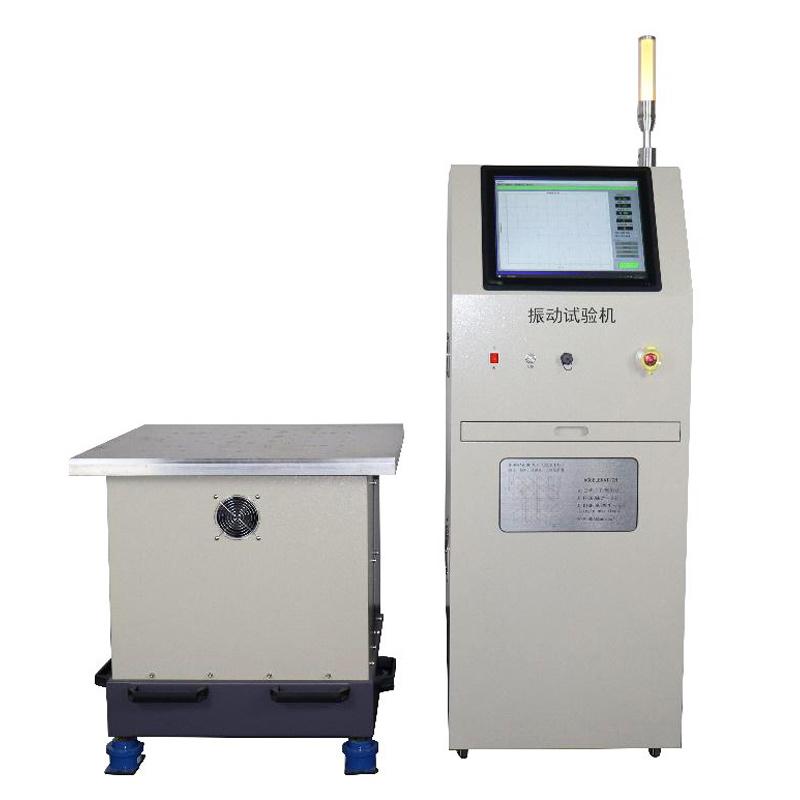

ZhongLiDongKe RT-S60FN-750 Vibration testing machineSpecifications
| LIST | VALUE |
|---|---|
| Frequency modulation range (Hz) | 5~600 |
| Sweep range (Hz) | 5~600 |
| Maximum Acceleration (m/s2) | 170 |
| Maximum test load (kg) | 40 |
| Maximum no-load displacement (mmp-p) | 0~ 2 (automatic adjustment) and 0~ 5 (manual adjustment) |
| vibration waveform | sine wave |
| vibration axis | Vertical + Horizontal |
| Excitation mode | Electromagnetic excitation |
| Control mode of vibration | closed loop control |
| Data acquisition method | Vibration data collection + Acceleration Sensors |
| Acceleration Sensors | 2 Piezoelectric Acceleration Sensors (Built-in Shaker Table) |
| operating mode | Frequency mode (constant amplitude mode and constant acceleration mode), frequency sweep mode (constant amplitude scan and constant acceleration scan), multi-segment mode (constant amplitude mode and constant acceleration mode) |
| Platform shock absorber | 1 set (suitable for high floors and laboratories) |
| Sweep mode | linear |
| Operation mode | Computer control |
| Cooling mode | air-cooled |
| Operating temperature requirement (℃) | 0~+40 |
| Operating humidity requirement (% RH) | 0-90, no condensation |
| power requirements | Three-phase AC 380V/50Hz +/- 10% |
| System Power Consumption (KVA) | 7.5 |
| Display parameters | 19 inch, capacitive touch screen all-in-one machine |
| Work surface material | aluminum alloy |
| Countertop screw size (standard) | M8 (can be customized) |
| Number of Countertop screws | 8 (can be customized) |
| Total Weight of the platform (kg) | 370 |
| Work surface size W.D.H (mm) | 750×750×43 |
| Table size W.D.H (mm) | 750×750×650 |
| Control cabinet size W.D.H (mm) | 600×580×1600 |
ZhongLiDongKe RT-S60FN-750 Vibration testing machine Packing list
Host X1, manual X1, certificate X1, warranty card X1, simple fixture X1, power cord X1, control cable X1, U disk X1, computer (computer host + monitor + keyboard and mouse set) X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
