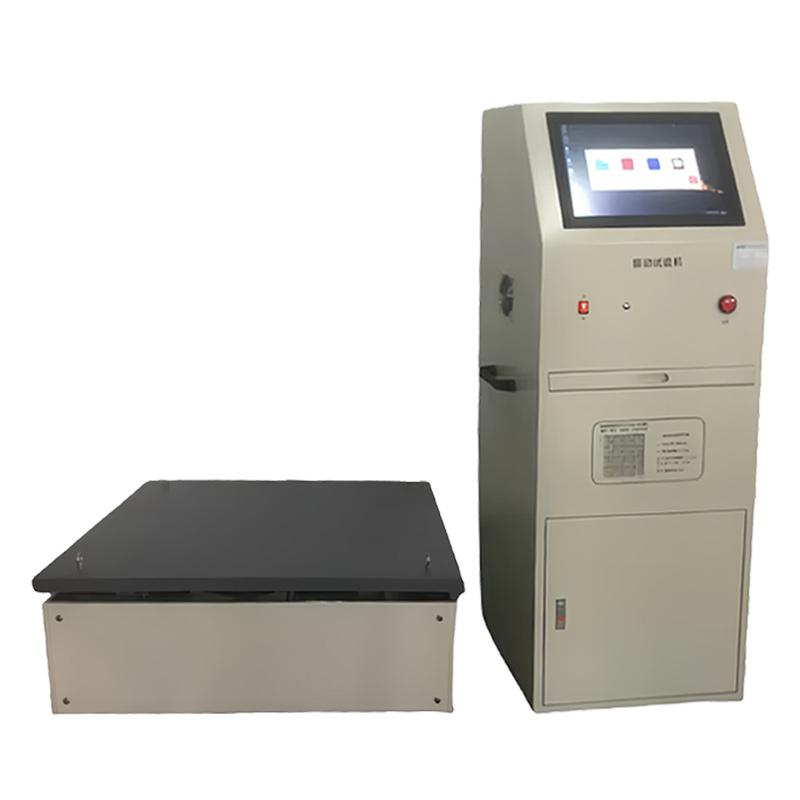

Gravity Dongke RT-S90M-1000 vibration testing machine, mechanical vibration, including computer
Maximum test load 400kg, Maximum Acceleration 130m/s ², FM range 560Hz, Sensor type: Piezoelectric Acceleration Sensors, vibration waveform sine wave, vibration axial vertical.
ZhongLiDongKe
RT-S90M-1000
-
Gravity Dongke RT-S60FN-750 Vibration Testing Machine, Electromagnetic Vibrator, Including Computer
$ 12352.00 -
CHINA NBC-ZXY150D Touch Screen Electrodynamic Shaker Vertical + Horizontal + Front and Back
$ 4730.00 -
CHINA NBC-Z150C Electromagnetic vibration table Touch screen vibration Tester
$ 3337.00 -
CHINA NBC-ZX100D Touch Screen Electrodynamic Shaker Vertical + Horizontal
$ 2872.00 -
CHINA NBC-6S-50 Electrodynamic Shaker Six Degrees Integrated Vibration Tester
$ 4730.00
Introduction
The mechanical vibration test series is widely used in national defense, aerospace, communications, electronics, automobiles, household appliances and other industries. This type of equipment is used to find early faults, simulate actual Operating Conditions assessment and structural strength test, and the product has a wide range of applications, wide application area, remarkable test effect and reliability.
Features and Benefits:
Humanized operation and control, using professional measurement and control software control, so that the equipment works more stable and reliable
The whole machine is made of composite industrial materials, precision machining, and ultra-quiet
The countertop is made of steel material, and the structure is stable
Sweep, fixed frequency and multi-band operation modes to adapt to the test requirements of different industries
High-precision frequency output, four-point synchronous excitation, uniform table vibration
Strong anti-magnetic and anti-interference ability
It has a safe and reliable protection function
The table body is cooled by a high-efficiency and low-noise fan to ensure long-term continuous operation
It has constant vibration amplitude vibration and constant acceleration vibration
The system is equipped with high-precision vibration sensors to collect acceleration, amplitude, and frequency values in real time

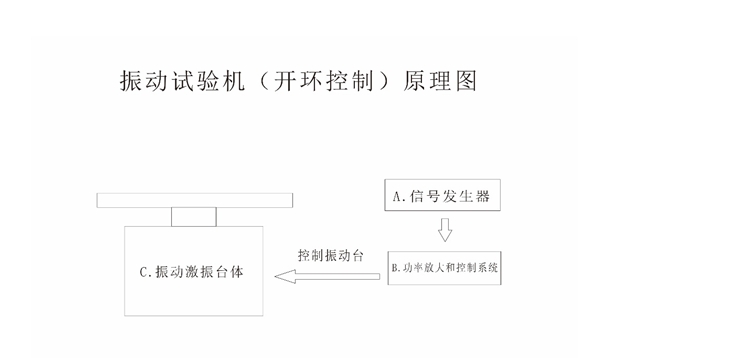

Schematic
Accelerometer advantages
1. Precise control of vibration energy The vibration energy is adjusted through the controller knob
A. Sensor acquisition, real-time acquisition of vibration acceleration, amplitude and frequency, and display in the vibration control software

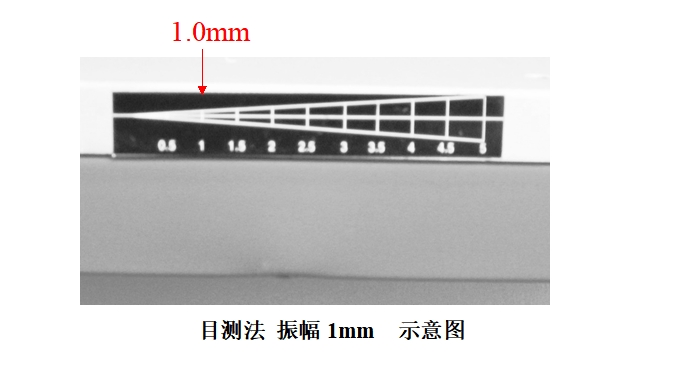

B. Traditional visual inspection, by looking at the amplitude label affixed to the side of the shaker, the intersection of the three white coincidence points, to determine the vibration amplitude. Disadvantages: The visual inspection must be viewed head-on, and the visual deviation is large in different positions; low accuracy; Acceleration values cannot be calculated
ZhongLiDongKe RT-S90M-1000 Vibration testing machineSpecifications
| LIST | VALUE |
|---|---|
| Frequency modulation range (Hz) | 5~60 |
| Sweep range (Hz) | 5~60 |
| Maximum Acceleration (m/s2) | 130 |
| Maximum test load (kg) | 400 |
| Maximum no-load displacement (mmp-p) | 0~ 2 (adjustable) |
| vibration waveform | sine wave |
| vibration axis | vertical |
| Excitation mode | mechanical vibration |
| Control mode of vibration | open loop control |
| Data acquisition method | Vibration data collection + Acceleration Sensors |
| Acceleration Sensors | 1 (External Shaker Table), Sensor type: Piezoelectric Acceleration Sensors |
| operating mode | Frequency mode (constant amplitude mode and constant acceleration mode), frequency sweep mode (constant amplitude scan and constant acceleration scan), multi-segment mode (constant amplitude mode and constant acceleration mode) |
| Platform shock absorber | 1 set (suitable for high floors and laboratories) |
| Sweep mode | linear |
| Operation mode | Computer control (Chinese and English system) |
| Cooling mode | air-cooled |
| Operating temperature requirement (℃) | 0~+40 |
| Operating humidity requirement (% RH) | 0-90, no condensation |
| power requirements | Three-phase AC 380V/50Hz +/- 10% |
| System Power Consumption (KVA) | 3.7 |
| Display parameters | 19 inch, capacitive touch screen all-in-one machine |
| Computer host parameters | CPU: i5, Memory: 8G, Hard Disk: 512G Solid State, Pre-installed System: Windows 10 |
| Work surface material | aluminum alloy |
| Countertop screw size (standard) | M8 (can be customized) |
| Number of Countertop screws | 8 (can be customized) |
| Total Weight of the platform (kg) | 230 |
| Work surface size W.D.H (mm) | 1000×1000×43 |
| Table size W.D.H (mm) | 1000×1000×500 |
| Control cabinet size W.D.H (mm) | 600×580×1600 |
| Explosion-proof Certificate | Motor Explosion-proof, Piezoelectric Acceleration Sensing Explosion-proof |
ZhongLiDongKe RT-S90M-1000 Vibration testing machine Packing list
Host X1, manual X1, certificate X1, warranty card X1, simple fixture X1, power cord X1, control cable X1, U disk X1, computer (computer host + monitor + keyboard and mouse set) X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
