Gravity Dongke RT-ES40L-550 Vibration Testing Machine (Open Loop Control) Electromagnetic Excitation, excluding computer
Frequency modulation range 1600Hz, maximum Acceleration 170m/s ², large test load 60kg, vibration waveform is sine wave, support 3-axis integrated vibration, Data acquisition method Vibration data collection instrument + Acceleration Sensors, Acceleration Sensors 1 (external Shaker Table body).
ZhongLiDongKe
RT-ES40L-550
-
CHINA NBC-4S-50 Four Degree Integrated Electrodynamic Shaker
$ 4265.00 -
CHINA NBC-ZX50D Touch Screen Electrodynamic Shaker Vertical + Horizontal Automatic Switching
$ 1944.00 -
CHINA NBC-ZX75C Electromagnetic vibration table touch screen vertical horizontal vibration testing machine
$ 2407.00 -
CHINA NBC-Z150D touch screen electromagnetic vibration testing machine, up and down vibration
$ 3337.00 -
CHINA NBC-6S-150 Electrodynamic Shaker Six degrees in one, vertical + horizontal + front and rear
$ 6819.00
Introduction
Electromagnetic vibration test series are widely used in national defense, aerospace, communications, electronics, automobiles, household appliances and other industries. This type of equipment is used to find early faults, simulate actual Operating Conditions assessment and structural strength test, and the product has a wide range of applications, wide application area, remarkable test effect and reliability.
Features and Benefits:
Humanized operation and control, using professional measurement and control software control, so that the equipment works more stable and reliable
The whole machine is made of composite industrial materials, precision machining, and ultra-quiet
The countertop is made of steel material, and the structure is stable
Sweep, fixed frequency and multi-band operation modes to adapt to the test requirements of different industries
High-precision frequency output, four-point synchronous excitation, uniform table vibration
Strong anti-magnetic and anti-interference ability
It has a safe and reliable protection function
The table body is cooled by a high-efficiency and low-noise fan to ensure long-term continuous operation
It has constant vibration amplitude vibration and constant acceleration vibration
The system is equipped with high-precision vibration sensors to collect acceleration, amplitude, and frequency values in real time

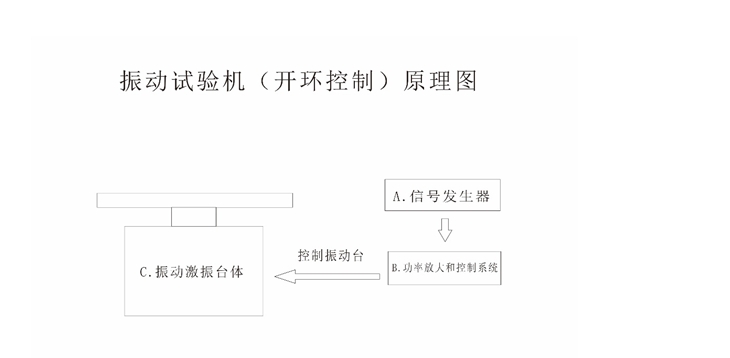

Schematic
Accelerometer advantages
1. Precise control of vibration energy The vibration energy is adjusted through the controller knob
A. Sensor acquisition, real-time acquisition of vibration acceleration, amplitude and frequency, and display in the vibration control software

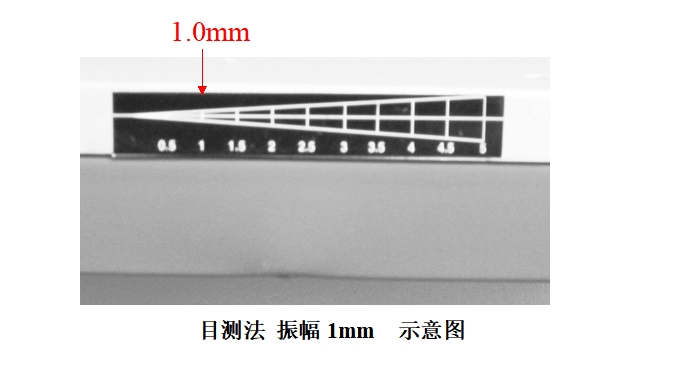

B. Traditional visual inspection, by looking at the amplitude label affixed to the side of the shaker, the intersection of the three white coincidence points, to determine the vibration amplitude. Disadvantages: The visual inspection must be viewed head-on, and the visual deviation is large in different positions; low accuracy; Acceleration values cannot be calculated

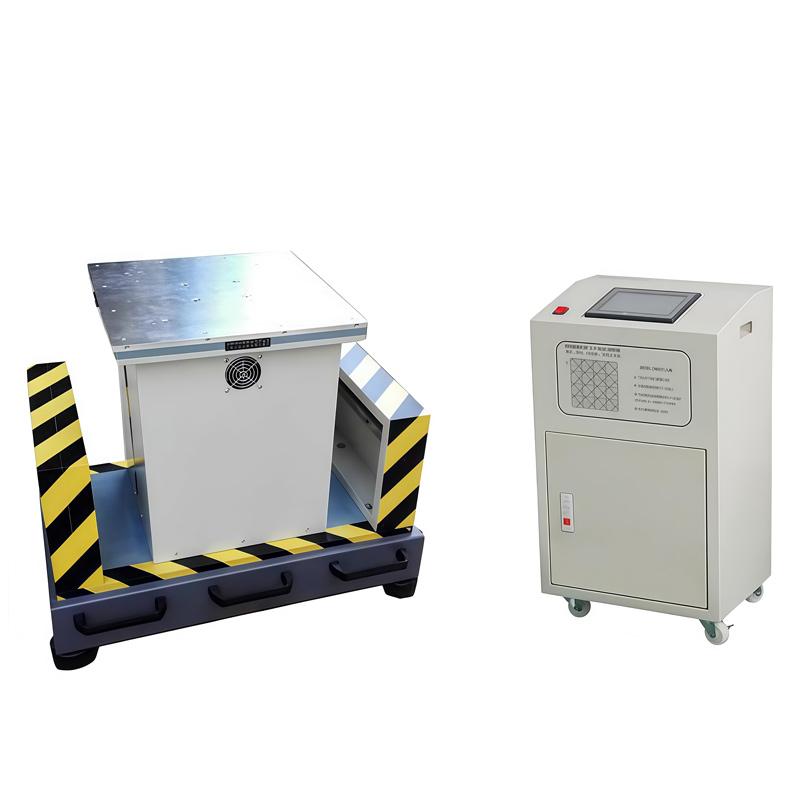

ZhongLiDongKe RT-ES40L-550 Vibration testing machineSpecifications
| LIST | VALUE |
|---|---|
| Frequency modulation range (Hz) | 1~600 |
| Sweep range (Hz) | 1~600 |
| Maximum Acceleration (m/s2) | 170 |
| Maximum test load (kg) | 60 |
| No-load random maximum amplitude (mmp-p) | 0~ 5 (adjustable range) |
| vibration waveform | sine wave |
| vibration axis | 3-Axis all-in-one machine (up and down, left and right and front and rear) |
| Excitation mode | Electromagnetic excitation |
| Control mode of vibration | open loop control |
| Data acquisition method | Vibration data collection + Acceleration Sensors |
| Acceleration Sensors | 1 (External Shaker Table) |
| Sensor type | Piezoelectric Acceleration Sensors |
| operating mode | Fixed Frequency Mode (Constant Frequency, Arbitrarily Set Time); Sweep Mode (Upper Frequency/Lower Frequency/Timer Range) Can be arbitrarily set, Sweep Frequency back and forth; Multi-segment mode (Programmable function, Frequency range can be arbitrarily set Frequency/time, can be cycled); Random mode |
| function | FM, Sweep, Programmable, AM, Maximum Acceleration, Time Control |
| Platform shock absorber | 1 set (suitable for high floors and laboratories) |
| Isolation magnetic field function | Alloy panels can completely isolate magnetic fields |
| Sweep mode | Linear, logarithmic |
| Operation mode | Touch screen control + computer software control (excluding computer host) |
| Cooling mode | air-cooled |
| Operating temperature requirement (℃) | 0~+40 |
| Operating humidity requirement (% RH) | 0-90, no condensation |
| power requirements | Single phase AC 220V/50Hz |
| System Power Consumption (KVA) | 2.8 |
| Work surface material | aluminum alloy |
| Countertop screw size (standard) | M8 (can be customized) |
| Number of Countertop screws | 8 (can be customized) |
| Total Weight of the platform (kg) | 200 |
| Work surface size W.D.H (mm) | 550×550×43 |
| Table size W.D.H (mm) | 1100×800×680 |
| Control cabinet size W.D.H (mm) | 420×300×750 |
ZhongLiDongKe RT-ES40L-550 Vibration testing machine Packing list
host X1, operation manual X1, warranty card X1, certificate X1, simple fixture X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
