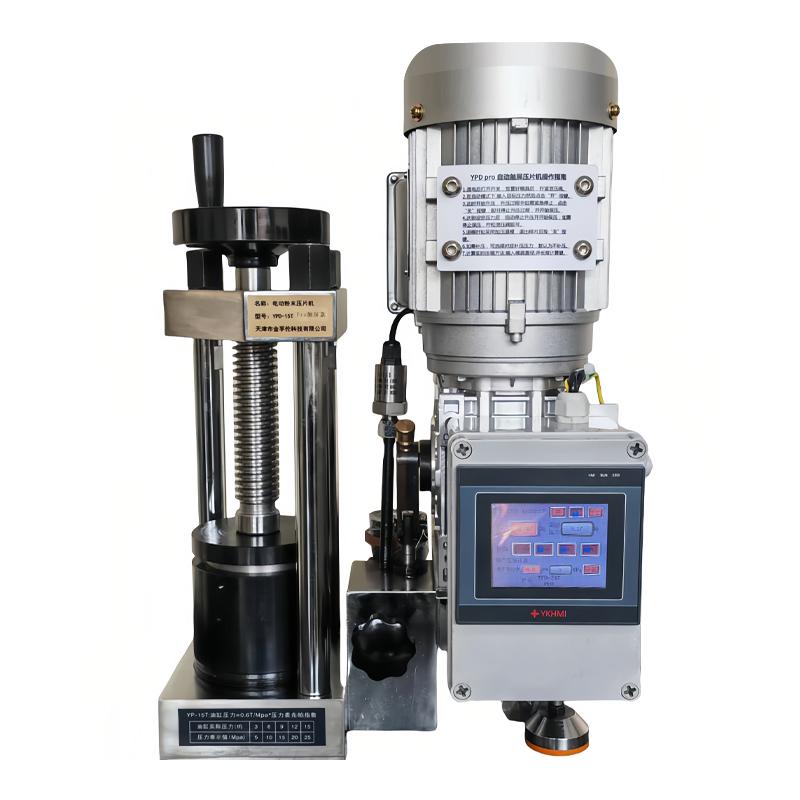

JFL YPD-30T pro Automatic Lab Powder Tablet Press 30T

YPD Pro Series Powder Tablet Press Touch Screen Electric Experimental Tablet Press.The commonly used models are YPD-15T Pro, YPD-24T Pro, YPD-30T Pro, YPD-40T Pro, YPD-60T Pro, the product adopts 4.3-inch touch screen design, easy to operate, rich in functions, larger working space, more effective pressure stability, safe and reliable use. The piston can output a certain pressure liquid during the reciprocating stroke, which makes the pressure boost faster and more labor-saving, and improves the work efficiency.

 This machine is mainly used for experiments in fine ceramic powder, superconductivity, building materials, new materials, green energy, pharmaceutical and chemical industries, etc., and is often used in the experiments of university research institutes and new energy and new material enterprise research and development, biopharmaceutical and other unit laboratories for supporting tablet pressing experiments, and is a supporting device for calcium-iron analyzer, infrared spectrometer, X-ray fluorescence and other testing instruments

peculiarity

YPD Pro series touch screen tablet press inherits the advantages of fast two-way boost, good stability, independent module and other advantages of YPD standard electric tablet press, and has the following technical features and advantages

★ How many tons of direct input pressure, the accuracy can be up to 0.01 tons, and there is no need to convert it with MPa

★ The automatic pressure replenishment function can be selected at any time, and a variety of pressures can be controlled

★ Enter the diameter of the mold and the actual pressure of the mold can be calculated instantly

★ Prevent misoperation and start the alarm function when the maximum range is exceeded

★ Screen time and date (year, month, day, hour, minute, second)

Procedure

1. Check the N46-N68 oil in the oil pool barrel before work, keep the liquid level height of 1/3 cylinder high, and the pressure relief valve is open.

2. Place the mold or items to be pressed in the center of the workbench, and unscrew the lead screw for preloading.

3. Tighten the handwheel of the pressure relief valve clockwise.

4. Turn on the power-on switch, select the automatic mode, enter the target pressure, click the confirm button to start the pressure boost, and automatically stop and start the pressure holding after the pressure is boosted to the target pressure. (If there is a need for make-up pressure, the make-up pressure can be set)

If you need to stop the boost halfway, you can press the stop button at any time to stop the boost.

5. Loosen the pressure relief valve handwheel counterclockwise.

6. Unscrew the pre-tightened lead screw and take out the mold or items to be pressed.

In addition to YP-40T and 60T, other models can also be equipped with protective plates.

Appendix:

(1) Piston stroke refers to the vertical height of the piston cylinder in the process of boosting, such as 20mm stroke, that is, the height range of the piston is 0-20mm.

In the tablet pressing experiment, for example, if I fill in the mold with a thickness of 20mm of powder, it needs to be pressed to a thickness of 10mm, then the piston lift is required to be 10mm, for example, if I add a 30mm thickness powder, it needs to be pressed into a thickness of 10mm, that is, the lift needs to be 20mm. The piston stroke of different tablet presses is also different, for example, YP-8T is 0-20mm, YP-60T is 0-50mm.

(The piston stroke of YP-15T can also be well matched with XYM-K heightened custom opening mold)

(2) The diameter of the piston determines the area of the piston S, and the relationship between the pressure F of the tablet press at this time and the MPa value P displayed by the meter head at this time is F=P×S.

So the larger the diameter, the larger the S, and when the same pressure F is reached, the smaller P needs to be reached, which is equivalent to a decrease in the number of pressures.

For example, the piston diameter of a certain model of 24-ton tablet press is 87mm (the same as the diameter of the YP-15T piston) and the piston diameter of the 24-ton tablet head needs to reach 40MPa, while the piston diameter of our YP-24T tablet press is 100mm, and the piston diameter of the 24-ton tablet press is 30MPa, that is, when the pressure of 24 tons is also reached, the number of times our YP is boosted is less, and the pressure handle can be boosted up and down, for example, the old model needs to shake the pressure handle 20 times to 24 tons. Our new YP-24T can reach a pressure of 24 tons in about 7-8 times.

host X1, hydraulic oil X1, hexagonal wrench X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
