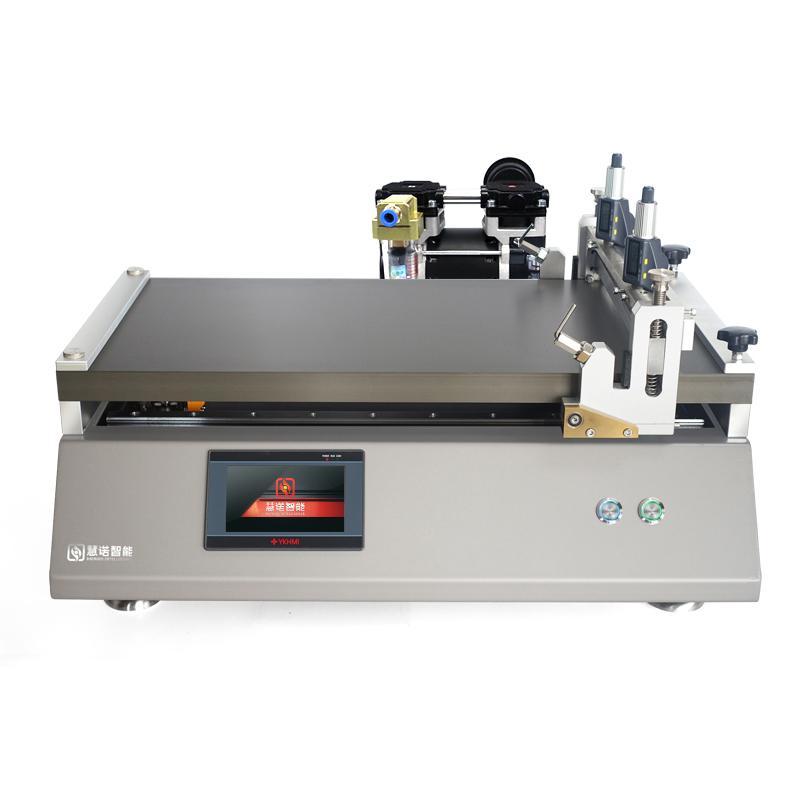

HuiNuo TM2300pro/04 Automatic Film Applicator

HuiNuo TM2300Pro/04 drawdown blade heating vacuum adsorption small coater, effective Spreader area 400 * 400mm

High-precision servo motor, drawdown blade + heating + vacuum adsorption function, clamshell drawdown blade design, fast cleaning, Spreader area 400 * 400mm, drawdown blade material is alloy steel, Hardness and high wear resistance, suitable for Resin, film, silicone, release paper and other films.

Brand

SKU: NB004941

HuiNuo

Model

Price

$ 6336.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

HuiNuo shopSE

Information

Datasheet RFQ Contract Catalog Manual

What else did others buy

Genuinegoods

HuiNuo TM2300pro/04 Automatic Film ApplicatorOverview
Specifications
Comments
FAQs

TM2300pro/04

Automatic Film Applicator

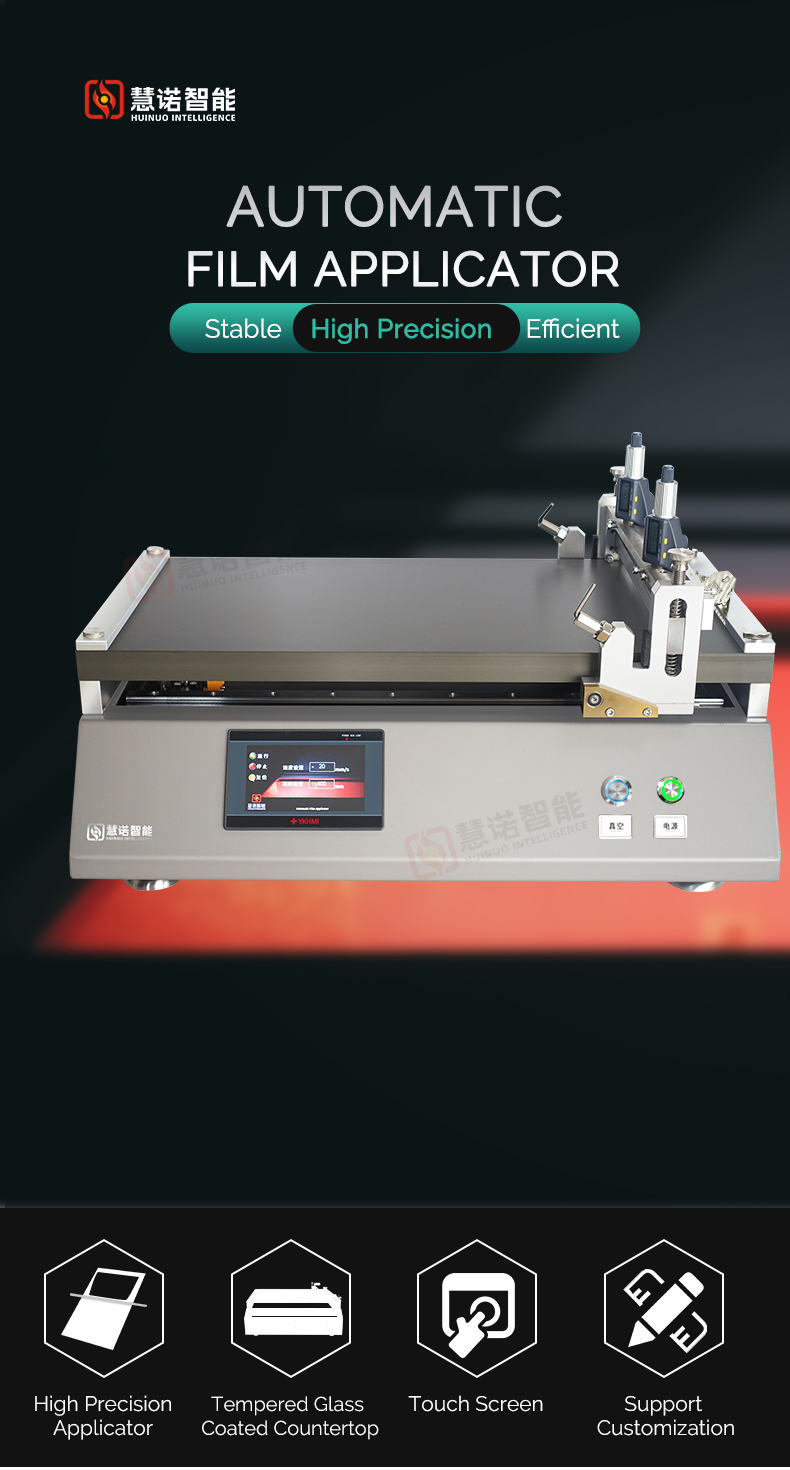

HuiNuo TM2300Pro/04 drawdown blade heating vacuum adsorption small coater, effective Spreader area 400 * 400mm Figure 1

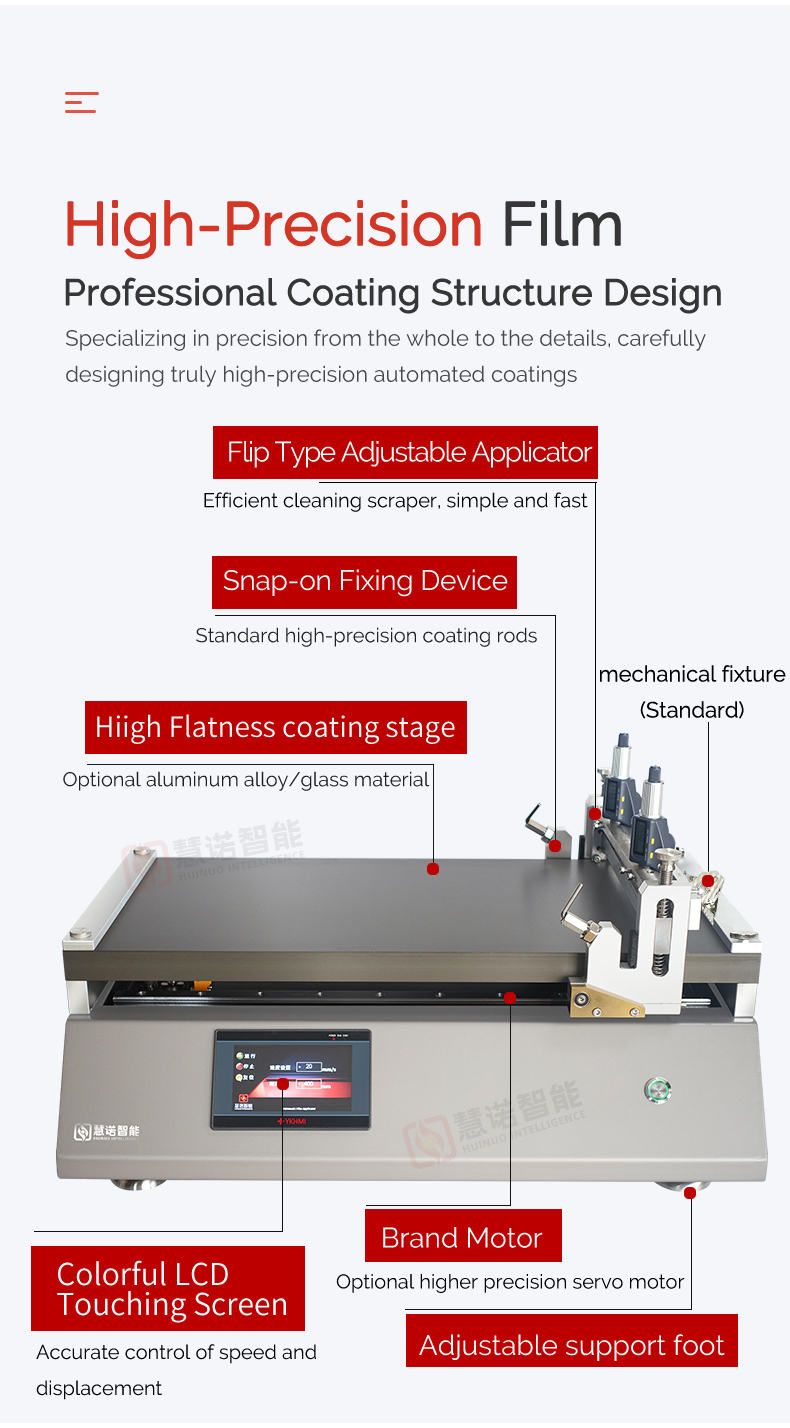

HuiNuo TM2300Pro/04 drawdown blade heating vacuum adsorption small coater, effective Spreader area 400 * 400mm Figure 2

HuiNuo TM2300Pro/04 drawdown blade heating vacuum adsorption small coater, effective Spreader area 400 * 400mm Figure 3

HuiNuo TM2300Pro/04 drawdown blade heating vacuum adsorption small coater, effective Spreader area 400 * 400mm Figure 4

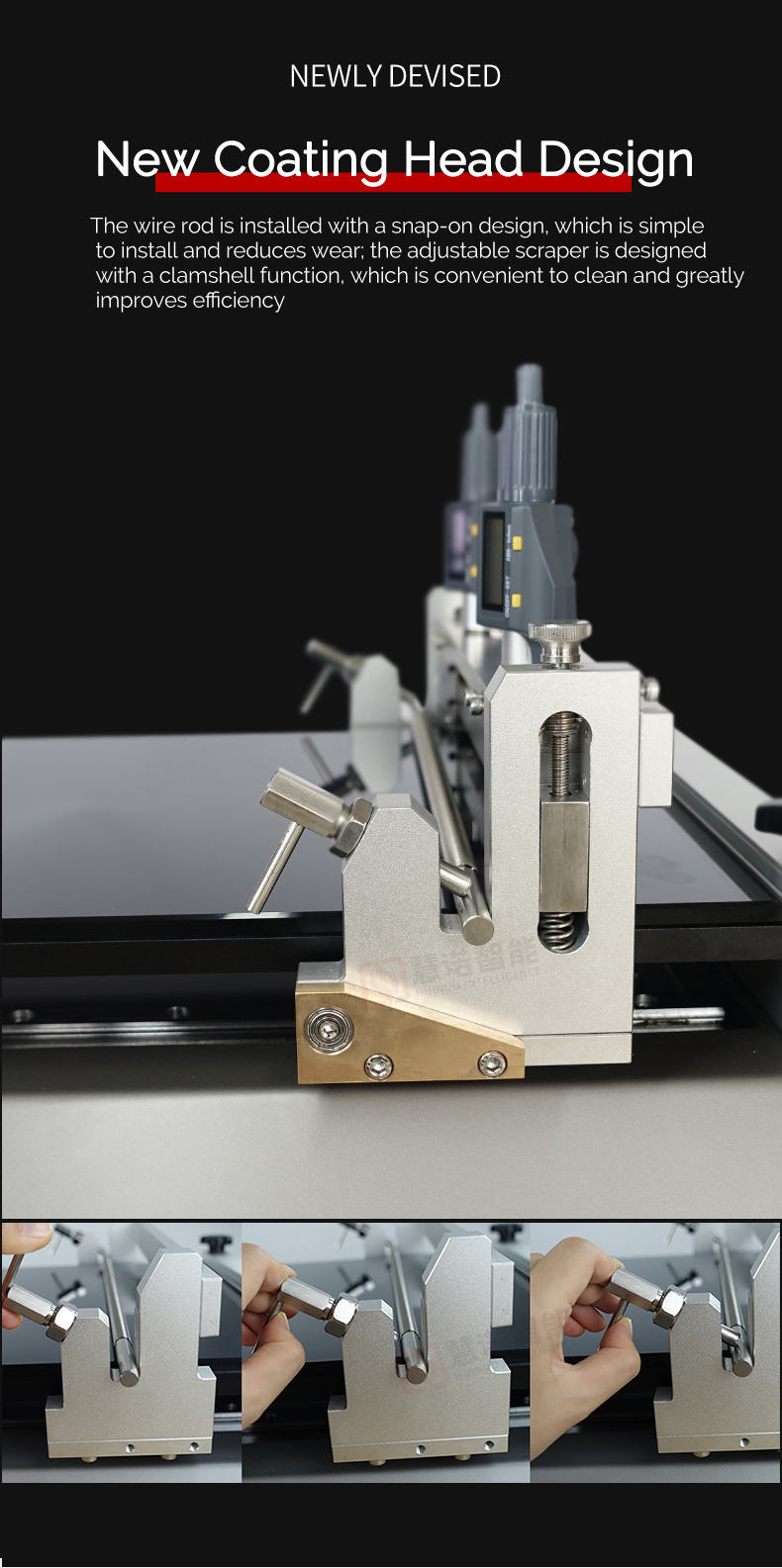

HuiNuo TM2300Pro/04 drawdown blade heating vacuum adsorption small coater, effective Spreader area 400 * 400mm Figure 5

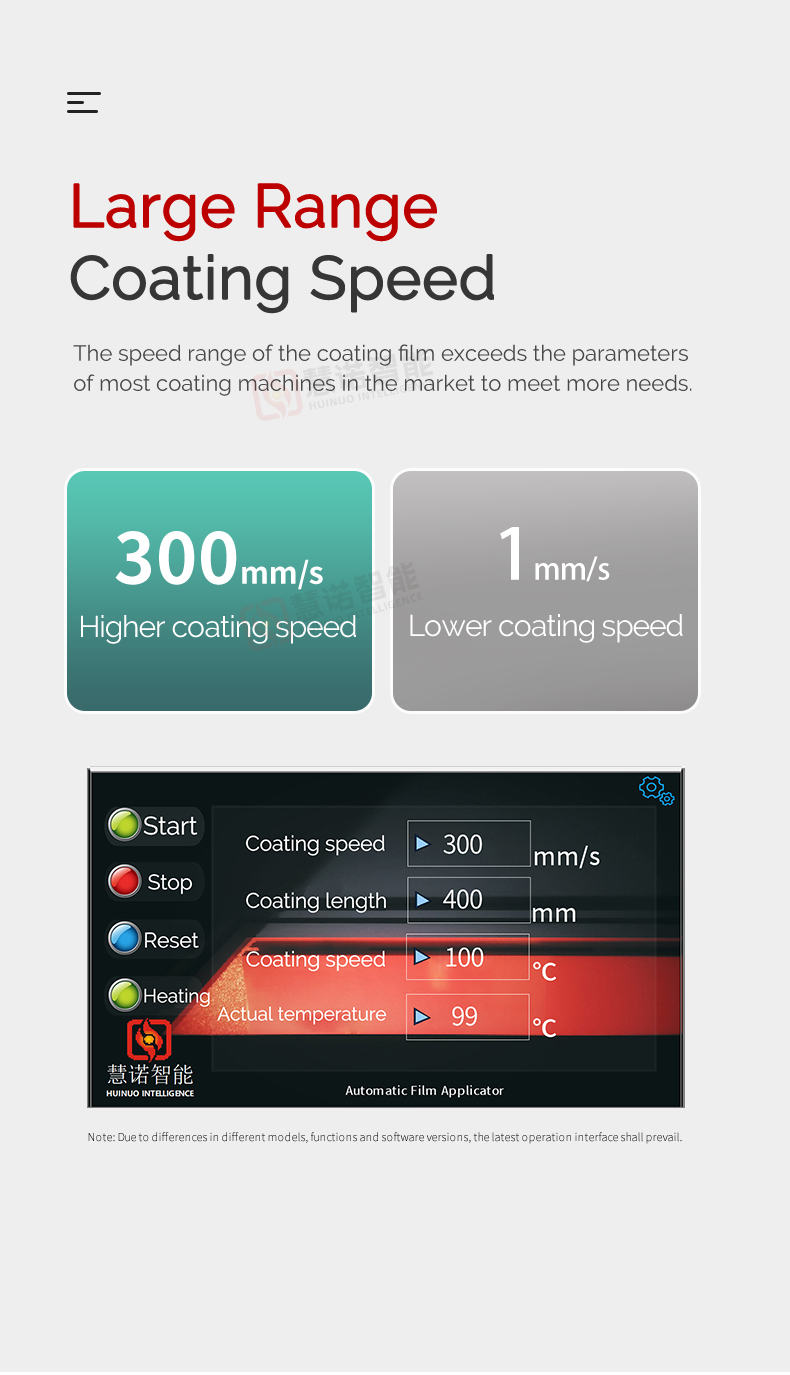

HuiNuo TM2300Pro/04 drawdown blade heating vacuum adsorption small coater, effective Spreader area 400 * 400mm Figure 6

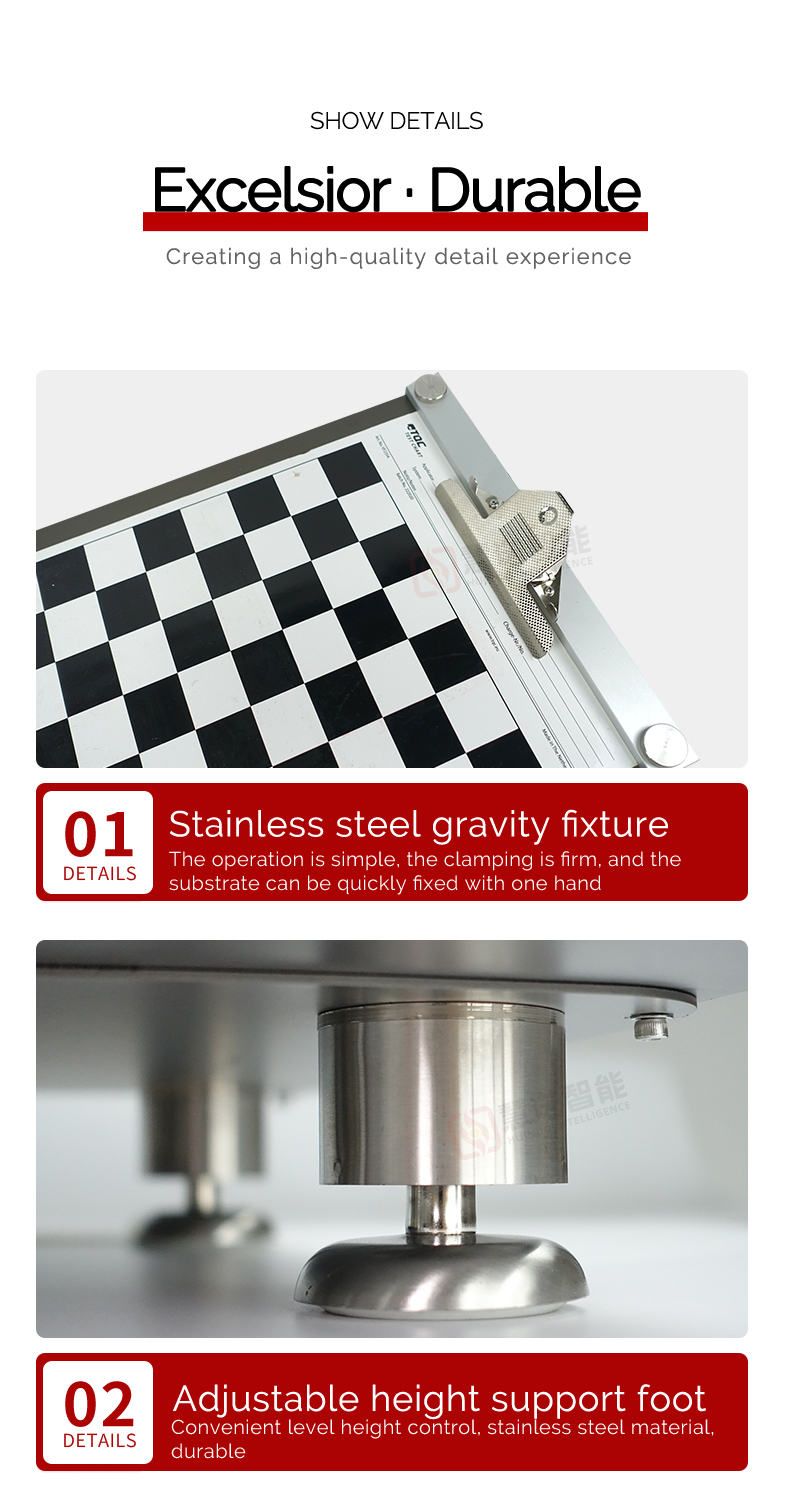

HuiNuo TM2300Pro/04 drawdown blade heating vacuum adsorption small coater, effective Spreader area 400 * 400mm Figure 7

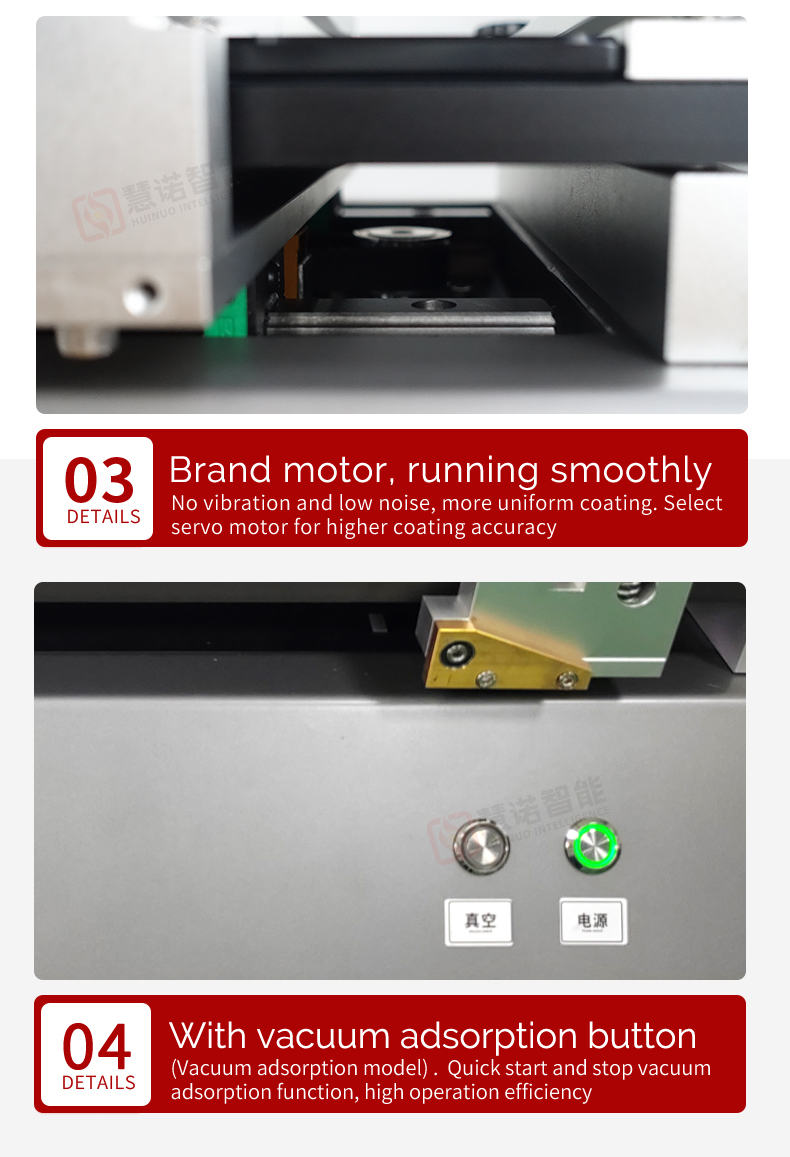

HuiNuo TM2300Pro/04 drawdown blade heating vacuum adsorption small coater, effective Spreader area 400 * 400mm Figure 8

HuiNuo TM2300Pro/04 drawdown blade heating vacuum adsorption small coater, effective Spreader area 400 * 400mm Figure 9

HuiNuo TM2300Pro/04 drawdown blade heating vacuum adsorption small coater, effective Spreader area 400 * 400mm Figure 10

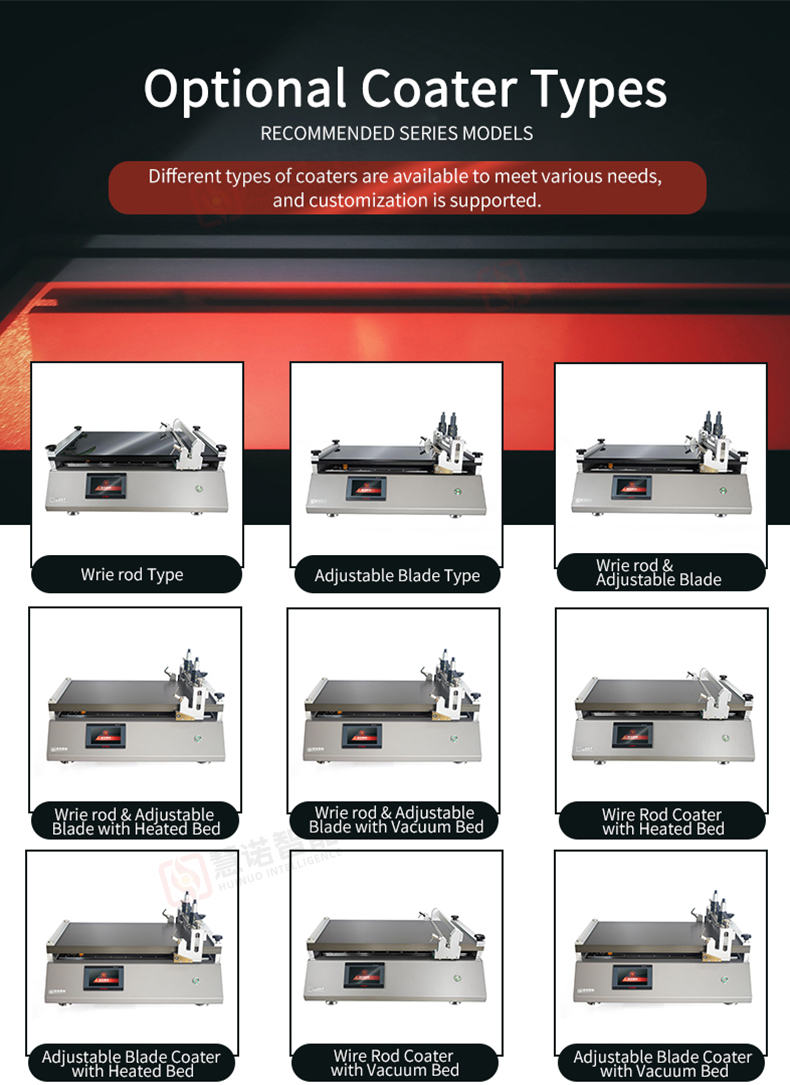

HuiNuo TM2300Pro/04 drawdown blade heating vacuum adsorption small coater, effective Spreader area 400 * 400mm Figure 11

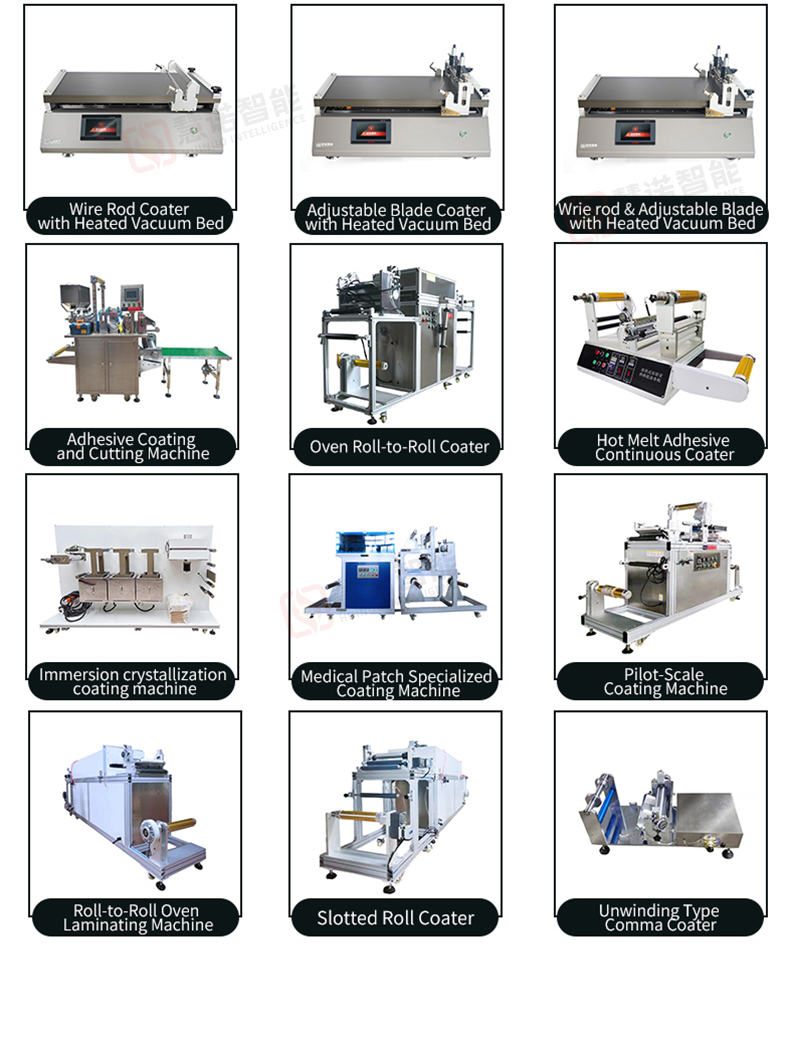

HuiNuo TM2300Pro/04 drawdown blade heating vacuum adsorption small coater, effective Spreader area 400 * 400mm Figure 12

HuiNuo TM2300Pro/04 drawdown blade heating vacuum adsorption small coater, effective Spreader area 400 * 400mm Figure 13

HuiNuo TM2300pro/04 Automatic Film ApplicatorSpecifications

LIST	VALUE
Coating method	Drawdown blade
Coating speed	1~ 300Mm/s stepless speed regulation (can be customized)
Substrate clamping method	Vacuum adsorption + fixture
Coating table material	Surface hard treatment aluminum alloy
Coating table size	840*430mm
Effective coating Area	400 * 400Mm (can be customized)
Drawdown blade thickness range	0~10Mm (clamshell design is easy to clean)
Drawdown blade material	Die steel
Drawdown blade application width	400mm
Drawdown blade Accuracy	±0.003mm
Vacuum Area	680 * 360Mm (can be customized)
vacuum aperture	Φ0.8mm
Vacuum hole spacing	20*20mm
Pumping Speed	5.4m3/h
Ultimate Vacuum	50KPa
Vacuum Pump Power	180W
Vacuum pump Weight	7.1kg
Heating mode	Mica sheet heating (optional graphene heating, faster thermal conductivity)
Heating Temperature range	RT +~ 180 ℃ (higher temperature can be customized)
Temperature Uniformity	±1℃
Drive motor	Servo motor
Operating language	Chinese (can be customized in English)
Display	Color LCD touch screen
Host Power Supply	220V/50HZ (can be customized 110V/60HZ)
Power	2000w
Dimension	Subject to the actual product

HuiNuo TM2300pro/04 Automatic Film Applicator Packing list

Host X1, manual X1, casting knife x1, certificate X1, vacuum pump X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the price listed on the website the final cost for overseas purchases?

[A]

No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q]

What is the specific process for purchasing the product?

[A]

First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q]

What should I do if the instrument I purchase needs repair?

[A]

After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
