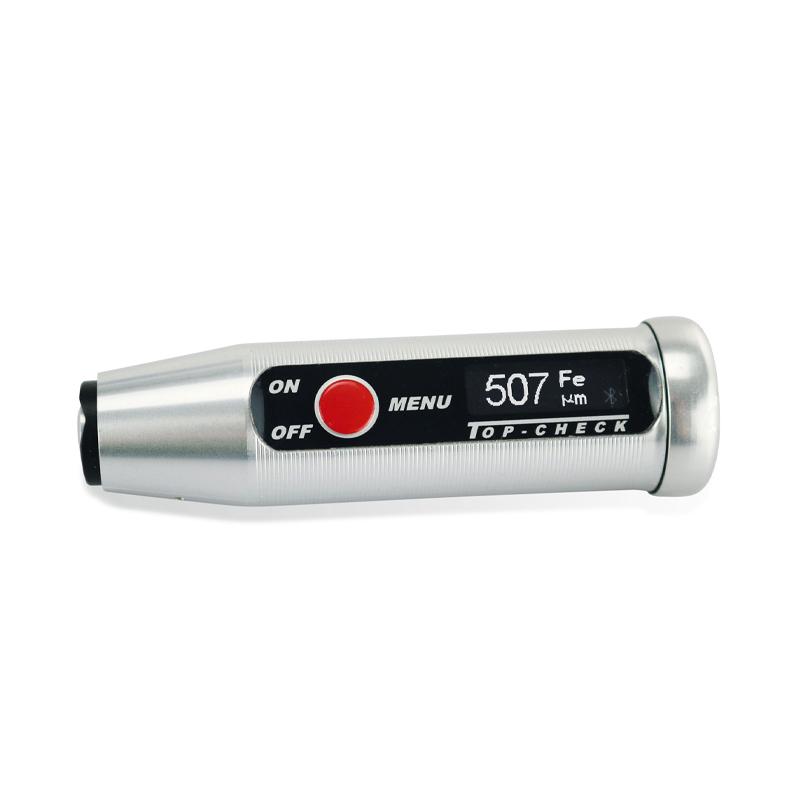

List Magnetik TOP-CHECK Dual platings Thickness Gauge
Structure machine (Fe/NFe), probe ruby probe, can be 90 degrees swirl/spin, measurement of inner tube and narrow space coating, probe area φ 8mm, minimum test curvature radius convex: 6mm, concave: 38mm, Measurement range Fe: 0-5000um, NFe: 0-2000um
List-Magnetik
TOP-CHECK Dual
-
YIBAI CTG-600F10 Single iron Coating Thickness Gauge 10mm
$ 344.00 -
German EPK MiniTest 735 F1.5 statistical coating Thickness Gauge, thickness measurement 0~1500μm
$ 2247.00 -
KAIRDA F190 ° 90 ° Right Angle Probe Optional probe for NDT530 Coating Thickness Gauge
$ 467.00 -
LEEB N1 Probe for use with leeb221 and leeb222 Coating Thickness Gauges
Login -
German EPK MiniTest 735 F5 iron-based Thickness Gauge, measuring thickness 0~5000μm
$ 1787.00
Instrument features:
The only gauge in the world with a probe that can rotate 90 degrees
Pure metal housing,
Comfortable and convenient to use
Automatic recognition of the substrate
One-button operation, multi-language menu navigation, operation and its simplicity
Android, iOS and Windows data transfer, software free
Made in Germany
Instrument selection
TOP-CHECK Dual: Magnetic induction and eddy-current combination probe with ISO2178 and ISO2360. It should be used both for non-
Measurement of the thickness of all insulating coatings on iron metals (aluminum, zinc, copper, etc.), such as anodized films, paints, coatings, etc. again
It is applied to the measurement of the thickness of all non-magnetic coating coatings on steel, such as paints, plastics, enamels, chromium, zinc, etc.
List-Magnetik TOP-CHECK Dual Coated platings Thickness GaugeSpecifications
| LIST | VALUE |
|---|---|
| structure | All-in-one machine (Fe/NFe) |
| Probe | Ruby probe for 90 degree swirl/spin, measurement of inner tubes and small space coatings |
| Probe area | φ8mm |
| Minimum test radius of curvature | Convex: 6mm, Concave: 38mm |
| Measurement range | Fe：0-5000um，NFe：0-2000um |
| Display resolution | 1- 100um: 0.1um，> 100um: 1 um，>1000um:10um |
| Accuracy | Less than 100um: +/- 1um, 100 - 1000um: +/- 1%, 1000 - 2000um: +/- 3%, ≥ 2000um: +/- 5% |
| Power supply | 1.5V AA battery |
| Display | Highlight OLED display |
| language | German, English |
| calibrate | With zero point, single point correction function |
| shutdown | Automatic/manual shutdown |
| unit conversion | With metric-to-inch conversion function um /mils: |
| statistical data | (Measured, MAX Maximum, MIN Minimum, Average, Standard deviation) |
| Stored readings and statistical displays | 4000 value storage, freely grouped |
| LED graphic display lighting | have |
| Bluetooth interface | Low energy Bluetooth interface for Android, iOS and Windows |
| APP application acquisition | Google Play Store, Apple App Store, List-Magnetik official website for free |
| purpose | It is used for the measurement of all insulation coatings thickness on non-ferrous metals (aluminum, zinc, copper, etc.), such as anodic oxide coatings, paints, coatings, etc. It is also used for the measurement of the thickness of all nonmagnetic coating platings on steel, such as paints, plastics, enamels, chromium, zinc, etc. |
| Meet the standard | ISO 2178, ISO 2360 |
| Protection Rating | IP64 |
| Dimension | Φ28 x 95 mm |
List-Magnetik TOP-CHECK Dual Coated platings Thickness Gauge Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
