TBJ-X3-DJ36 Floor Type Multifunctional Film Applicator bar + Drawdown blade + Vacuum chuck + baseplate heating + upper heating + automatic feeding system 150 * 130cm
Coating method bar + Drawdown blade, Drawdown blade type removable Drawdown blade, Spreader accuracy +/- 0.03mm, Drawdown blade Spreader thickness range 0~ 10mm adjustable, Coating size 1500 * 1300mm (can be customized), effective width 1200mm, degree control stepless speed change, coating table material aluminum alloy
zy
TBJ-X3-DJ36
-
MODERNER FAA-V Miniature Automatic Film Applicator with External Vacuumpump
Login -
China TBJ-X2-DJ2 Automatic Film Applicator with Automatic Inking System
Login -
HuiNuo TM3300/17 drawdown Bar & blade heating vacuum adsorption coater Effective area 140 * 120cm
$ 23389.00 -
HuiNuo TM3200Pro/03 drawdown Bar & blade vacuum adsorption coater Effective area 100cm * 30cm
$ 9087.00 -
HuiNuo TM3200Pro/10 Automatic Film Applicator bar drawdown blade coater effective coating area 100 * 60cm
$ 10642.00
TBJ-X3-DJ36 floor-standing multi-functional film coating machine, integrated wire rod + scraper double coating mode, with upper and lower double heating system (temperature RT+~180°C) and 600*700mm vacuum adsorption platform, to achieve 1500*1300mm large-format precision coating, with an accuracy of ±0.03mm. The automatic feeding system is driven by air source pressure, 3L stainless steel barrel with safety device, adjustable discharge volume, touch screen control and stepless speed change, suitable for new material research and development, battery pole piece coating and other industrial scenarios.
Optional accessories
|
|
|

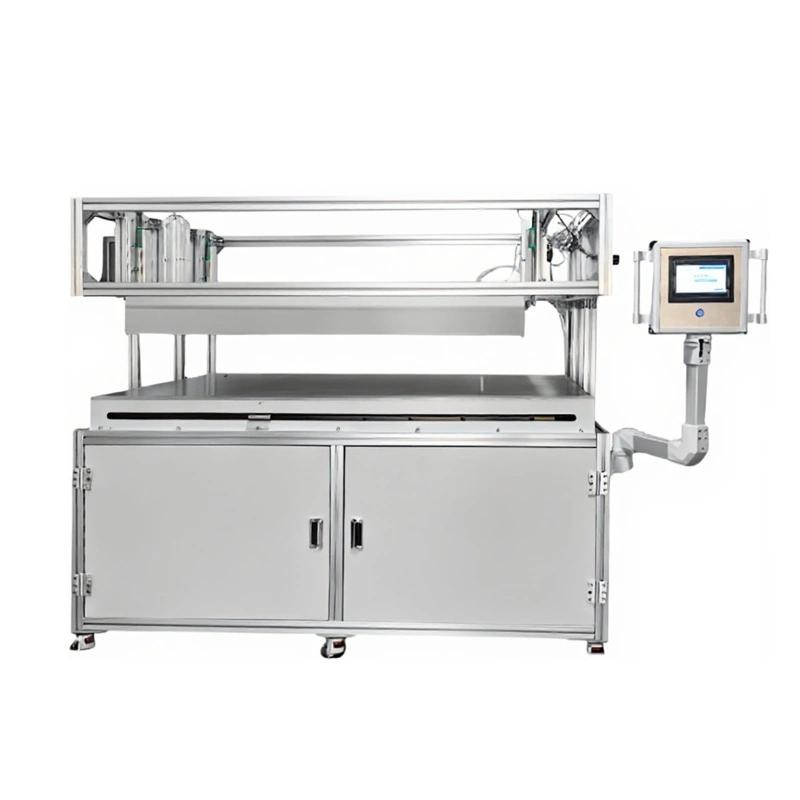

zy TBJ-X3-DJ36 Automatic Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| Coating Method | Bar + Drawdown blade |
| Drawdown blade type | Drawdown blade |
| Spreader Accuracy | ±0.03mm |
| Drawdown blade Coating thickness range | 0~ 10Mm adjustable |
| Coating Speed | 5-200Mm/s (< 5mm/s can be customized) |
| Coating size | 1500 * 1300Mm (can be customized) |
| effective width | 1300Mm (with width baffle anti-spill material) |
| Spreader Itinerary | Numbers can be set arbitrarily within the range of 1~ 1400mm |
| Vacuum chuck size | 1500 * 1300Mm (can be customized) |
| Vacuum Aperture | Φ1.2mm |
| Vacuum hole pitch | 20*20mm |
| Vacuum pump size | 380*180*280mm |
| Substrate clamping method | Vacuum chuck |
| Heating mode | Upper heating + baseplate heating |
| Temperature range | RT+~180℃ |
| Temperature Uniformity | ±5℃ |
| customization function | Automatic feeding system |
| Feeding principle | Air source pressure flows out |
| Feed Sport Mode | Reciprocating linear motion |
| Feeding back and forth traverse speed | 2-150mm/s |
| spit Volume | Adjustable (by adjusting the air pressure and the operating speed of the discharge port) |
| Shaft transmission mode | Timer belt |
| Feeding system air source | 0.6Mpa, can be connected to the trachea of φ 8 (self-equipped) |
| Power Voltage of charging system | 220V,50Hz |
| Tank pressure | Maximum withstand 8Mpa |
| Material of feeding barrel | 304 stainless steel with a wall thickness of 4mm |
| Feeding bucket configuration | Safety valve, pressure regulating valve, pressure gauge, discharge valve |
| Feeding drum Volume | 3L |
| Control mode | Touch screen control |
| Host Power Supply | 220V 50Hz |
| Net Weight | Subject to the actual product |
| speed control | Infinitely variable speed |
| Coating table material | aluminum alloy |
| Dimension | Subject to the actual product |
zy TBJ-X3-DJ36 Automatic Film Applicator Packing list
Host X1, manual X1, Drawdown blade x1, imported bar X1, upper cover heating device x1, automatic feeding system x1, 3L cartridge x1, residual material recovery tank x1, width control baffle x2, vacuum pump X1, certificate X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
