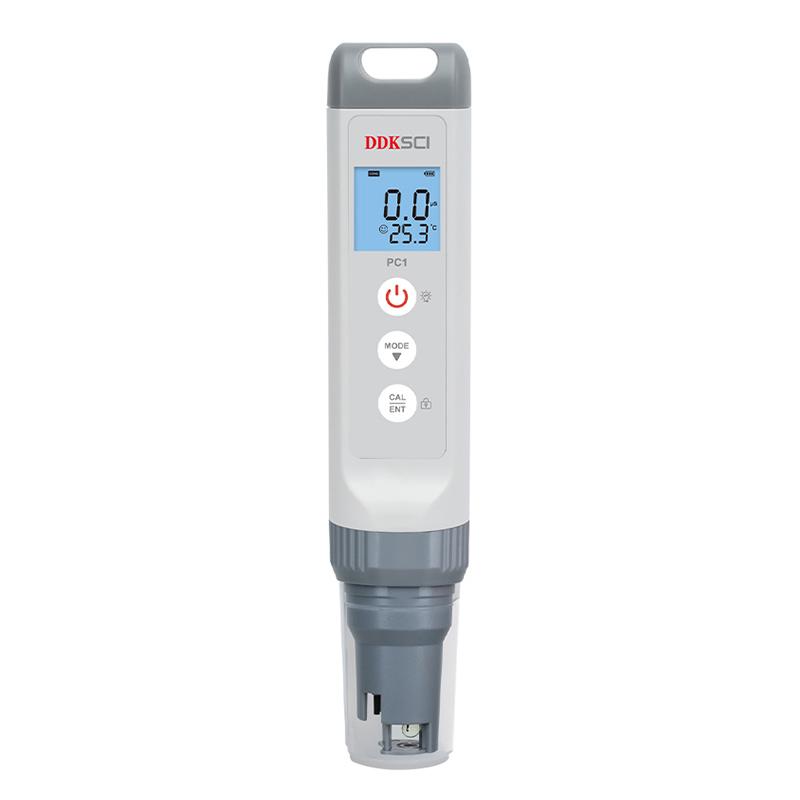

DDKSIC PC1 pen multiparameter analyzer pH mV (ORP electrode optional) conductivity resistivity TDS salinity ℃
pH resolution 0.1/0, pH Accuracy +/- 0.01pH +/- 1 word, ORP resolution 0.1, ORP Accuracy +/- 0.1% F. S +/- 1 word, conductivity level 1.0, conductivity Measurement range 0~19.99mS/cm, automatic segmentation, Temperature Measurement accuracy +/- 0.2 ° C.
DDKSIC
PC1
Introduction
Measurement parameters: pH, mV (ORP electrode optional), conductivity, resistivity, TDS, salinity, °C
Combined electrode (pH/conductivity/TDS/salinity/temperature can be measured at the same time, and different parameters can be easily switched with one key)
Multi-color backlit display
Reading Stabilization Reminder; Automatic data locking; Low Voltage display
Conductive electrode: platinum black plating to reduce the polarization effect of high range and improve measurement accuracy
The electrodes are replaceable, and the package includes a standard solution and a lanyard
CH/USA/NIST solution calibration optional
Function settings: TDS conversion coefficient, reference temperature, temperature compensation coefficient, auto shutdown time, background light display time, data lock, etc
Dustproof and waterproof rating: IP67
DDKSIC PC1 Pen multiparameter analyzerSpecifications
| LIST | VALUE |
|---|---|
| pH level | 0.01 level |
| Measurement range of pH | (-2.00~16.00)pH |
| pH resolution | 0.1/0.01 |
| pH Accuracy | +/- 0.01pH +/- 1 word |
| pH calibrating point | 1~ 3 point Automatic calibration |
| pH temperature automatic compensation | (0.0~60.0)°C/(32.0~140.0)°F |
| ORP Measurement range | (-1000.0~+1000.0)mV |
| ORP resolution | 0.1 |
| ORP Accuracy | +/- 0.1% F. S +/- 1 word |
| Conductivity level | Level 1.0 |
| Measurement range of conductivity | 0~19.99mS/cm, automatic segmentation: 0~19.99uS/cm; 20.0~199.9uS/cm; 200~1999uS/cm; 2.00~19.99mS/cmTDS: 0.0mg/L-10.0g/L (coefficient adjustable) Resistivity: 50Ω · cm~ 20MΩ · cm salinity: 0~10.0ppt |
| EC resolution | 0.01/0.1/1 |
| Conductivity Accuracy | +/- 1.0% +/- 1 word |
| Measurement range | (0.0~60.0)°C/(32.0~140.0)°F |
| Measurement Accuracy | ±0.2°C |
| Measurement parameter | pH, mV (ORP electrode optional), conductivity, resistivity, TDS, salinity, ℃ |
DDKSIC PC1 Pen multiparameter analyzer Packing list
Host (built-in AAA dry battery 4), pH buffer solution: 30mL pH4.1 bottle each, conductivity standard solution: 30mL 1408μS/12.85mS/cm 1 bottle each, 3mol KCl electrode soaking solution: 10mL, 1 bottle, sample bottle: 30mL 4, lanyard: 1, suitcase: 1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
