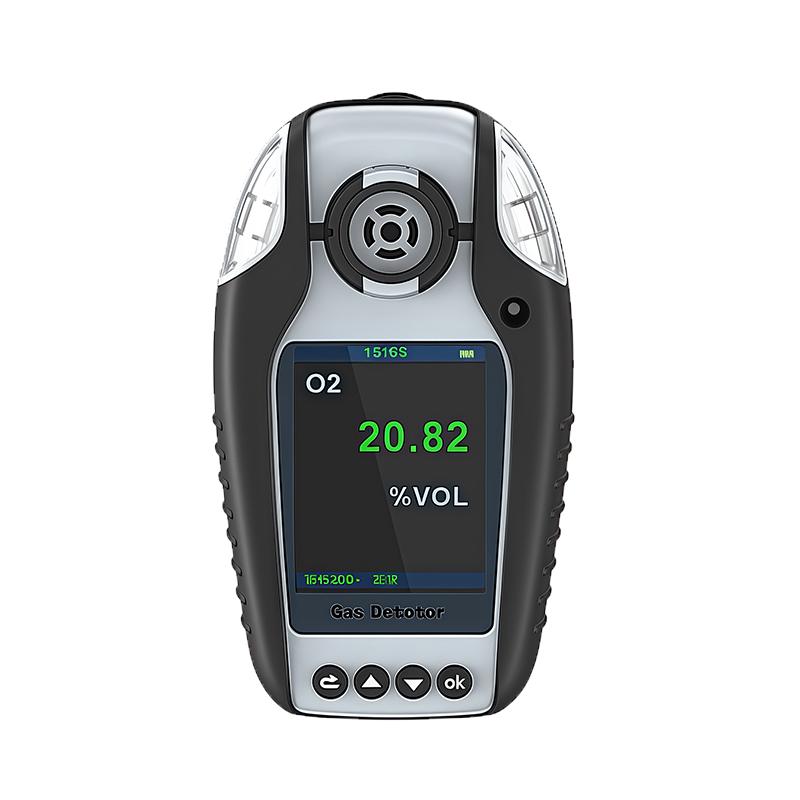

Empaer SPES-O2 series handheld oxygen concentration Detector
Detection gas type O2, detection range 0-30% VOL, Response time T90 ≤ national standard, error of indication 3% FS, Repeatability 1%, Working Temperature & Moisture -40 ℃~ 55 ℃, 10% -95% RH (no condensation), Storage temperature -10 ℃~ 30 ℃
Empaer
SPES-O2
-
HONEYEAGLE HNAG1000-PH3 Fixed phosphating hydrogen Detector 0-6000PPM
$ 682.00 -
KORNO GT-903-CH2O-Y Portable Formaldehyde Detector Range 0-10PPM
$ 416.00 -
HONEYEAGLE HNAG1000-NH3 Fixed Ammonia Gas Detector 0-7000PPM
$ 856.00 -
KORNO GT-903-NH3-Y Portable ammonia Gas Detector, measuring range 0-100PPM
$ 489.00 -
BOSEAN K-G60 (Cl2) Industrial Chlorine Gas Alarm Detector
$ 327.00
Product Description:
The lone traveler series handheld gas concentration Detector (also known as the lone traveler series portable gas concentration Detector) is divided into general and special models, and the special model is professionally customized according to customer application scenarios and needs, and the products are more professional and reliable. This series of products is small and beautiful, has a strong sense of technology, easy to carry, diversified detection gas concentration value display, has high-definition LCD, sound, bilateral high-brightness LED, vibration four alarm modes, and has real-time temperature detection, optional multi-mode wireless data transmission function to connect to the Ampal server for remote monitoring, data storage and analysis. It is a new Internet-based handheld/portable Gas Detector that integrates the sense of science and technology, the Internet of Things, and the humanized operation concept. The lone traveler series handheld gas concentration Detector is suitable for petroleum and petrochemical, gas, aerospace and military industry, chemical industry, electric power, scientific research institutes, municipal engineering, mining, metallurgy and other industries.
Core features:
Small and easy to carry, full of technology, two-color mold anti-slip and anti-hand design, wireless networking
Features
☆ Unique design with its own appearance patent right
☆ Referring to a variety of industry standards at home and abroad, the product has a wider range of application fields and more stable performance;
☆ Color 2.0-inch high-definition display, 320*240 resolution, can display detection data, alarm information, temperature data and other information.
☆ Unique diffusion air circuit design, the corresponding detection speed is faster.
☆ Internet of Things function can be equipped with 4G/WIF and other wireless communication methods.
☆ The special lone ranger series handheld gas concentration Detector can be optionally equipped with temperature detection and compensation, and the detection data is more accurate;
☆ Built-in interface, which can be used for USB charging and data import and export, and meets the IP66 waterproof level.
☆ A variety of alarm systems, LED alarm, buzzer alarm, vibration alarm, display alarm.
☆ Humanized design, one-click sound muffling and convenient function.
☆ Support temperature compensation algorithm, support a variety of filtering algorithm parameters can be configured.
☆ Support remote IoT OTA, PC and other multi-mode software version upgrades and repairs, and the upgrade operation will not cause the user to lose the parameters of the settings.
☆ Anti-drop, waterproof, dustproof, anti-slip, anti-static, anti-electromagnetic interference, and the special model has anti-cross gas interference.

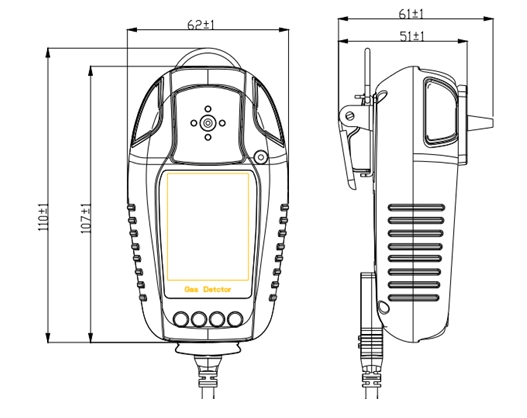

Product dimensions
Empaer SPES-O2 Lone walker series handheld oxygen concentration DetectorSpecifications
| LIST | VALUE |
|---|---|
| Detect gas | O2 |
| Detection principle | Electrochemistry, catalytic combustion, semiconductor, infrared, PID, thermal conductivity, fluorescence, etc |
| Range | 0~30%VOL |
| resolution | ≤ full scale * one thousandth (contact the customer service of the mall); |
| testing unit | ppm, ppb, pphm, mg/m3, LEL%, VOL% (partially switchable); |
| Response time | T90 ≤ national standard |
| error of indication | 3%FS |
| Repeatability | 1% |
| Display | 320 * 240 high definition color screen 2.0 inches, support no backlight display; |
| system language | Chinese/English, can be switched. |
| Adoption method | diffusion |
| Temperature detection | without |
| temperature compensation | without |
| Communication interface | MICRO USB |
| Wireless signal output | Optional 4G, NB-IOT, WIFI, LORA, Bluetooth (optional); |
| Alarm function | Buzzer, LED light alarm, screen flash alarm, vibration alarm; |
| Fall alarm | Yes (optional) |
| Remote visual alarm | Remote visibility of each detection parameter separate light alarm function; |
| Operation mode | Key operation (3), remote IoT operation; |
| IoT manipulation | Remote parameter configuration and program upgrade can be carried out through NB-IoT, 4G or WIFI networking. |
| How to use | Hand-held, shoulder-worn, chest-worn, waist-worn, neck-hung; |
| automatic calibration | Zero automatic correction function; |
| calibration period | 1 year (recommended) |
| Data storage | Detection data > 100000; Alarm record data: 1000 |
| Explosion-proof level | Intrinsically safe explosion protection: Ex ia IIC T4 Ga |
| Protection level | IP66 |
| anti-drop height | ≤ 3 meters (the lower the height, the more resistant it is to falling) |
| anti-electromagnetic interference | national standard |
| anti-cross gas interference | weak |
| Battery | 2000MAH Capacity lithium battery Operating Voltage: DC 3.7V |
| battery life | 12 hours < working life < 55 hours (determined by the detection gas and the detection principle); |
| Environmental temperature | -40~55℃ |
| Storage temperature | -10~30℃ |
| Working pressure | 80-120KPA |
| service life | Sensors: determined by the detection principle; Miscellaneous components ≥ 5 years |
| Attenuation performance | standard |
| reference certification | Measurement equipment CPA, CCCF, intrinsically safe explosion-proof, IP66 protection, mine safety, coal safety, ROSH, SIL2, CE, ATEX, IEC |
| Weight | 172g±10g |
| Shell Color | Amber + off-white |
| Product size | 110*62*61mm |
| Production process | Standard process |
| shell material | Shell material: PC plus TPU soft glue, anti-skid, anti-drop; |
| Environmental humidity | 0% -95% RH (no condensation) |
Empaer SPES-O2 Lone walker series handheld oxygen concentration Detector Packing list
Host X1, Encasement Box X1, Charger X1, Data Cable X1, Manual X1, Warranty Card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
