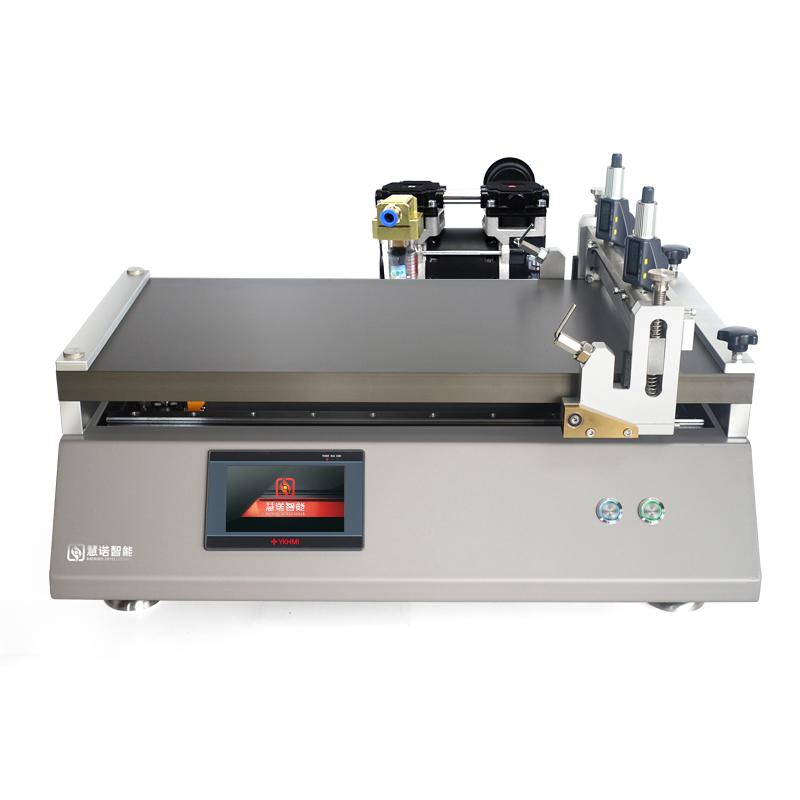

HuiNuo TM2300/03 Automatic Film Applicator

HuiNuo TM 2300/03 drawdown blade Vacuum chuck Automatic Film Applicator Effective area 650x400mm

Drawdown blade + heating + Vacuum chuck function, linear guide rail mobile platform running smoothly, clamshell drawdown blade design, effective coating area 650x400mm, suitable for film coating glue, Resin, polymer materials and other samples that need to be heated and dried.

Brand

SKU: NB004954

HuiNuo

Model

Price

$ 6180.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

HuiNuo shopSE

Information

Datasheet RFQ Contract Video Catalog Manual

What else did others buy

Genuinegoods

HuiNuo TM2300/03 Automatic Film ApplicatorOverview
Specifications
Comments
FAQs

TM2300/03

Automatic Film Applicator

HuiNuo TM 2300/03 drawdown blade heating vacuum adsorption Film Applicator Effective area 400x650mm Figure 1

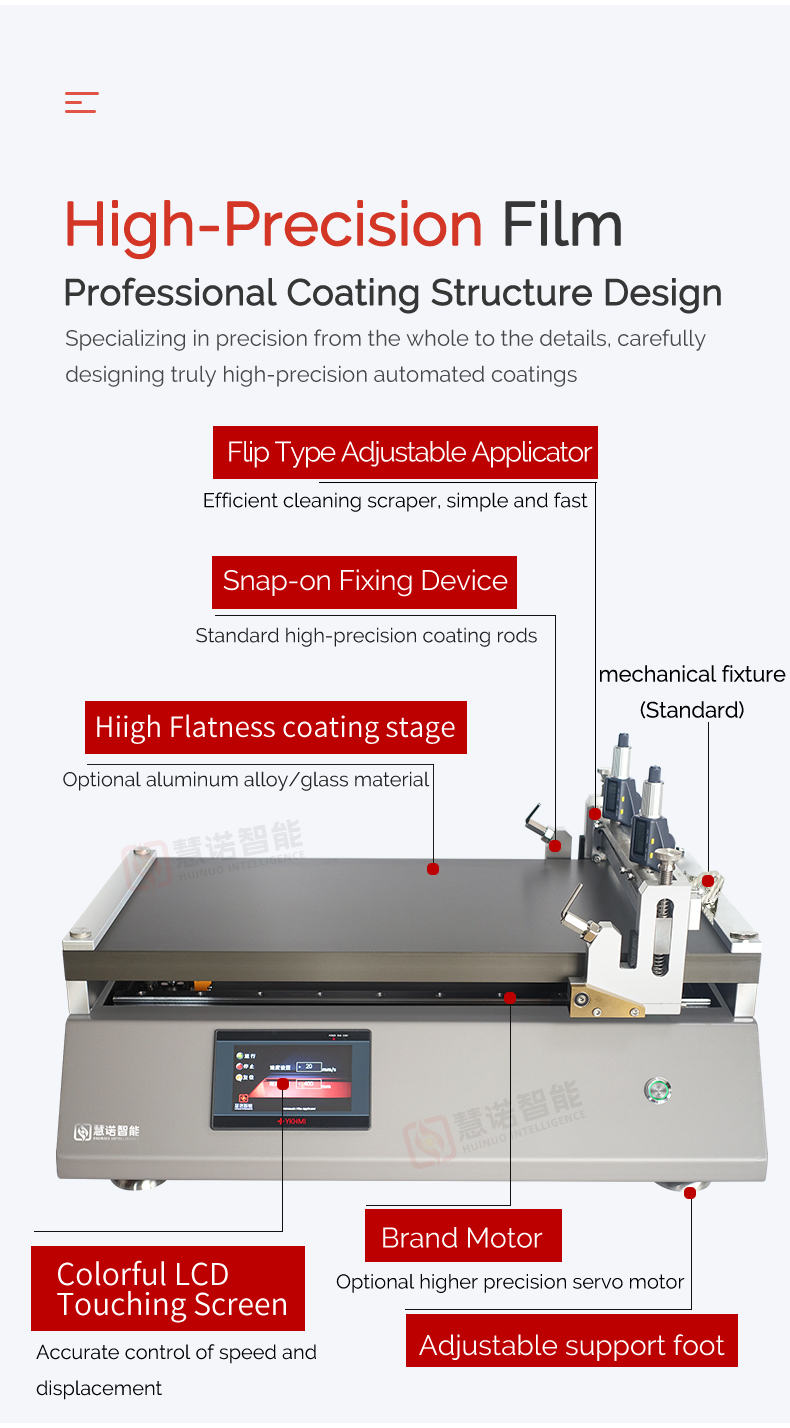

HuiNuo TM 2300/03 drawdown blade heating vacuum adsorption Film Applicator Effective area 400x650mm Figure 2

HuiNuo TM 2300/03 drawdown blade heating vacuum adsorption Film Applicator Effective area 400x650mm Figure 3

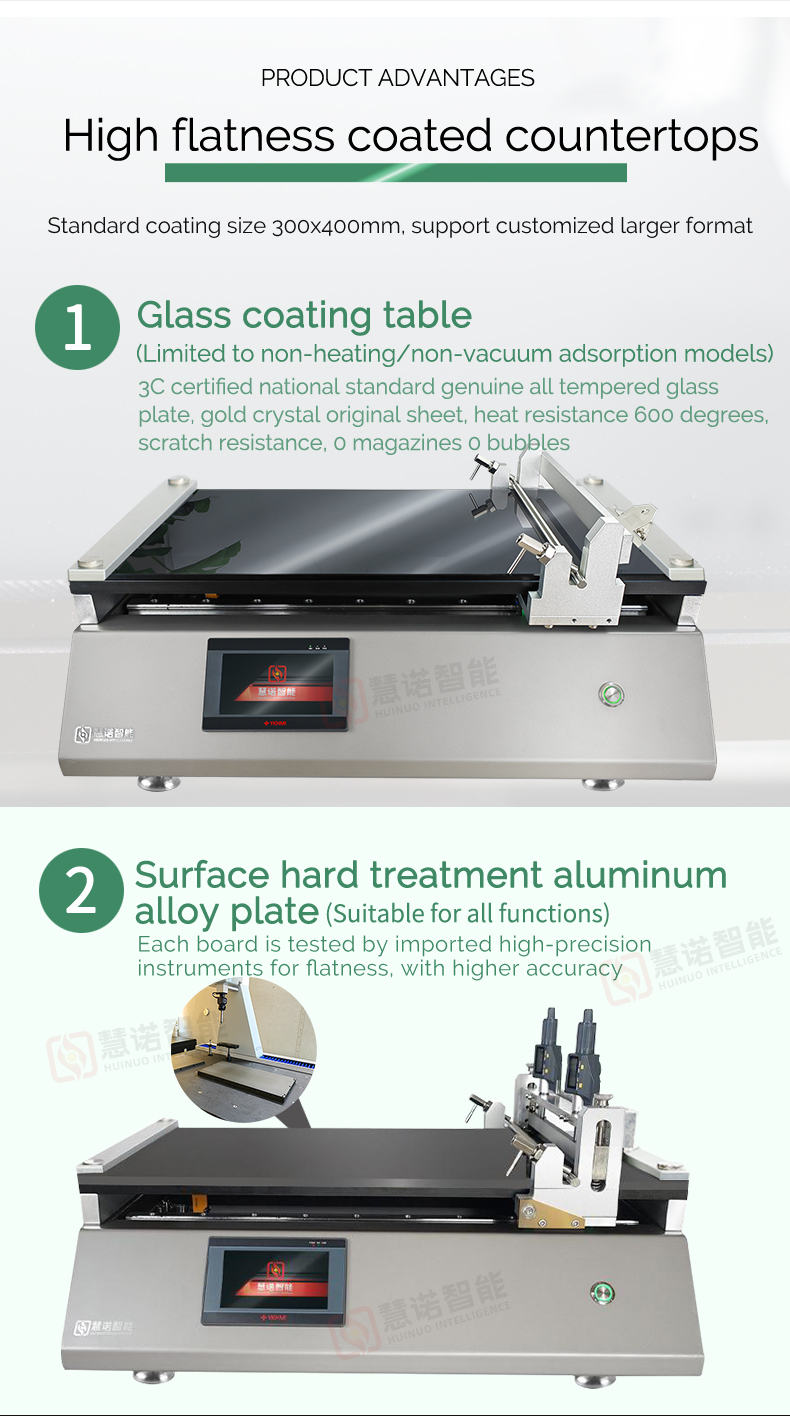

HuiNuo TM 2300/03 drawdown blade heating vacuum adsorption Film Applicator Effective area 400x650mm Figure 4

HuiNuo TM 2300/03 drawdown blade heating vacuum adsorption Film Applicator Effective area 400x650mm Figure 5

HuiNuo TM 2300/03 drawdown blade heating vacuum adsorption Film Applicator Effective area 400x650mm Figure 6

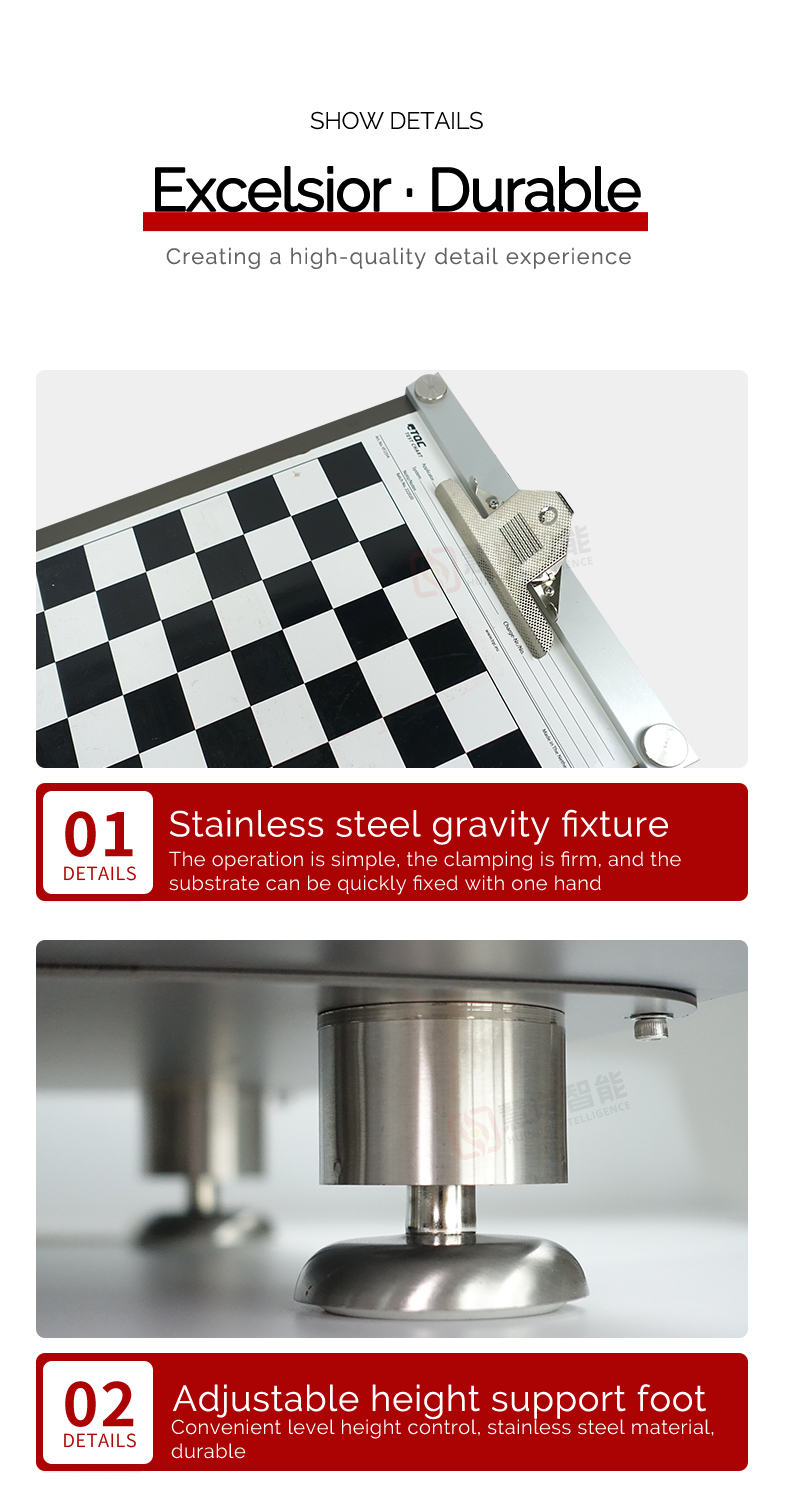

HuiNuo TM 2300/03 drawdown blade heating vacuum adsorption Film Applicator Effective area 400x650mm Figure 7

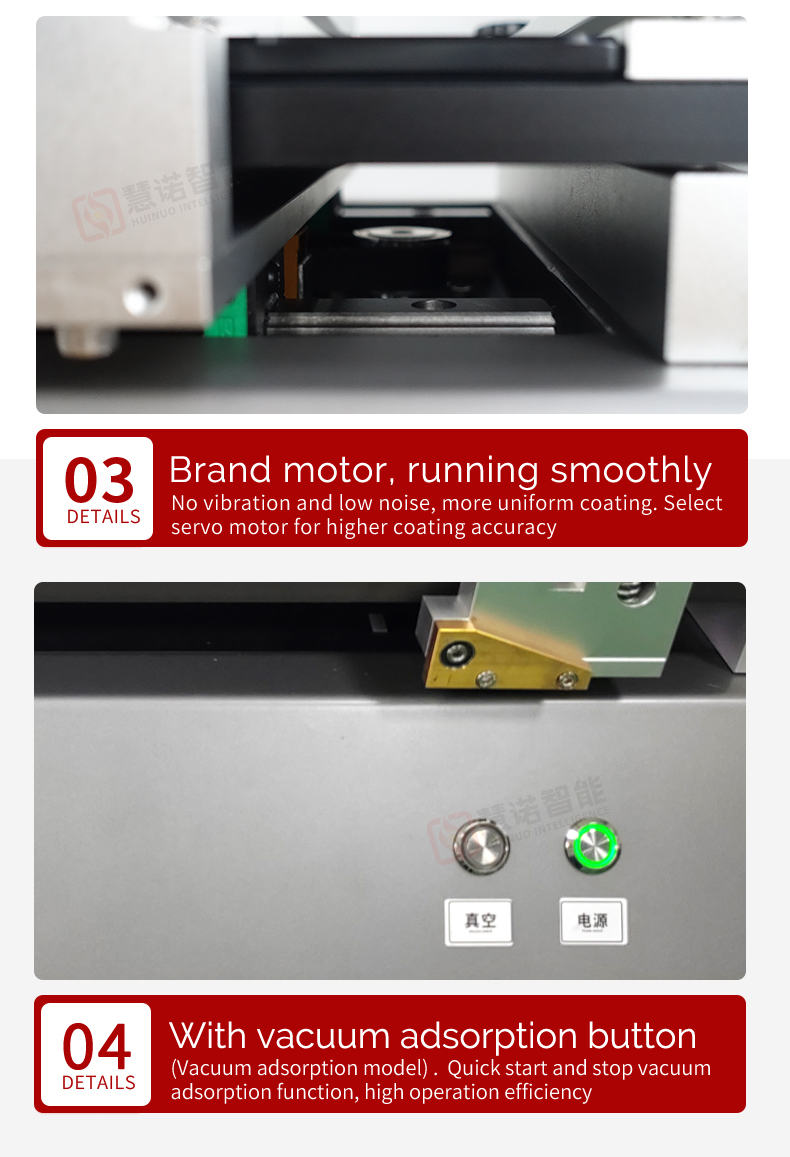

HuiNuo TM 2300/03 drawdown blade heating vacuum adsorption Film Applicator Effective area 400x650mm Figure 8

HuiNuo TM 2300/03 drawdown blade heating vacuum adsorption Film Applicator Effective area 400x650mm Figure 9

HuiNuo TM 2300/03 drawdown blade heating vacuum adsorption Film Applicator Effective area 400x650mm Figure 10

HuiNuo TM 2300/03 drawdown blade heating vacuum adsorption Film Applicator Effective area 400x650mm Figure 11

HuiNuo TM 2300/03 drawdown blade heating vacuum adsorption Film Applicator Effective area 400x650mm Figure 12

HuiNuo TM 2300/03 drawdown blade heating vacuum adsorption Film Applicator Effective area 400x650mm Figure 13

HuiNuo TM2300/03 Automatic Film ApplicatorSpecifications

LIST	VALUE
Coating Method	Drawdown blade
Coating Speed	1~ 300Mm/s stepless speed regulation (can be customized)
Substrate clamping method	Vacuum chuck + fixture
Spreader platform material	Surface hard treatment aluminum alloy
Coating table size	890*430mm
Effective coating Area	650 * 400Mm (can be customized)
Drawdown blade Film thickness range	0~10Mm (clamshell design is easy to clean)
Drawdown blade material	Die steel
Drawdown blade width	300mm
Drawdown blade Accuracy	±0.003mm
Vacuum chuck size	730 * 360Mm (can be customized)
Vacuum Aperture	Φ0.8mm
Vacuum hole pitch	20*20mm
Vacuumpump pumping rate	5.4m3/h
Ultimate Vacuum	50KPa
Vacuumpump power	180W
Vacuumpump Weight	7.1kg
Heating method	Mica sheet heating (optional graphene heating, faster thermal conductivity)
Heating temperature range	RT +~ 180 ℃ (can be customized)
Temperature Uniformity	±1℃
operating language	Chinese (can be customized in English)
Display	Color LCD touch screen
Host Power Supply	100V~220V/50~60HZ
power	1800w
Dimensions	910540430mm

HuiNuo TM2300/03 Automatic Film Applicator Packing list

Machine x1, drawdown blade x1, Vacuumpump x1, manual x1, certificate x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
