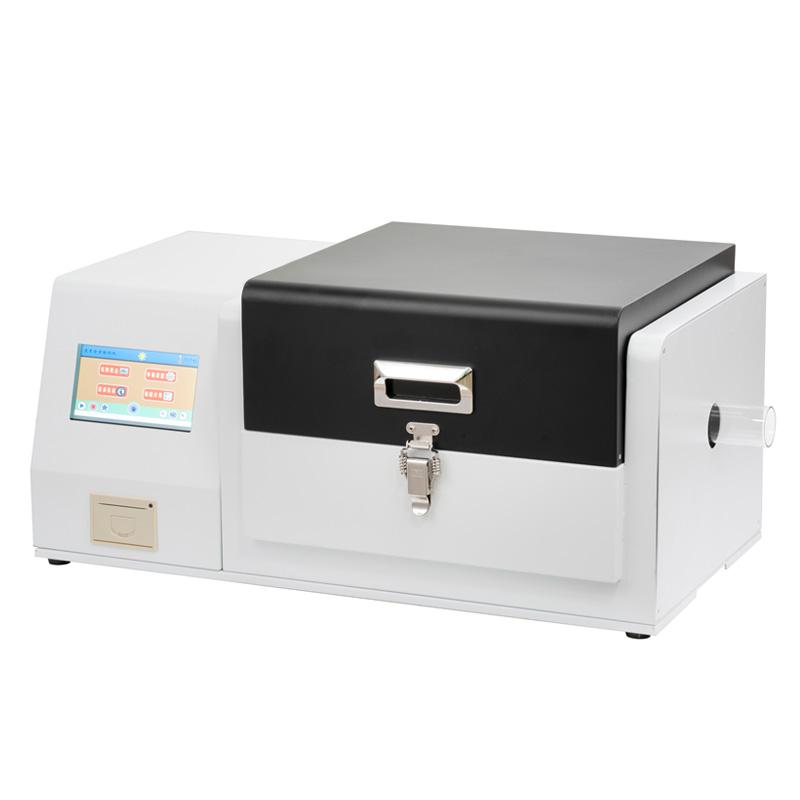

DZ3500S carbon black content Tester, high temperature pyrolysis carbon black content Tester
Using high temperature pyrolysis technology, accurate temperature control (room temperature~ 1150 ° C), 7-inch touch screen one-button operation, support multi-stage program heating and automatic calculation results. Integrated design with rapid cooling (≤ 20 minutes) and exhaust gas filtrate function, 4 samples can be measured at a time.
DaZhan equipment
DZ3500S
-
JINHE WZY-4030A numerical control multifunctional prototyping machine
$ 5978.00 -
Chinese NBC-7052 Integrated Terminal Section Analyzer, Manual
$ 3113.00 -
CHINA NBC-YX-4030ZD automatic two-dimensional imaging instrument, workpiece crazing detection 400 × 300mm
$ 10301.00 -
AMITTARI AT-135A Stroboscopic Rotation speed instrument, stroboscopic instrument 50~12000FPM
$ 265.00 -
YUZHOU MPJ-35 Metallographic sample grinding machine, diamond sanding needle stepless speed regulation
Login
Instrument Introduction
The carbon black content Tester is suitable for the determination of carbon black content in polyethylene, polypropylene, polybutylene plastics, cable and fiber optic cable insulation and sheath materials, and rubber. Comply with national standards GBT 3515-2005, GBT 13021-1991, GB/T2951.41-2008, IEC60811-4-1:2004, etc. A certain amount of sample is pyrolyzed at high temperature in a nitrogen gas stream, and the carbon black content is obtained by analyzing the weight of the sample after pyrolysis.
Technical features:
1. The instrument has beautiful appearance and structure, and is simple to operate;
2. The integrated design of the heating furnace body and the control system is convenient for the user's instrument management.
3. High degree of automation, only need to set the temperature value and heating time, and the instrument will automatically heat up to the set value;
4. High temperature control accuracy, wide temperature range, high furnace temperature uniformity;
5.7-inch LCD touch screen display, extremely friendly operation interface, can be started with one key operation
6. It has excellent thermostatic function, and can set the thermostatic time, and the thermostatic accuracy is high;
7. The instrument can set any group of different heating time periods, and can have different heating temperatures, heating rates, and constant temperature times;
8. The parameter display is comprehensive, showing the number of setting groups, theoretical temperature, actual temperature, heating time (or constant temperature time);
9. During the operation of the instrument, you can check the set parameters and the time of heating up or constant temperature.
DaZhan equipment DZ3500S Carbon black content TesterSpecifications
| LIST | VALUE |
|---|---|
| display mode | 7 inch capacitive touch screen |
| Quartz tube size | φ44×600±5mm |
| Furnace size | Φ45×300±5mm |
| heating element | superalloy wire |
| Heating zone length | 250mm |
| operating temperature | Room temperature~ 1150 ℃ |
| Temperature control method | Intelligent programmable control, segmentation program can be set. |
| Power Supply | AC220V/50HZ/60HZ |
| sensor sensitivity | 0.1℃ |
| Pneumatic control | Two-way, the program automatically switches |
| cooling method | Rapid cooling (≤ 20min, 900 ° C to room temperature) |
| Number of test samples | Test 4 samples at a time |
| data computing | The software comes with its own calculation function, one-click calculation; it can automatically calculate the carbon black content and ash content. |
| Miscellaneous | Customized guide rail type sample holder, easy to take and loft, open cover type, fast cooling, with exhaust gas filtrating device, with printing function |
DaZhan equipment DZ3500S Carbon black content Tester Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
