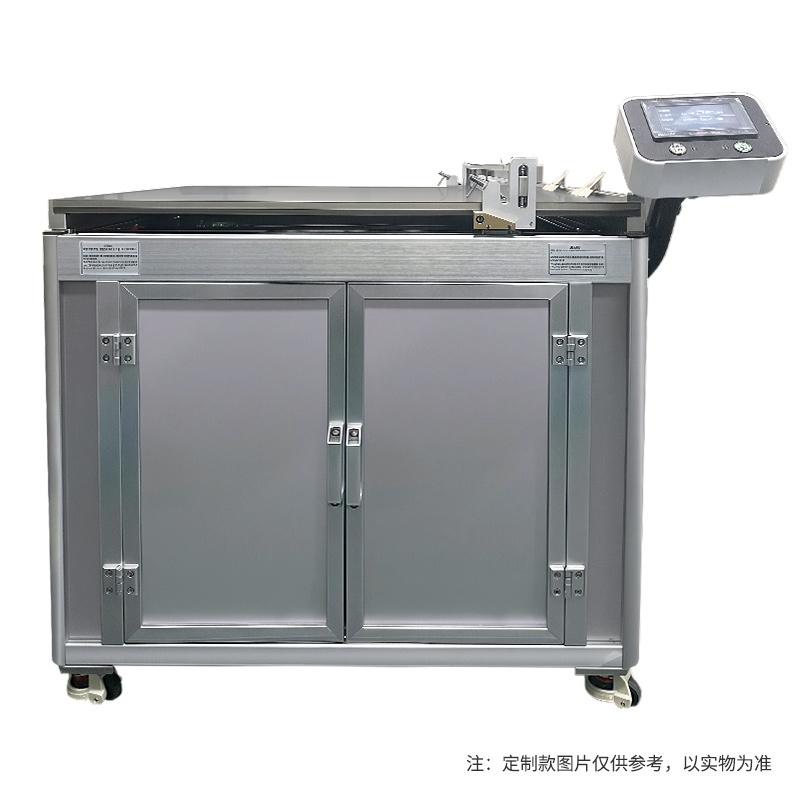

HuiNuo TM1300Pro/01D Floor type bar heating Vacuum chuck coater 100 * 90cm
Bar Spreader, with heating function, servo motor, simple bar groove design, bar installation is simple, Smoothness hardened aluminum alloy baseplate, wear resistance and scratch resistance.
HuiNuo
TM1300pro/01D
-
MODERNER AFA-VH Electric Vacuum Automatic Film Applicator
Login -
HuiNuo TM3300UV/02 drawdown Bar & Blade heating vacuum adsorption coater with portable UV curing lamp
$ 6023.00 -
CHINA TBJ-A1-DJ9 Floor type wire-rod Film Applicator Coating size 600 * 800mm
$ 6336.00 -
MODERNER FAA-VI Automatic Film Applicator with External Vacuumpump
Login -
China TBJ-X2-DJ1 Automatic Film Applicator Vacuum chuck drawdown Bar & blade Small Lab Film Applicator
$ 6180.00
Product Overview
The automatic film coating machine is a device used to coat the film in the laboratory, replacing the manual coating film, and the coating film is carried out automatically, so as to improve the accuracy and efficiency of the coating film. The working principle of the experimental automatic film coater is to evenly coat the sample on the substrate by controlling the coating head and coating parameters to form the desired film.
This coating machine is a high-precision wire rod type coating machine using servo motor.With heating and vacuum adsorption function,The newly created wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, support speed control and coating length adjustment, suitable for high-precision automatic coating in the laboratory, and carry out film proofing in university research institutes, new materials, lithium batteries, glue, resin and other laboratories.
Product Use:
The film coating machine is suitable for coating samples of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, chemicals, etc., and can be scraped on glass, cardboard and cloth.
Features:
1) The surface is hard treated aluminum alloy table, with high hardness and wear-resistant, and the flatness of the table is tested by imported high-precision instruments.
2) Big brand differential regulator, high film thickness control accuracy
3) With heating and vacuum adsorption function
4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and has high precision
5) Touch screen control panel, easy to operate
6) The coating length and coating speed can be adjusted freely
7) Servo motor is adopted, which is stable in operation and has higher coating accuracy
HuiNuo TM1300pro/01D Automatic Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| Coating Method | Rod |
| Coating Speed | 1~ 300Mm/s stepless speed regulation (can be customized) |
| Substrate clamping method | Vacuum chuck + fixture |
| Coating table material | Surface hard treatment aluminum alloy |
| Coating table size | 1240*930mm |
| Effective coating Area | 1000 * 900Mm (can be customized) |
| Meyer rod coating thickness Range | Different bar numbers have different thicknesses, with high-precision imported bars |
| Meyer rod coating Accuracy | ±0.001mm |
| Vacuum chuck size | 1080 * 860Mm (can be customized) |
| Vacuum Aperture | Φ0.8mm |
| Vacuum hole pitch | 20*20mm |
| Pumping Speed | 5.4m3/h |
| Ultimate Vacuum | 50KPa |
| Vacuum Pump Power | 180W |
| Vacuum pump Weight | 7.1kg |
| Heating mode | Mica sheet heating (optional graphene heating, faster thermal conductivity) |
| Temperature range | RT +~ 180 ℃ (can be customized) |
| Temperature Uniformity | ±1℃ |
| Drive motor | Servo motor |
| Operating language | Chinese (can be customized in English) |
| Display | Color LCD touch screen |
| Host Power Supply | 220V/50HZ (can be customized 110V/60HZ) |
| Power | 2000W |
HuiNuo TM1300pro/01D Automatic Film Applicator Packing list
Host X1, manual X1, imported bar X1, certificate X1, vacuum pump X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
