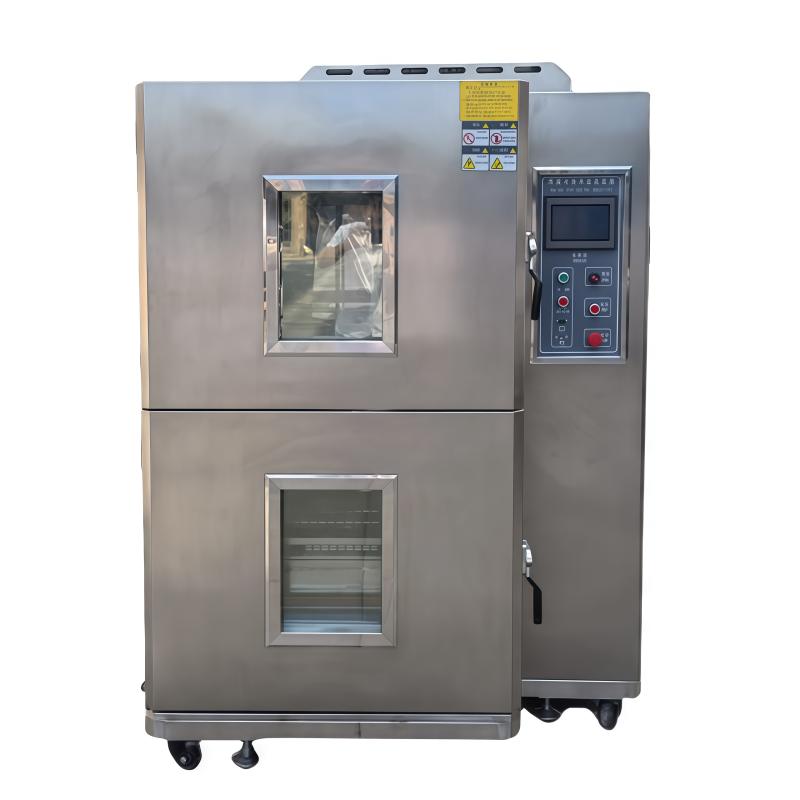

Factory Direct NBC-LC-50L Hot & Cold Shock climate chamber Test Temperature Impact Range -40 ℃~ + 150 ℃
Volume L50L, test temperature Impact range -40 ℃~ + 150 ℃ (programming arbitrary setting), temperature conversion time 10 seconds (can specify time), controller control accuracy +/- 0.2 ℃, shell material sheet metal paint, inner box material SUS #304 thickened heat-resistant cold-resistant stainless steel plate.
Factory
NBC-LC-50L
-
Aipei 3AP-CJ-150C High and Low Temperature Thermal Shock Test Chamber -65 ℃
$ 27633.00 -
Aipei 2AP-CJ-50C Two-Chamber high and low temperature impact test chamber Air-Cooled type -65 ℃
$ 18430.00 -
ZKHS WDCJ-500C Thermal Shock Test Chamber Impact hot and cold test machine -60 ℃~ 150 ℃
$ 37194.00 -
ZKHS WDCJ-010B Thermal Shock Test Chamber Thermal Shock test chamber -40 ℃~ 150 ℃
$ 37007.00 -
Aipei 3AP-CJ-50A Three-Chamber Thermal Shock Tester Air-Cooled -40 ℃
$ 14482.00
Product Introduction
This series of high-low temperature cold and low temperature cold and heat shock Test Chamber is mainly used to test the resistance of materials to extremely high or low temperature, which is similar to the situation of discontinuous high or low temperature, and the cold and heat shock test can make all kinds of items complete the test in the shortest time. The changes or physical injuries caused by thermal shocks are caused by changes in thermal expansion and contraction or other physical values, and all kinds of products can be fully trusted by using the PID system. The effects of thermal shock include electrochemical changes caused by cracking or breaking layers and displacement of the finished product, and the full digital automatic control of the PID system will make it easy for you to operate.
The thermal shock testing machine is a necessary testing equipment for metal, plastic, rubber, electronics and other materials industries, which is used to test the material structure or composite materials, which can withstand the degree of continuous environment of extremely high temperature and extremely low temperature in an instant, so as to detect the chemical changes or physical injuries caused by thermal expansion and contraction of the test sample in the shortest time. It is divided into two-box and Three-Chamber, the difference is that the test method and internal structure are different, and the product meets the requirements of the standard for: GB/T2423.1-2008 test A, GB/T2423.2-2008 test B, GB-T10592-2008, GJB150.3-198, GJB360A-96 method 107 temperature shock test.
Satisfactory test method: GJB150.5-86 temperature shock test, in line with MIL, IEC, JIS specifications.
use
The thermal shock Test Chamber is widely used in electronic and electrical components, automation parts, communication components, auto parts, metals, chemical materials, plastics and other industries, national defense industry, aerospace, military industry, BGA, PCB base wrench, electronic chip IC, semiconductor ceramic and polymer materials physical changes, testing the repeated tensile force of the material to high-low temperatures and the chemical changes or physical damage of the product in thermal expansion and contraction, and can confirm the quality of the product, from precision IC to heavy machinery components. It can be used as the basis or reference for the improvement of its products.
standard
1. GB-2423.1-89 (IEC68-2-1) Test A: Low temperature test method.
2. GB-2423.2-89 (IEC68-2-2) Test B: High Temperature Test Method.
3. GJB360.8-87 (MIL-STD-202F) high temperature life test.
4. GBJ150.3 (MIL-STD-810D) high temperature test method.
5. GJB150.4 (MIL-STD-810D) low temperature test method.
6. National military standard GJB150.3-86;
7. National military standard GJB150.4-86;
8. National military standard GJB150.5-86;
Factory NBC-LC-50L Hot&Cold Shock climate ChamberSpecifications
| LIST | VALUE |
|---|---|
| Volume L | 50L |
| Box structure | This equipment is divided into: high temperature zone, low temperature zone |
| Test area size | 350 * 350 * 400 (width * depth * height) * 2 |
| Exterior size approx. | Width 1120x Depth 1850x Height 1820mm |
| Test Temperature Impact Range | -40 ℃~ + 150 ℃ (optional programming setting) |
| Temperature transition time | 10 seconds (time can be specified) |
| Controller control Accuracy | ±0.2℃ |
| shell material | Sheet metal paint |
| Inner box material | SUS #304 Thickened heat-resistant and cold-resistant stainless steel plate, first-class light panel |
| Thermal Insulation | High density Glass cotton and high strength PU foam insulation materials have good thermal insulation effect |
| box uniformity | ±2 |
| Temperature fluctuation | ±2℃ |
| temperature error | ±2℃ |
| Heating rate | From room temperature to 180 ℃ ≤ 30 min; |
| heater | U-shaped fin type 304 #seamless steel high-speed heating electric heater. |
| Air supply circulation system | Japanese multi-wing centrifugal Circulating Fan, Japanese motor whole group |
| Cooling rate | From room temperature~ -55 ° C ≤ 60 min; |
| Refrigeration compressor | Adopt imported Compressor unit |
| Refrigeration accessories | Table bending center force evaporator, Mar fan, etc |
| Refrigeration method | Adopt air-cooled or water-cooled heat dissipation (water towers, pipes, the buyer installs them by himself) |
| Sample holder | Hanging Basket |
| Electrical accessories | Domestic well-known brand electrical components |
| Temperature and humidity control instrument | Programmable platform Controller, touch screen input, Chinese and English switch. |
| wiring method | The company's electronic control wiring method is implemented in accordance with international electrical standards |
| Protection device | Compressor overheating, overtemperature, overload, high Voltage, low pressure, oil pressure, overcurrent, underphase, |
| Power Supply power | AC380V 50~60Hz 18KW |
| Hanging basket load-bearing | Within 20Kg. |
| Meet the standard | GB2423 [1] .02 High temperature test method, GB2423 [1] .01 Low temperature test method. |
Factory NBC-LC-50L Hot&Cold Shock climate Chamber Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
