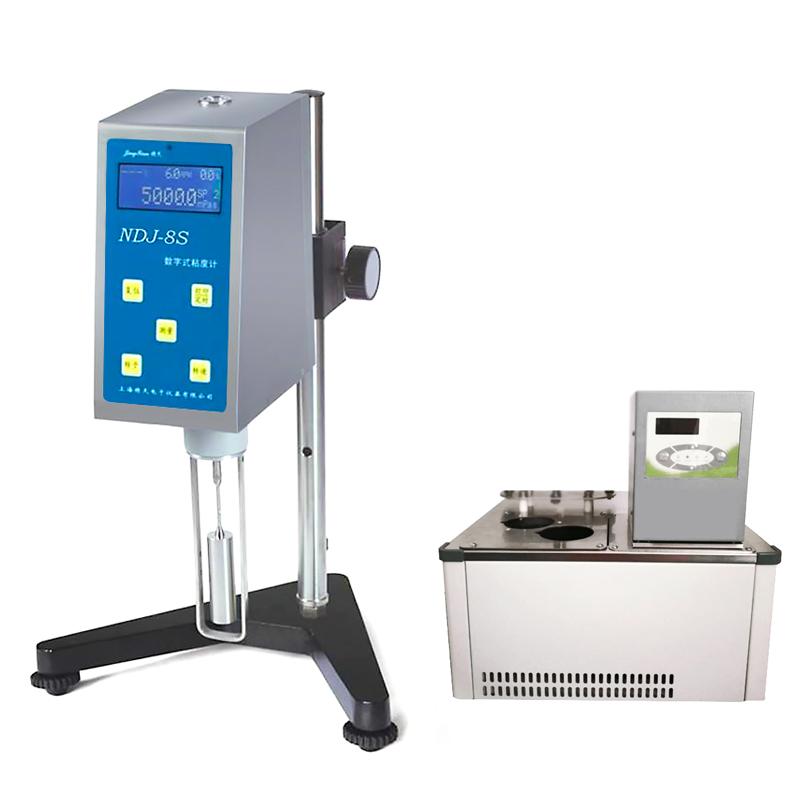

HuiNuo NDJ-8S + RC0508 Thermostat Digital Rotational Viscometer

HuiNuo NDJ-8S + RC0508 Thermostat digital swirl/spin Viscometer

Display mode Digital display, measurement range 20~2000000mPa · s, reproducibility +/- 0.5% F.S, measurement accuracy +/- 1% F.S, temperature control mode intelligent PID, control temperature transducer PT 100, display accuracy 0.1 ℃, temperature stability + 0.05~ 0.1K

Brand

SKU: NB049742

HuiNuo

Model

NDJ-8S + RC0508 Thermostat

Price

$ 1190.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

HuiNuo shop

Information

Datasheet RFQ Contract

What else did others buy

Genuinegoods

HuiNuo NDJ-8S + RC0508 Thermostat Digital Rotational ViscometerOverview
Specifications
Comments
FAQs

NDJ-8S + RC0508 Thermostat

Digital Rotational Viscometer

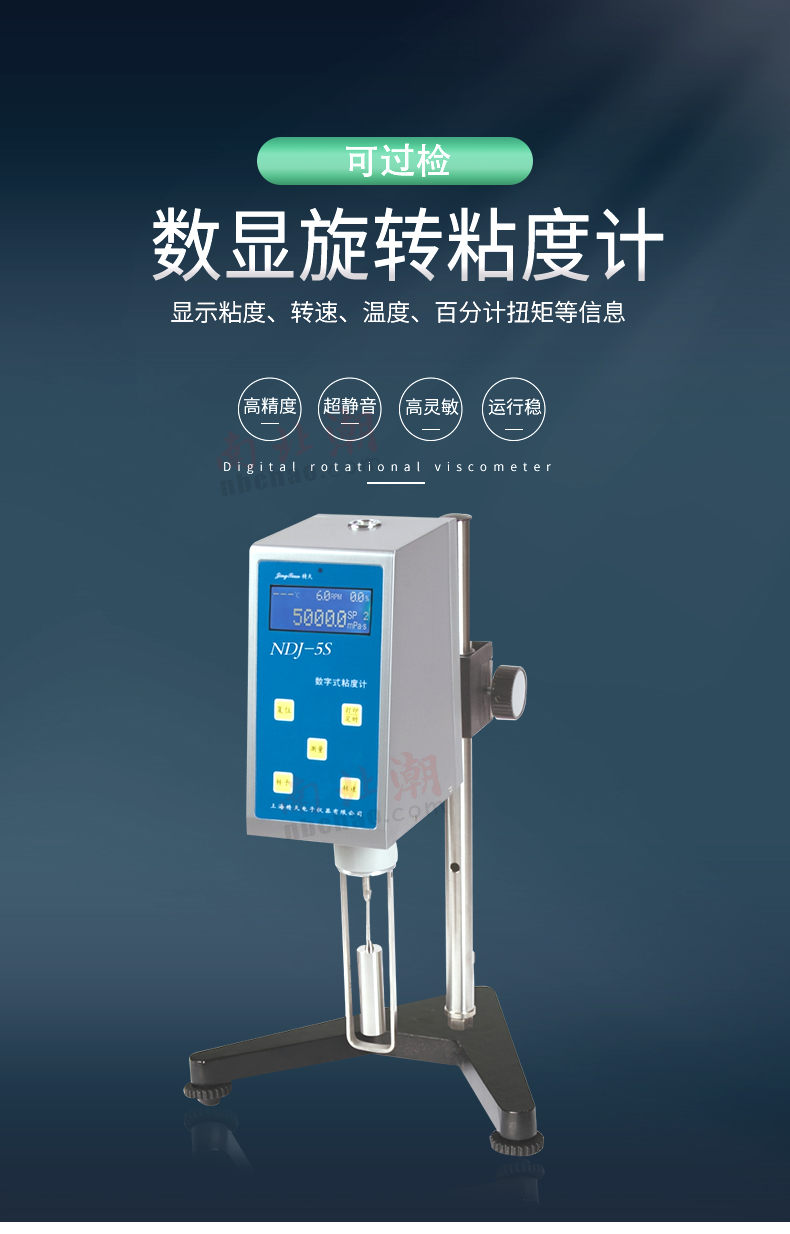

Please select the product brand in Figure 1

Please select the brand of the product in Figure 2

Please select the product brand in Figure 3

Please select the product brand in Figure 4

Please select the product brand in Figure 5

Please select the product brand in Figure 6

Please select the brand of the product in Figure 7

Please select the product brand in Figure 8

Please select the product brand in Figure 9

Please select the product brand in Figure 10

Please select the brand of the product in Figure 11

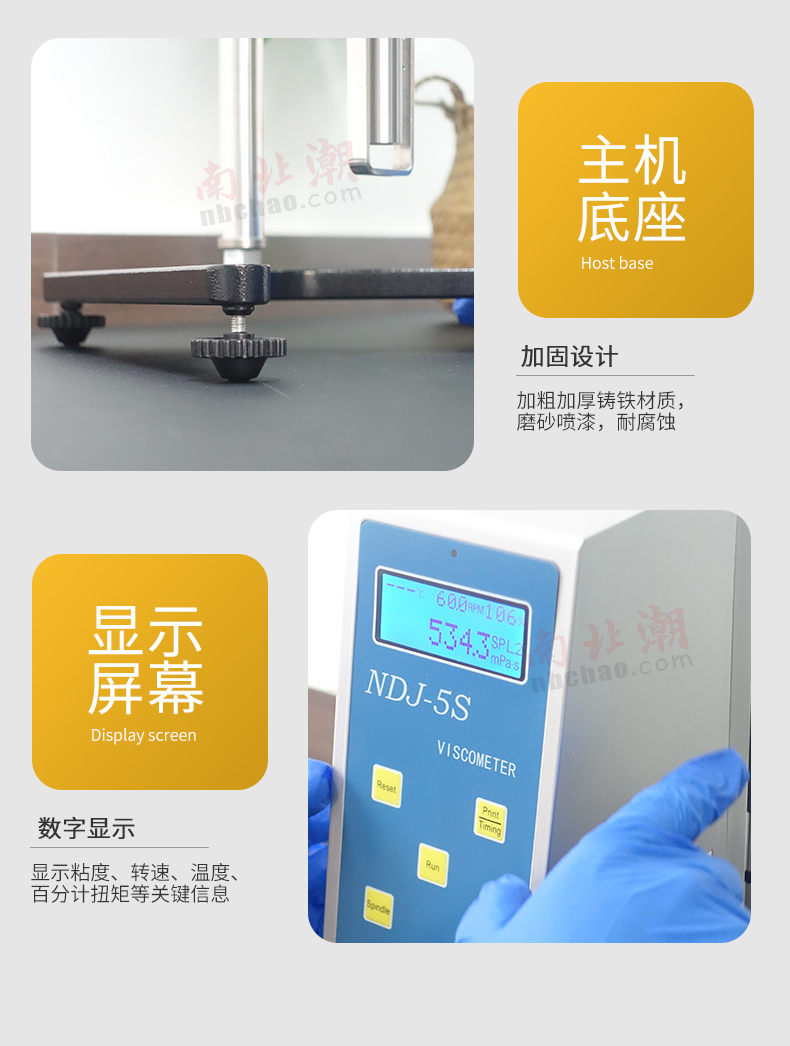

Please select the brand of the product in Figure 12

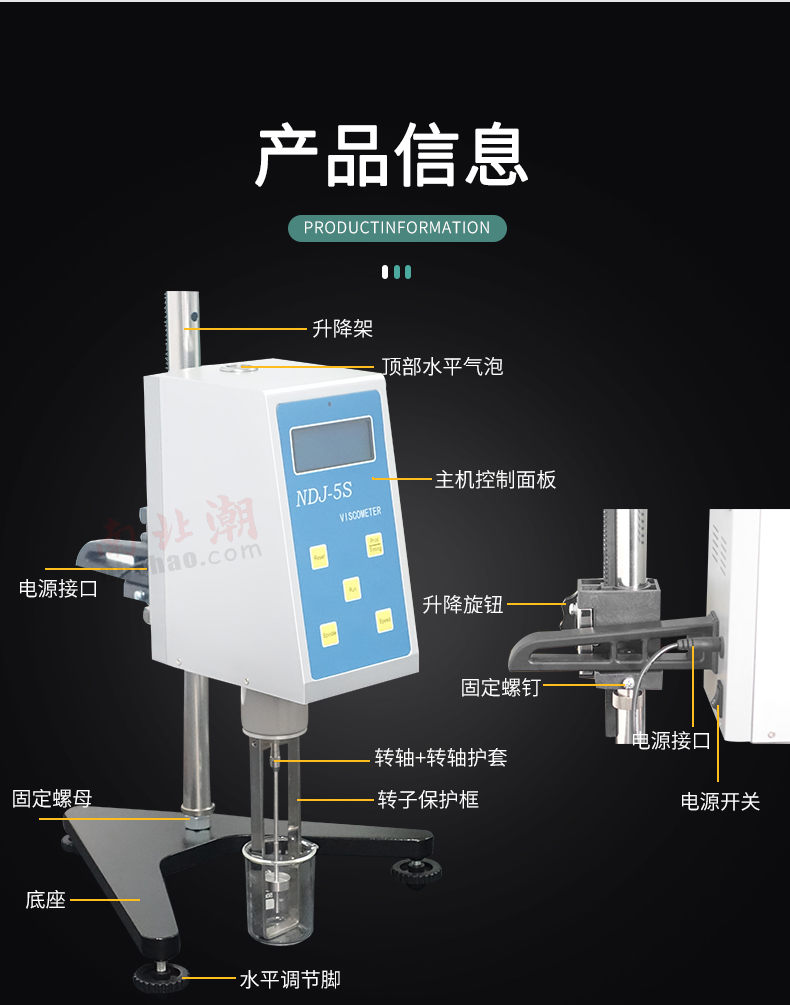

Please select the brand of the product in Figure 13

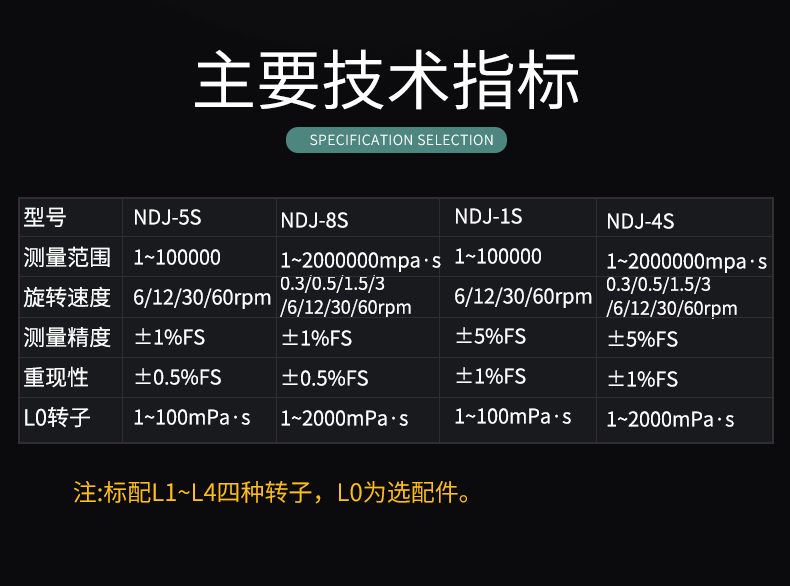

Please select the product brand in Figure 14

Product Introduction

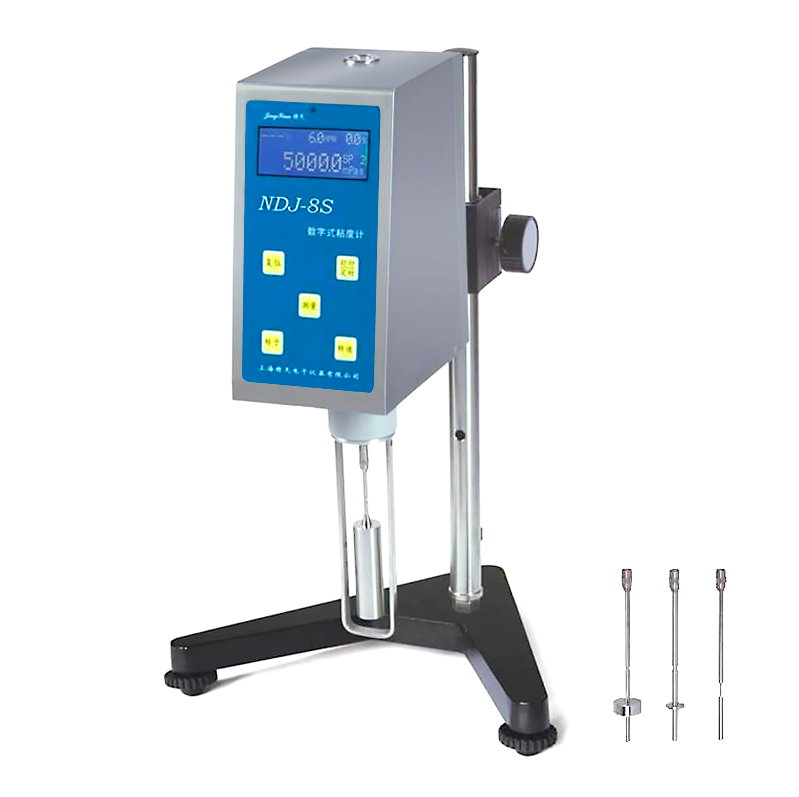

The LCD screen of Jingtian NDJ-8S Coating Rotational Viscometer can display viscosity, rotational speed, temperature, percentmeter torque, rotor number and the maximum viscosity value that can be measured by the selected rotor at the current rotational speed. It is a range of 20~2,000,000Millipascals-seconds digital display rotary viscometer.

Please select the product brand in Figure 15

HuiNuo NDJ-8S + RC0508 Thermostat Digital Rotational ViscometerSpecifications

LIST	VALUE
display mode	digital display
Measurement Range	20~2000000mPa·s
Rotor specification	L1#、L2#、L3#、L4#
reproducibility	±0.5%F.S
measurement Accuracy	±1%F.S
Power Supply	Dedicated power adapter (input 100~240V 50~60Hz)

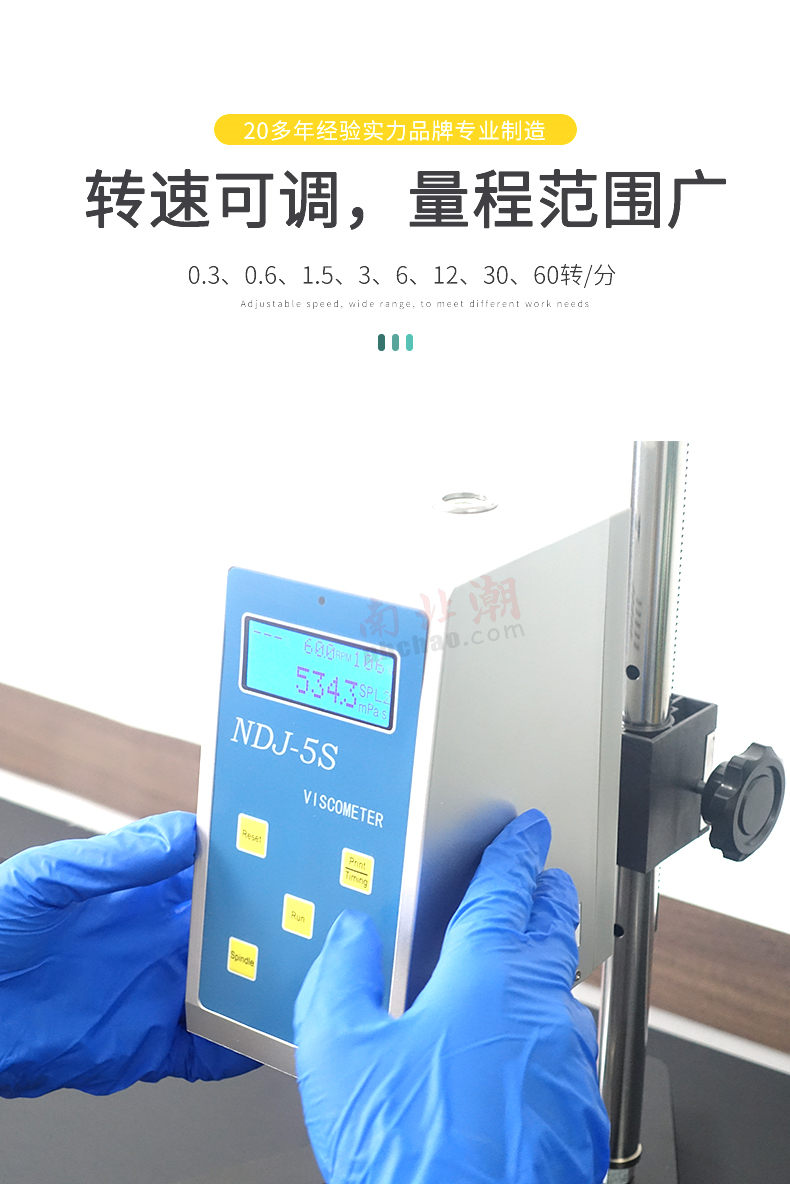

Rotor speed	0.3/0.6/1.5/3/6/12/30/60rpm
Display information	Viscosity, rotational speed, percentile torque, rotor number and the maximum viscosity value that can be measured at the current rotational speed of the selected rotor, etc
Temperature display	LED
Temperature control mode	Smart PID
Controlled temperature transducer	PT 100
operation temperature range	Room temperature + 5~ 100 ℃
Display Accuracy	0.1℃
Temperature Fluctuation	+0.05～0.1K
heating power	2000W
Pump type	Pressure/suction pump
Pump maximum pressure	0.2bar
pump maximum suction	0.1bar
Pump connection	M16x1
Sink Volume	8L
Instrument fixing method	desktop
Allow continuous operation	1
Allowable environment temperature	5~32℃
Allowable Relative Humidity	1

HuiNuo NDJ-8S + RC0508 Thermostat Digital Rotational Viscometer Packing list

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the price listed on the website the final cost for overseas purchases?

[A]

No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q]

What is the specific process for purchasing the product?

[A]

First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q]

What should I do if the instrument I purchase needs repair?

[A]

After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
