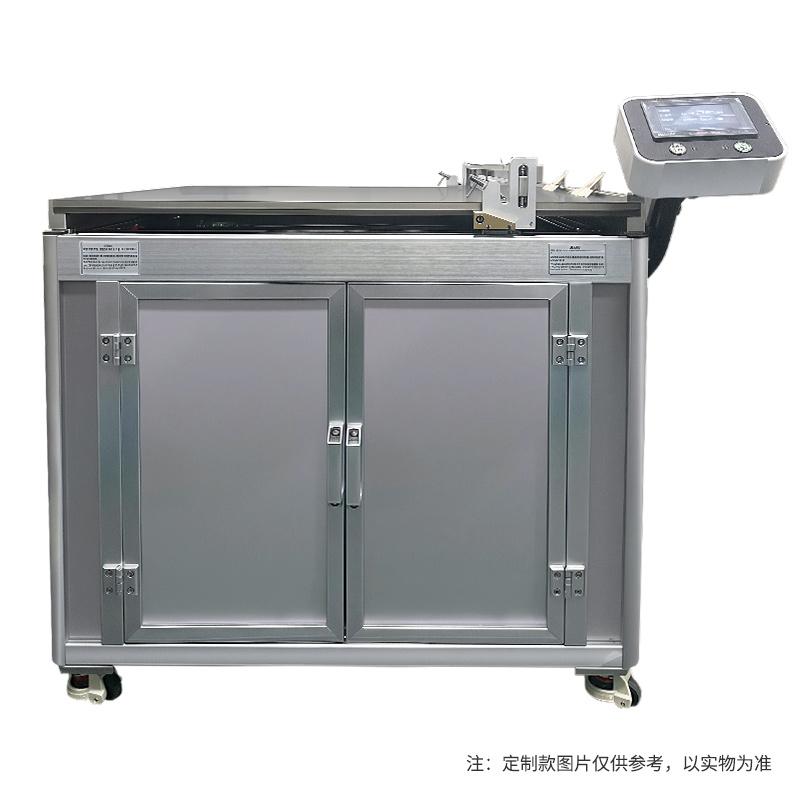

HuiNuo TM3000pro/12D Automatic Film Applicator

HuiNuo TM3000Pro/12D drawdown Bar & blade coater (floor model) effective coating area up to 120 × 70cm

Coating method bar + Drawdown blade, removable lift Drawdown blade, anode hard oxidation ultra-flat substrate, with high straightness Drawdown blade and high-precision bar, Moulding accuracy is higher, Repeatability is better!

Brand

SKU: NB049764

HuiNuo

Model

TM3000pro/12D

Price

Please contact customer service

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

HuiNuo shopSE

Information

Datasheet RFQ Contract Catalog Manual

What else did others buy

Genuinegoods

HuiNuo TM3000pro/12D Automatic Film ApplicatorOverview
Specifications
Comments
FAQs

TM3000pro/12D

Automatic Film Applicator

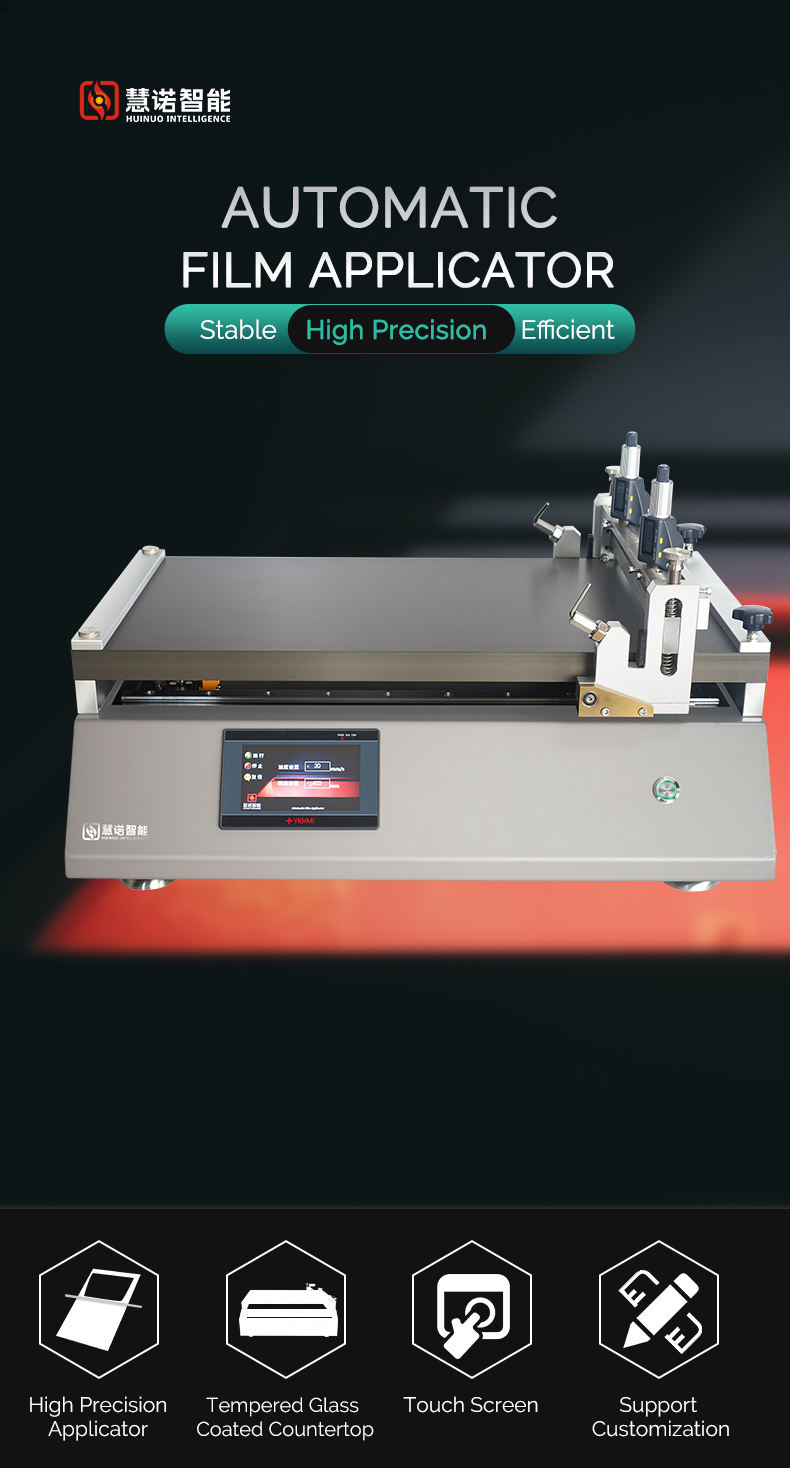

HuiNuo TM3000Pro/12D bar drawdown blade coater (floor model) effective coating area up to 120 × 70cm Figure 1

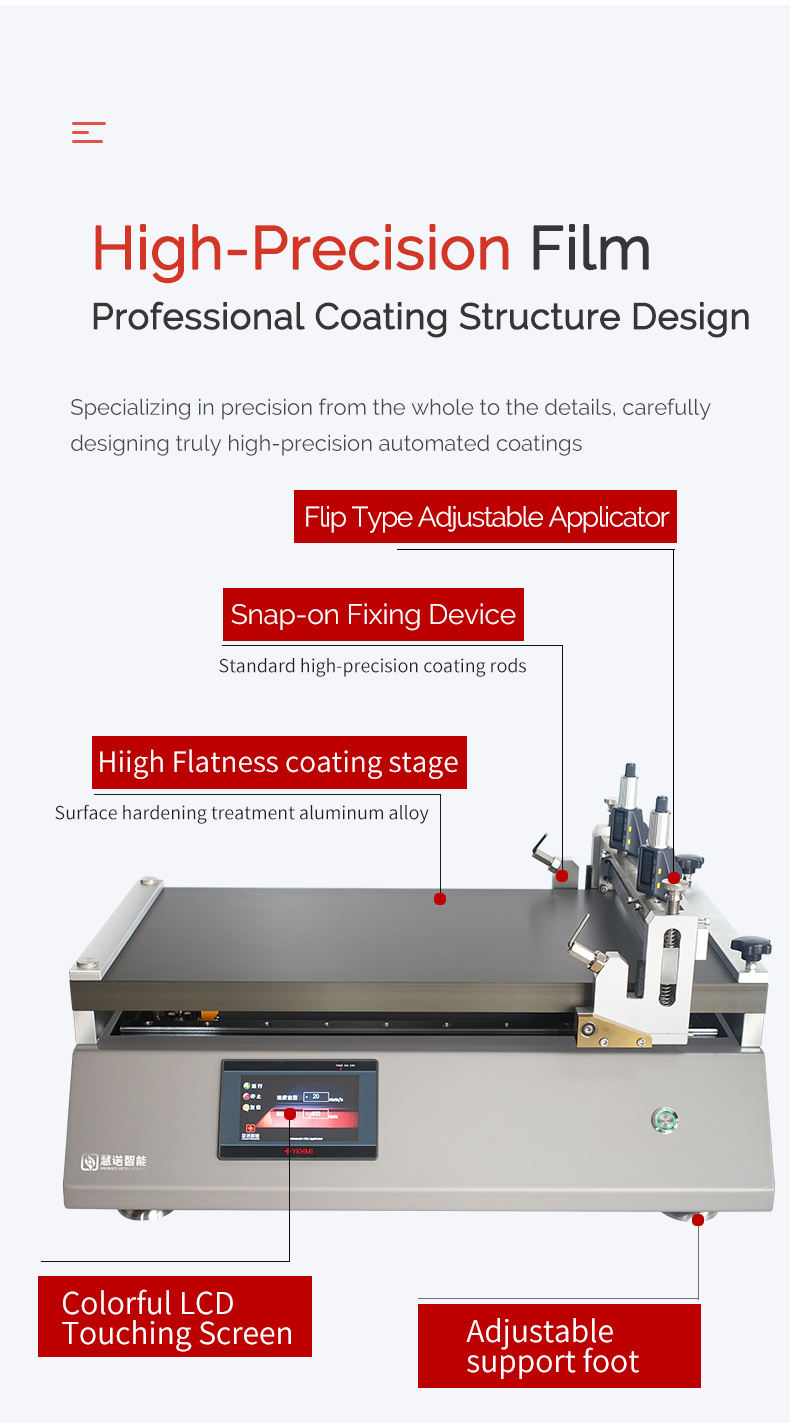

HuiNuo TM3000Pro/12D bar drawdown blade coater (floor model) effective coating area up to 120 × 70cm Figure 2

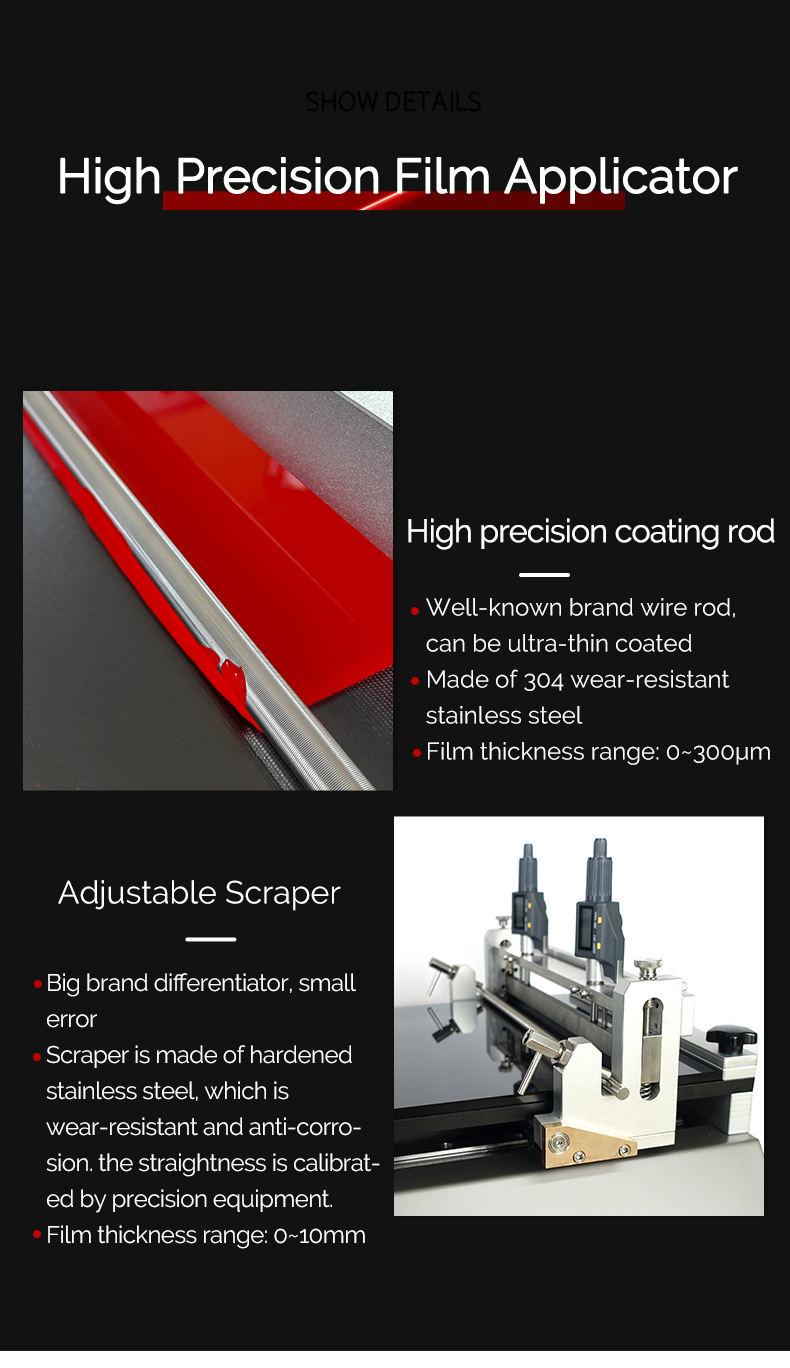

HuiNuo TM3000Pro/12D bar drawdown blade coater (floor model) effective coating area up to 120 × 70cm Figure 3

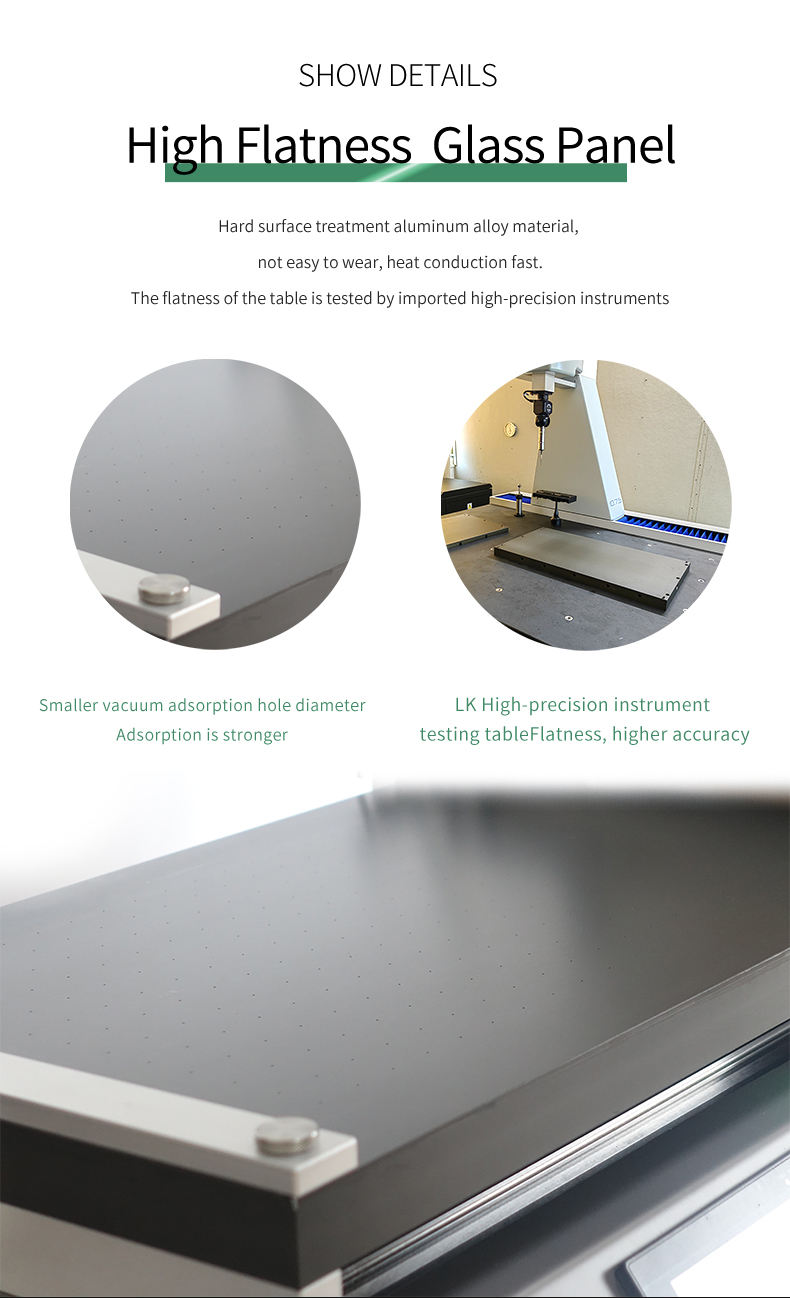

HuiNuo TM3000Pro/12D bar drawdown blade coater (floor model) effective coating area up to 120 × 70cm Figure 4

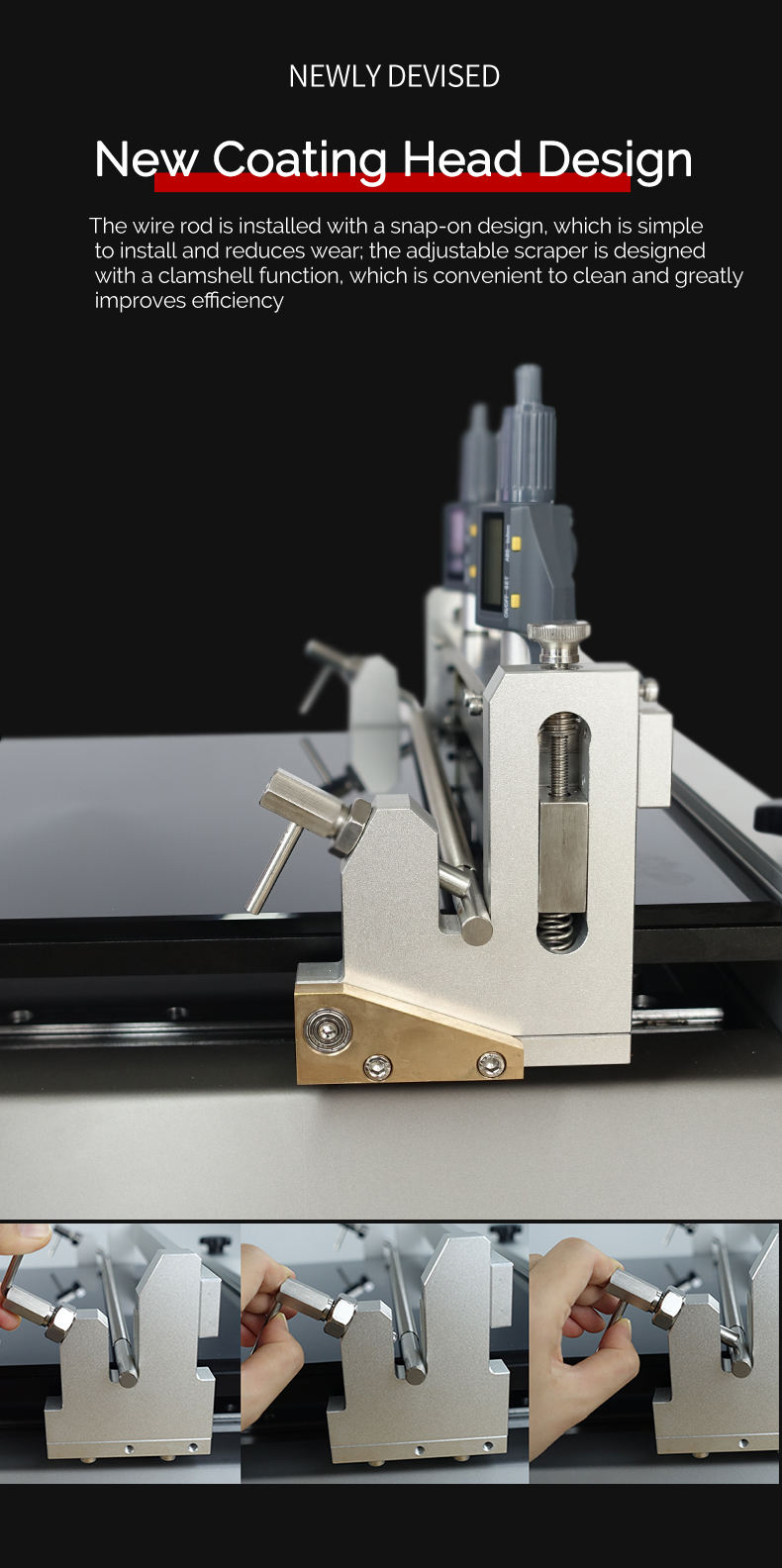

HuiNuo TM3000Pro/12D bar drawdown blade coater (floor model) effective coating area up to 120 × 70cm Figure 5

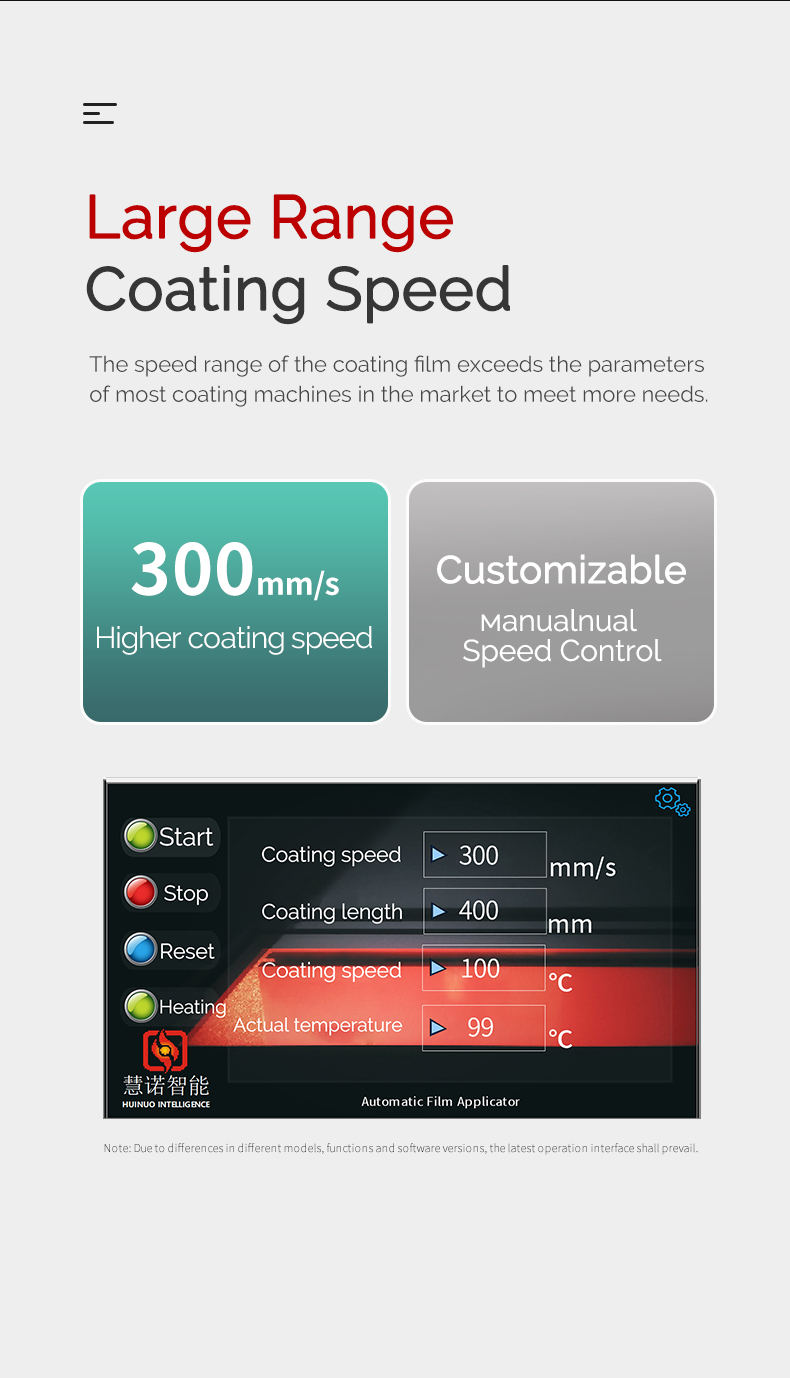

HuiNuo TM3000Pro/12D bar drawdown blade coater (floor model) effective coating area up to 120 × 70cm Figure 6

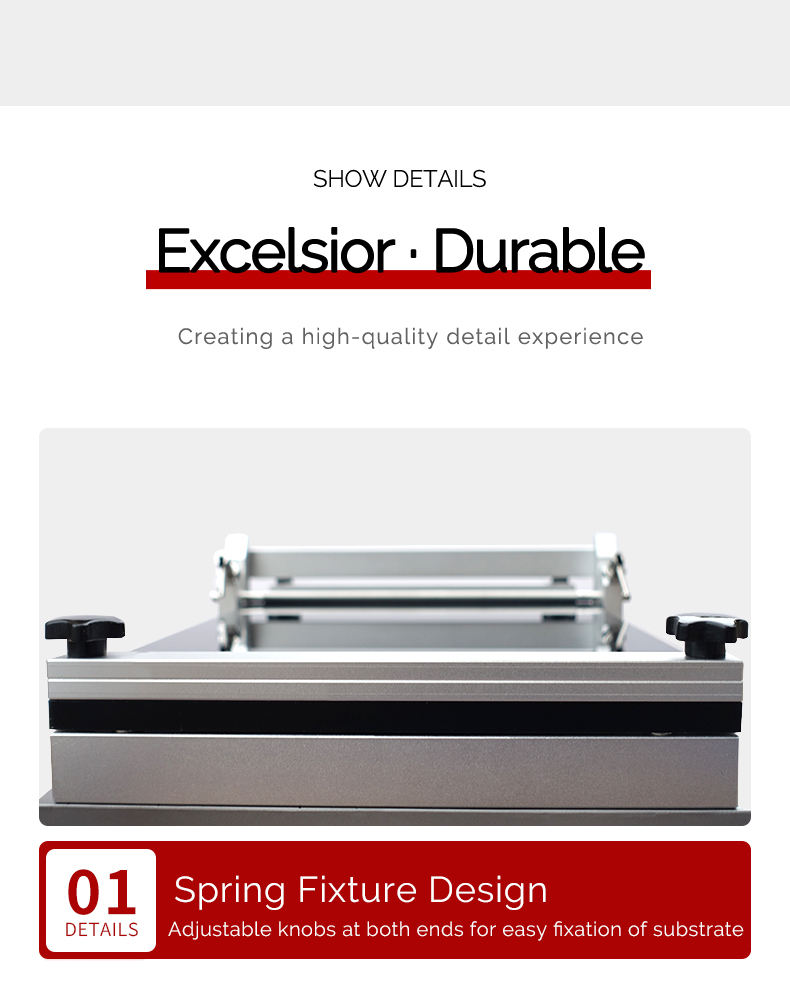

HuiNuo TM3000Pro/12D bar drawdown blade coater (floor model) effective coating area up to 120 × 70cm Figure 7

HuiNuo TM3000Pro/12D bar drawdown blade coater (floor model) effective coating area up to 120 × 70cm Figure 8

HuiNuo TM3000Pro/12D bar drawdown blade coater (floor model) effective coating area up to 120 × 70cm Figure 9

HuiNuo TM3000Pro/12D bar drawdown blade coater (floor model) effective coating area up to 120 × 70cm Figure 10

HuiNuo TM3000Pro/12D bar drawdown blade coater (floor model) effective coating area up to 120 × 70cm Figure 11

HuiNuo TM3000pro/12D Automatic Film ApplicatorSpecifications

LIST	VALUE
Coating Method	Bar + Drawdown blade
Drawdown blade structure	Removable lift
Coating Speed	1~ 300Mm/s stepless speed regulation (can be customized)
Substrate clamping method	fixture
Coating table material	Glass plate
Coating table size	1440*730mm
Effective coating Area	1200 * 700Mm (can be customized)
Meyer rod coating thickness Range	Different bar numbers have different thicknesses, with high-precision imported bars
Bar Accuracy	±0.001mm
Drawdown blade Coating thickness range	0.1~10mm
Drawdown blade material	Die steel
Drawdown blade application width	700mm
Drawdown blade Spreader Accuracy	±0.003mm
Dimension	1460 * 840 * 940Mm (subject to the actual product)
Power	400w
Display	Color LCD touch screen
Operating language	Chinese (can be customized in English)
Host Power Supply	100V~220V/50~60HZ
optional feature	Heating, Vacuum chuck

HuiNuo TM3000pro/12D Automatic Film Applicator Packing list

Host X1, manual X1, fixture X1, Drawdown blade x1, imported bar X1, certificate X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the price listed on the website the final cost for overseas purchases?

[A]

No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q]

What is the specific process for purchasing the product?

[A]

First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q]

What should I do if the instrument I purchase needs repair?

[A]

After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.

+HuiNuo TM3000pro/12D Automatic Film Applicator Big data

+HuiNuo TM3000pro/12D Automatic Film ApplicatorStandard

ActiveASTM D823-2018
