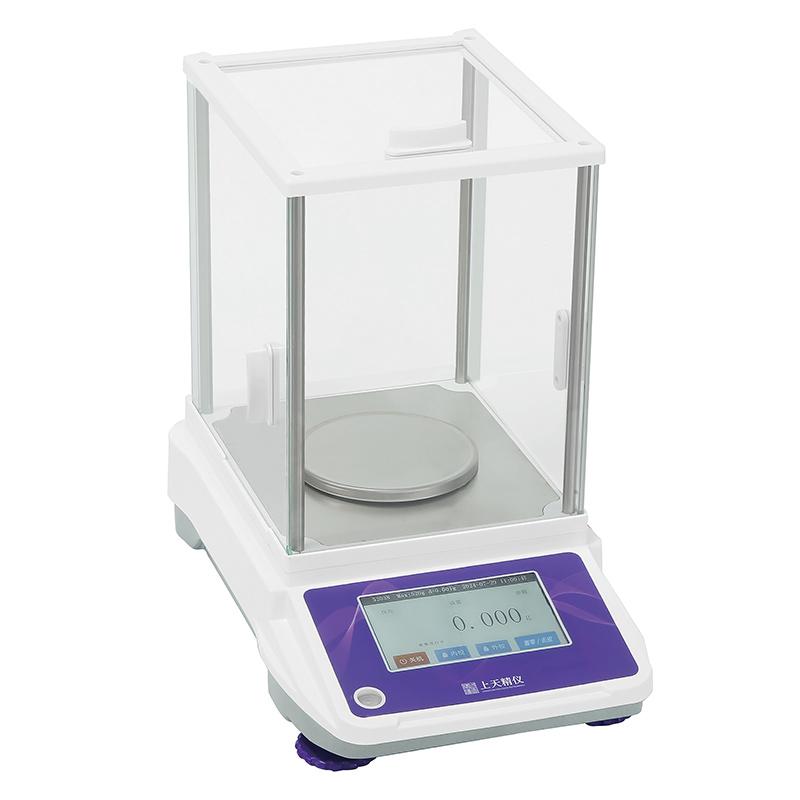

Shangtian Jingyi AE523 1/1000 Electronic Balance Weighing Balance 520g/1mg
520G maximum range and 1mg readability, equipped with Electromagnetic Force Sensors and color touch screen, supports a variety of weighing units and external calibrating, easy and intuitive operation.
ShangTianJingYi
AE523
-
0.01G Electronic Balance Tianma TD2002C Range up to 200g External correction
$ 114.00 -
SDPTOP JA4103 Electronic Precision Balance 410g/1mg
$ 514.00 -
XINGYUN FA615N-SEM Multifunctional internal calibration Analytical Balance 0.01mg accuracy E1 level
$ 1237.00 -
CNSHP JY6002% Electronic Balance 600g/0.01g
$ 142.00 -
Liquid specific gravity balance Tianma PZ-B-5 5cm3
$ 186.00
Features:
A new generation of high-precision, high-resolution electromagnetic force sensors for stable and reliable weighing results
The 5-inch color TFT touch screen display supports the use of laboratory gloves
External calibration or time, temperature-triggered fully automatic internal calibration (AE-C series)
The interface between Chinese and English is switched, and the front horizontal bubble is adjusted, and the operation is simple and intuitive
The sensor is protected by transport and guarantees its safety
Multiple weighing units: mg/g/ct/oz, etc
The lower hook design can be selected to meet the special application needs of users
RS232 interface is standard, and PC-STWC function is optional to transfer weighing data directly to open applications such as Excel
Built-in date and time display for traceability and compliance
Power supply: 110V-240V, 50Hz/60Hz
ShangTianJingYi AE523 One Thousand Electronic BalanceSpecifications
| LIST | VALUE |
|---|---|
| Maximum weighing | 520g |
| Readability | 1mg |
| Repeatability Error | ±2mg |
| Linearity | ±2(≤ mg) |
| Pan Size | Φ115mm |
| Adjustment | Externally calibrated |
| Tare Range | full scale |
| Power supply Voltage | Adapter Input: 110-240V 0.5A 50/60Hz; Adapter Output: 12V 1A |
| Dimension | 375*220*350mm |
| output interface | RS232 |
| Operating temperature | 10~30℃ |
| Wind Shield size | 220*215*250mm |
| Net Weight | 5.8kg |
| Gross Weight | 8.6kg |
ShangTianJingYi AE523 One Thousand Electronic Balance Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
