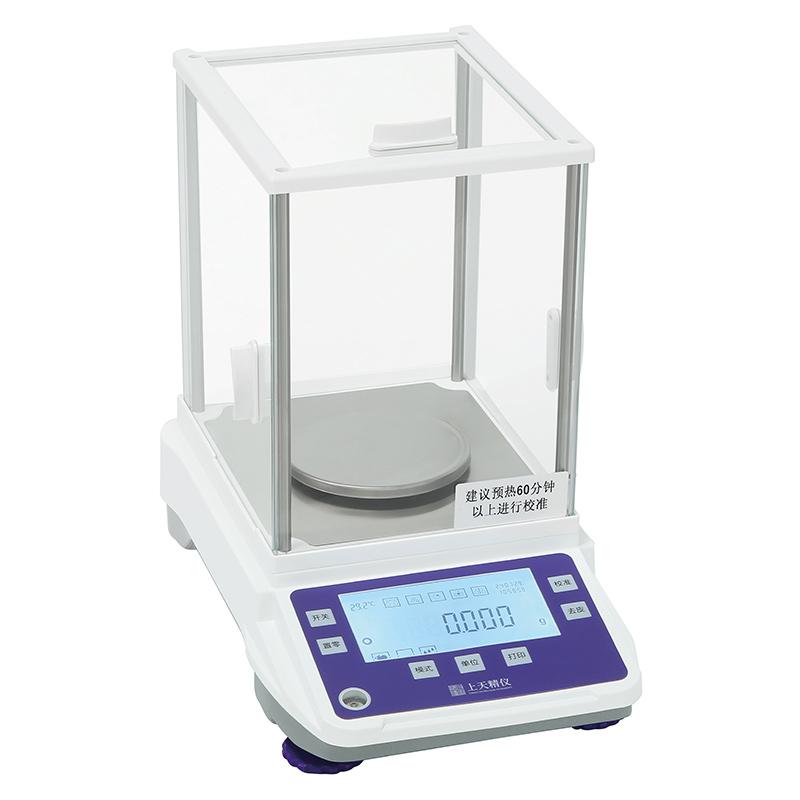

Shangtian Jingyi JA5003C One thousandth Electronic Balance Laboratory Precision Balance 500g/1mg
Using a new generation of electromagnetic force Sensors, dynamic temperature compensation technology to ensure weighing accuracy, the maximum range of 500g, readability 1mg, reaction time is less than 3 seconds, standard RS232 interface.
ShangTianJingYi
JA5003C
-
YUEPING YP-20002 (disc) Electronic Balance 2000g/10mg
$ 209.00 -
TIANMA FA2204XC Precision Balance 220g
$ 582.00 -
YUEPING YP-100001 Precision Balance 10000g/100mg
$ 206.00 -
Seiji AE 1.24 million Electronic Balance High accuracy Electromagnetic Force Sensors 0.1mg
$ 700.00 -
Shangtian Jingyi JA12002 one percent Electronic Balance high-precision Electronic Analytical Balance 1200g/0.01g
$ 490.00
Features:
A new generation of high-precision, high-resolution electromagnetic force sensors for stable and reliable weighing results
Large backlit high-definition LCD display, weighing results display clearly
Dynamic temperature compensation technology to ensure the accuracy of weighing
External calibration or time- and temperature-triggered fully automated internal calibration (FA-C/JA-C series)
The weighing stability time and reaction speed are adjustable, and the reaction time < 3S
Multiple weighing units: mg/g/ct/oz, etc
The lower hook design can be selected to meet the special application needs of users
RS232 interface is standard, and PC-STWC function is optional to transfer weighing data directly to open applications such as Excel
Built-in date and time display for traceability and compliance
Power supply: 110V-240V, 50Hz/60Hz
ShangTianJingYi JA5003C One Thousand Electronic BalanceSpecifications
| LIST | VALUE |
|---|---|
| Maximum weighing | 500g |
| Readability | 1mg |
| Repeatability Error | ±2mg |
| Linearity | ±2(≤ mg) |
| Pan Size | Φ115mm |
| Adjustment | Internal calibrated |
| Tare Range | full scale |
| Power supply Voltage | Adapter Input: 110-240V 0.4A 50/60Hz; Adapter Output: 12V 1A |
| Dimension | 375*220*350mm |
| output interface | RS232 |
| Operating temperature | 10~30℃ |
| Wind Shield size | 220*215*250mm |
| Net Weight | 5.8kg |
| Gross Weight | 8.6kg |
ShangTianJingYi JA5003C One Thousand Electronic Balance Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
