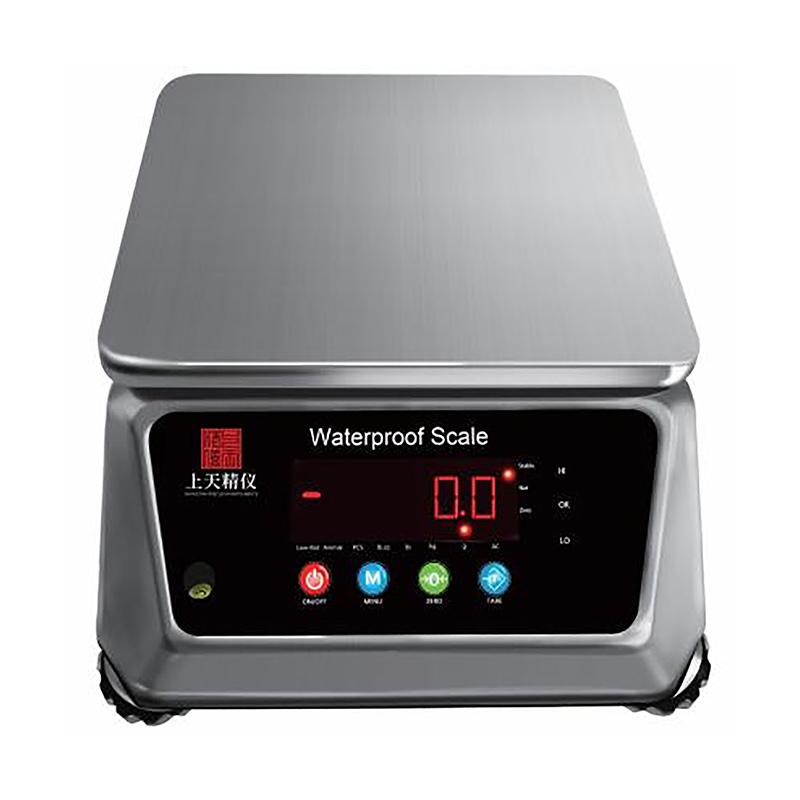

Shangtian Jingyi GLF20K Large Range Application Balance 20kg IP68 Waterproof LED Dual Display
IP68 waterproof and dustproof design, equipped with high-luminance double-sided LED display, the maximum range of 20kg readability 0.5g, built-in upper and lower limit check weight alarm function, support RS232 and Bluetooth expansion interface.
ShangTianJingYi
GLF20K
-
HUAZHI PTQ-A50 Large weighing analytical balance dual range: 50kg/10kg
$ 319.00 -
XINYUN XY15MB precision Electronic Bench Scale 16kg/0.1g
$ 182.00 -
Shangtian Jingyi GL20K-1 Large Range Application Balance Electronic Scale 20kg
$ 366.00 -
SDPTOP MP100K-1 Large Weighing Electronic Balance Maximum Weighing 100kg
$ 775.00 -
YUEPING YP100000/100L1g Electronic Balance
$ 228.00
Features:
A new generation of high-precision sensors that deliver stable and reliable weighing results
The front and rear double-sided display of high-brightness red LED meet the requirements of dim environment and two-person operation
The whole equipment adopts self-draining structure design, and the protection level: IP68
The weighing pan is made of stainless steel and is double waterproof
Built-in upper and lower limit checkweighing alarm function, hidden power cord design
The front horizontal bubble adjustment is simple and intuitive to operate
Weighing unit g/kg optional
Built-in rechargeable battery, support long-term uninterrupted use
It can be equipped with RS232 interface (waterproof type) and Bluetooth function to meet the special application needs of users
Ingress Protection (Dustproof/Waterproof)
| Ingress protection | IPX1X2 | |
| X1 | X2 | |
| Dustproof standards | Waterproof standards | |
| 0 | Unprotected | Unprotected |
| 1 | Prevents the ingress of solid foreign objects larger than 50mm in diameter | Prevent water droplets from soaking |
| 2 | Prevents the ingress of solid foreign objects larger than 12.5mm in diameter | At an inclination of 15 degrees, it still prevents water droplets from soaking in |
| 3 | Prevents the ingress of solid foreign objects larger than 2.5mm in diameter | Prevent water from soaking in |
| 4 | Prevents the ingress of solid foreign objects with a diameter greater than 1.0mm | Prevent splashing water from soaking |
| 5 | Completely protected against the intrusion of foreign objects | Prevents the jet of water from soaking in |
| 6 | Completely protected against the intrusion of foreign objects and dust | Prevent large waves from soaking |
| 7 | / | Prevents water infiltration |
| 8 | / | Prevents water immersion in the event of sinking |
| Note: The larger the X1 and X2, the better the degree of protection, and the IP68 means that the balance can completely prevent dust ingress and continuous submersion in water for normal use | ||
ShangTianJingYi GLF20K Balance of large-scale applicationsSpecifications
| LIST | VALUE |
|---|---|
| Maximum range | 20(kg) |
| readability | 0.5(g) |
| Repeatability | ±5(≤ g) |
| Linearity | ±6(≤ g） |
| Pan Size | 220mmx180mm |
| calibrate | External Adjustment |
| Tare Range | full scale |
| Protection Rating | IP68 |
| power requirements | AC220V +/- 10, DC6V/4AH (built-in rechargeable battery) |
| exterior size | 300mmx230mmx130mm |
| Temperature range | 10°C-30°C |
| Net Weight | 4.0kg |
| Gross Weight | 5.0kg |
ShangTianJingYi GLF20K Balance of large-scale applications Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
