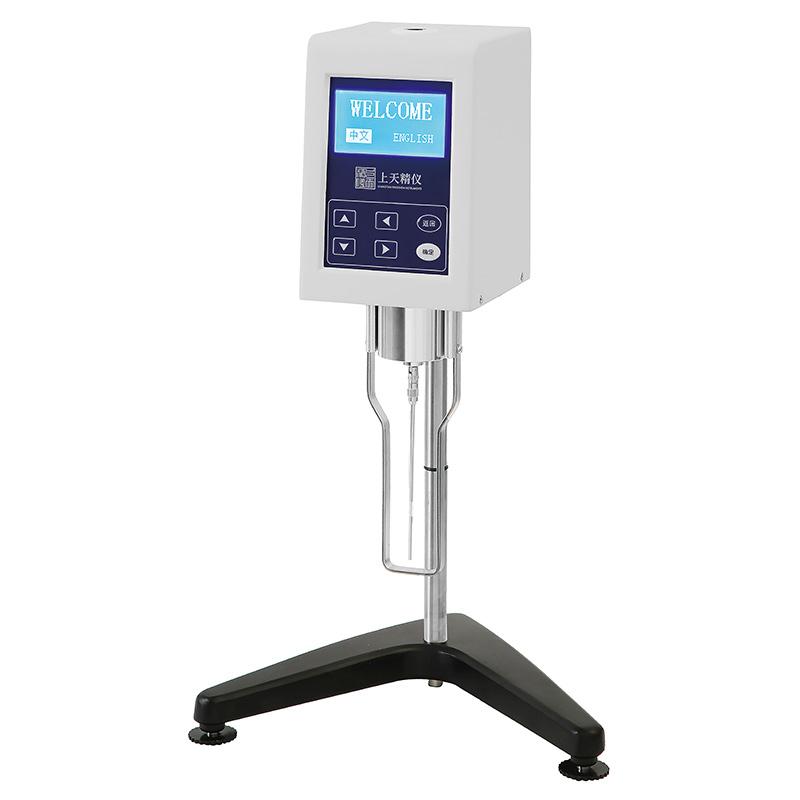

SNB-1 NDJ Digital Viscometer LCD Rotational Viscometer +/- 5%

This Rotational Viscometer is a precision instrument used to measure the absolute viscosity of Newtonian liquids and the apparent relative viscosity of non-Newtonian liquids, which has the characteristics of high measurement sensitivity, reliable test results, easy use and operation, beautiful and generous appearance, and can be widely used in grease, paint, plastic, food, coatings, glue, adhesive meter, resin, chemical raw materials and other products.

Operating Principle

This instrument is a digital viscometer, the rotor is driven by the motor through variable speed to rotate at a constant speed, when the rotor rotates in the liquid, the liquid will produce a viscosity moment acting on the rotor, the greater the viscosity of the liquid, the greater the viscosity moment; Conversely, liquidThe smaller the viscosity of the body, the smaller the viscous moment. This viscous moment acting on the rotor is detected by the sensor and processed by the computer to determine the viscosity of the measured liquid.

This instrument adopts microcomputer technology innovation, which can easily set the range (rotor number and speed), digitally process the data detected by the sensor, and clearly display the rotor number, speed and liquid to be measured during measurement on the display screenand its percentage value of full scale.

Features:

• Using advanced mechanical design technology and manufacturing process, the data collection is accurate

• The rotor is made of stainless steel 304 for easy cleaning and durability

• Universal joints are used at the interface connecting the rotor

• Measure the absolute viscosity of Newtonian liquids, i.e., dynamic viscosity

• Backlit high-definition LCD screen, Chinese and English interface, clear data display

• It has a data storage function to realize automatic storage of multiple sets of test data

• RS232 interface is standard, and PC-STWC function is optional to transfer weighing data directly to open applications such as Excel

• Power supply: AC220V±10,50Hz±10%

host × 1, power adapter × 1, protective frame × 1, base × 1, lifting column × 1, instruction manual × 1, certificate/warranty card × 1, inner hexagon wrench × 1, wrench × 1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
