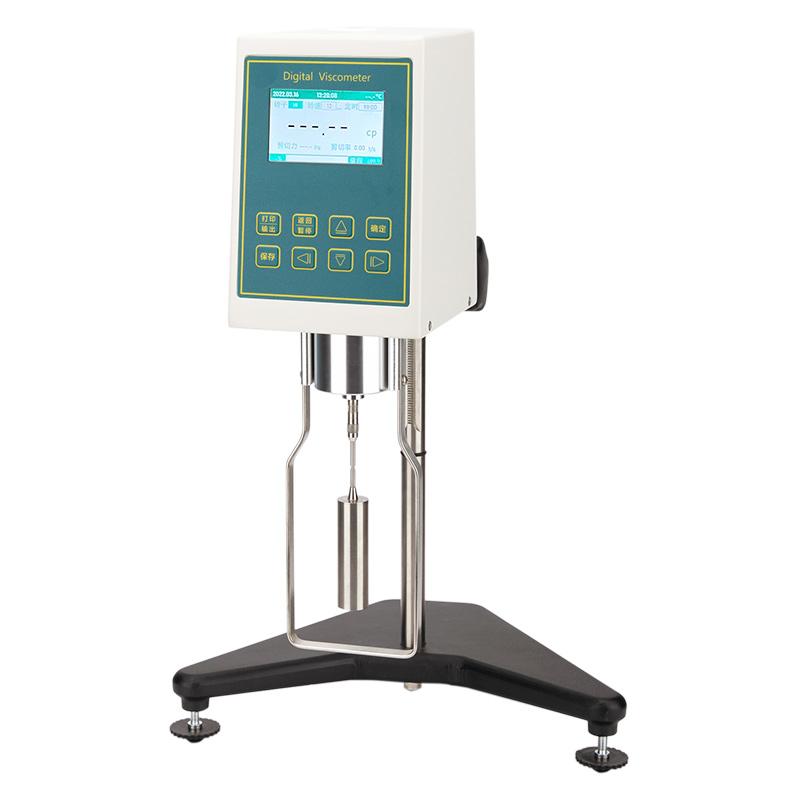

Shangtian Jingyi LVT T series color screen Viscometer swirl/spinning Viscosity meter 6 × 10 mPa.s
Measurement range 6~ 6 × 10 mPa.s, Rotor speed 0.1-200 r/min stepless speed, support 0 ° C-60 ° C temperature control.
ShangTianJingYi
LVT
-
HUINUO LVDV-1 digital display Rotational Viscometer 6 million CP with a small number of sample adapters
$ 1415.00 -
NIRUN CPE-40 cone-plate viscometer rotor, shear rate 7.5N
$ 658.00 -
NIRUN FTV-E Economic Starch Viscosity-Tester Rotor speed 0.1~ 200rpm
$ 5715.00 -
NIRUN HADV-1 + Pro Digital Viscometer Measurement range 80~26 million cP
$ 2912.00 -
NIRUN NTV-T3HB viscosity and temperature control integrated machine 80 million cp large range, suitable for all kinds of molten materials
$ 4276.00
Features:
Using advanced mechanical design technology and manufacturing process, the data collection is accurate
The rotor is made of stainless steel 304 for easy cleaning and durability
Universal joints are used at the interface connecting the rotor
Measure the absolute viscosity of Newtonian liquids, i.e., dynamic viscosity
Backlit high-definition LCD screen, Chinese and English interface, clear data display
It has a data storage function to realize automatic storage of multiple sets of test data
RS232 interface is standard, and PC-STWC function is optional to transfer weighing data directly to open applications such as Excel
Power supply: AC220V±10,50Hz±10%
ShangTianJingYi LVT T Series Color ViscometerSpecifications
| LIST | VALUE |
|---|---|
| Measurement range | 6~6×10⁶ mPa.s (mPa·s) |
| Rotor speed | 0.1-200 (r/min) CVT |
| Rotor specification | N1-N4 |
| Rotor selection | 0 #, small sample adapter |
| Temperature range | 0°C-60°C |
| Repeatability (Newton Liquid) | ±0.5% (FS) |
| Measurement Accuracy (Newton liquid) | ±1% |
| Temperature control Accuracy | ±0.1°C |
| power requirements | AC220V±10，50Hz±10% |
| exterior size | 280x260x480mm |
| output interface | RS232 |
| Temperature range | RT+5°C-35°C |
| Net Weight | 6.0kg |
| Gross Weight | 6.8kg |
ShangTianJingYi LVT T Series Color Viscometer Packing list
Host X1, No. 1-4 rotor X1, power adapter X1, protective frame X1, base X1, lifting column X1, temperature sensor X1, crossbar X1, instruction manual X1, inner hexagon wrench X1, stay wrench X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
