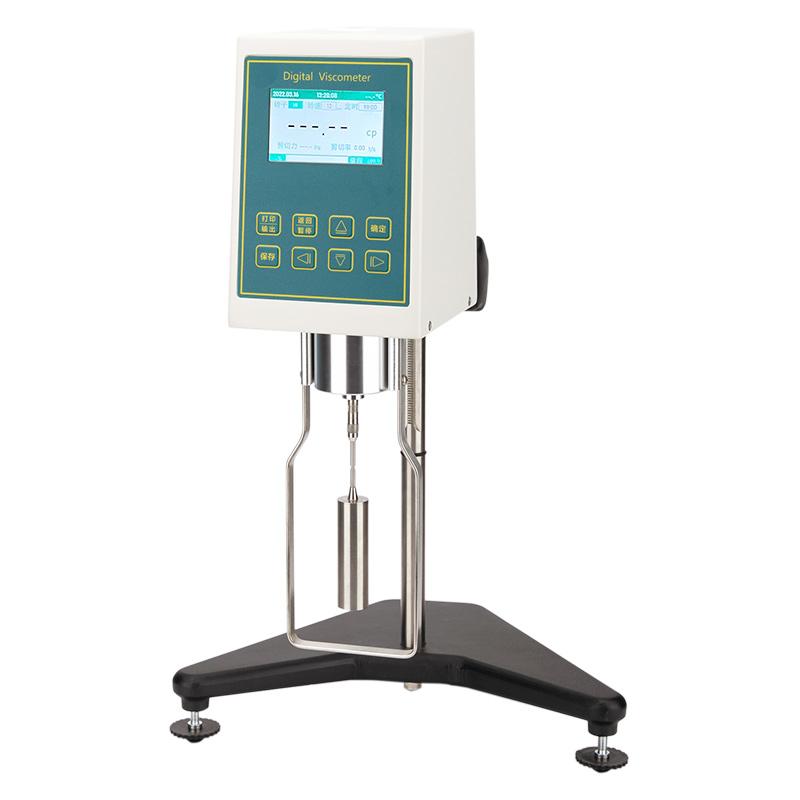

Shangtian Jingyi RVT T Series Color Screen Viscometer Laboratory Viscosimeter 4 × 10 ^ 7 mPa.s
Measurement range 40~4 × 10 ^ 7 mPa.s, support 0.1-200 r/min stepless speed change, RS232 interface and automatic data storage function.
ShangTianJingYi
RVT
-
FANGRUI instrument DVT software DVT Rotational Viscometer supporting use
$ 198.00 -
NIRUN LDV-2 + Pro Digital Viscometer Measurement range 10~6 million cP
$ 2859.00 -
NIRUN NDJ-5S Ultra Low Viscometer with Ultra Low Viscosity Adapter 0 #Rotor
$ 1044.00 -
FANGRUI HADV-2T Digital Rotational Viscometer Viscosity range 200~80 million mPa·s
$ 1838.00 -
FANGRUI SNB-1T Digital Rotational Viscometer Viscosity: 1~ 2 million mPa·s
$ 602.00
Features:
Using advanced mechanical design technology and manufacturing process, the data collection is accurate
The rotor is made of stainless steel 304 for easy cleaning and durability
Universal joints are used at the interface connecting the rotor
Measure the absolute viscosity of Newtonian liquids, i.e., dynamic viscosity
Backlit high-definition LCD screen, Chinese and English interface, clear data display
It has a data storage function to realize automatic storage of multiple sets of test data
RS232 interface is standard, and PC-STWC function is optional to transfer weighing data directly to open applications such as Excel
Power supply: AC220V±10,50Hz±10%
ShangTianJingYi RVT T Series Color ViscoMeterSpecifications
| LIST | VALUE |
|---|---|
| Measurement range | 40~4×10^7 mPa.s (mPa·s) |
| Rotor speed | 0.1-200 (r/min) CVT |
| Rotor specification | R2 -R7 |
| Rotor selection | 0 #, small sample adapter |
| Temperature range | 0°C-60°C |
| Repeatability (Newton Liquid) | ±0.5% (FS) |
| Measurement Accuracy (Newton liquid) | ±1% |
| Temperature control Accuracy | ±0.1°C |
| power requirements | AC220V±10，50Hz±10% |
| exterior size | 280x260x480mm |
| output interface | RS232 |
| Temperature range | RT+5°C-35°C |
| Net Weight | 6.0kg |
| Gross Weight | 6.8kg |
ShangTianJingYi RVT T Series Color ViscoMeter Packing list
Host X1, R2-R7 rotor X1, power adapter X1, protective frame X1, base X1, lifting column X1, temperature sensor X1, crossbar X1, instruction manual X1, inner hexagon wrench X1, stay wrench X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
