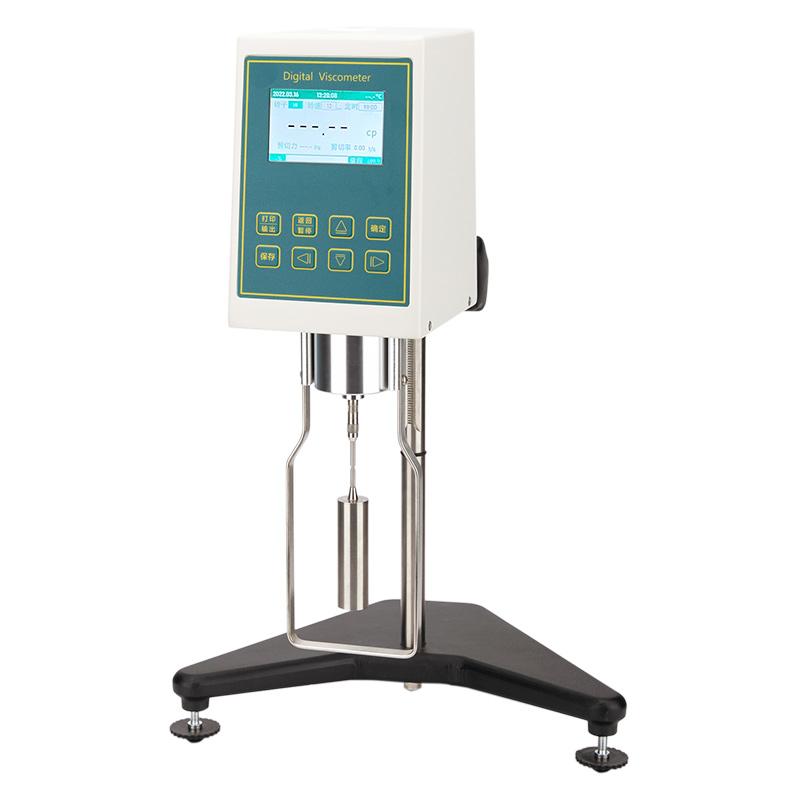

Shangtian Jingyi HAT T series color screen Viscometer fluid Viscosity meter 8 × 10 ^ 7 mPa.s
Measurement range 80~8 × 10 ^ 7 mPa.s, Rotor speed 0.1-200 r/min continuously variable speed, stainless steel 304 rotor and universal joint design, Data storage function is powerful.
ShangTianJingYi
HAT
-
NIRUN NTV-P1HB Programmable Digital Viscometer swirl/spin Viscometer 800~104M mPa.s
$ 3289.00 -
SDPTOP NDJ-4 Pointer Viscometer measurement range: 10~2 × 1000000mPa · s
$ 619.00 -
NIRUN NDJ-8ST Touchscreen Viscometer with RTD temperature sensor
$ 1033.00 -
SDPTOP NDJ-1 Pointer Viscometer measurement range: 1~ 100000mPa · s
$ 371.00 -
HUINUO NDJ-1S digital display Rotational Viscometer 100,000 CP
$ 394.00
Features:
Using advanced mechanical design technology and manufacturing process, the data collection is accurate
The rotor is made of stainless steel 304 for easy cleaning and durability
Universal joints are used at the interface connecting the rotor
Measure the absolute viscosity of Newtonian liquids, i.e., dynamic viscosity
Backlit high-definition LCD screen, Chinese and English interface, clear data display
It has a data storage function to realize automatic storage of multiple sets of test data
RS232 interface is standard, and PC-STWC function is optional to transfer weighing data directly to open applications such as Excel
Power supply: AC220V±10,50Hz±10%
ShangTianJingYi HAT T Series Color ViscometerSpecifications
| LIST | VALUE |
|---|---|
| Measurement range | 80~8×10^7 mPa.s (mPa·s) |
| Rotor speed | 0.1-200 (r/min) CVT |
| Rotor specification | R2 -R7 |
| Rotor selection | 0 #, small sample adapter |
| Temperature range | 0°C-60°C |
| Repeatability (Newton Liquid) | ±0.5% (FS) |
| Measurement Accuracy (Newton liquid) | ±1% |
| Temperature control Accuracy | ±0.1°C |
| power requirements | AC220V±10，50Hz±10% |
| exterior size | 280x260x480mm |
| output interface | RS232 |
| Temperature range | RT+5°C-35°C |
| Net Weight | 6.0kg |
| Gross Weight | 6.8kg |
ShangTianJingYi HAT T Series Color Viscometer Packing list
Host X1, R2-R7 rotor X1, power adapter X1, protective frame X1, base X1, lifting column X1, temperature sensor X1, crossbar X1, instruction manual X1, inner hexagon wrench X1, stay wrench X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
