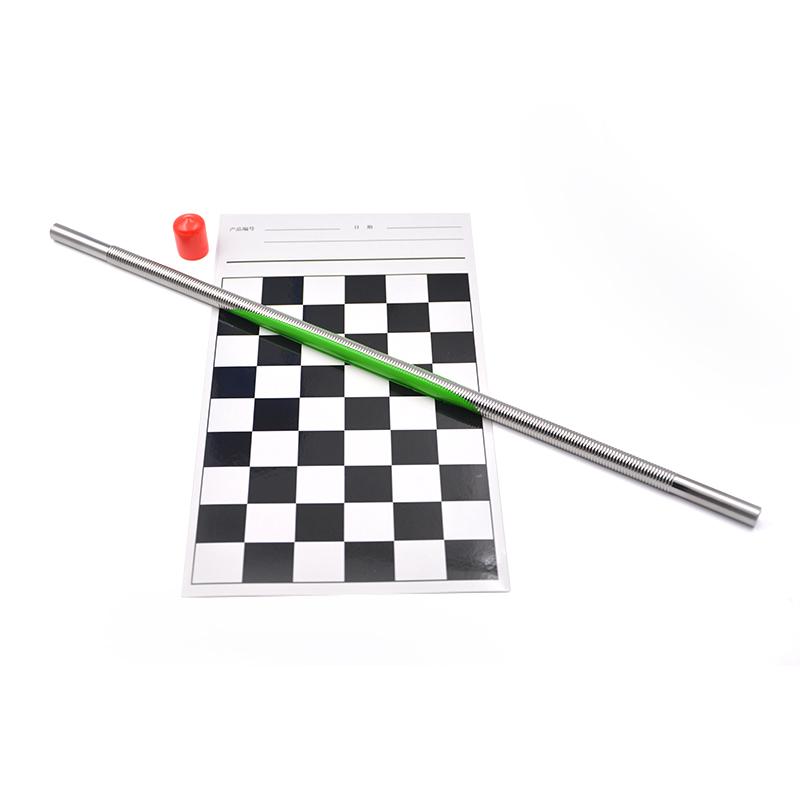

RDS #95 Mayer Rods WFT 217.2μm Length 400mm
217.2 μm wet film thickness, Spreader width is 30cm, the material is 303 wear-resistant stainless steel, molded Spreader process, rod diameter is 6.35mm, and wire-wound process is optional.
RDS
95# 1/4“
 |  |  |

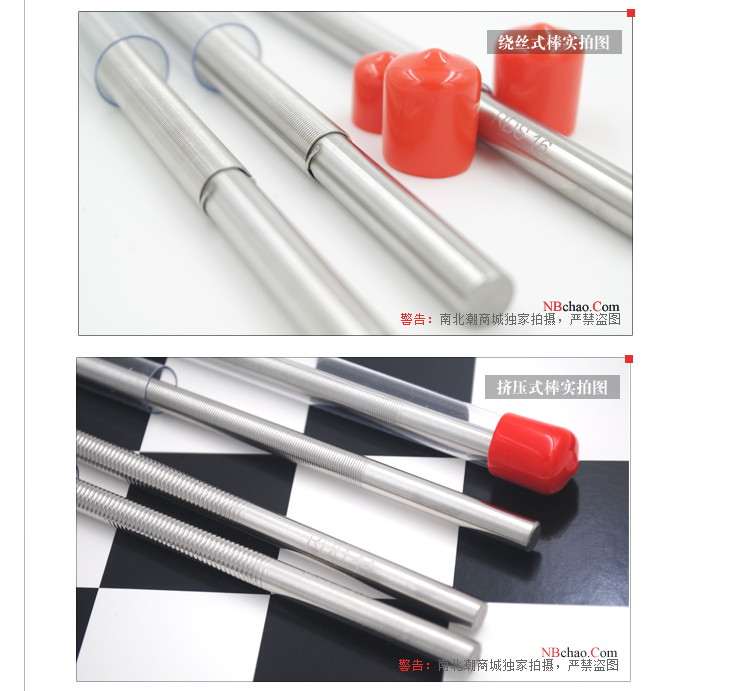

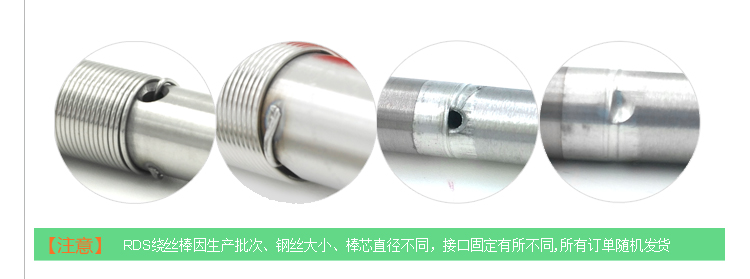

The U.S. RDS#95 wire rod coater is a 1/4 inch diameter shaped coating rod. For the small RDS wire rod coater, there are two types of winding type and extrusion type, but due to the domestic (CN) market From the point of view, users rarely choose to prepare wet film thicknesses above 200 microns, and more choose wire rods with thinner wet film thicknesses. Therefore, RDS#95 only has molded coating rods for the time being, which meets the needs of some users. The need to apply thicker coating films.
Optional
 |
|
 |  |
Note: Click on the accessory picture to view Details.

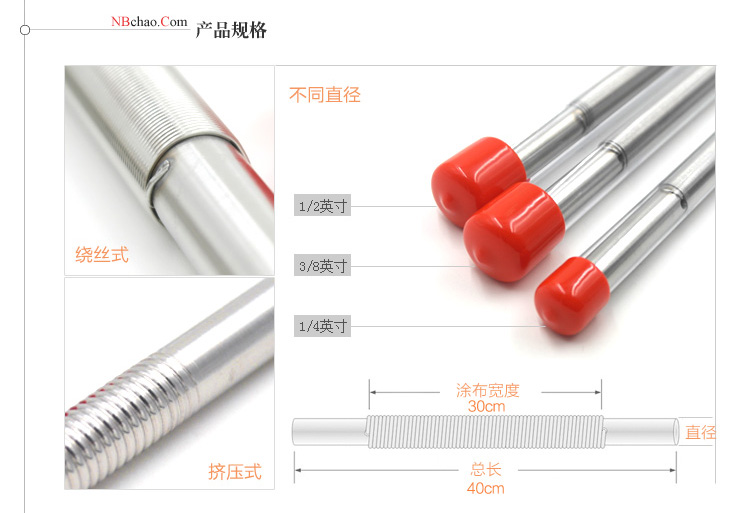

RDS 95# 1/4“ Applicator rod 1/4 "Specifications
| LIST | VALUE |
|---|---|
| Production process | formed |
| WFT | 217.2μm |
| diameter | 6.35mm |
| Total length | 400mm |
| application width | 300mm |
| Grip Width | 50+50mm |
| material | stainless steel |
RDS 95# 1/4“ Applicator rod 1/4 " Packing list
Stainless Steel Rod X1 Transparent Encasement Hose X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
