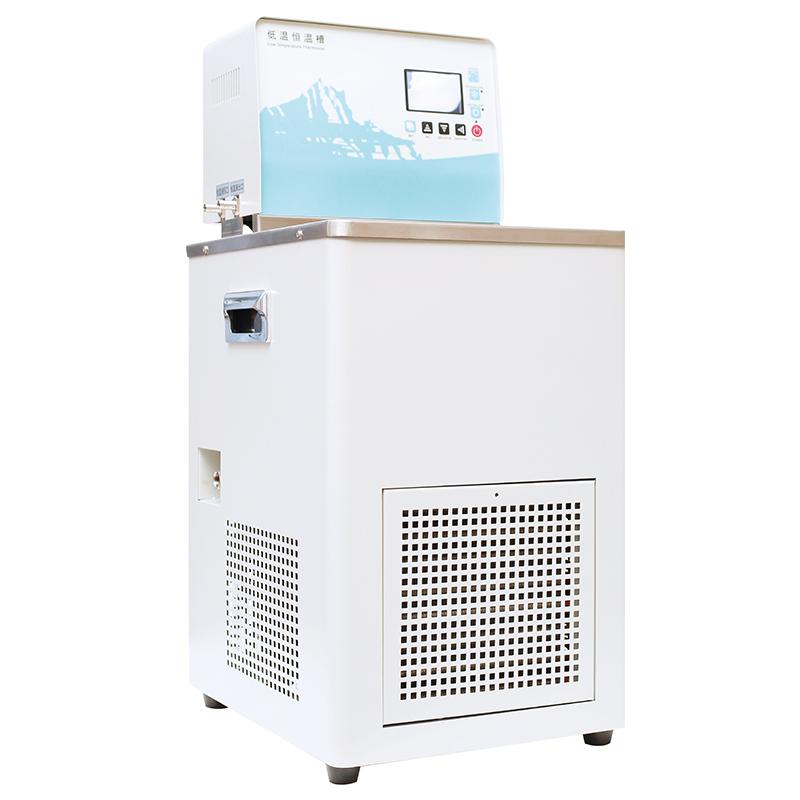

Shangtian Jingyi DC-2010 Low Temperature Thermostatic Bath Cyclic refrigeration Thermostatic Bath -20 ℃/10L
Temperature range -20~100 ℃, Temperature uniformity +/- 0.05 ℃, Tank Capacity 10L, groove opening size 180 * 140mm, working groove size 270 * 200 * 200mm, pump Flow rate 10L/min.
ShangTianJingYi-
BOZHEN BZ-203 Low temperature Thermostatic Water Bath -30~95 ℃/7.5L
$ 1801.00 -
YUEPING DC-1020 Thermostatic Bath volume 20 liters Temperature range -10 ℃~ 100 ℃
$ 1383.00 -
NELE GH-10A Ultra high accuracy thermostatic water and oil tank 10L/200 ℃
$ 846.00 -
NELE GH-20D Ultra high accuracy thermostatic water and oil tank 20L/300 ℃
$ 1364.00 -
NELE GDH-0520 Ultra high accuracy Thermostatic Bath 20L/-5 ℃
$ 1709.00
Features:
It adopts a fully enclosed environmentally friendly compressor refrigeration system, which is free of chlorofluorocarbons
The integrated next-generation PID automatic temperature control program ensures stable and reliable operation
Equipped with a large high-brightness LCD screen (in Chinese and English), the test results are displayed clearly
The heatless centrifugal Circulating Chiller is used to effectively reduce the influence on the temperature field of the bath
The internal circulation system is designed based on the principle of U-shaped reflux circulation, which realizes the turbulent flow and high uniformity of the flow field and temperature field in the tank
The fuselage shell is made of anti-aging electrostatic spraying technology, and the inner tank and table top are made of high-quality 304 brushed stainless steel
The well-crafted front panel and countertop of the chassis are combined with a unique humanized R-rounded corner design structure
The water discharge system is designed to meet the needs of various laboratories and enterprises for liquid exchange
It has safety protection devices such as power-off protection, upper and lower temperature alarm setting, low water level protection and alarm
Optional functions: extended external PT100 temperature sensor, built-in 1~30 temperature control program, built-in cooling coil RS232, RS485, etc
ShangTianJingYi DC-2010 Thermostatic BathSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | -20~100℃ |
| Temperature Uniformity | ±0.05℃ |
| Tank Capacity | 10L |
| Tank opening Dimensions | 180*140mm |
| Tank Size | 270*200*200mm |
| Flow rate of pump | 10L/min |
ShangTianJingYi DC-2010 Thermostatic Bath Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.


DC-2010
