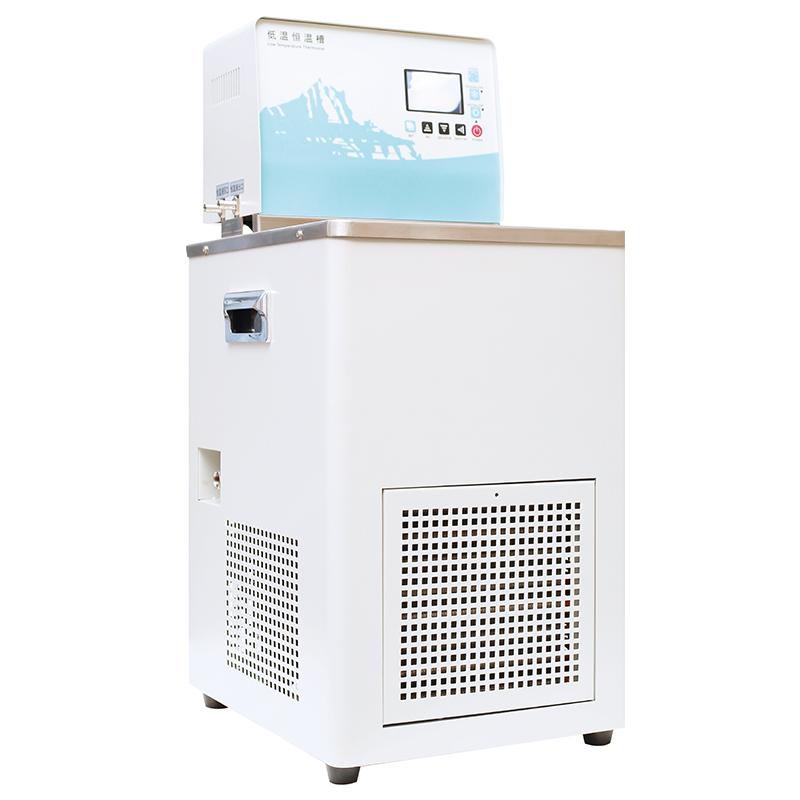

Shangtian Jingyi DC-3015 Low Temperature Thermostatic Bath Thermostatic Water Bath -30 ℃/15L
Temperature range -30~100 ℃, Temperature uniformity +/- 0.05 ℃, Tank Capacity 15L, groove opening size 235 * 160mm, working groove size 300 * 250 * 210mm, pump Flow rate 10L/min.
ShangTianJingYi-
Shangtian Jingyi DC-4015N low temperature thermostat, low temperature Water Bath -40 ℃/15L
$ 3404.00 -
Shangtian Jingyi DC-1010N (0.01) Thermostatic Bath circulation tank -10 ℃/15L
$ 1709.00 -
RONGHUA DHH-5-15 Thermostat 15L
$ 776.00 -
Shangtian Jingyi DC-5006N (0.01) Low Temperature Thermostatic Bath Digital display thermostatic circulating tank -50 ℃/6L
$ 4346.00 -
NELE DC-6050 Thermostatic Bath 50L/-60 ℃ +/- 0.05 ℃
$ 6606.00
Features:
It adopts a fully enclosed environmentally friendly compressor refrigeration system, which is free of chlorofluorocarbons
The integrated next-generation PID automatic temperature control program ensures stable and reliable operation
Equipped with a large high-brightness LCD screen (in Chinese and English), the test results are displayed clearly
The heatless centrifugal Circulating Chiller is used to effectively reduce the influence on the temperature field of the bath
The internal circulation system is designed based on the principle of U-shaped reflux circulation, which realizes the turbulent flow and high uniformity of the flow field and temperature field in the tank
The fuselage shell is made of anti-aging electrostatic spraying technology, and the inner tank and table top are made of high-quality 304 brushed stainless steel
The well-crafted front panel and countertop of the chassis are combined with a unique humanized R-rounded corner design structure
The water discharge system is designed to meet the needs of various laboratories and enterprises for liquid exchange
It has safety protection devices such as power-off protection, upper and lower temperature alarm setting, low water level protection and alarm
Optional functions: extended external PT100 temperature sensor, built-in 1~30 temperature control program, built-in cooling coil RS232, RS485, etc
ShangTianJingYi DC-3015 Thermostatic BathSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | -30~100℃ |
| Temperature Uniformity | ±0.05℃ |
| Tank Capacity | 15L |
| Tank opening Dimensions | 235*160mm |
| Tank Size | 300*250*210mm |
| Flow rate of pump | 10L/min |
ShangTianJingYi DC-3015 Thermostatic Bath Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.


DC-3015
