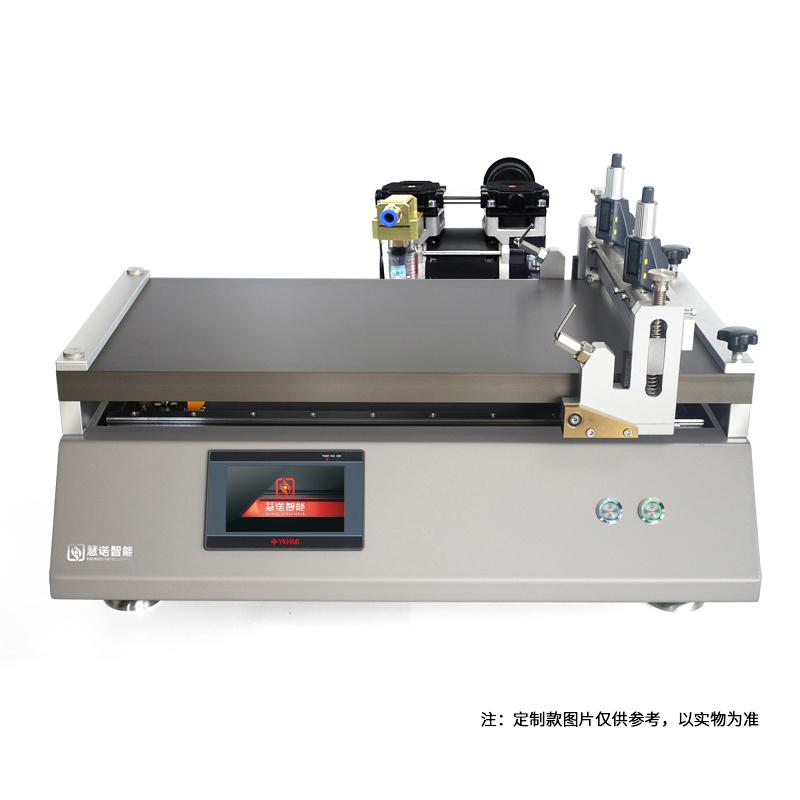

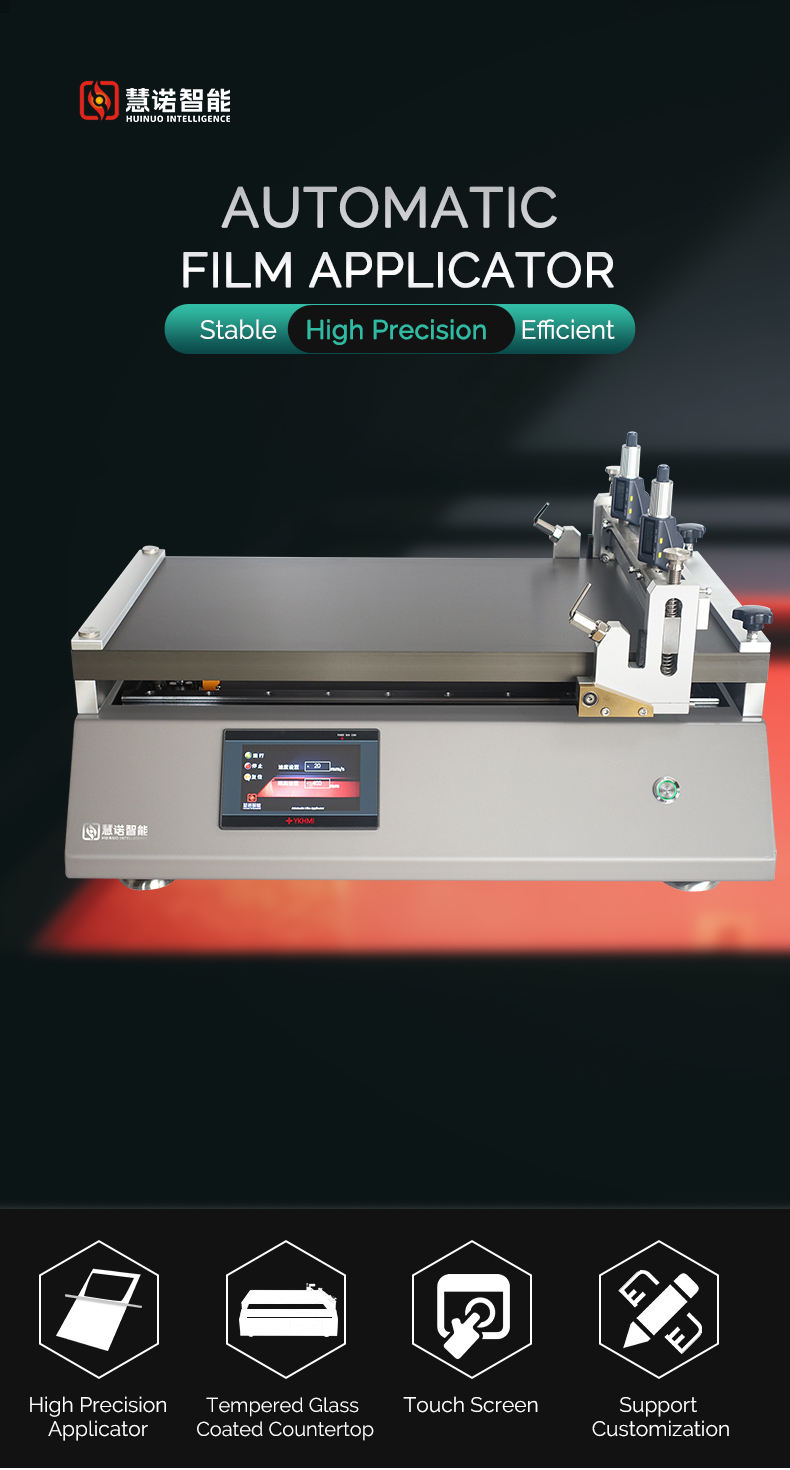

Huinuo TM3200pro/05 wire rod scraper vacuum adsorption coating machine, ECA 50cm * 50cm
Coating method Wire bar + scraper, effective coating area 500 * 500mm (can be customized), wire bar coating accuracy ± 0.003mm, scraper coating width 500mm, drive motor servo motor, vacuum aperture φ 0.8mm, scraper coating thickness range 0.1~ 10mm.
Brand
SKU: NB050100
HuiNuoModel
TM3200pro/05
Price
$ 6607.00
Promotion
Service
The delivery and service By NBchao.Com
VS
What else did others buy
-
China drawdown Bar & blade Experimental Film Applicator TBJ-B2-XB Perovskite Film high-precision Spreader
$ 2524.00 -
AFA-III vacuum coating table 360 * 250mm
$ 662.00 -
HuiNuo TM3300Pro/26 drawdown Bar & blade heating vacuum adsorption Coater ECA 100 * 70cm
Login -
China Lab Film Coater 316 Material Detachable Drawdown blade TBJ-X3-DJ22 Automatic Coating Scraper Machine
$ 4647.00 -
CHINA TBJ-B2-DJ15 Bar & drawdown blade Desktop Film Applicator Coating size 500 * 1000mm
$ 8240.00
Genuinegoods
TM3200pro/05
Automatic coating machine
Coating method Wire bar + scraper, effective coating area 500 * 500mm (can be customized), wire bar coating accuracy ± 0.003mm, scraper coating width 500mm, drive motor servo motor, vacuum aperture φ 0.8mm, scraper coating thickness range 0.1~ 10mm.
Overview
Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.
This coating machine is a wire rod scraper coating machine, using two coating methods of wire rod and scraper, with vacuum adsorption function, the new line rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, support speed control and coating length adjustment, suitable for high-precision automatic coating in the laboratory, in university research institutes, new materials, lithium batteries, glue, hot melt glue and other laboratories for film proofing.
Applications
The coating machine is suitable for coatings, inks, paints, pastes, hot melt adhesives, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, etc., and can be scraped on films, cardboard, aluminum foil and copper foil.

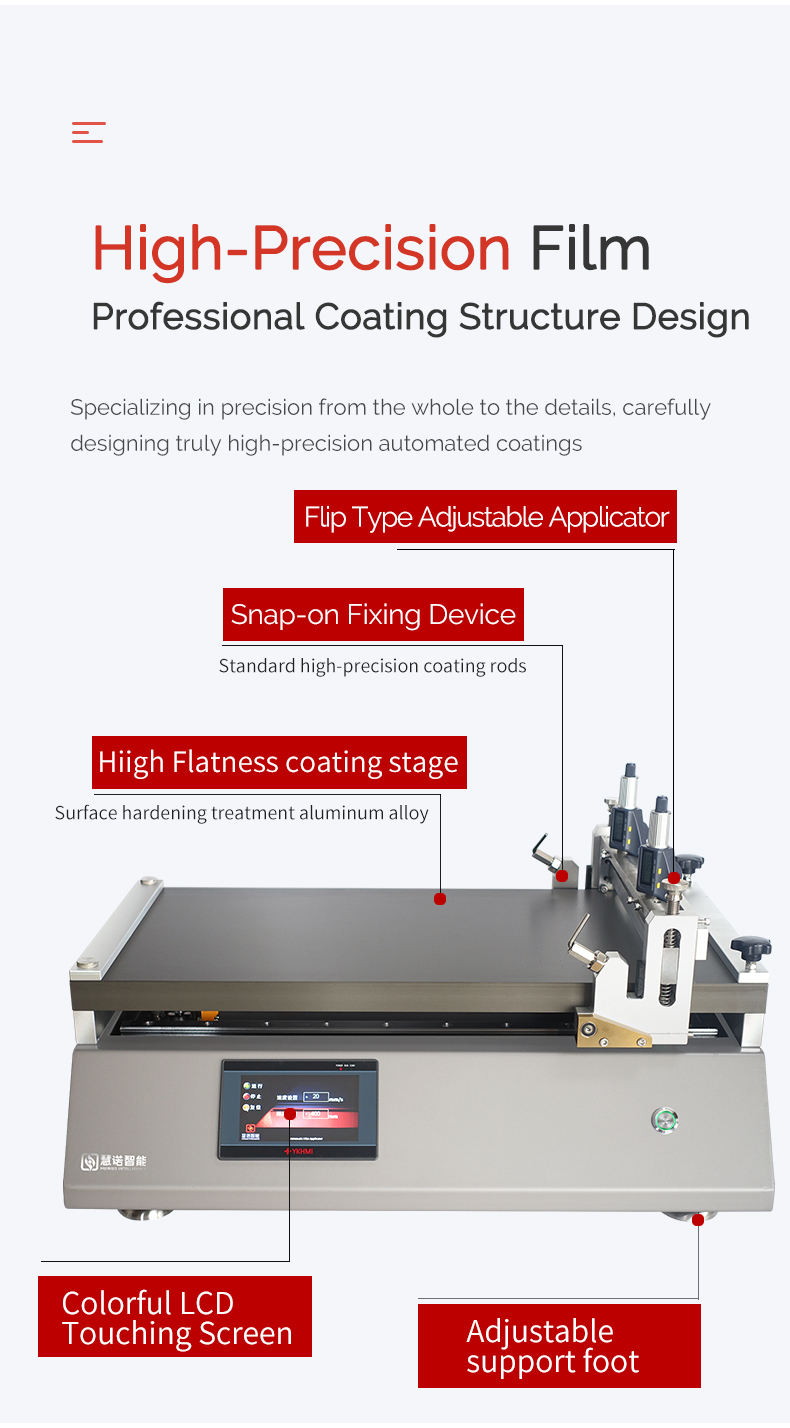

Features

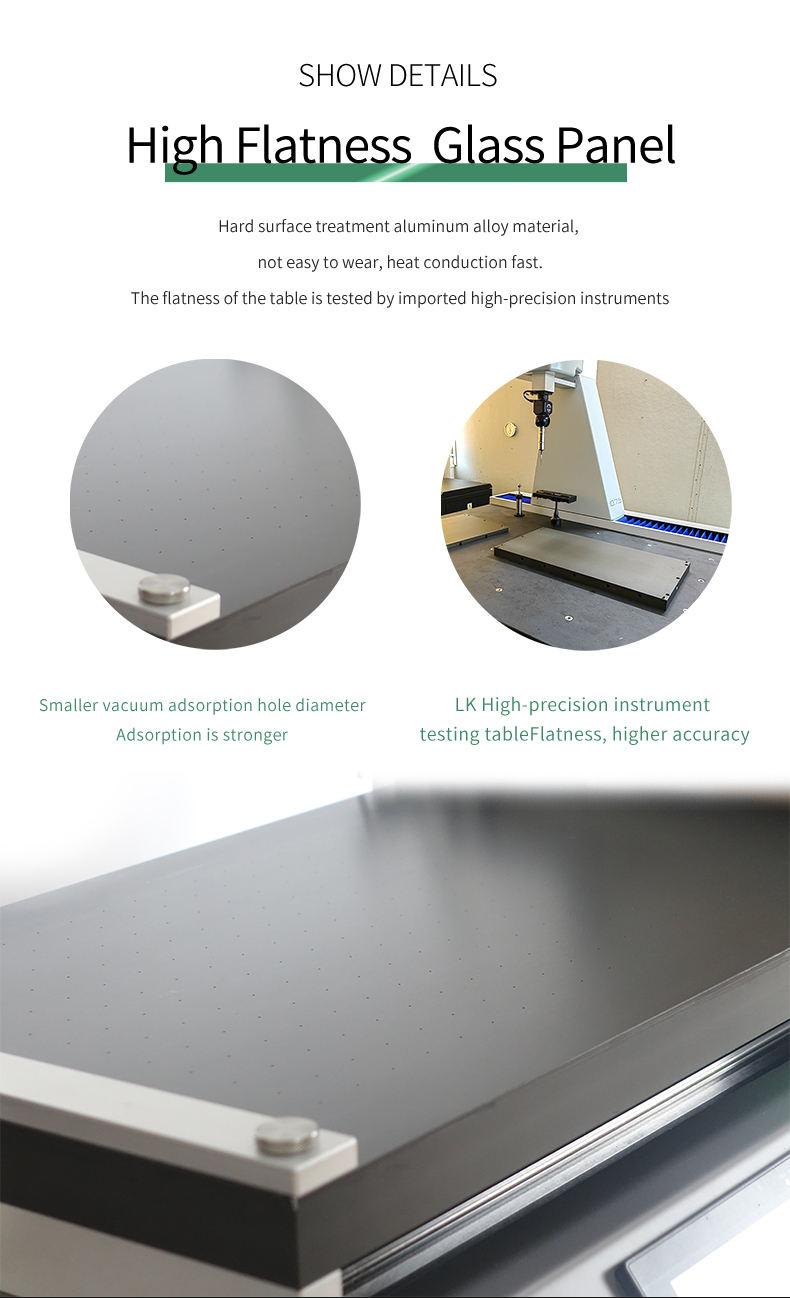

1) Surface hard treatment aluminum alloy countertop, high hardness and wear resistance, and the flatness of the countertop is tested by imported high-precision instruments
2) Big brand differential adjuster, high film thickness control accuracy

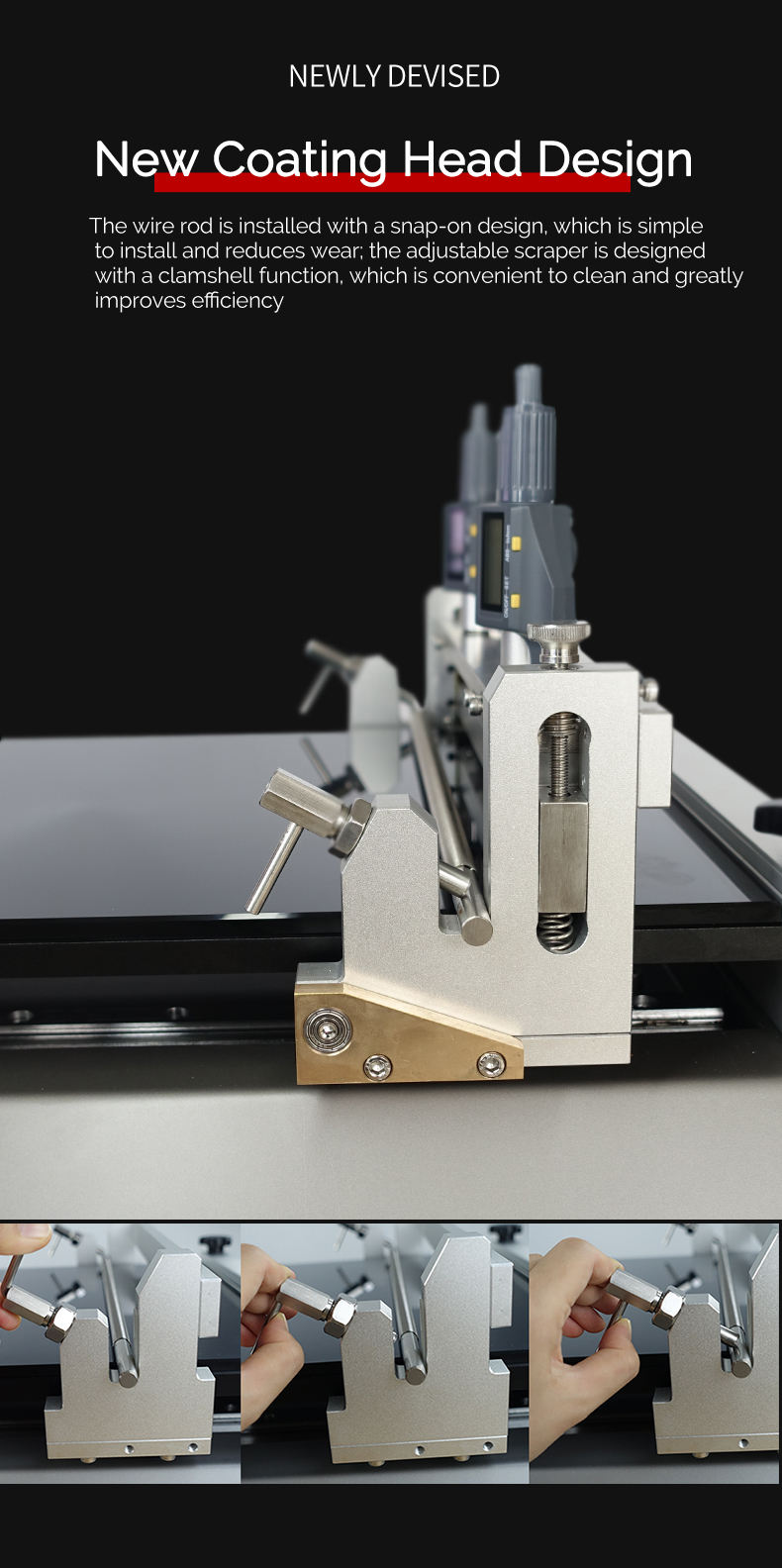

3) Clamshell scraper coating head, easy to clean
4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and high accuracy
5) Touch screen control panel, easy to operate
6) The coating length and coating speed can be adjusted freely
7) With vacuum adsorption function, it is suitable for coating soft substrates such as films
VS
HuiNuo TM3200pro/05 Automatic coating machineSpecifications
| LIST | VALUE |
|---|---|
| coating method | Bar + drawdown blade |

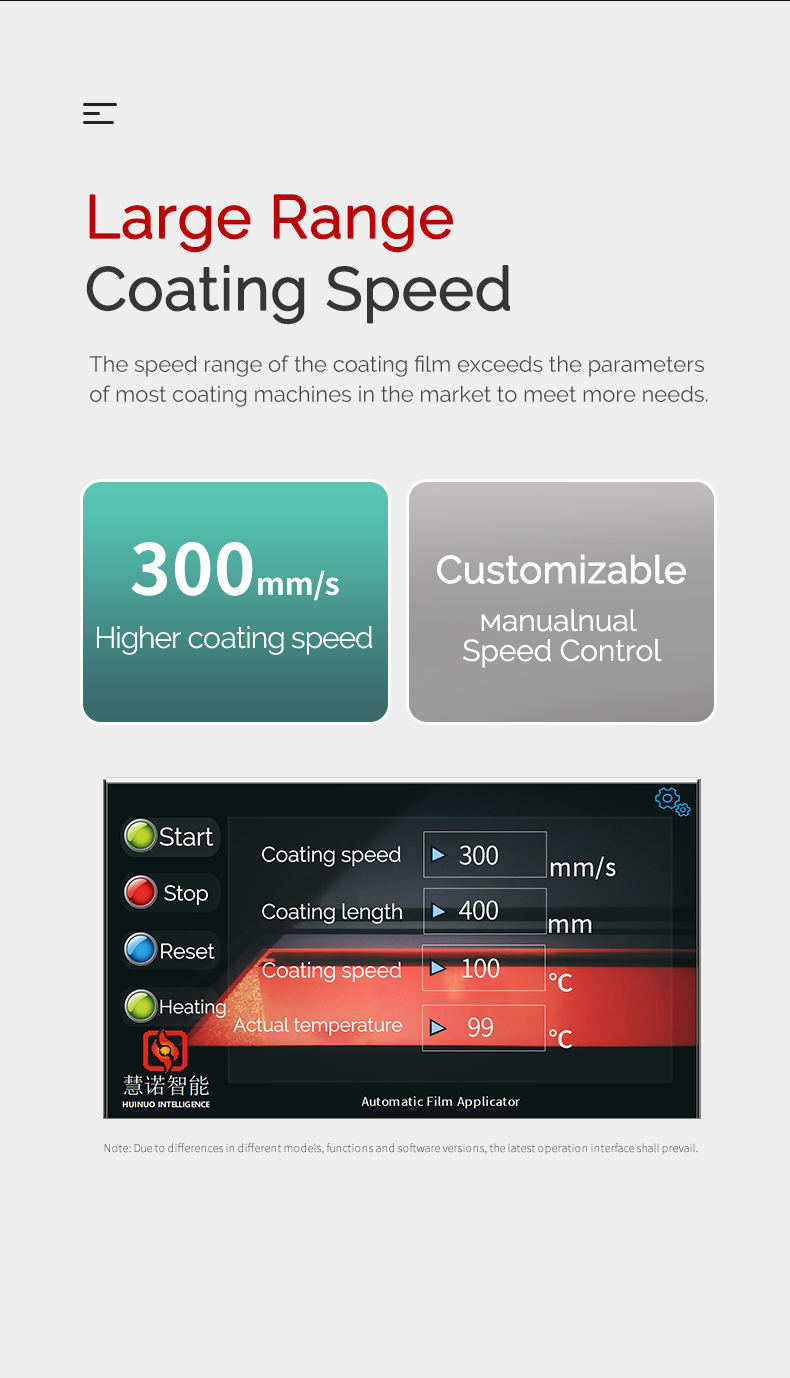

| coating speed | 1~ 300Mm/s stepless speed regulation (can be customized) |

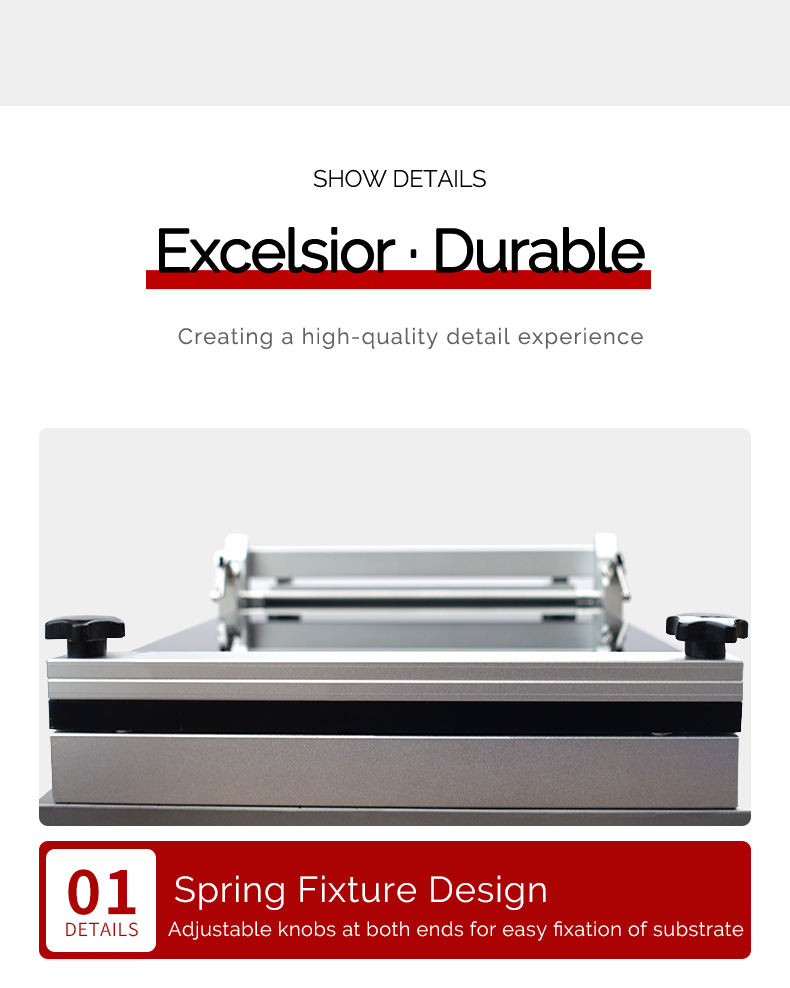

| Substrate clamping method | Vacuum chuck + fixture |
| Coating table material | Surface hard treatment aluminum alloy |
| Coating table size | 740*530mm |
| effective coating area | 500 * 500Mm (can be customized) |
| meyer rod coating thickness range | Different bar sizes have different thicknesses, with High Accuracy imported bars |
| meyer rod coating accuracy | ±0.003mm |
| Blade Coating Thickness Range | 0.1~ 10Mm (clamshell design is easy to clean) |
| Drawdown blade material | Die steel |
| Blade Coating Width | 500mm |
| Blade Coating accuracy | ±0.003mm |
| Vacuum Area | 580 * 460Mm (can be customized) |
| Vacuum aperture diameter | Φ0.8mm |
| Vacuum hole pitch | 20*20mm |
| Vacuum pump pumping rate | 5.4m3/h |
| Ultimate vacuum degree | 50KPa |
| Vacuum Pump Power | 180W |
| Vacuum pump weight | 7.1kg |

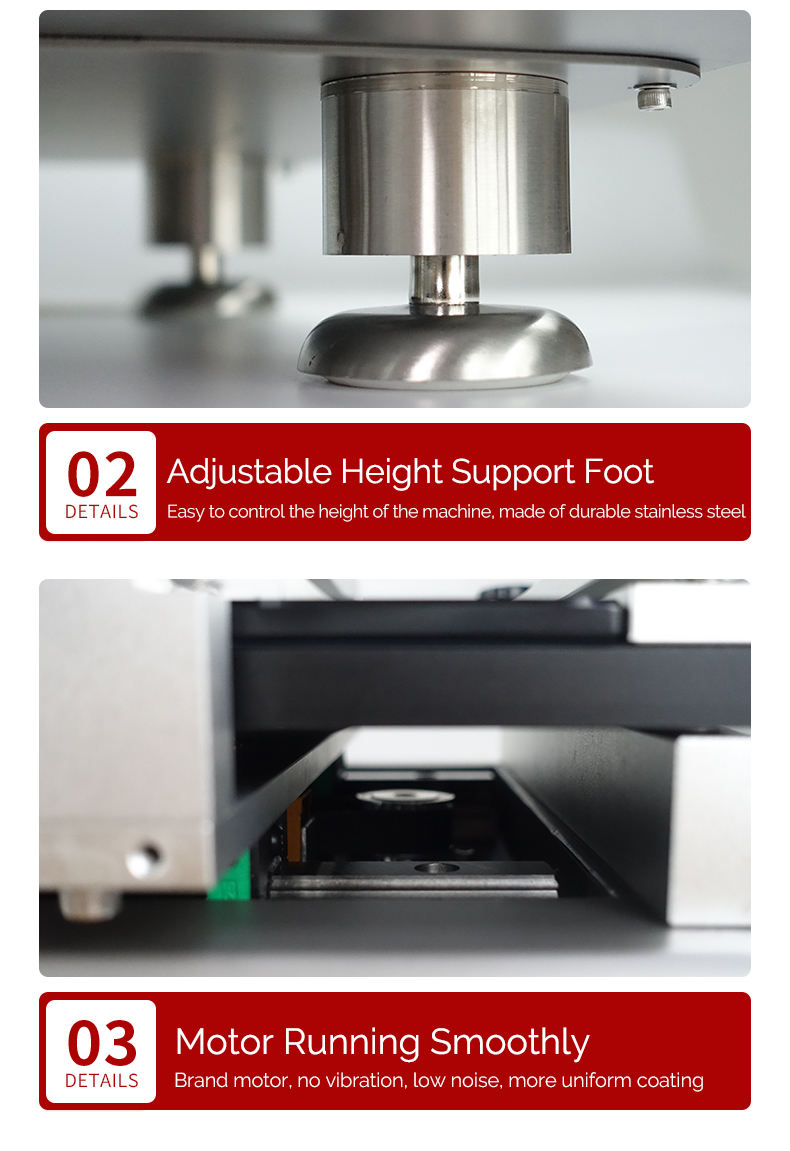

| Drive motor | Servo motor |
| Power | 600w |
| Operating language | Chinese (can be customized in English) |
| display screen | Color LCD Touchscreen |
| Host power supply | 220V/50HZ (can be customized 110V/60HZ) |
| Dimension | 760*640*430mm |
HuiNuo TM3200pro/05 Automatic coating machine Packing list
film coating machine x1, wire rod x1, scraper x1, vacuum pump x1, manual x1, certificate x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
