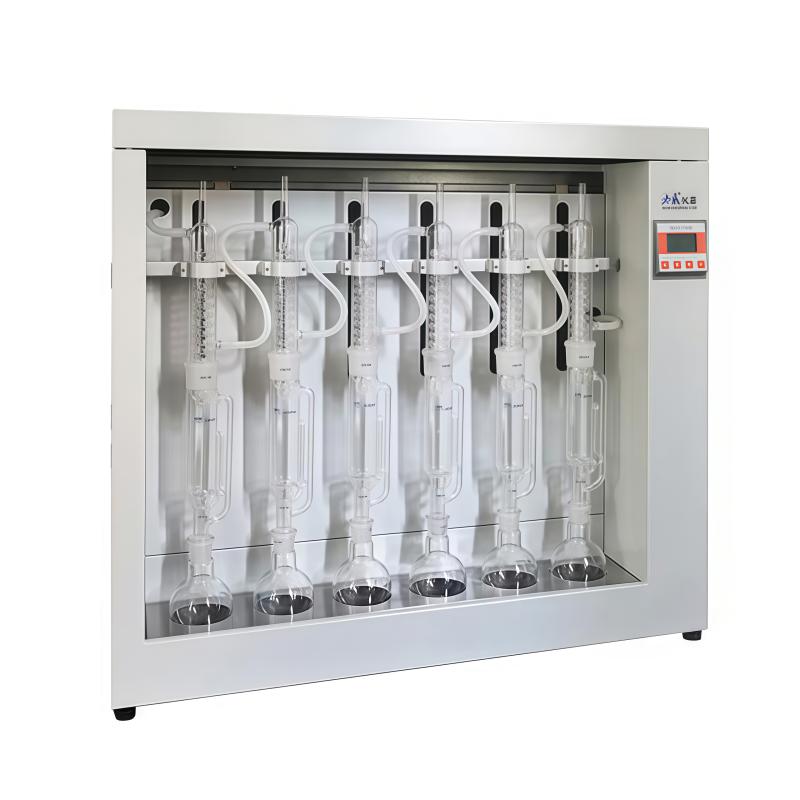

QIWEI QW-SZF-062/02, Crude fat meter, Soxhlet extraction 6 sample determination

Product Introduction

This instrument introduces new technology for fat determination, reasonable design, stable performance, high accuracy, time-saving operation, labor-saving, measurement results meet national standards, all indicators and performance meet the requirements of imported similar products, the instrument is a reliable equipment for determining fat in food, fat, feed and other industries. The principle of root extraction and root gravimetry are used to determine the fat content. That is, the fat is dissolved under the organic solvent, the fat is separated from the solvent by extraction, and then the fat content is dried, weighed, and calculated. This instrument is mainly composed of three parts: heating, extraction and cooling. During operation, the heating temperature can be adjusted according to the boiling point of the root reagent and the ambient temperature, and the specimen can be repeatedly soaked and rinsed during the extraction process to achieve the purpose of rapid determination.

Experimental principle

QW-SZF-06 Fat Determinator is mainly heated and extracted by digital display electric heating constant temperature Water Bath, immersion and rinsing, semi-automatic solvent recovery, digital display automatic temperature control, in the operation process according to the different boiling points of the solvent, the level of indoor temperature, with the digital display temperature control meter to adjust in real time (easy to select the time temperature control instrument), the connection of the extraction bottle is connected by glass grinding mouth to connect the complete set of sealing performance is good. After the sample is extracted with petroleum ether/anhydrous ether or petroleum ether or petroleum ether or petroleum ether, the solvent obtained is evaporated, which is called fat or crude fat in food analysis. Because it contains pigments, volatile oils, waxes, resins, etc., in addition to fat, the fat measured by the extraction method is free fat. The QW-SZF-06 (6-tube) instrument can perform the determination of six samples at a time.

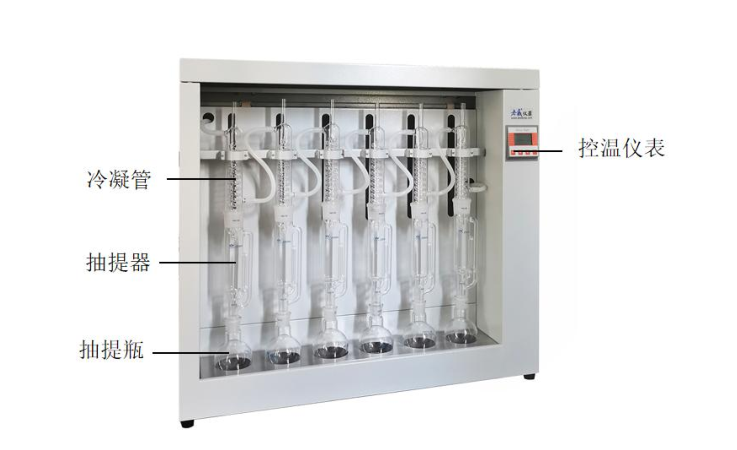

Structural diagram

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
