HuiNuo TM3000Pro/23D Automatic Film Applicator Floor bar drawdown blade coater effective coating area 120 * 80cm servo motor

Adopt bar and drawdown blade double coating method, coating speed 1~ 300mm/s stepless speed regulation, bar accuracy +/- 0.001mm, clamshell drawdown blade design is easy to clean, equipped with marble countertop to ensure Spreader flatness.

Brand

SKU: NB050359

HuiNuo

Model

TM3000pro/23D

Price

$ 10642.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

HuiNuo shop

Information

Datasheet RFQ Contract

What else did others buy

Genuinegoods

HuiNuo TM3000pro/23D Automatic Film Applicator (Floor)Overview
Specifications
Comments
FAQs

TM3000pro/23D

Automatic Film Applicator (Floor)

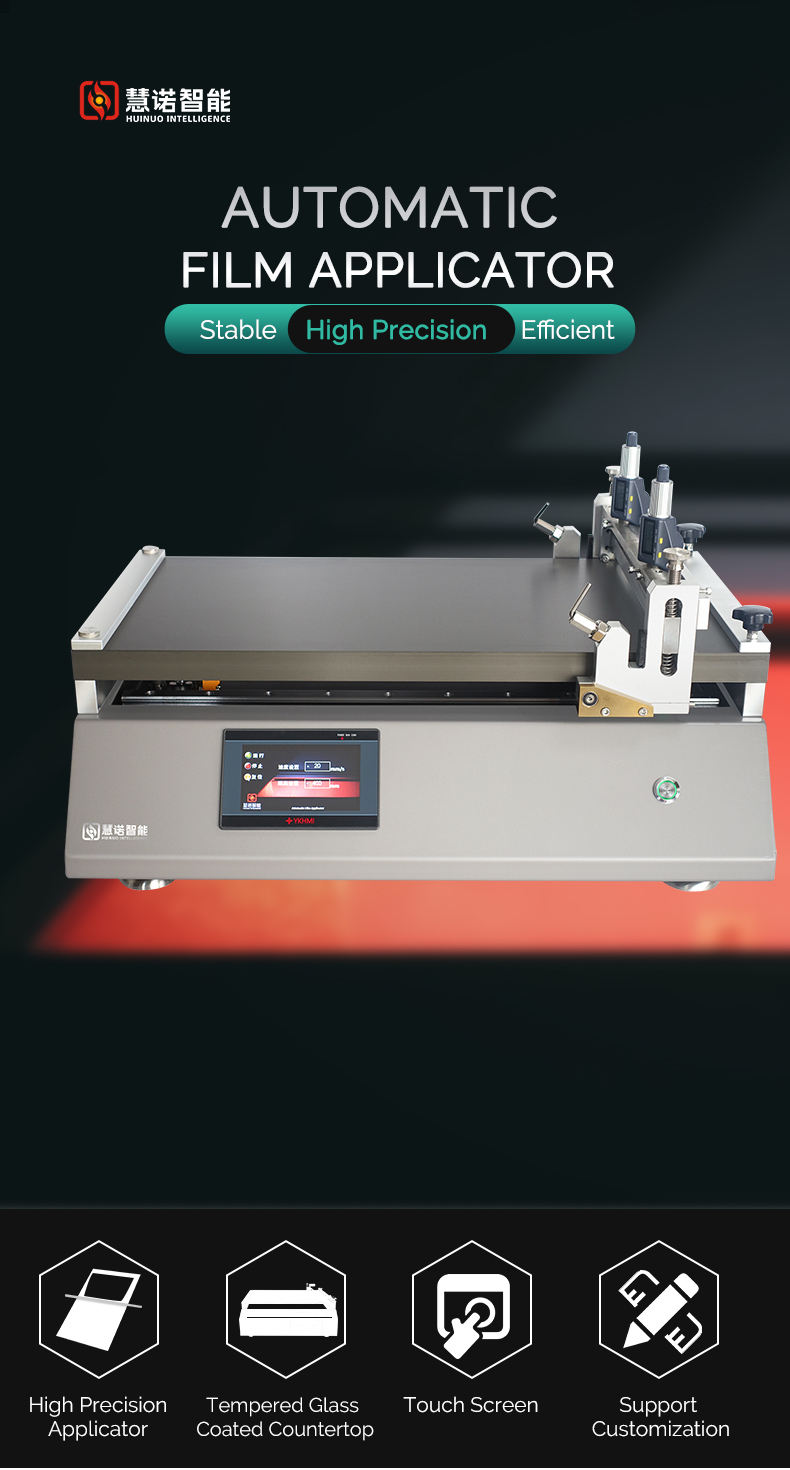

Huinuo TM3000pro/18D Automatic Coating Machine (Floor-to-ceiling Model) Details Figure 1

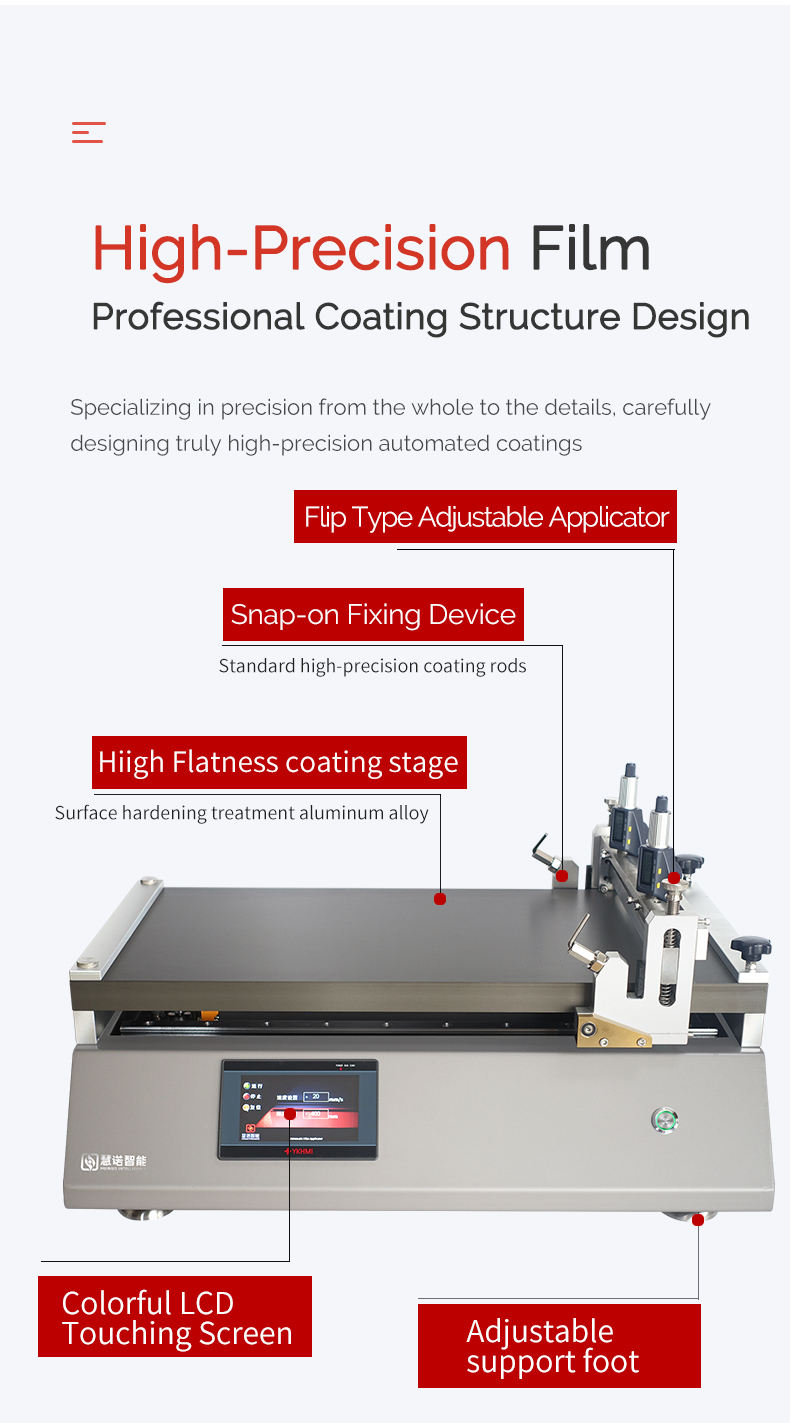

Huinuo TM3000pro/18D automatic coating machine (floor-standing model) details Figure 2

Huinuo TM3000pro/18D automatic coating machine (floor-standing model) details Figure 3

Huinuo TM3000pro/18D automatic coating machine (floor-to-ceiling model) details Figure 4

Huinuo TM3000pro/18D automatic coating machine (floor-standing model) details Figure 5

Huinuo TM3000pro/18D automatic coating machine (floor-standing model) details Figure 6

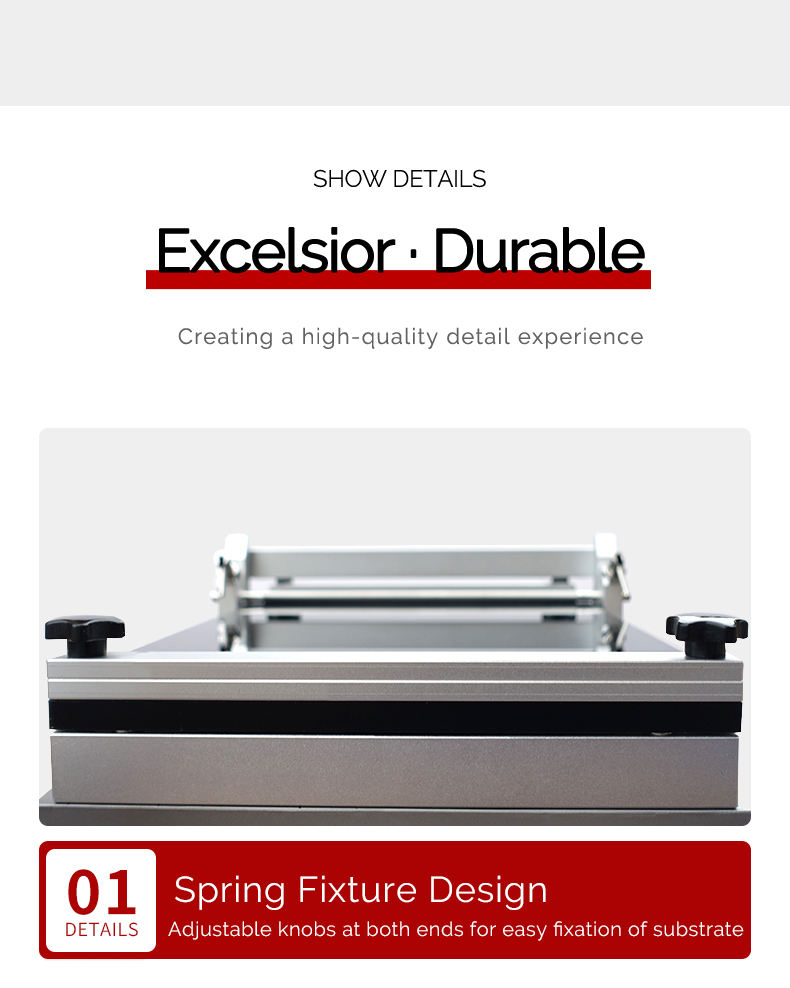

Huinuo TM3000pro/18D automatic coating machine (floor-standing model) details Figure 7

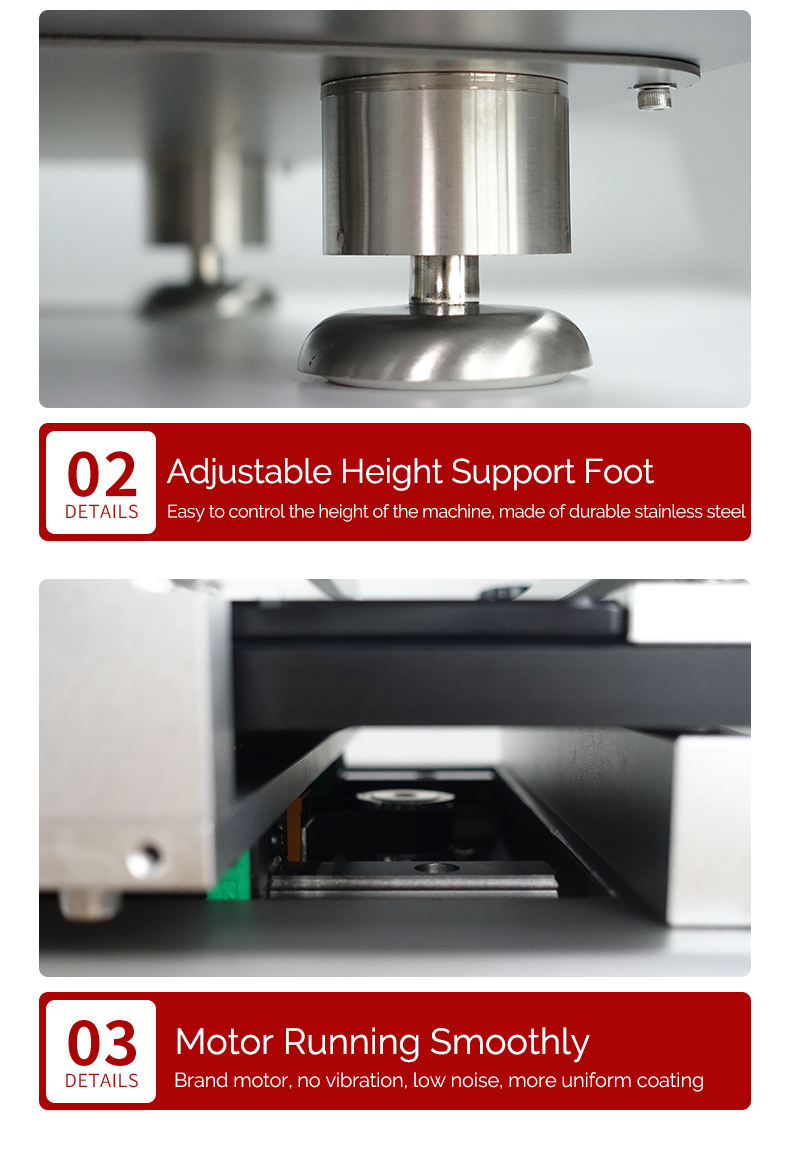

Huinuo TM3000pro/18D automatic coating machine (floor-standing model) details Figure 8

Huinuo TM3000pro/18D automatic coating machine (floor-standing model) details Figure 9

Huinuo TM3000pro/18D automatic coating machine (floor-to-ceiling model) details Figure 10

Huinuo TM3000pro/18D automatic coating machine (floor-standing model) details Figure 11

Huinuo TM3000pro/18D automatic coating machine (floor-standing model) details Figure 12

Huinuo TM3000pro/18D automatic coating machine (floor-standing model) details Figure 13

Product Overview:

Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.

This coating machine is a wire rod scraper coating machine, with two functions of wire rod coating and scraper coating, the new wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, with speed control and coating length adjustment function, suitable for high-precision automatic coating of film in the laboratory, in university research institutes, new materials, lithium batteries, glue, resin and other laboratories for film proofing.

Product Use:

The film coating machine is suitable for coating and sample coating of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc., and can be scraped on glass, cardboard, and fabrics.

Features

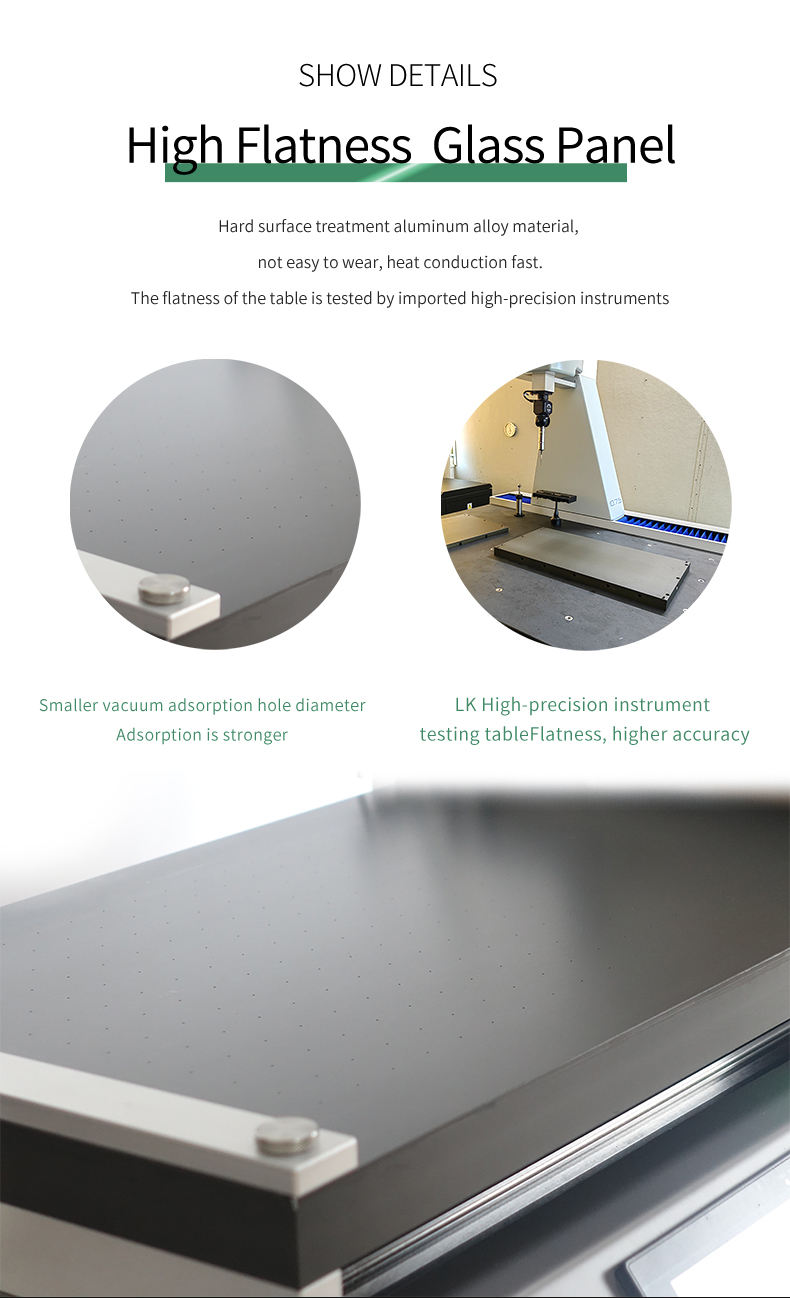

1) High flatness hard aluminum alloy bottom plate, scratch and scratch resistance

2) Big brand differential adjuster, high film thickness control accuracy

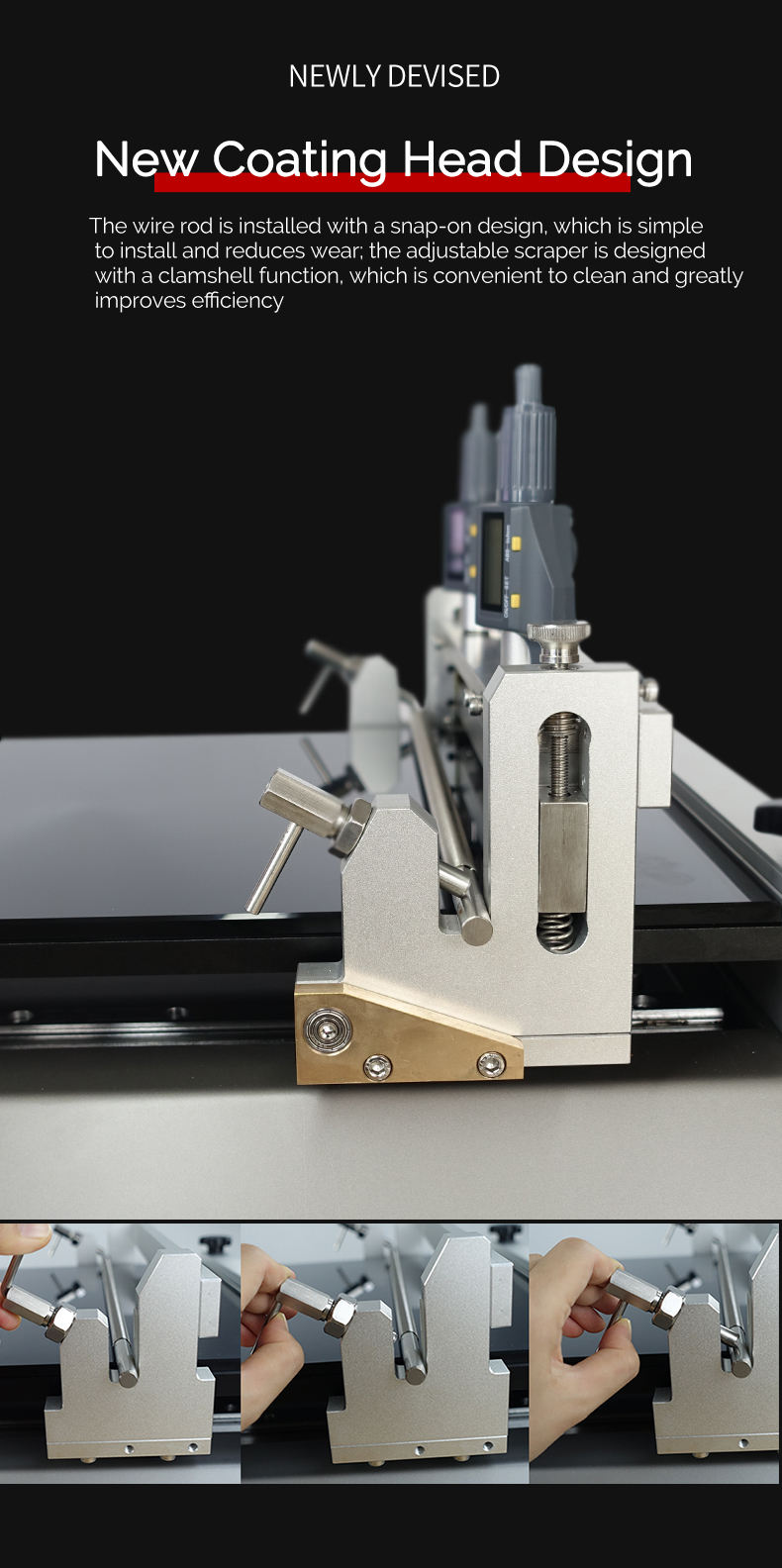

3) Clamshell scraper coating head, easy to clean

4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and high accuracy

5) Touch screen control panel, easy to operate

6) The coating length and coating speed can be adjusted freely

HuiNuo TM3000pro/23D Automatic Film Applicator (Floor)Specifications

LIST	VALUE
Coating Method	Bar + drawdown blade
Coating Speed	1~ 300Mm/s stepless speed regulation (can be customized)
Substrate clamping method	fixture
Coating table material	Marble (Glass plate optional)
Coating table size	1440*830mm
Effective coating Area	1200 * 800Mm (can be customized)
Meyer rod coating thickness Range	Different bar numbers Film thickness is different, with high Accuracy imported bar
Bar Accuracy	±0.001mm
Drawdown blade Spreader Film thickness range	0.1~ 10Mm (clamshell design is easy to clean)
Drawdown blade material	Die steel
Drawdown blade Spreader width	800mm
Drawdown blade Spreader Accuracy	±0.003mm
Drive motor	Servo motor
power	400w
operating language	Chinese (can be customized in English)
Display	Color LCD touch screen
Host Power Supply	100V~220V/50~60HZ
Dimensions	1460 * 940 * 940Mm (subject to the actual product)
optional feature	Heating, Vacuum chuck

HuiNuo TM3000pro/23D Automatic Film Applicator (Floor) Packing list

Host X1, manual X1, fixture X1, drawdown blade x1, import bar X1, certificate X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the price listed on the website the final cost for overseas purchases?

[A]

No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q]

What is the specific process for purchasing the product?

[A]

First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q]

What should I do if the instrument I purchase needs repair?

[A]

After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.

+HuiNuo TM3000pro/23D Automatic Film Applicator (Floor) Big data

+HuiNuo TM3000pro/23D Automatic Film Applicator (Floor)Standard

ActiveASTM D823-2018
