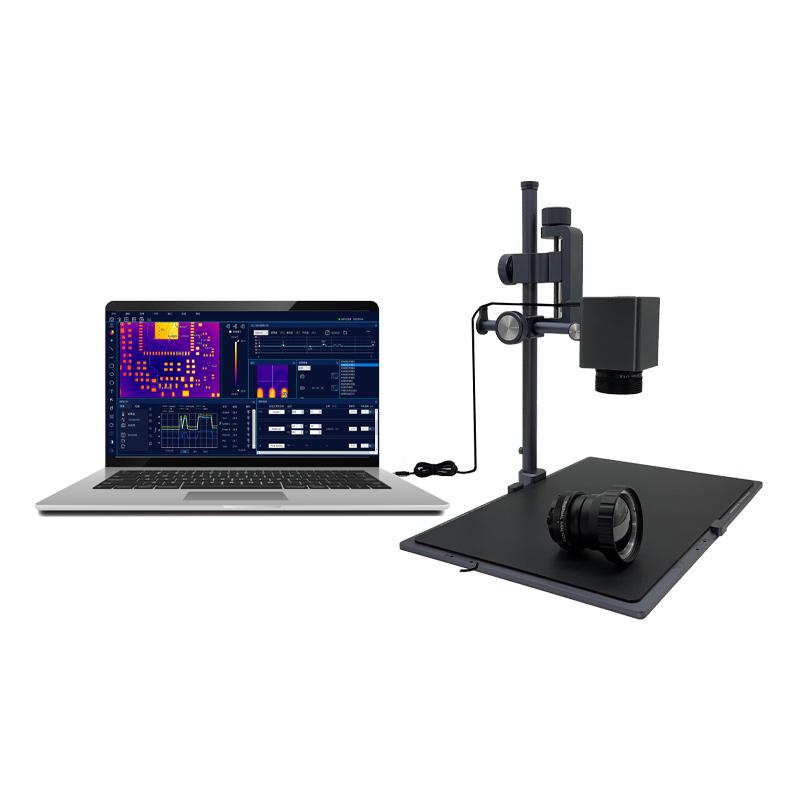

DIANYANG CA-30 CA Series Research Thermal Analyzer Infrared thermal imagery thermometer, wide temperature measurement range -20 ℃~ 550 ℃
The 384 * 288 infrared Detector is used, which supports a wide range of temperature measurement from -20 ° C to 550 ° C. It is equipped with a macro lens to observe the temperature changes of small objects at 25 μm, and supports multi-Sensors data fusion analysis.
DianYang
CA-30
-
Dianyang DP-21 thermal imagery handheld, resolution 220x160
$ 428.00 -
Dianyang DP-22 thermal imagery handheld, resolution 320x240
$ 689.00 -
DIANYANG CA-20D infrared thermal imagery analyzer, circuit board thermal fault detection
$ 1392.00 -
DIANYANG CA-30 CA Series Research Thermal Analyzer Infrared thermal imagery thermometer, wide temperature measurement range -20 ℃~ 550 ℃
$ 5512.00 -
ST9450A + infrared thermal imagery instrument
$ 413.00
Product Introduction
The DytSpectrumOwl CA series of scientific thermal analyzers (hereinafter referred to as CA) uses the principle of infrared thermal imaging to display the temperature change of the surface of an object, and can perform unlimited data storage and reliability analysis of the measurement results. The thermal analyzer integrates various functions such as imaging, temperature measurement, analysis, and data collection, providing effective test data for education, scientific research, and factory testing.
Features
It adopts high-quality thermal imaging Detector and has a wide temperature measurement range: -20°C~550°C
Multi-angle adjustment frame, according to the experimenter's habit of designing the adjustment mode
Large-angle, wide-angle, and macro dual lenses are designed to be quickly changed
Considering test objects of different sizes, the base plate can be detached and spliced
USB direct connection, no delay in image transmission, simple and easy to use
It can be connected to power analyzers and temperature sensors to analyze ambient temperature, Voltage, current and temperature data in multiple dimensions
High-resolution images, unique DDE enhancement algorithm for the observation of very fine objects
Professional analysis software can observe, record, and detect smaller details and richer content.
Software automatic upgrade function, which allows you to receive new versions of software at any time
You can observe the video of the full radiation flow in real time, and you can also record the full radiation flow video for offline analysis
Macro lens, which can observe the temperature change of tiny objects of φ=25um
DianYang CA-30 CA Series Thermal AnalyzerSpecifications
| LIST | VALUE |
|---|---|
| IR resolution | 384*288 |
| NETD | <50mK@25℃，f#1.0 |
| Light spectrum range | 8~14um |
| Field of view | 29.2°X21.7° |
| IFOV | 1.3mrad |
| frame rate | 25Hz |
| Focus method | manual focus |
| operating temperature | -10℃~+55℃ |
| Macro lens | support |
| temperature range | -20℃~550℃ |
| Temperature measurement method | Maximum temperature, minimum temperature, average temperature |
| Temperature measurement Accuracy | -20 ℃~ 120 ℃ is +/- 2 or +/- 2%, 120 ℃~ 550 ℃ is +/- 3% |
| Best distance measurement | （4 ~ 200）cm |
| temperature correction | automatic |
| partition emissivity correction | 0.1~ 1.0 adjustable |
| image file | Full temperature JPG thermogram (Radiometric-JPG) |
| video file | MP4 |
| Full Jet File | DYV (opens with CA Thermal Analyzer software) |
DianYang CA-30 CA Series Thermal Analyzer Packing list
machine x1, manual x1, certificate x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
