TASI /TASI TASI-604 K/J digital thermometer single channel, resolution 0.1 ℃
TASI /TASI TASI-604 digital thermometer is a single channel thermocouple digital thermometer, K or J type thermocouple are suitable, the measurement temperature range is -200 ℃~ 1370 ℃, -200 ℃~ 1050 ℃.
TASI
TASI-604
-
HANNA HI98539 Temperature Tester -20.0~80.0 ℃
$ 242.00 -
HANNA HI93532R Dual channel calibrated wide range temperature meter
$ 588.00 -
Wasites WT200-8 Intelligent 8-way Temperature Logger Linear dispersion thermometer
$ 817.00 -
Huazhike WT100P-24 multi-channel temperature Recorder, temperature Detector 24-channel Linear dispersion version
$ 669.00 -
Wasites WT200-40 Intelligent Multi-channel Temperature Recorder 40-channel Temperature Linear dispersion Recorder
$ 1501.00
Features
1. K/J type thermal coupling line selects a single group of inputs.
2. Users can choose °C or °F temperature Unit display。
3. Record the past maximum value, minimum value and its accompanying time.
4. Average value, relative reading value, reading value recovery and reading value retention function.
5. Time and relative reading value setting.
6. The Reading Range of Hi/Lo alarm buzzer and Hi/Lo reading recovery function can be set.
Place of use
Greenhouses, offices、laboratory、Environmental Studies、Climate monitoring、art gallery、department store、factory

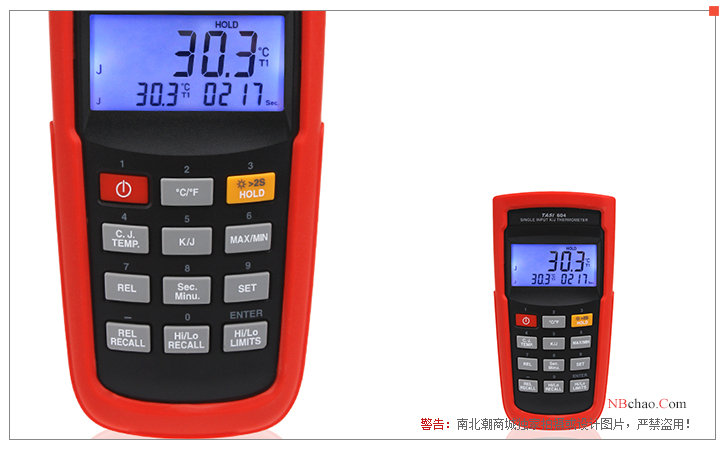

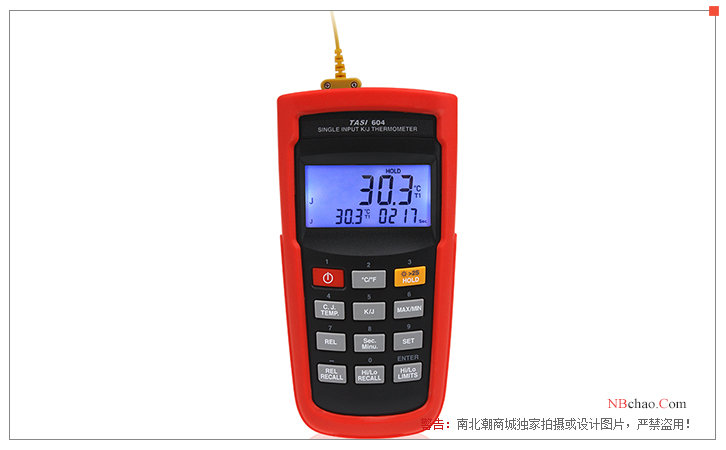

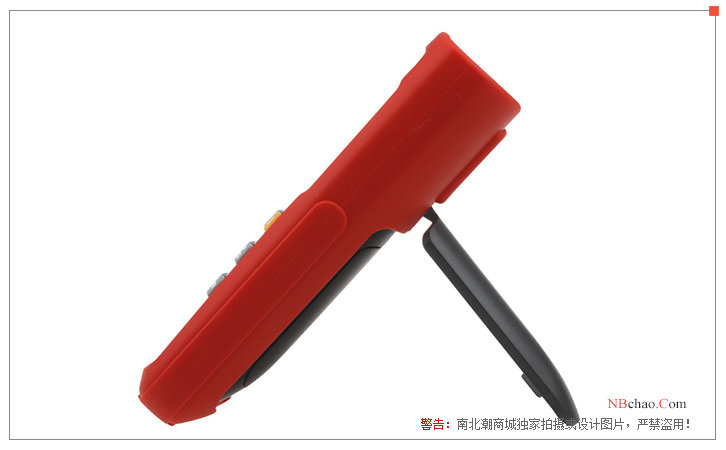

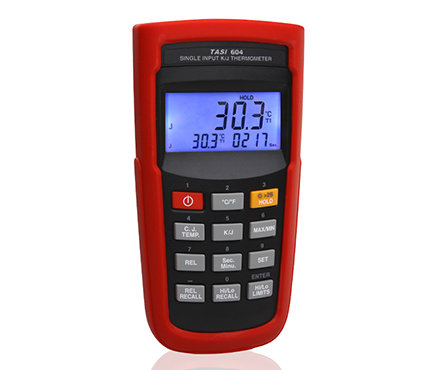

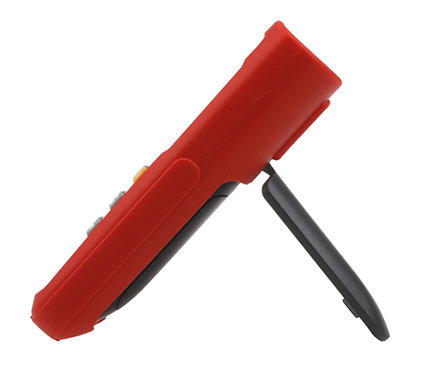

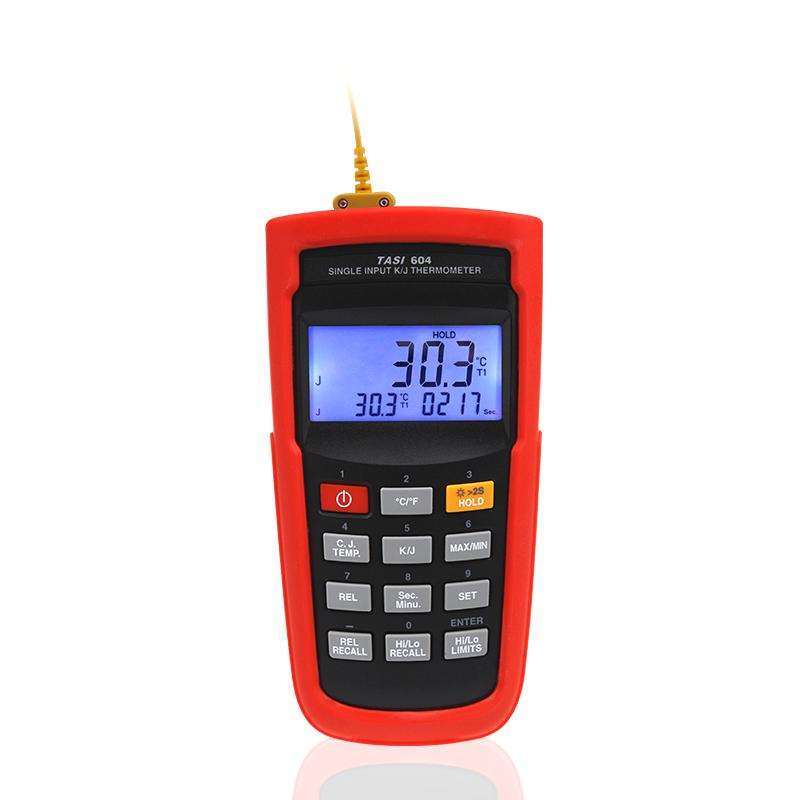

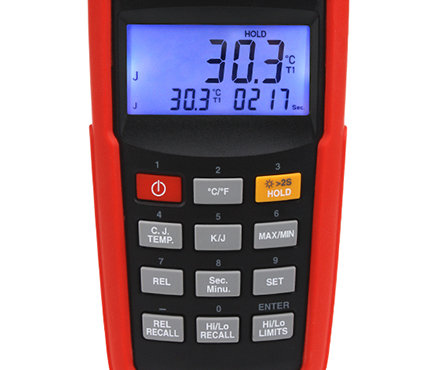

Product display diagram
TASI TASI-604 Thermocouple ThermometerSpecifications
| LIST | VALUE |
|---|---|
| Temperature Measurement Range | K：-200~1370℃；J：-200~1050℃ |
| number of channels | 1 channel |
| Accuracy | +/- (0.05% reading + 0.3 ° C) at -50 ° C~ 1370 ° C < br > +/- ( 0.05% reading + 0.7 ° C) at -50 ° C~ -200 ° C < br > +/- ( 0.05% reading + 0.6 ° F) at -58 ° F~ 2498 ° F < br > +/- ( 0.05% reading + 1.4 ° F) at -5 ° F~ -328 ° F |
| resolution | 0.1℃ |
| Low battery Voltage display | When the battery Voltage is lower than the operating Voltage ，“+ - ” display |
| sampling rate | 1 time/s |
| Accuracy test environment | 23 ℃ +/- 5 ℃, Relative Humidity < 75% R.H. |

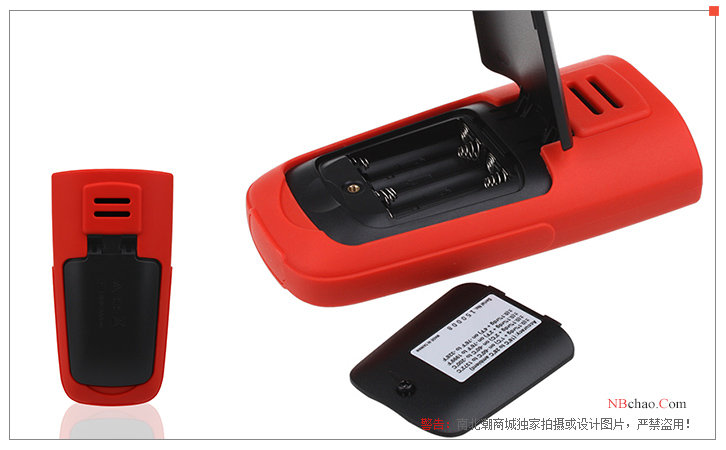

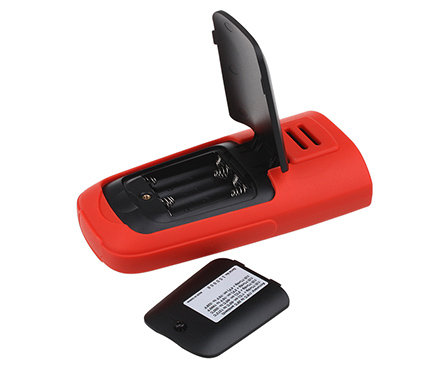

| Power Supply | Four 1.5V AA batteries |
| Allowable environment temperature | 0~50℃ |
| Storage environment | -20~60℃，0~70%R.H. |
| Dimensions | 160*83*38mm |
| Weight | About 270 grams (including batteries) |
| Annex | Manual, Thermocouple, Battery, Certificate |
| Allowable Relative Humidity | <80%R.H. |
| Allowable Relative Humidity | <80%R.H. |

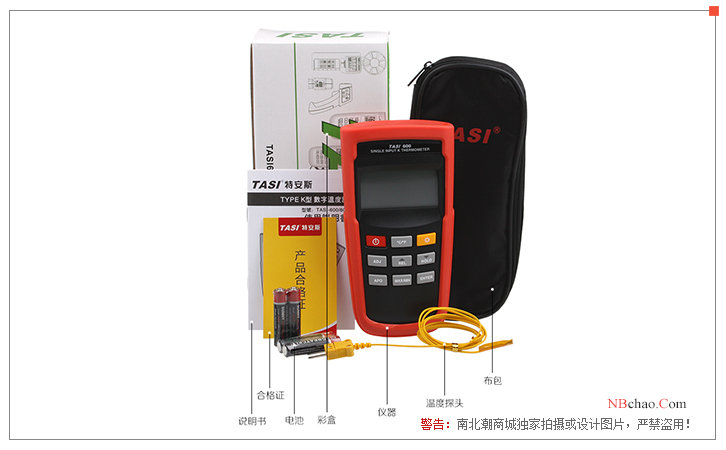

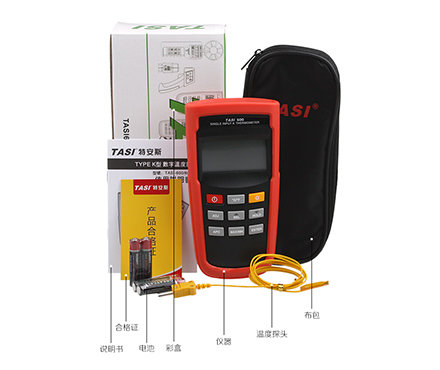

TASI TASI-604 Thermocouple Thermometer Packing list
whole machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
