HuiNuo TM3200Pro/UV Automatic Film Applicator with UV curing servo motor
Servo motor drive to achieve 1-300mm/s stepless speed regulation, equipped with +/- 0.001mm high accuracy bar Spreader and Vacuum chuck system, clamshell drawdown blade design for easy cleaning and maintenance.
HuiNuo
TM3200pro/UV
-
China TBJ-X2 Automatic Film Applicator Vacuum chuck drawdown Bar & blade Small Lab Film Applicator
$ 3024.00 -
CHINA TBJ-X5-DJ7 removable drawdown blade heating vacuum adsorption Film Coater Coating size 500 * 1000mm
$ 10642.00 -
China Laboratory Film Applicator TBJ-X3-DJ4 Heating Glue Coater hot-melt adhesive coater
$ 5045.00 -
PUSHEN AFA-V electric vacuum coater
$ 2403.00 -
HUINUO TM2200Pro/1 Vacuum adsorption scraper Automatic Film Applicator Experiment High speed coater
$ 5667.00
Product Overview:
Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.
This film coating machine is a wire rod scraper coating machine, which uses two types: wire rod and scraperCoating method with vacuum adsorption functionThe new wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, support speed control and coating length adjustment, suitable for high-precision automatic film coating in the laboratory, in university research institutes, new materials, lithium batteries, glue, hot melt glue and other laboratories for film proofing.
Product Use:
The coating machine is suitable for coatings, inks, paints, pastes, hot melt adhesives, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, etc., and can be scraped on films, cardboard, aluminum foil and copper foil.
Features

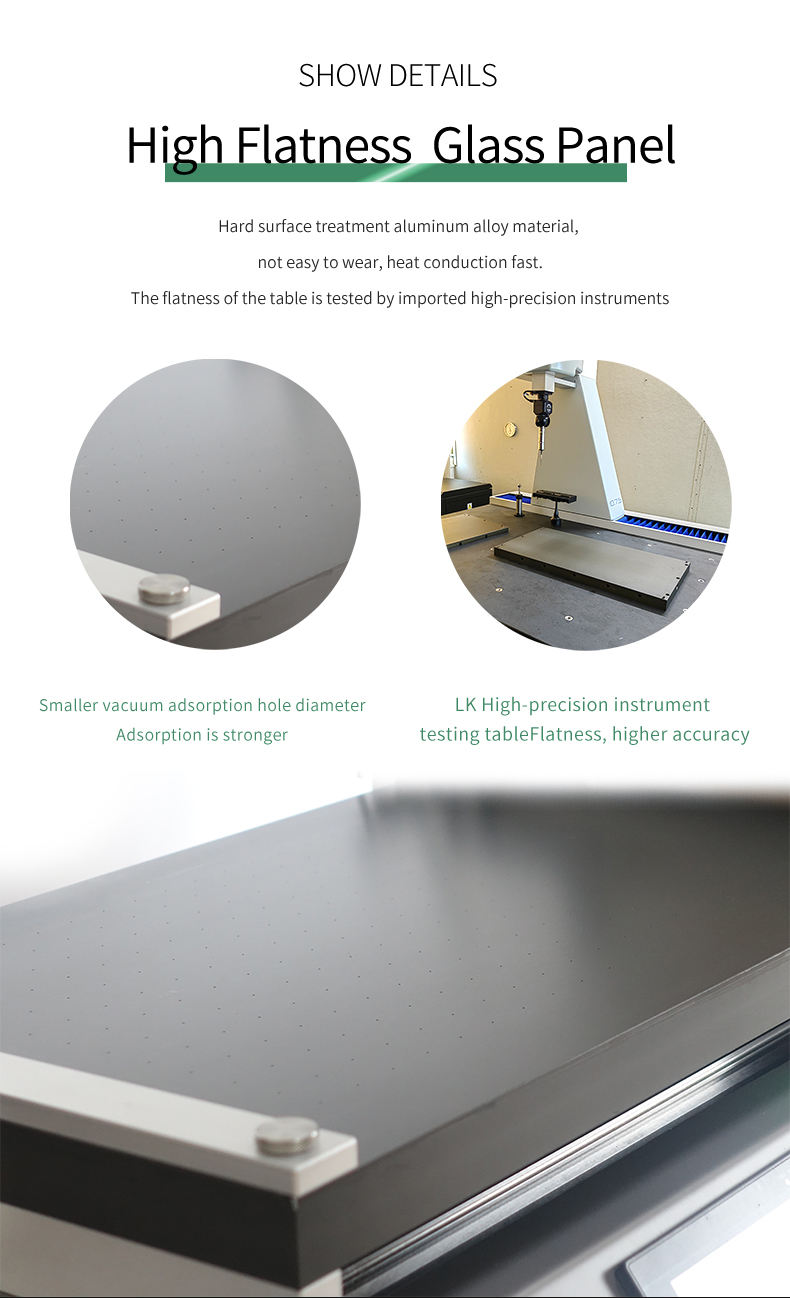

1) Surface hard treatment aluminum alloy countertop, high hardness and wear resistance, and the flatness of the countertop is tested by imported high-precision instruments
2) Big brand differential adjuster, high film thickness control accuracy

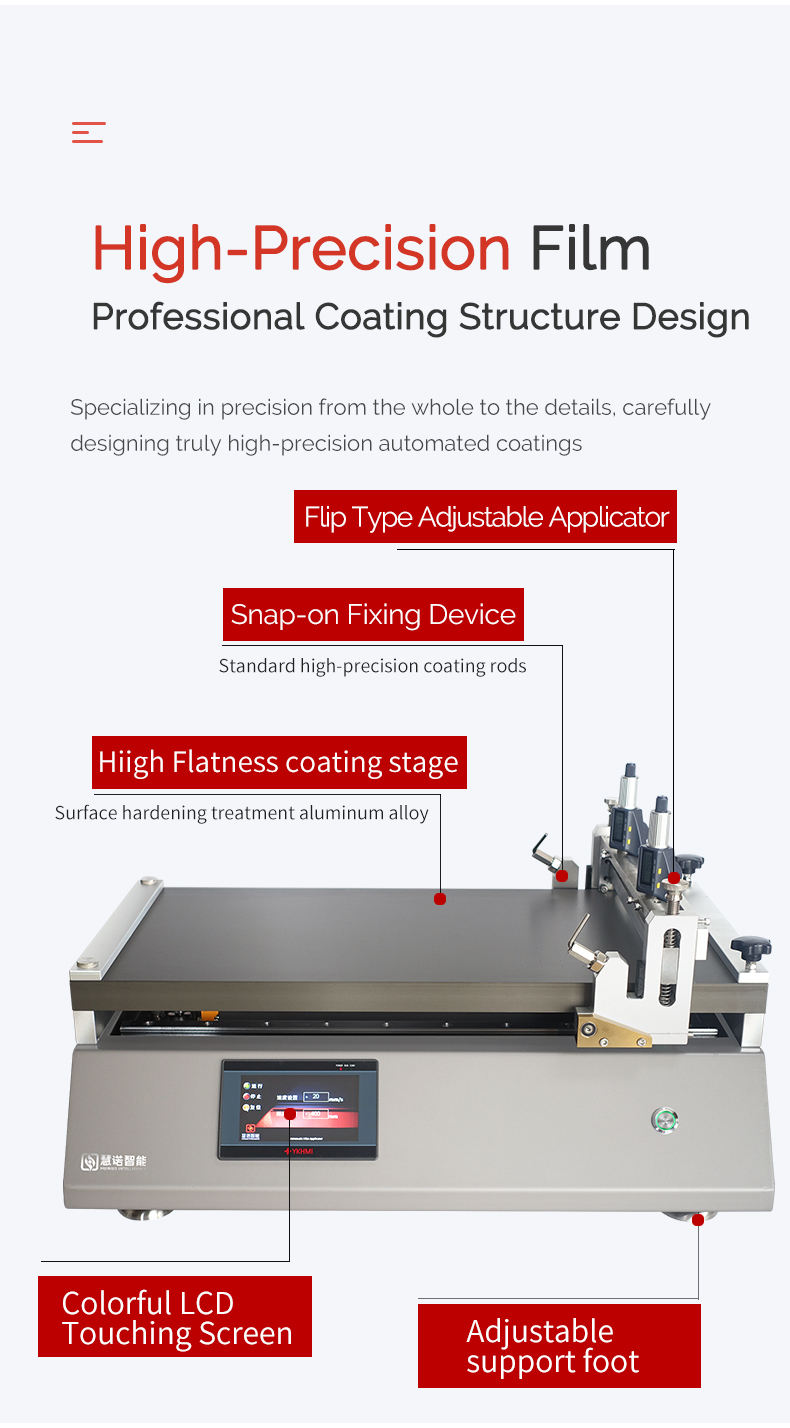

3) Clamshell scraper coating head, easy to clean
4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and high accuracy

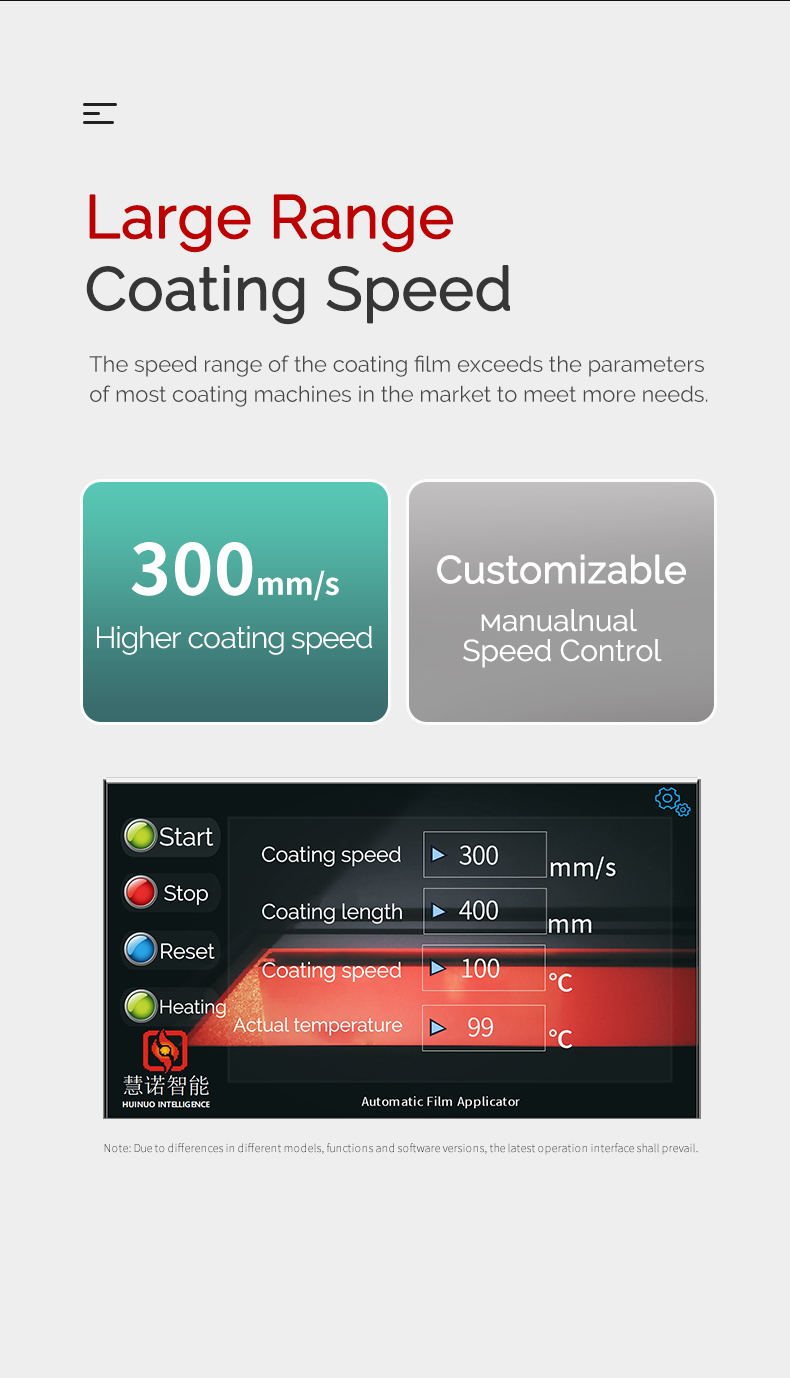

5) Touch screen control panel, easy to operate
6) The coating length and coating speed can be adjusted freely
7) With vacuum adsorption function, it is suitable for coating soft substrates such as films
HuiNuo TM3200pro/UV Automatic Film Applicator (with UV curing)Specifications
| LIST | VALUE |
|---|---|
| Coating Method | Bar + drawdown blade |
| Coating Speed | 1~ 300Mm/s stepless speed regulation (can be customized) |
| Substrate clamping method | Vacuum chuck + fixture |
| Coating table material | Surface hard treatment aluminum alloy |
| Coating table size | 600*300mm |
| Effective coating Area | 400 * 300Mm (can be customized) |
| Meyer rod coating thickness Range | Different bar numbers Film thickness is different, with high Accuracy imported bar |
| Meyer rod coating Accuracy | ±0.001mm |
| Drawdown blade Spreader Film thickness range | 0.1~ 10Mm (clamshell design is easy to clean) |
| Drawdown blade material | Die steel |
| Drawdown blade Spreader width | 300mm |
| Drawdown blade Spreader Accuracy | ±0.003mm |
| Vacuum chuck size | 480 * 260Mm (can be customized) |
| Vacuum Aperture | Φ0.8mm |
| Vacuum hole pitch | 20*20mm |
| Drive motor | Servo motor |
| Vacuumpump pumping rate | 5.4m3/h |
| Ultimate Vacuum | 50KPa |
| Vacuumpump power | 180W |
| Vacuumpump Weight | 7.1kg |
| power | 600w |
| Curing method | UV UV curing |
| UV curing area | 400*300mm |
| UV light main peak wave | 365nm |
| UV light power | 400*2W |
| UV light curing wavelength | 350-450nm |
| switch | Aviation plug/separate switch |
| Light source spacing | 18*18mm |
| Light type | LED |
| Lamp board height from coating table | 20Mm (support customized adjustable height) |
| Display | Color LCD touch badge |
| power | 400w |
| operating language | Chinese (can be customized in English) |
| Display | Color LCD touch screen |
| Host Power Supply | 220V/50HZ (can be customized 110V/60HZ) |
| Dimensions | 658 * 438 * 400mm (subject to actual customization) |
HuiNuo TM3200pro/UV Automatic Film Applicator (with UV curing) Packing list
Host X1, manual X1, drawdown blade x1, imported bar X1, UV UV curing device x1, certificate X1, Vacuumpump X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
